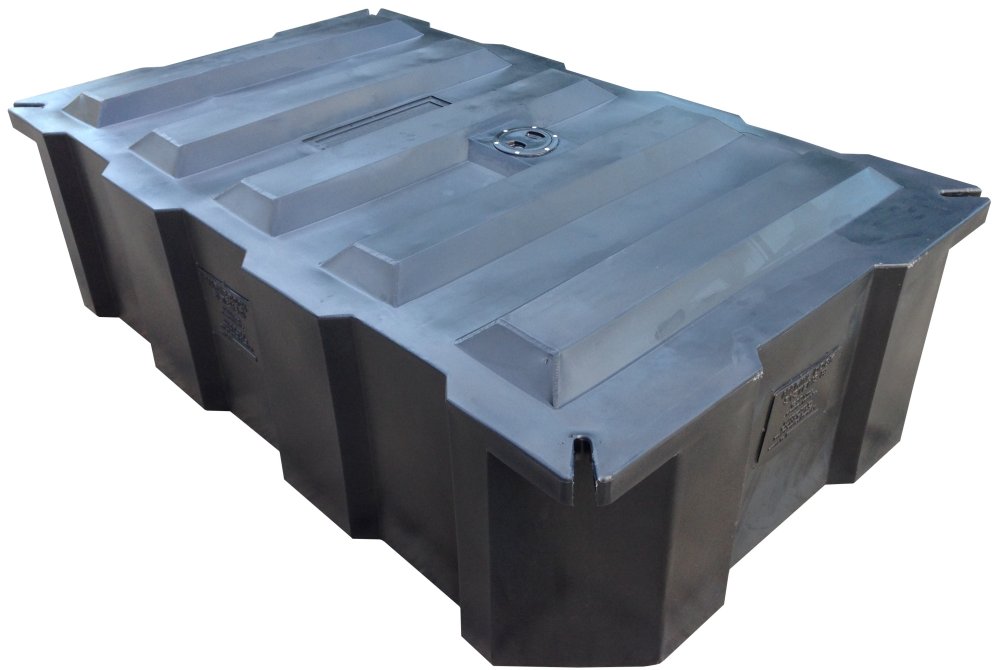

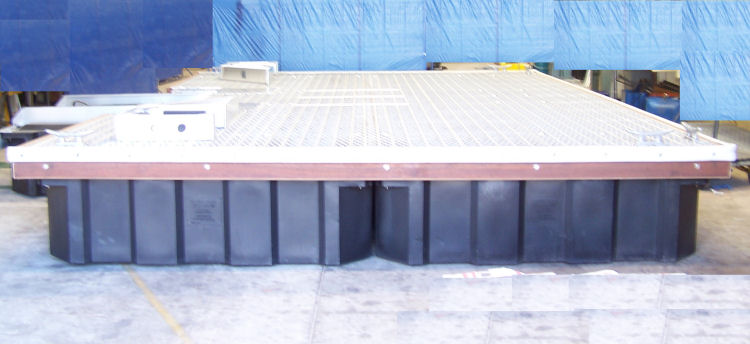

1200 LITRE FLOTATION MODULE
The 1200 Litre Flotation Module was designed for commercial applications and large residential docks. The modules are very stable and have inbuilt horizontal lugs for assembly to framework. The modules are instrisically very stable and have inbuilt horizontal lugs for assembly to framework with fasteners. Floats can be filled with water or concrete to add ballast to increase stability. Ballast can also be used to raise and lower the float for different freeboard requirements. Floats can also be foam filled for extra security if required.
2000mm Long x 1200mm wide x 520 deep
62 kg each

Large Detailed Drawings

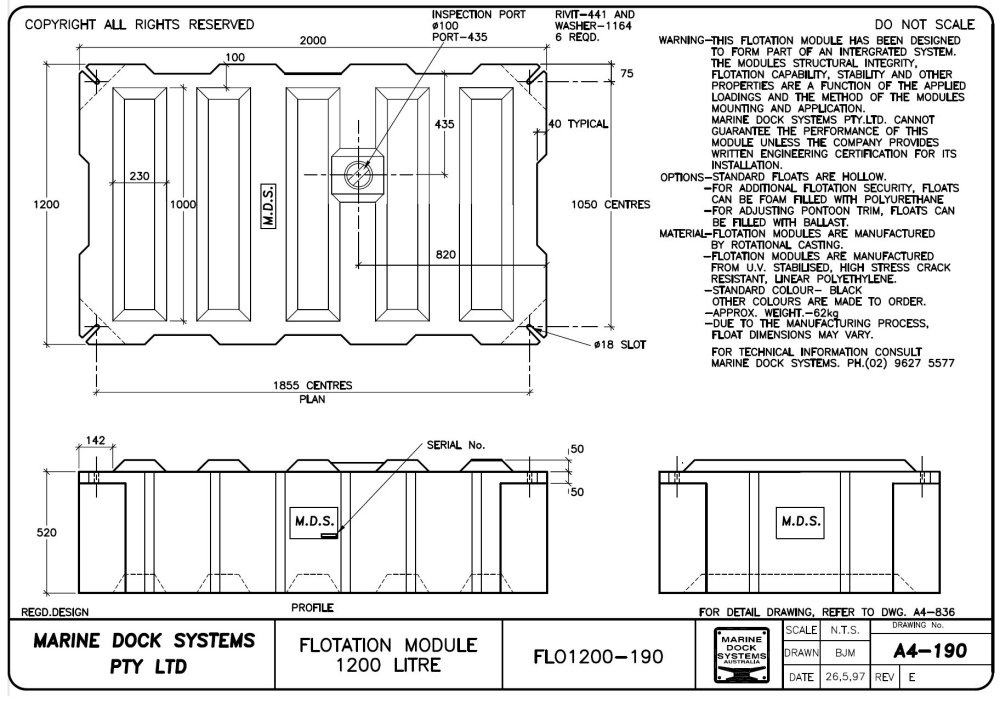

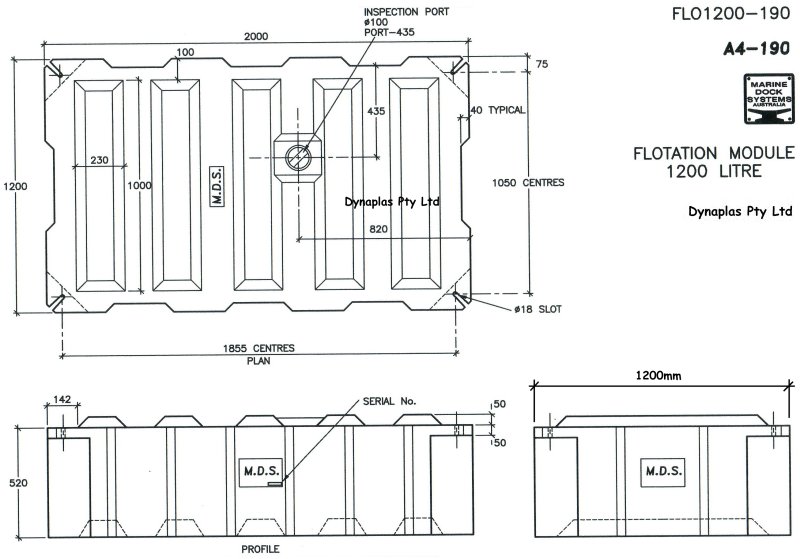

a4-0190 - 1200 Litre float
a4-0190 - 1200 Litre float

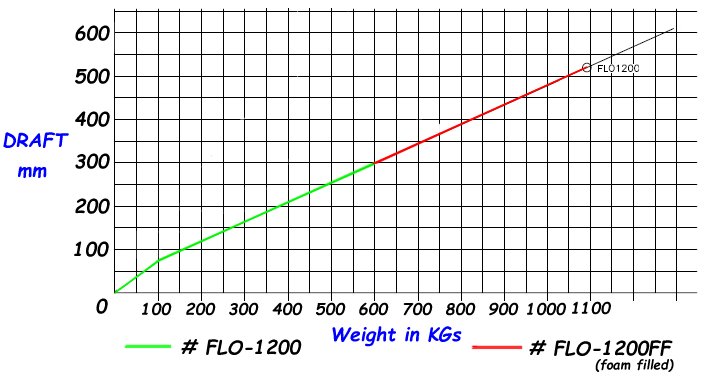

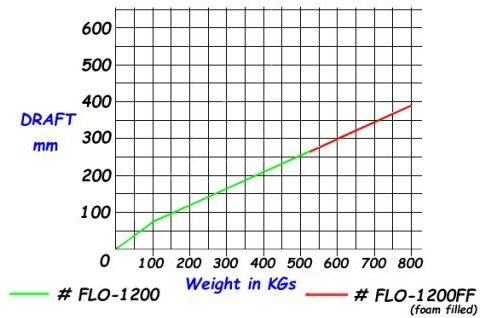

Hrdrostatic graph

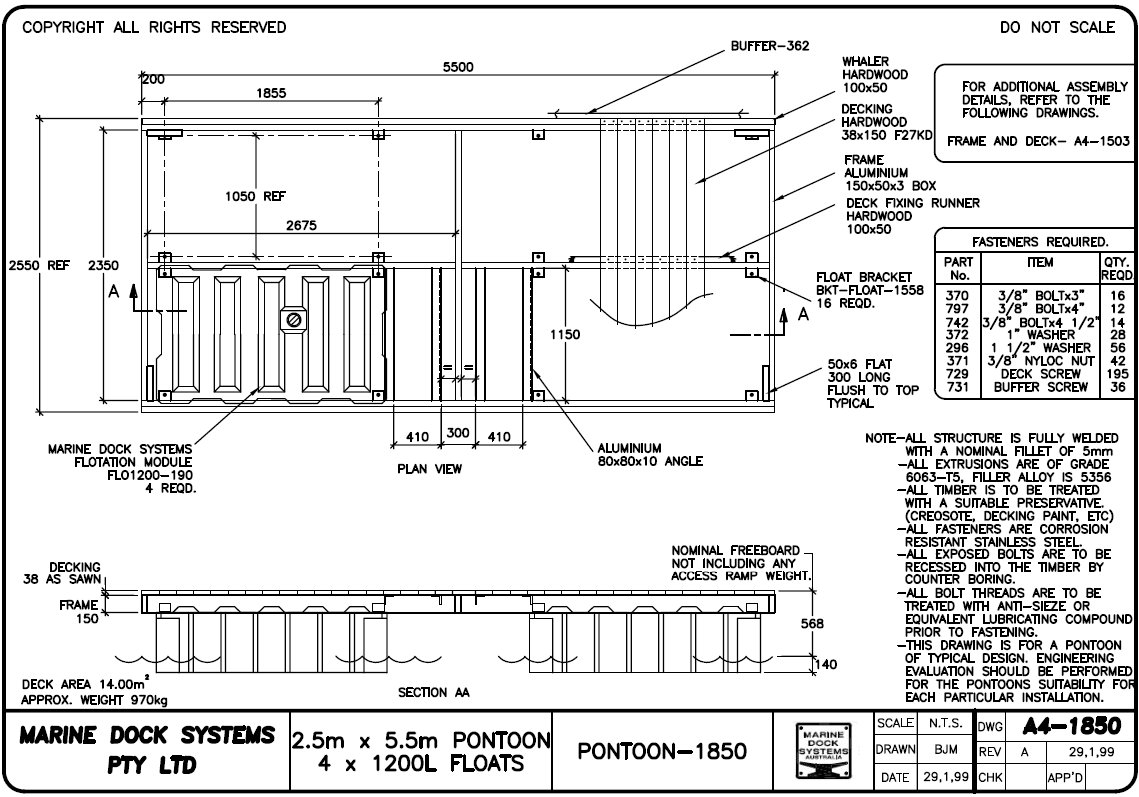

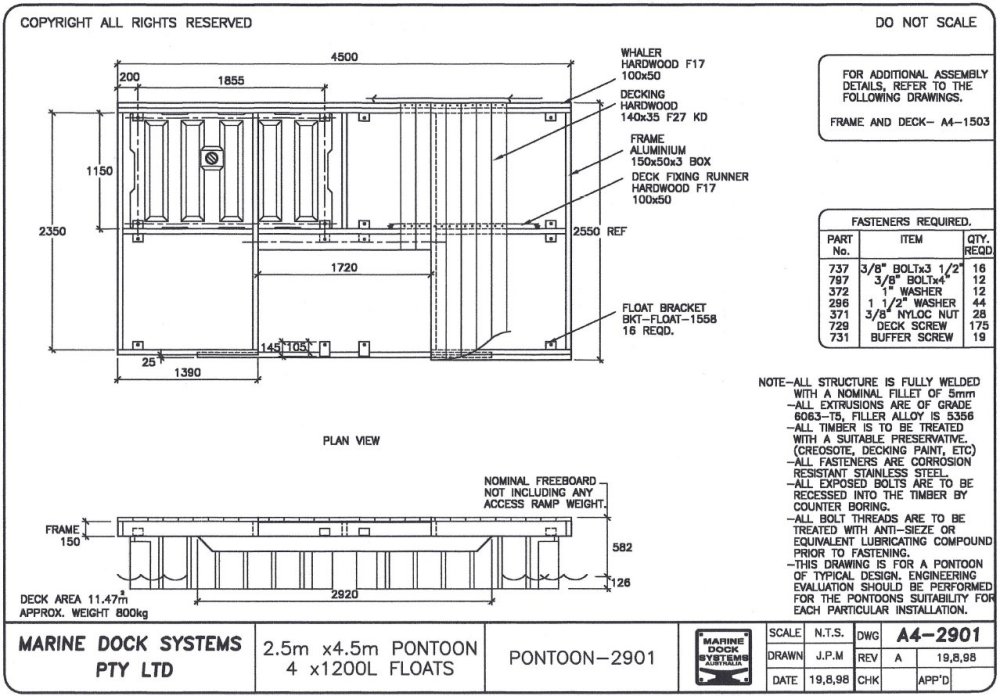

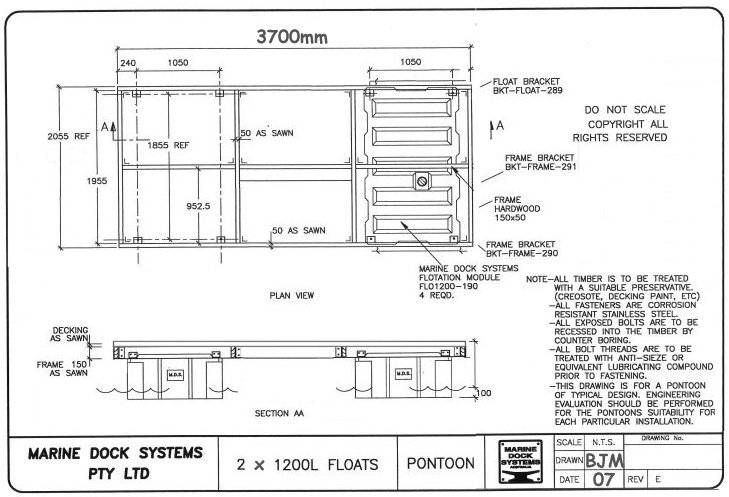

Pontoon 3.7m x 2.1m Timber Frame

Pontoon 3.7m x 2.1m Timber Frame and deck
Pontoon 4.2 x 2.4 mtr Alloy Frame


Pontoon 4.5 x 2.5 mtr Timber Frame

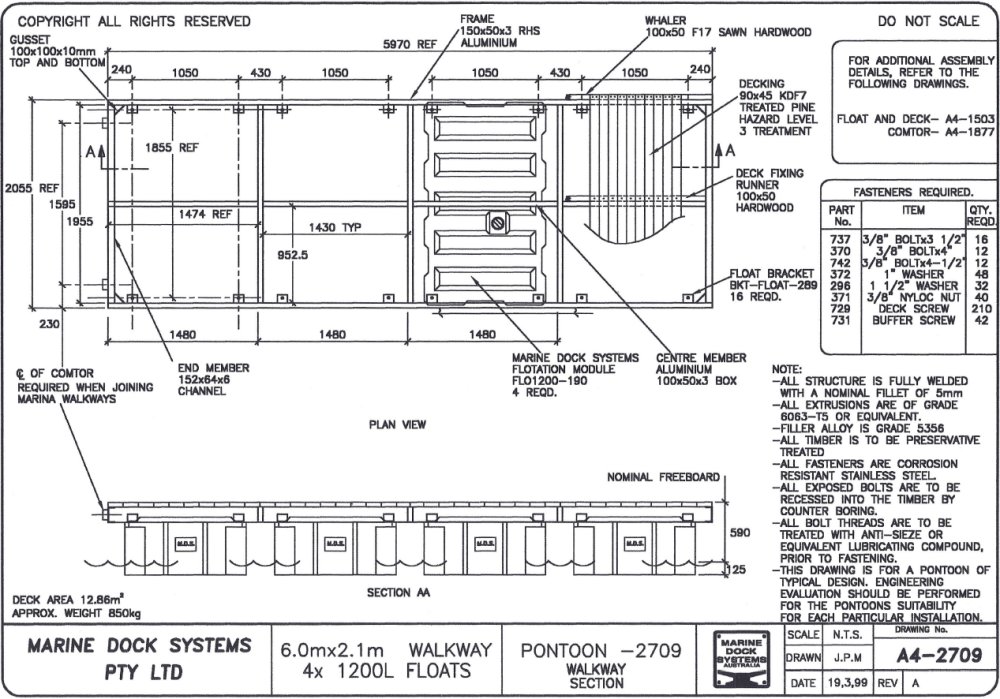

A4-2719 - Pontoon 4.5 mtr x 2.45 Timber Frame and Deck
Pontoon 4.5m x 3 mtr Alloy Frame

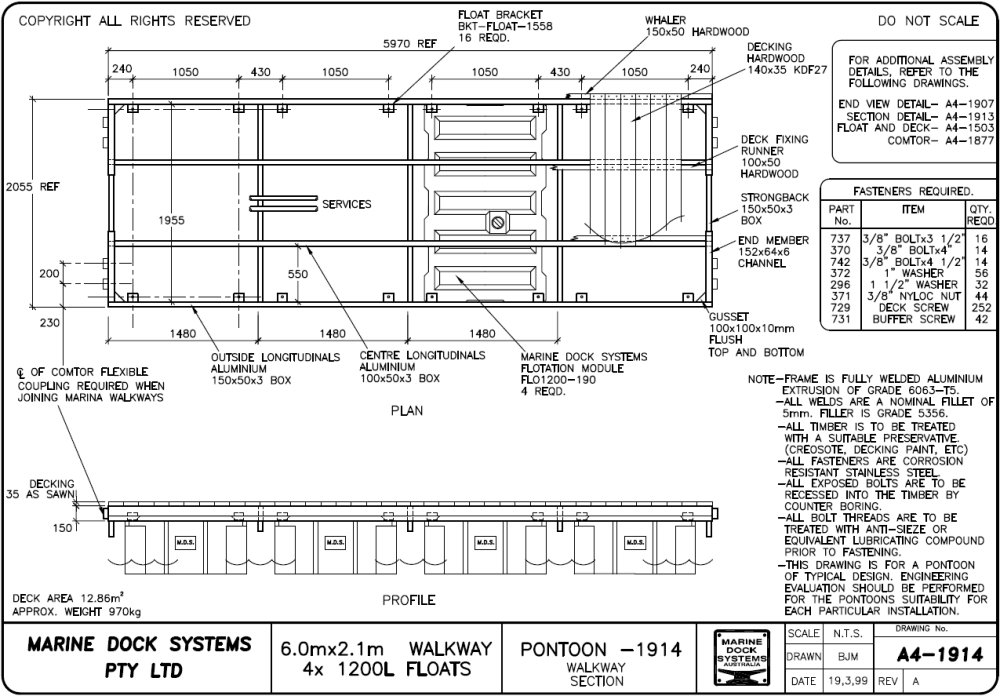

Pontoon 6 x 2 mtr Timber Frame

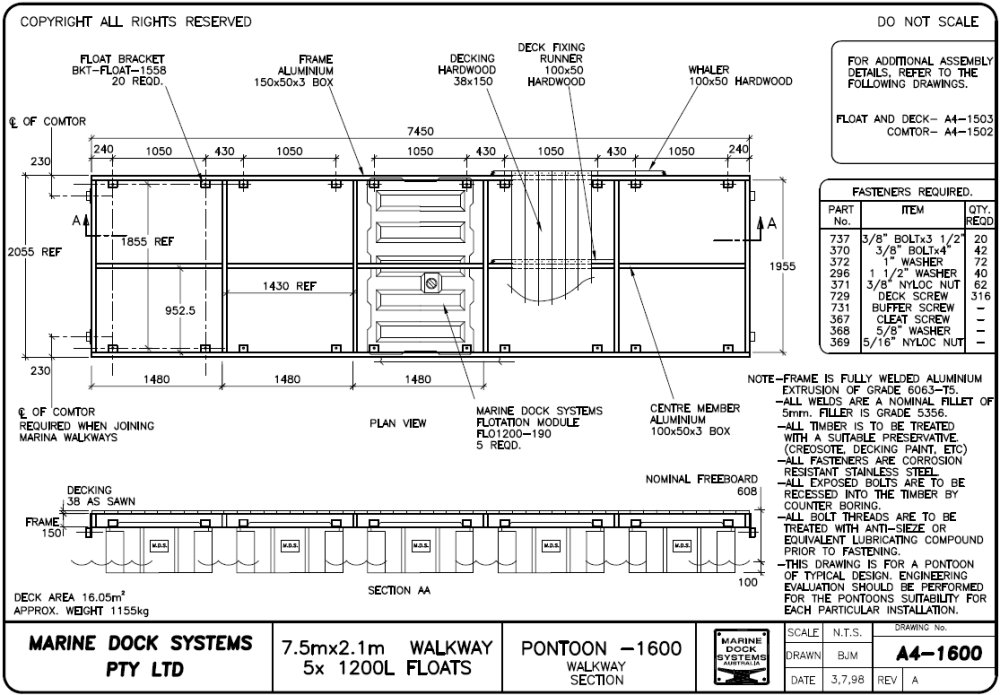

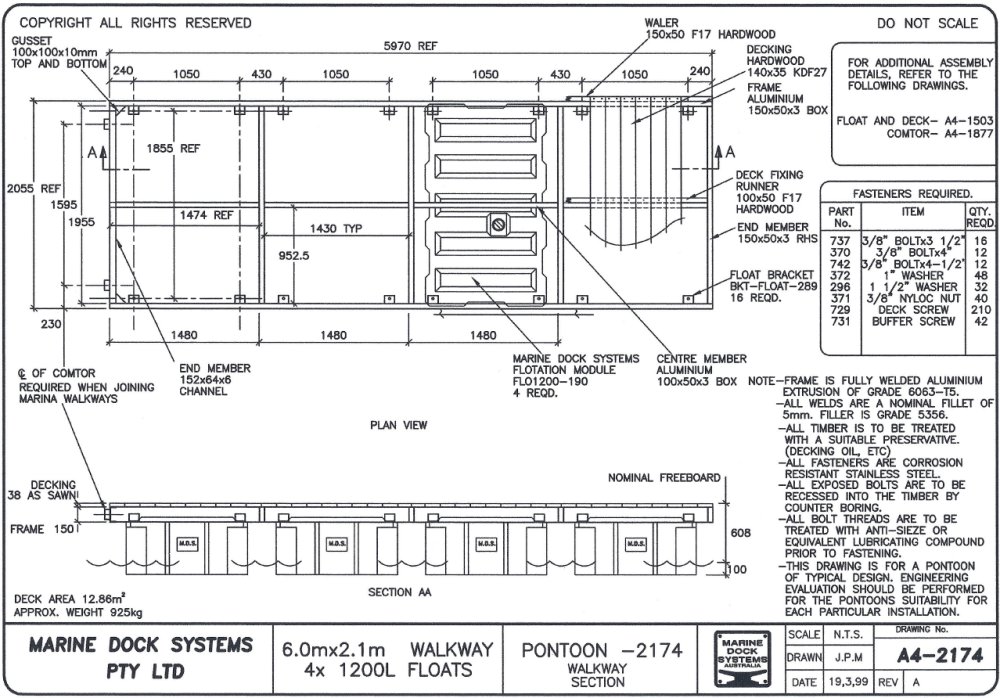

A4-0311 - Pontoon 6m x 2m Timber main walkway
Pontoon 6 x 2.05 mtr Alloy Frame

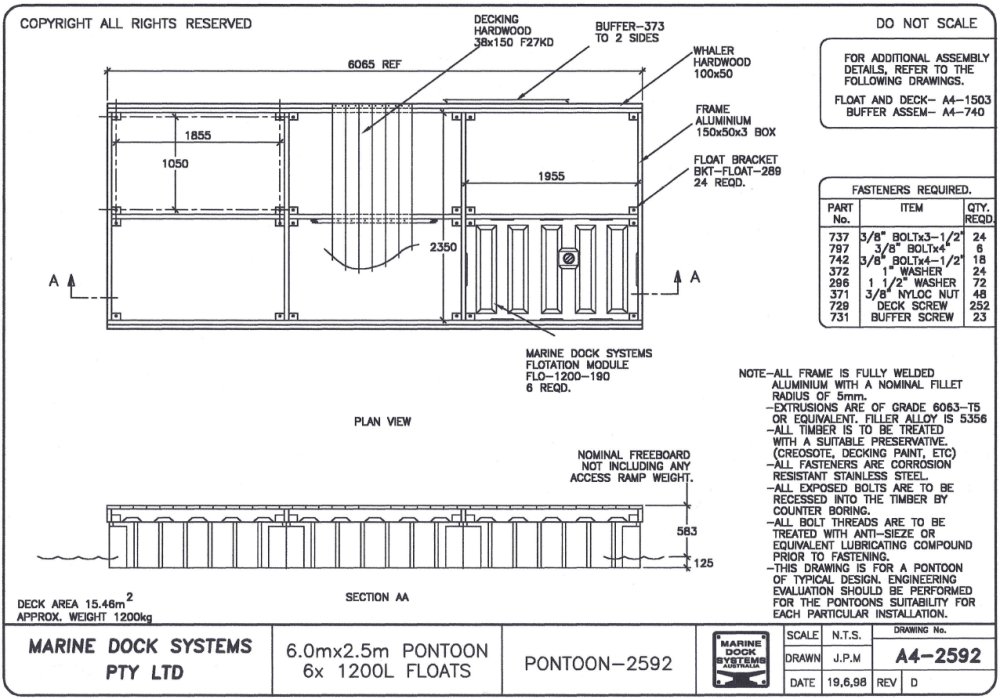

A4-1489 Pontoon 6m x 2.05m alloy frame timber deck

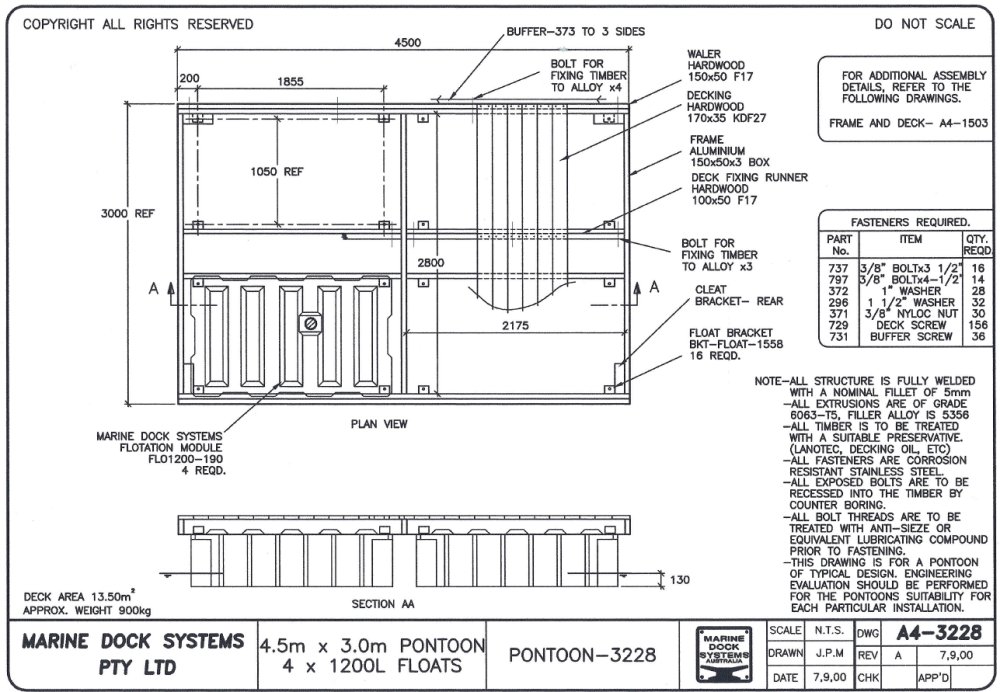

Pontoon 4.5 x 3.1 mtr Timber Frame

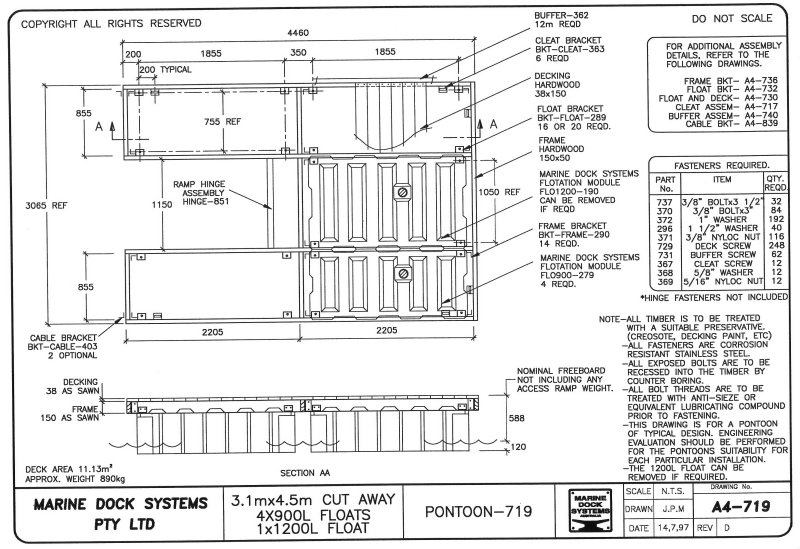

A4-0719 - Pontoon 4.5 mtr 3.1 mtr ramp cut out

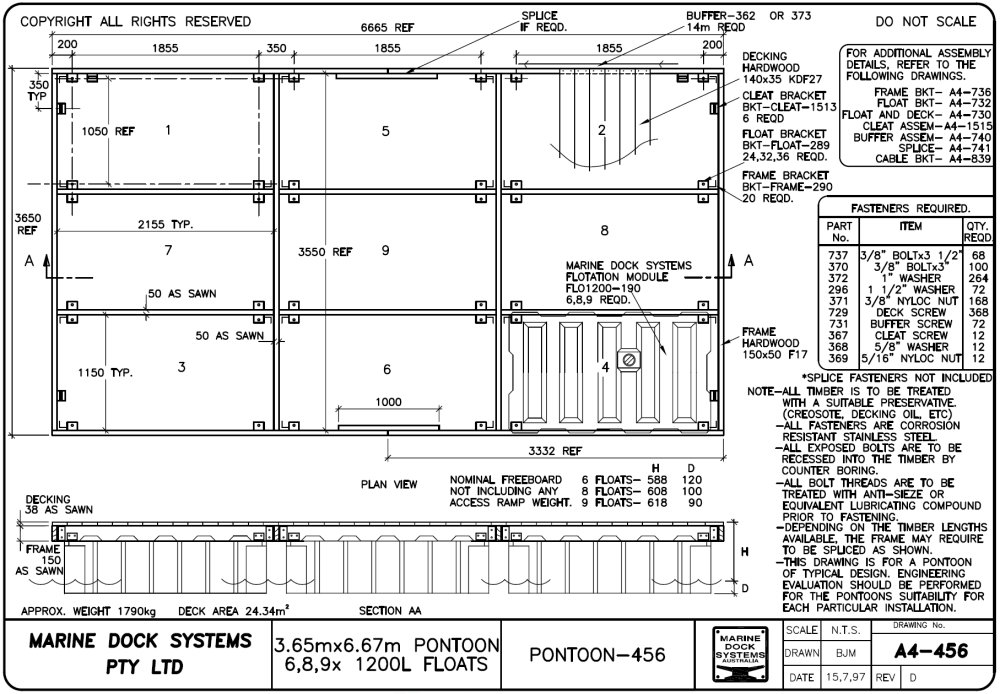

Pontoon 6.7 x 3.6 mtr Alloy Frame

A4-0456 Pontoon 6.7m x 3.6m alloy frame timber deck

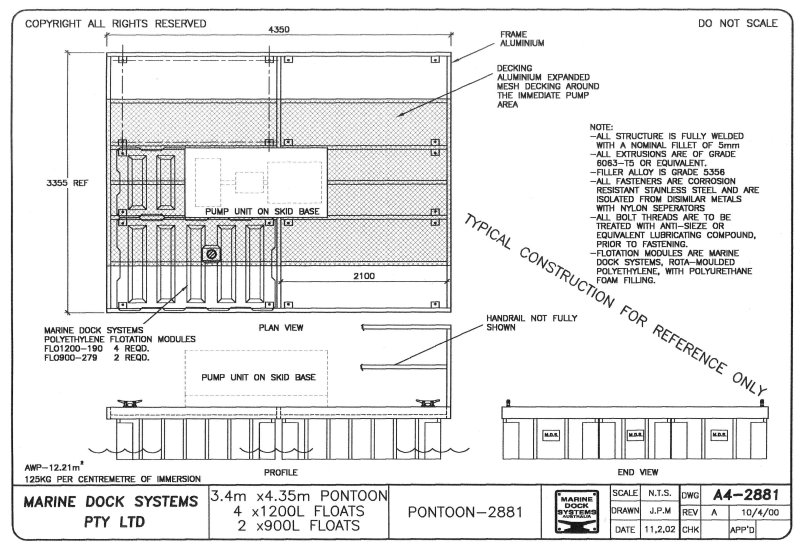

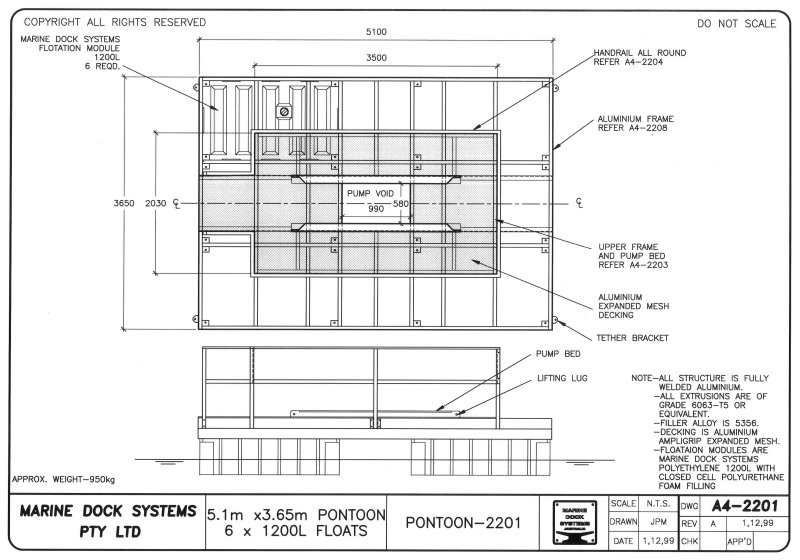

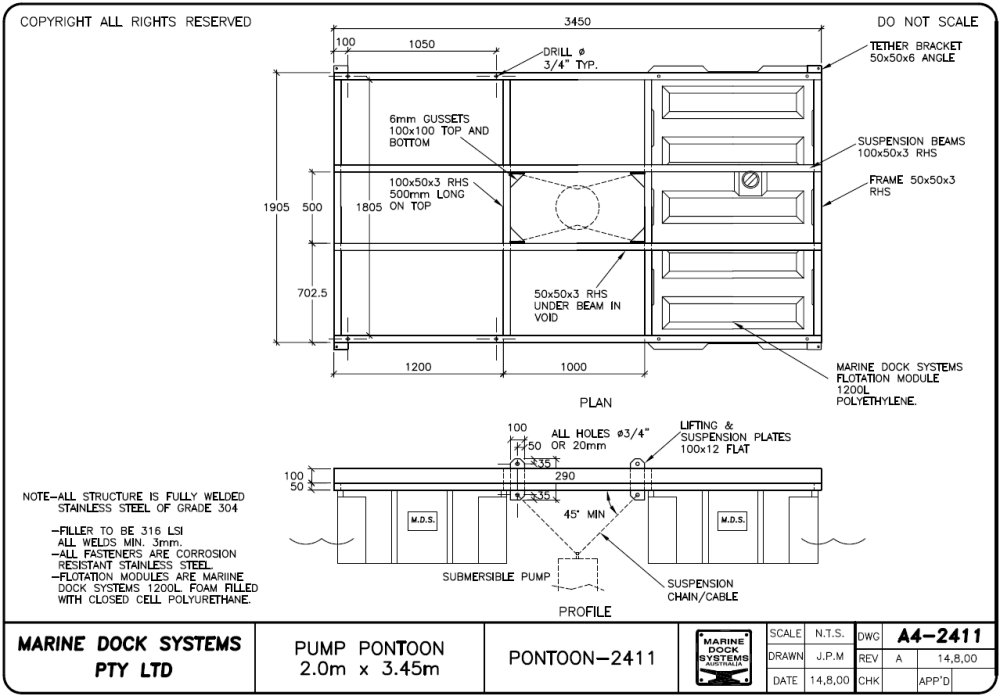

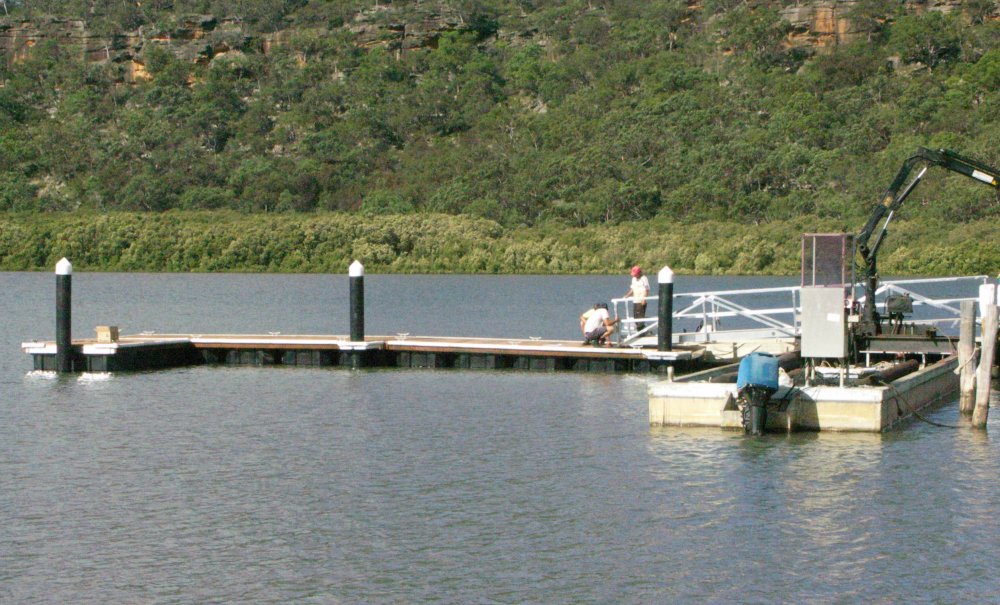

Industrial Pump Work Platform

Pontoon 6 x 2.05 mtr Alloy Frame


Pontoon 4.45 x 3 mtr Timber Frame

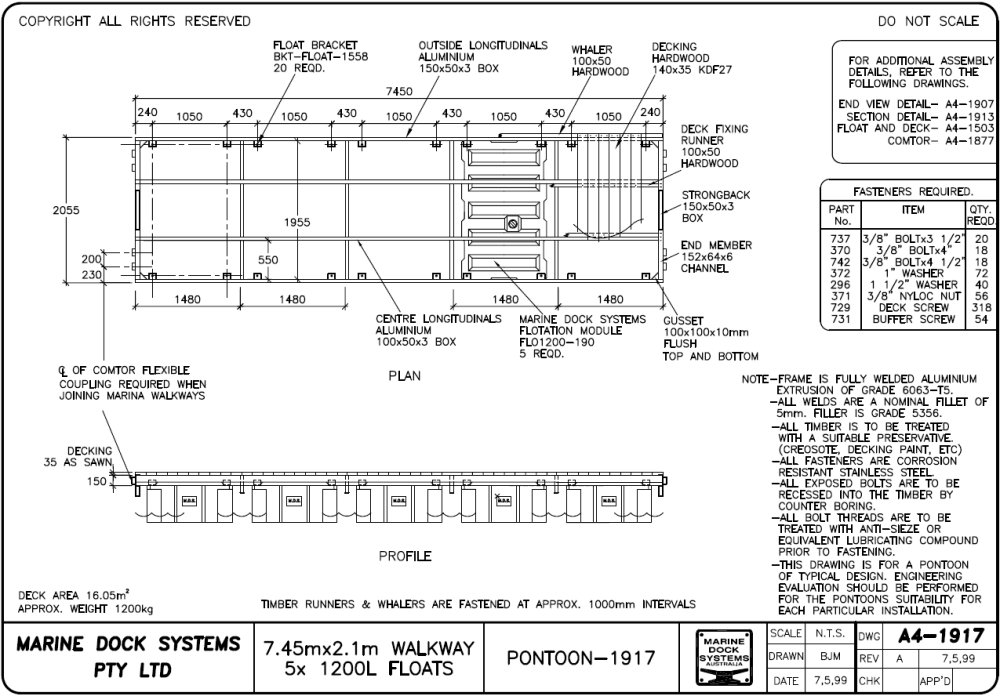

Pontoon 7.45 x 2 mtr Alloy Frame


Pontoon 4.45m x 3 mtr Timber Frame

Pontoon 7.45 x 2.05 mtr Alloy Frame


Pontoon 5.5m x 2.5 mtr Alloy Frame

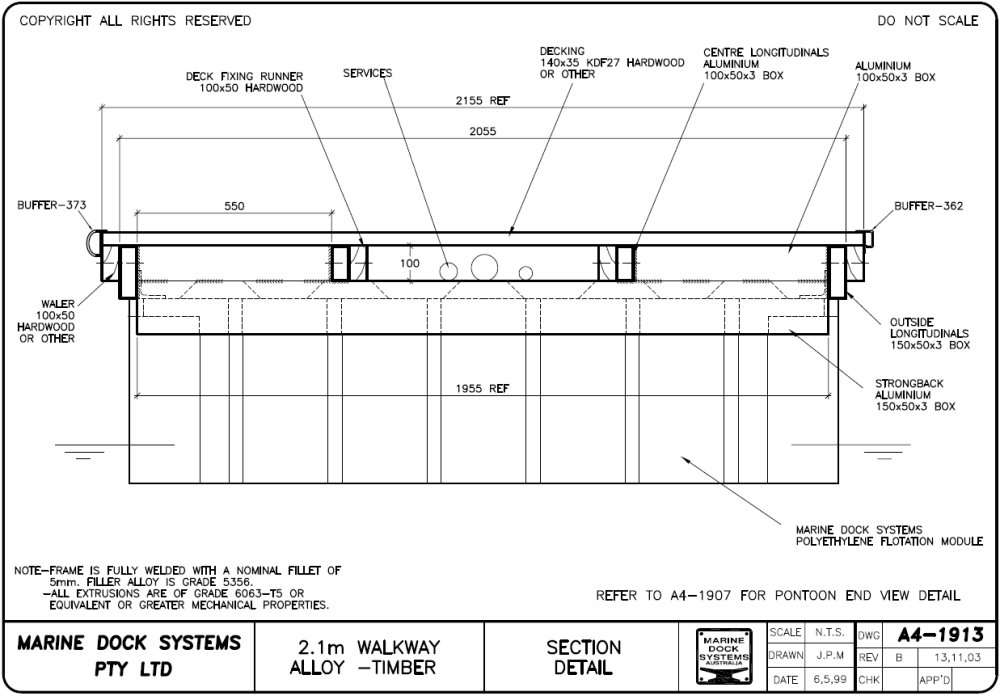

Pontoon Main Walkway 2.1 wide


Pontoon 8.9 x 2 mtr Alloy Frame

Pontoon 6m x 2 mtr Alloy Frame


Pontoon 7.45m x 2 mtr Alloy Frame

Pontoon 6 x 2 mtr Alloy Frame


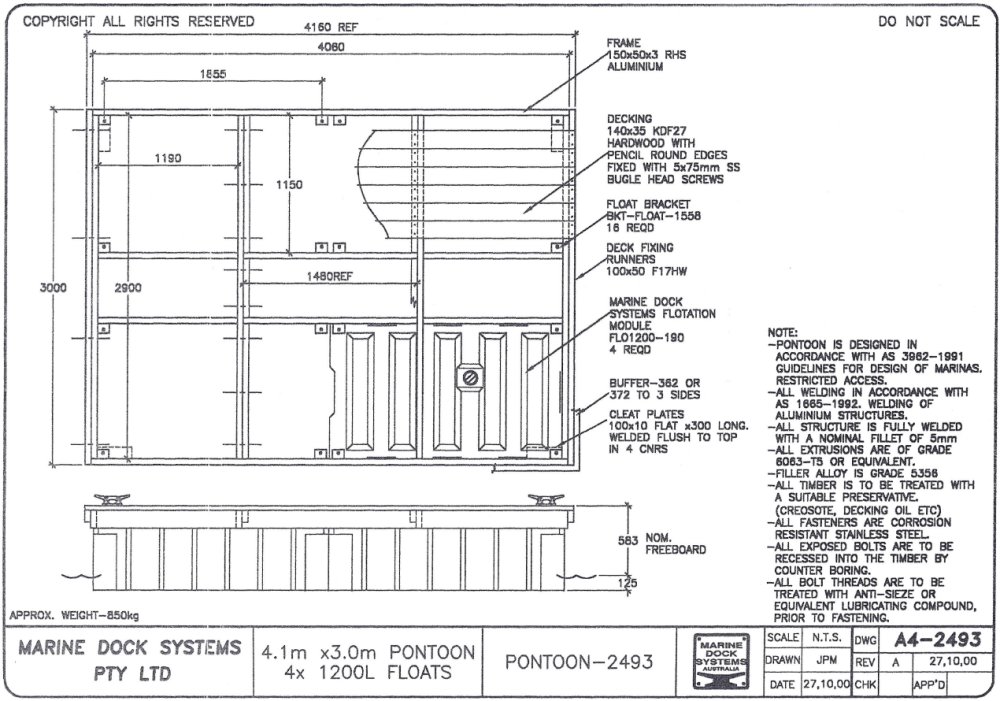

Pontoon 4.1m x 3 mtr Alloy Frame

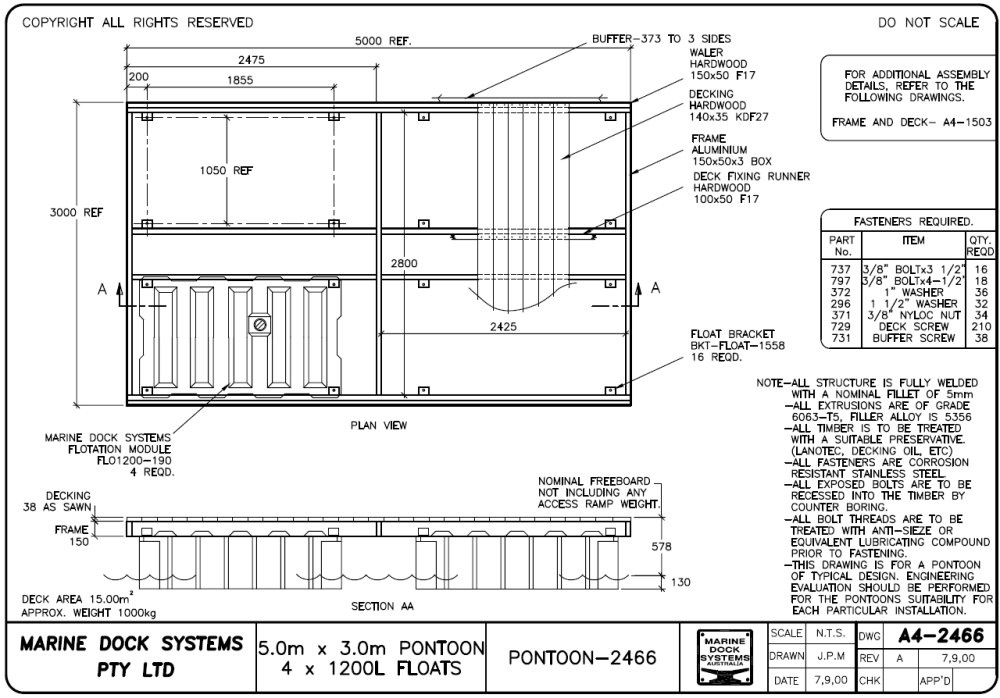

Pontoon 5m x 3 mtr Alloy Frame


Pontoon 6m x 2.5 mtr Alloy Frame

Pontoon 6m x 2 mtr Alloy Frame

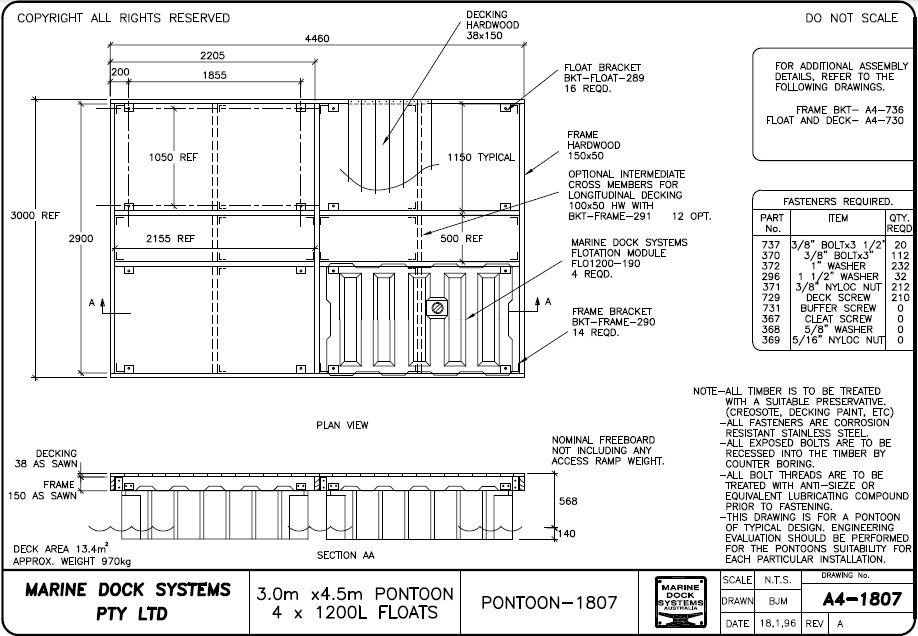

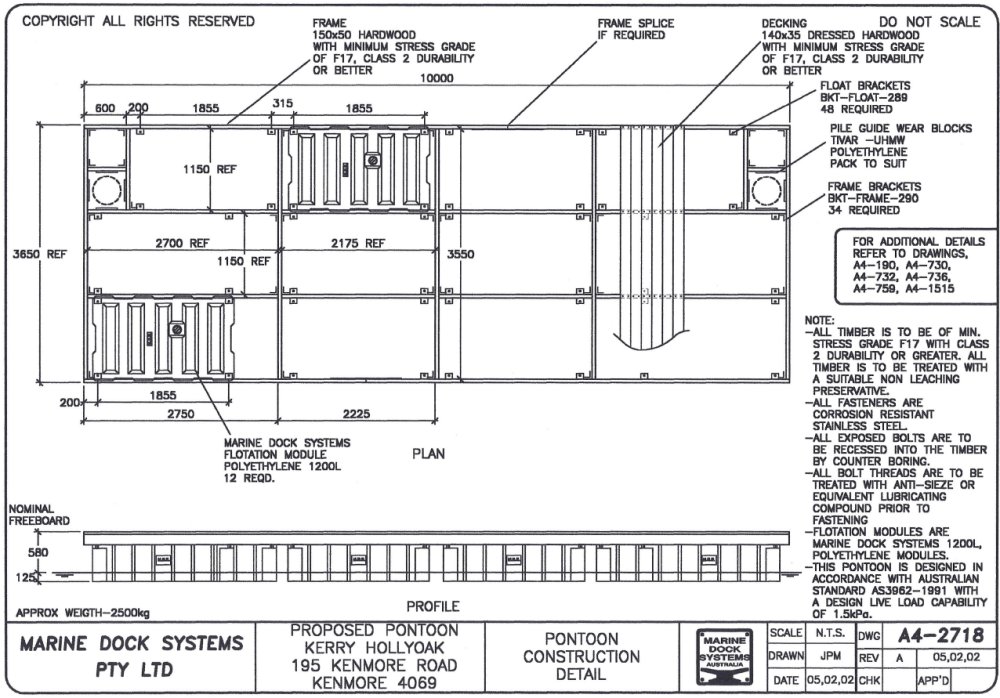

Pontoon 10 x 3.7 Timber Frame

Pontoon 4.5 x 2.5 mtr Alloy Frame

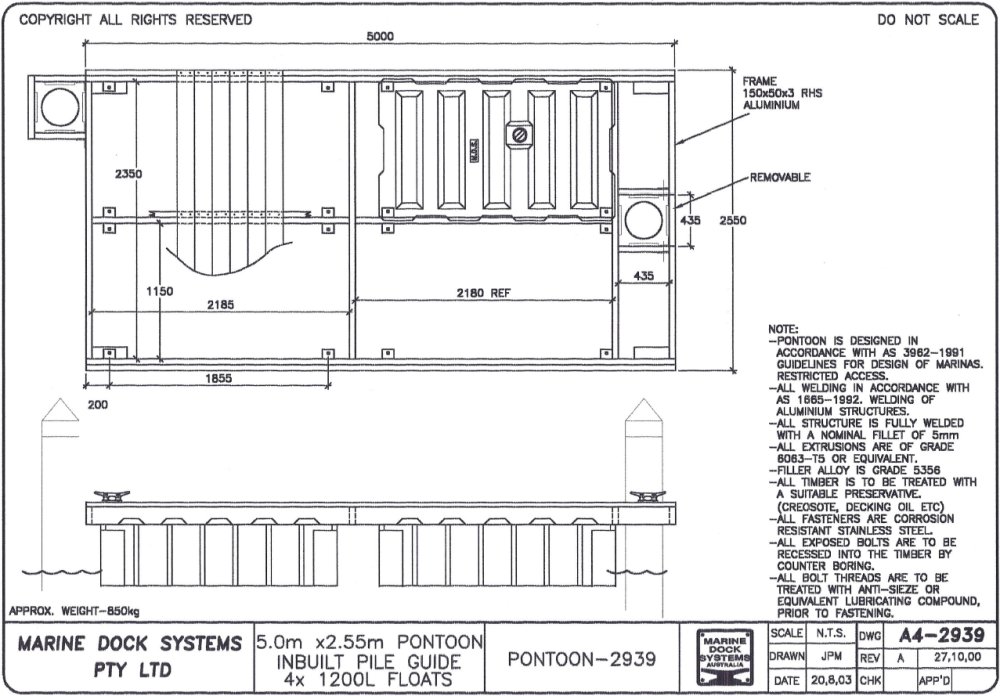

Pontoon 5 x 2.55 mtr Alloy Frame

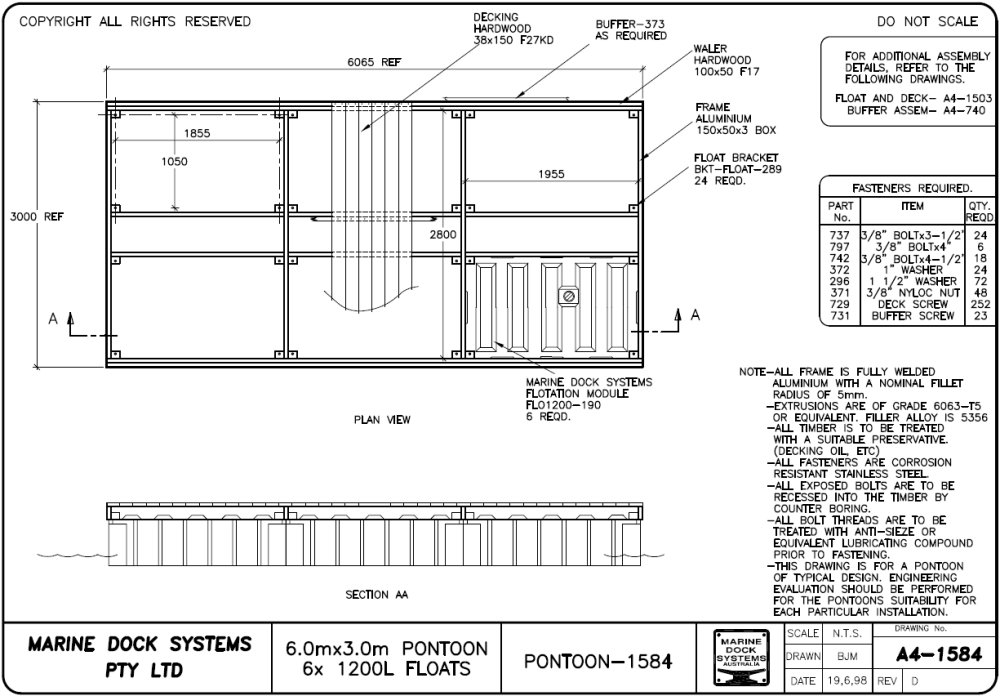

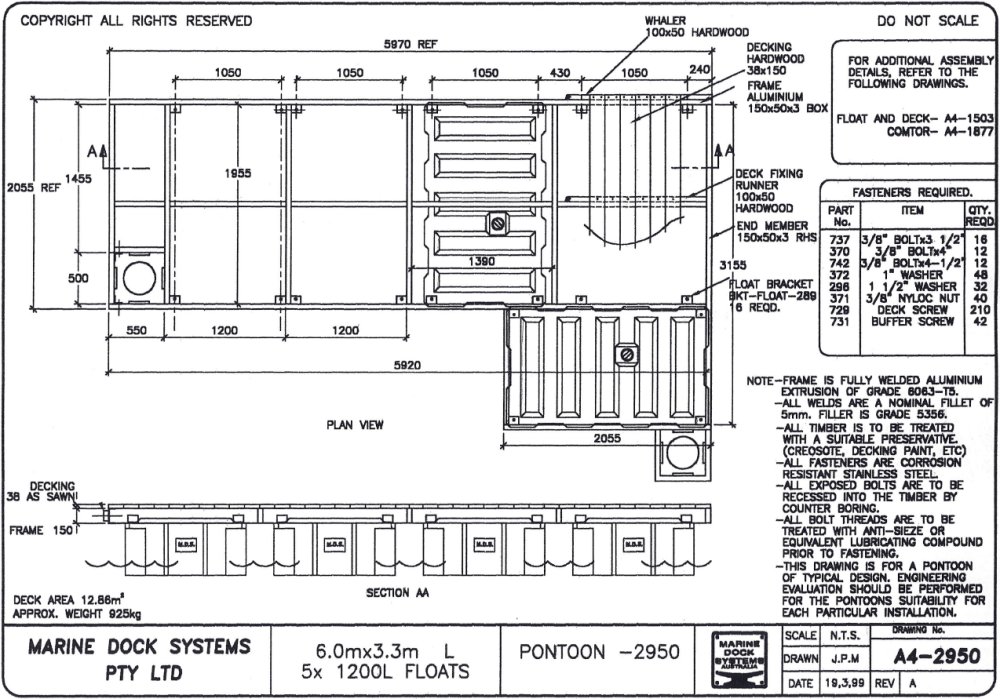

Pontoon 6 x 3.3 mtr Alloy Frame


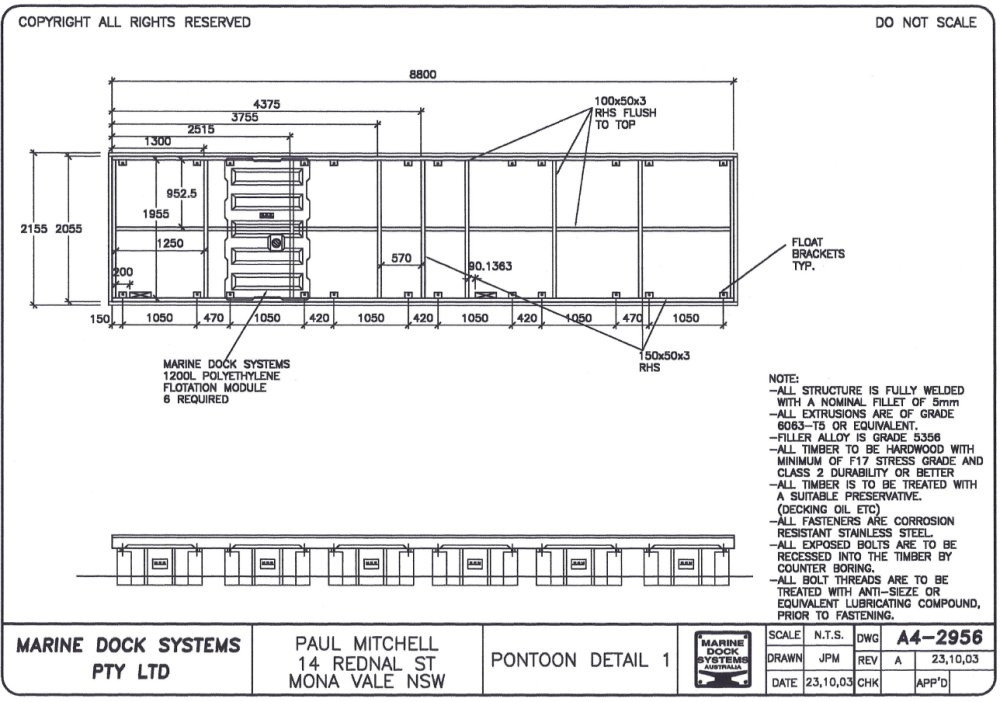

Pontoon 8.8 x 2.2 mtr Alloy Frame

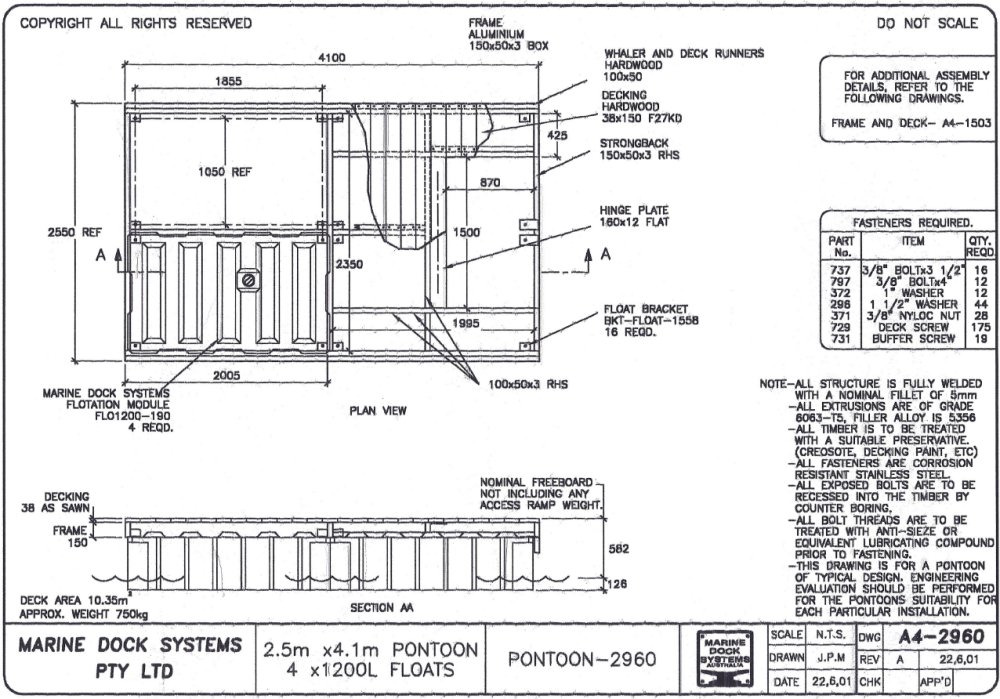

Pontoon 4.1m x 2.55 mtr Alloy Frame

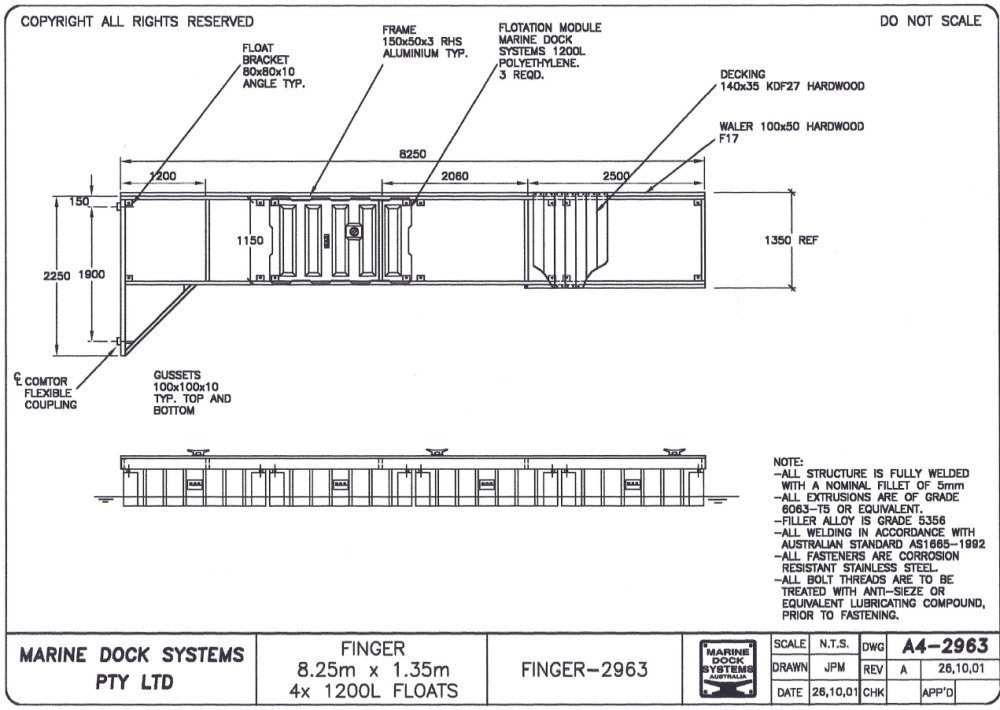

Pontoon 8.25 x 1.35 mtr Alloy Frame

Pontoon 6 x 1.25 mtr Alloy Frame


Pontoon 9 x 2.4 mtr Alloy Frame

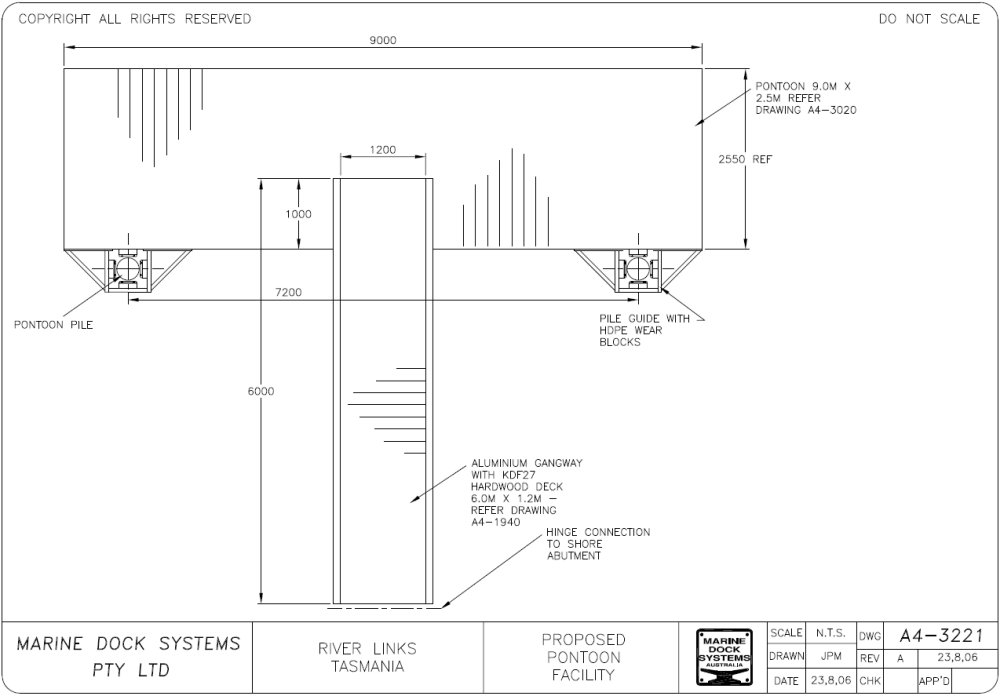

Pontoon 9 x 2.5 mtr Lay Out

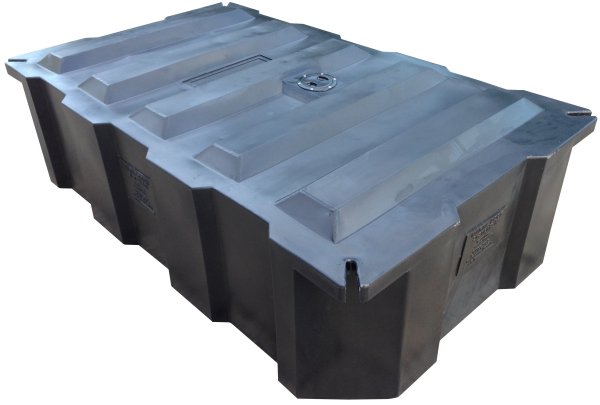

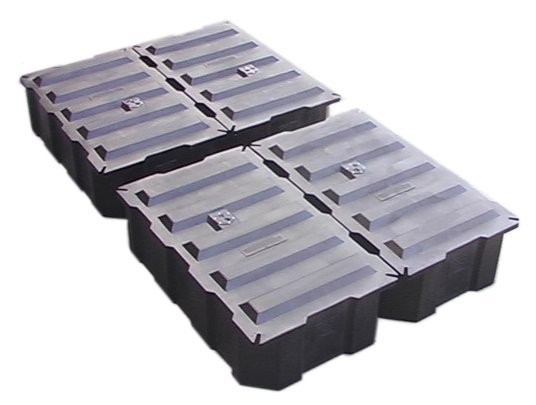

1200 LITRE
POLYETHYLENE FLOAT

2000mm Long x 1200mm Wide x 570mm deep. 62kg each. manufactured using rotational moulding method, made from liner low density polyethylene.

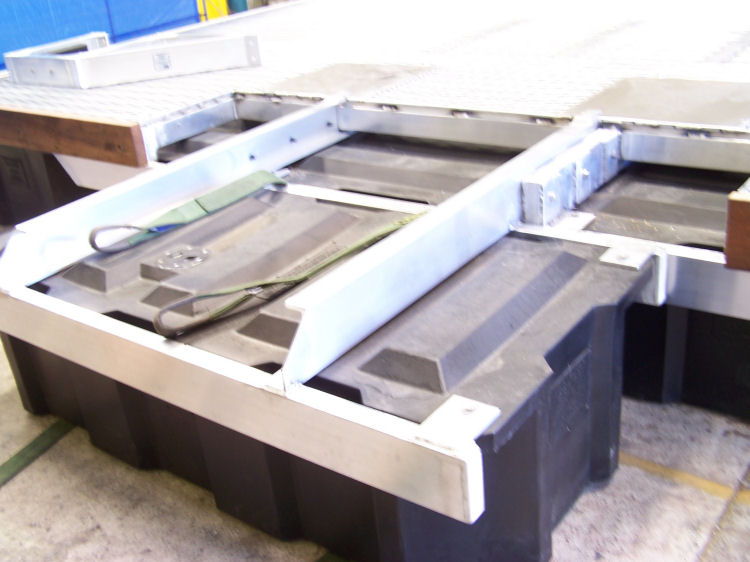

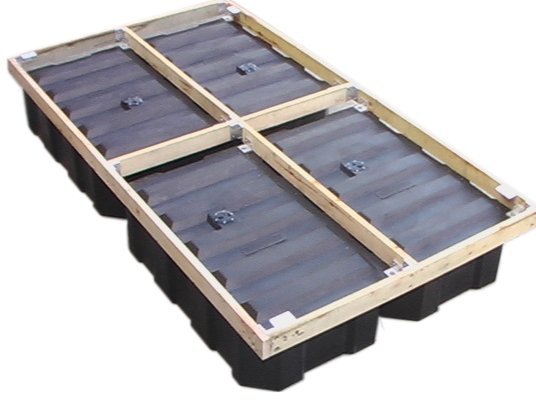

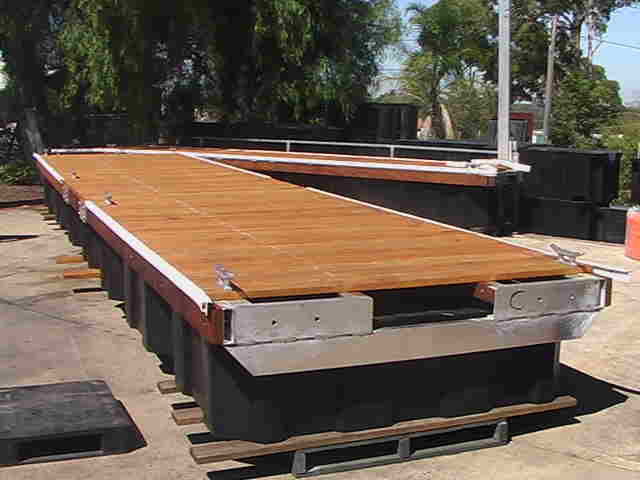

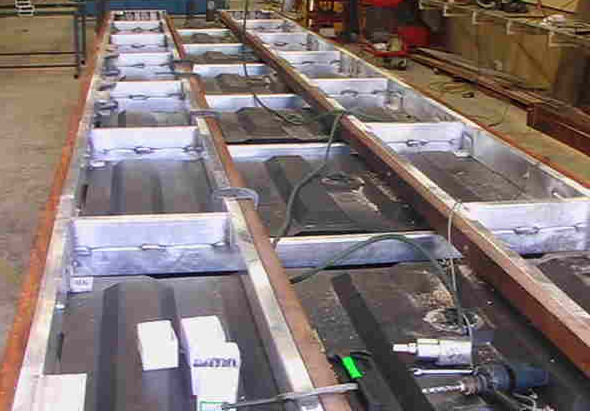

Build Your Own Pontoon, Marina or Ramp
Marine Dock Systems designs has pontoon kits so that you can build your own pontoon. Many different kits are available. You can purchase the full kit or just the parts you want. All kits come with easy to read drawings and our staff are happy to answer any questions. All you need is one of our kits, a few tools, a spare weekend and maybe a case of beer.

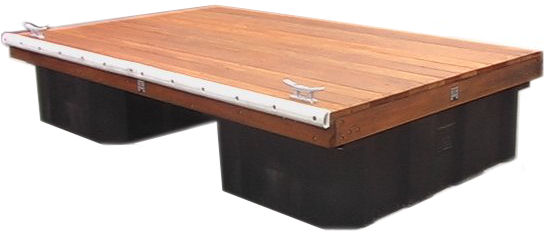

Residential pontoon 3.7 mtr x 2.46 mtr
Part # PONTOON-330
Including 4 x 650 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides.
Floats only $2060 + GST
Floats and Hardware $3240 + GST
Floats, Hardware and Timber $4250 + GST
Fully Built $5210 + GST

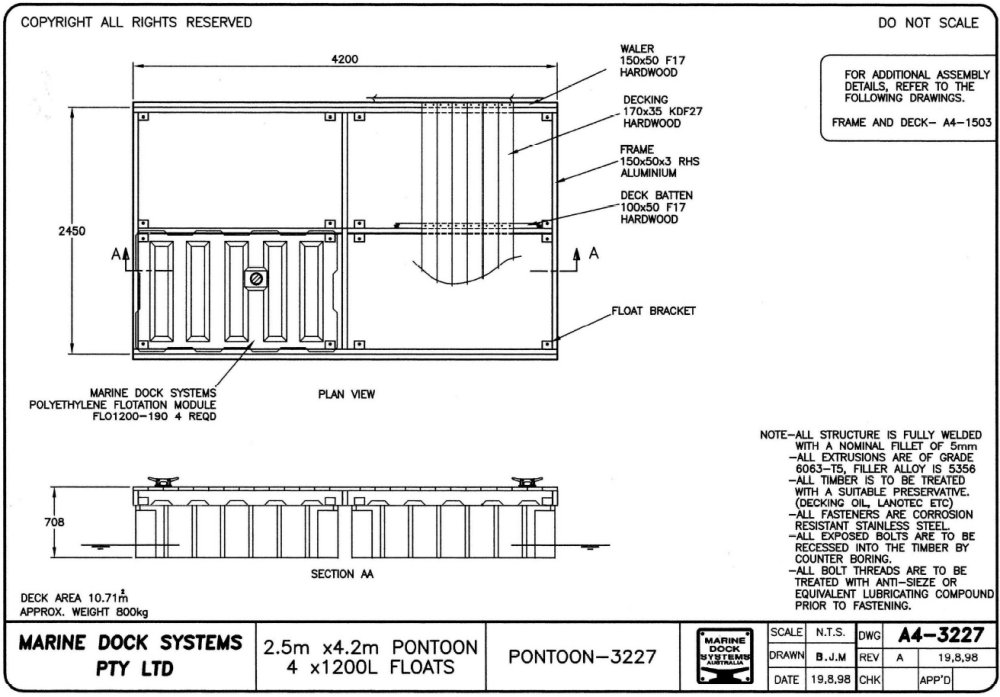

a4-330 Residential pontoon 3.7 mtr x 2.46 mtr

Residential Pontoon 4.5 mtr x 2.55 mtr
Part # PONTOON-2719
Including 4 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides.
Floats only $3040 + GST
Floats and Hardware $4260 + GST
Floats, Hardware and Timber $5610 + GST
Fully Built $6560 + GST
a4-2719 Residential pontoon 3.7 mtr x 2.46 mtr

Marina Walkway 6mtr x 2mtr
Part # PONTOON-311
Including 4 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 2 sides.
Floats only $3040 + GST
Floats and Hardware $4755 + GST
Floats, Hardware and Timber $6310 + GST
Fully Built $7620 + GST
Drawing a4-0311
a4-0311 Timber walkway 6mtr x 2mtr
a4-0400 Comtor conecting unit

Marina Finger 5mtr x 1mtr
Part # PONTOON-840
Including 2 x 900 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides. $5210 + GST
a4-0840 Marina Finger 5mtr x 1mtr

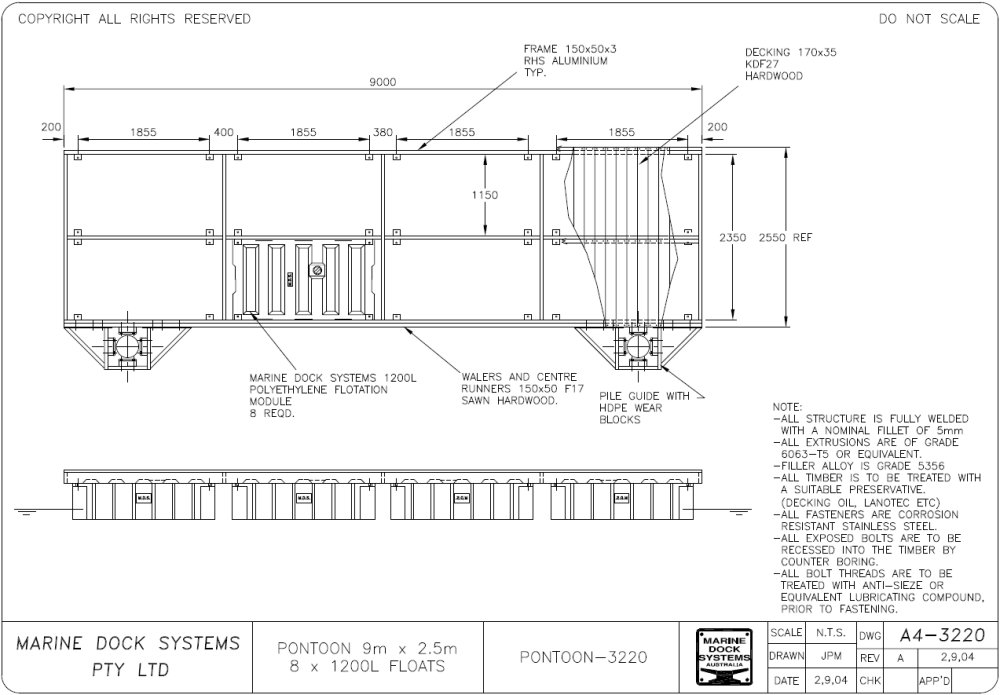

a4-1852 9.6mtr x 1.3 mtr - Alloy frame

Standard Domestic Ramp 6 mtr x 1.2 mtr
Part # RAMP-0527
F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. Including aluminium / stainless hinges.
Drawing a4-0527 Timber ramp 6 mtr x 1.2
a4-0527 Timber ramp 6 mtr x 1.2

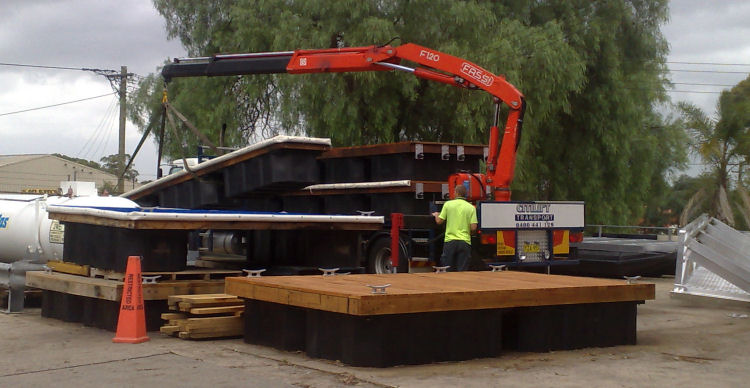

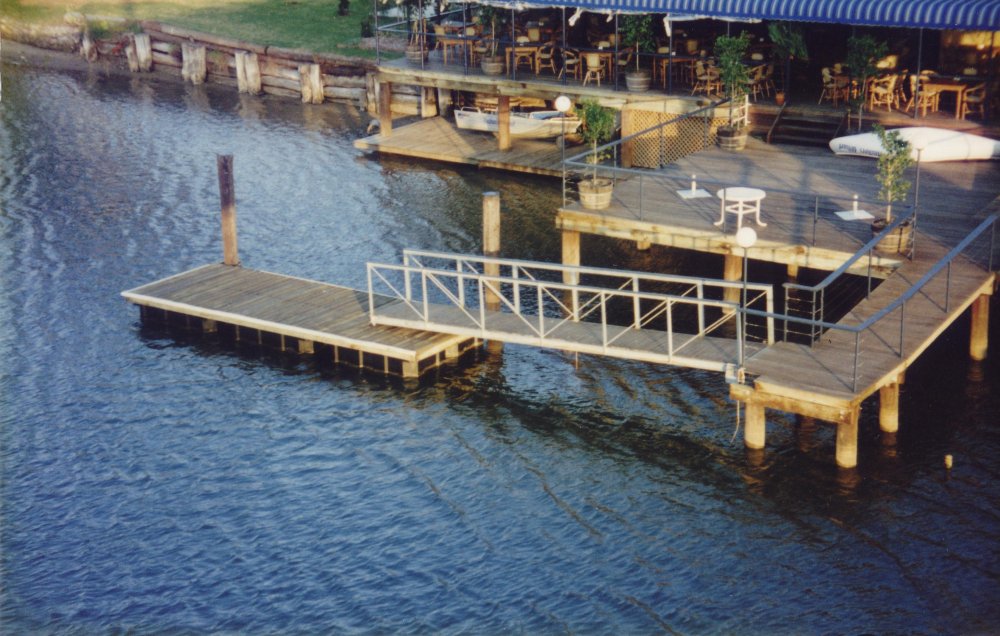

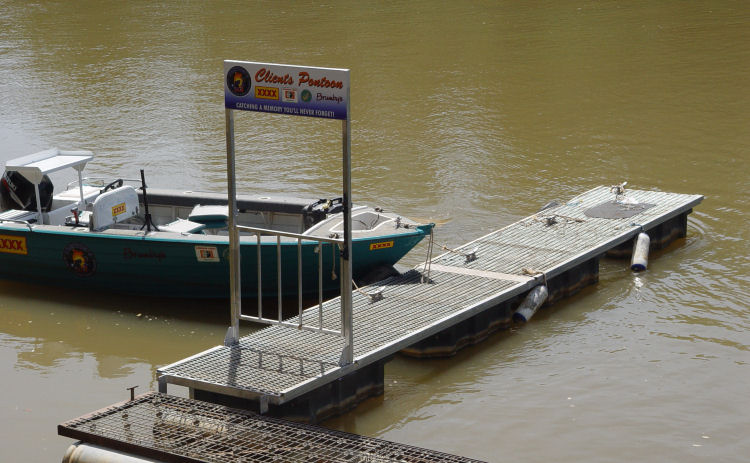

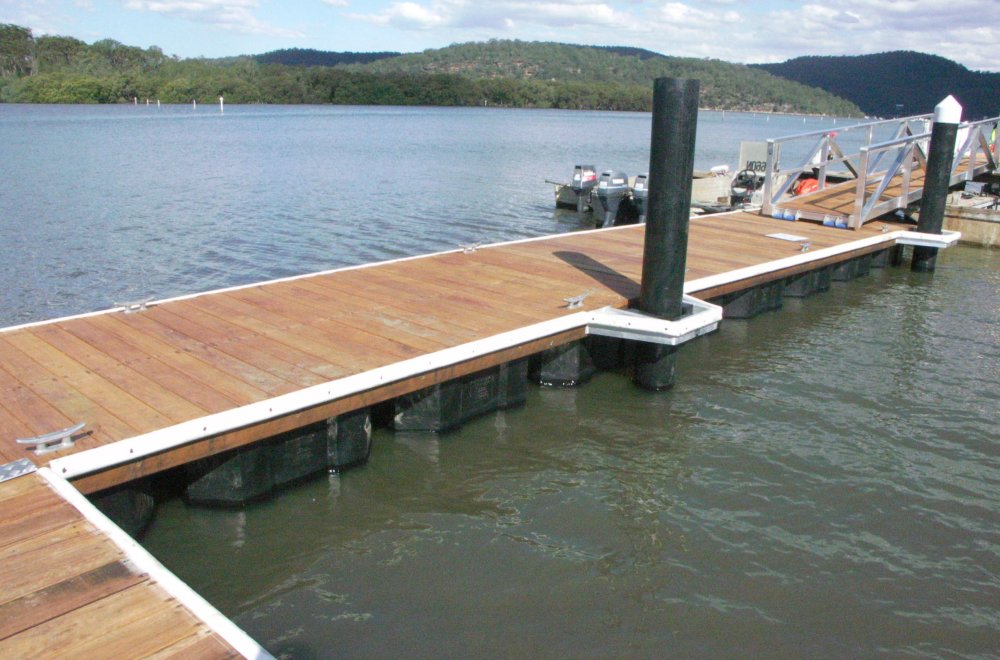

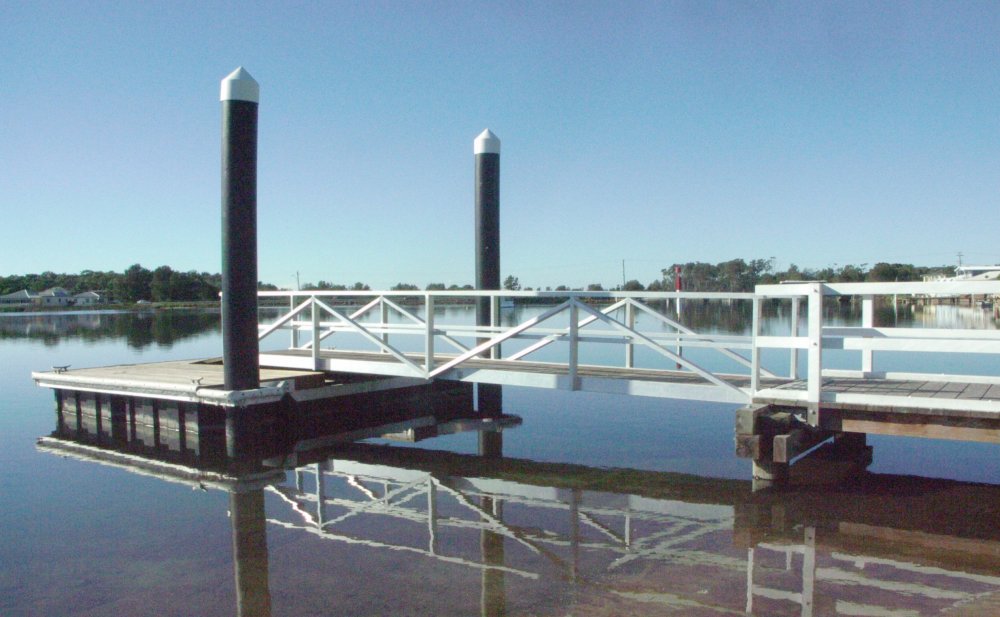

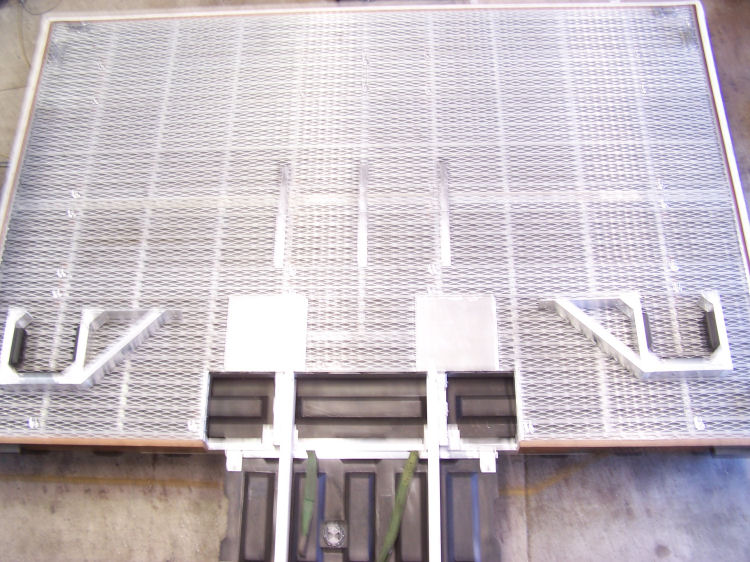

We recommend that you use our drawings to build your own pontoon but of course you don't have to. We have supplied floats to people to build their own pontoon since 1980. Here are just some of the pontoons people have built themselves. If the pontoon you would like to build is not listed in the above standards, please let us know as we probably have a drawing for the size you would like. We can supply a kit for any size pontoon.

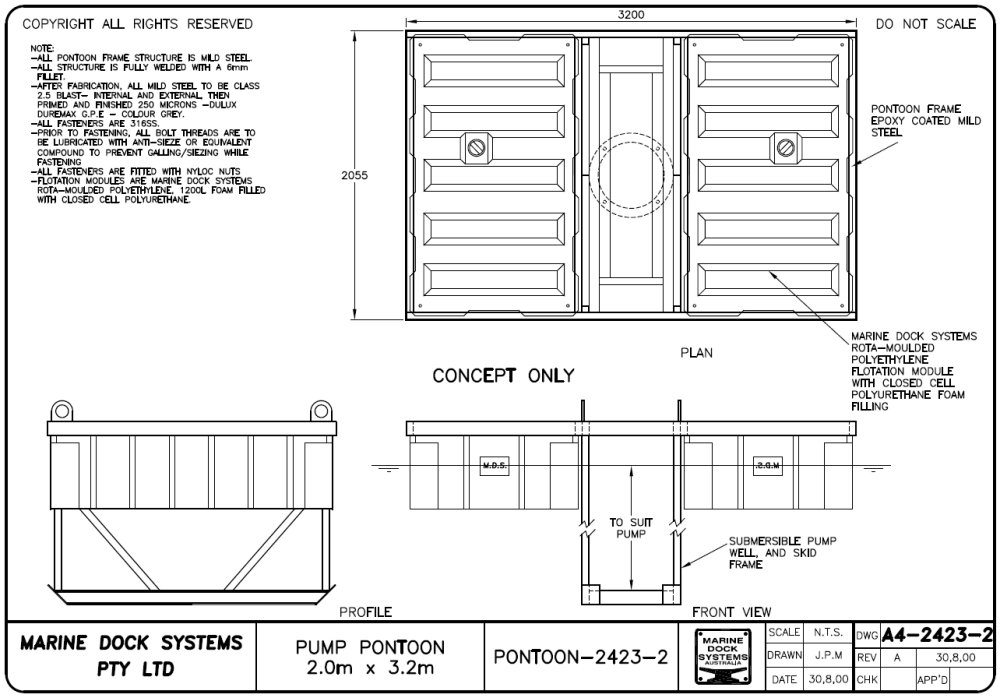

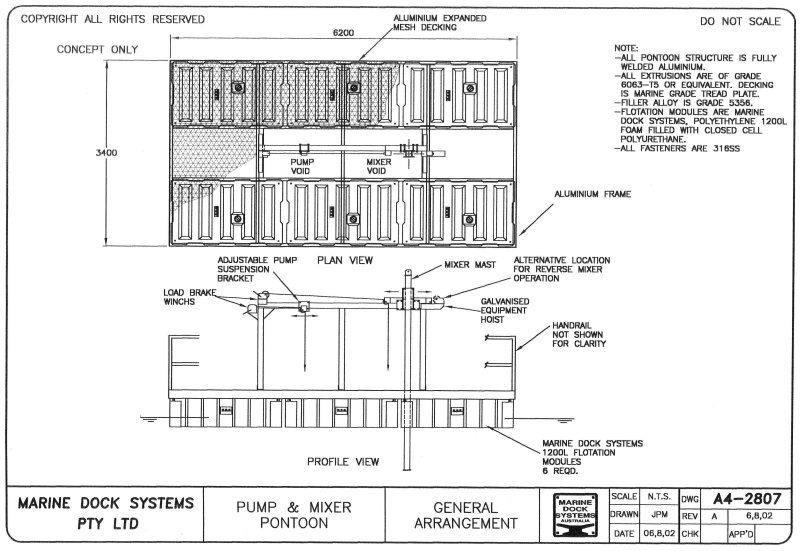

Industrial Pump 3600kg or 7200kg Foam Filled

Industrial Mixer 3600kg or 7200kg Foam Filled


Industrial Pump 1200kg or 2400kg Foam Filled

Industrial Pump 1200kg or 2400kg Foam Filled
