Pontoon - 330
3.7 x 2.46 mtrs 4 x 650 Litre floatation modules
F27 kiln dried 150 x 50 Hardwood frame
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware

Floats only $2060 + GST
Floats and Hardware $3240 + GST
Floats, Hardware and Timber $4250 + GST
Fully Built $5210 + GST

a4-330 Residential pontoon 3.7 mtr x 2.46 mtr

Associated drawings

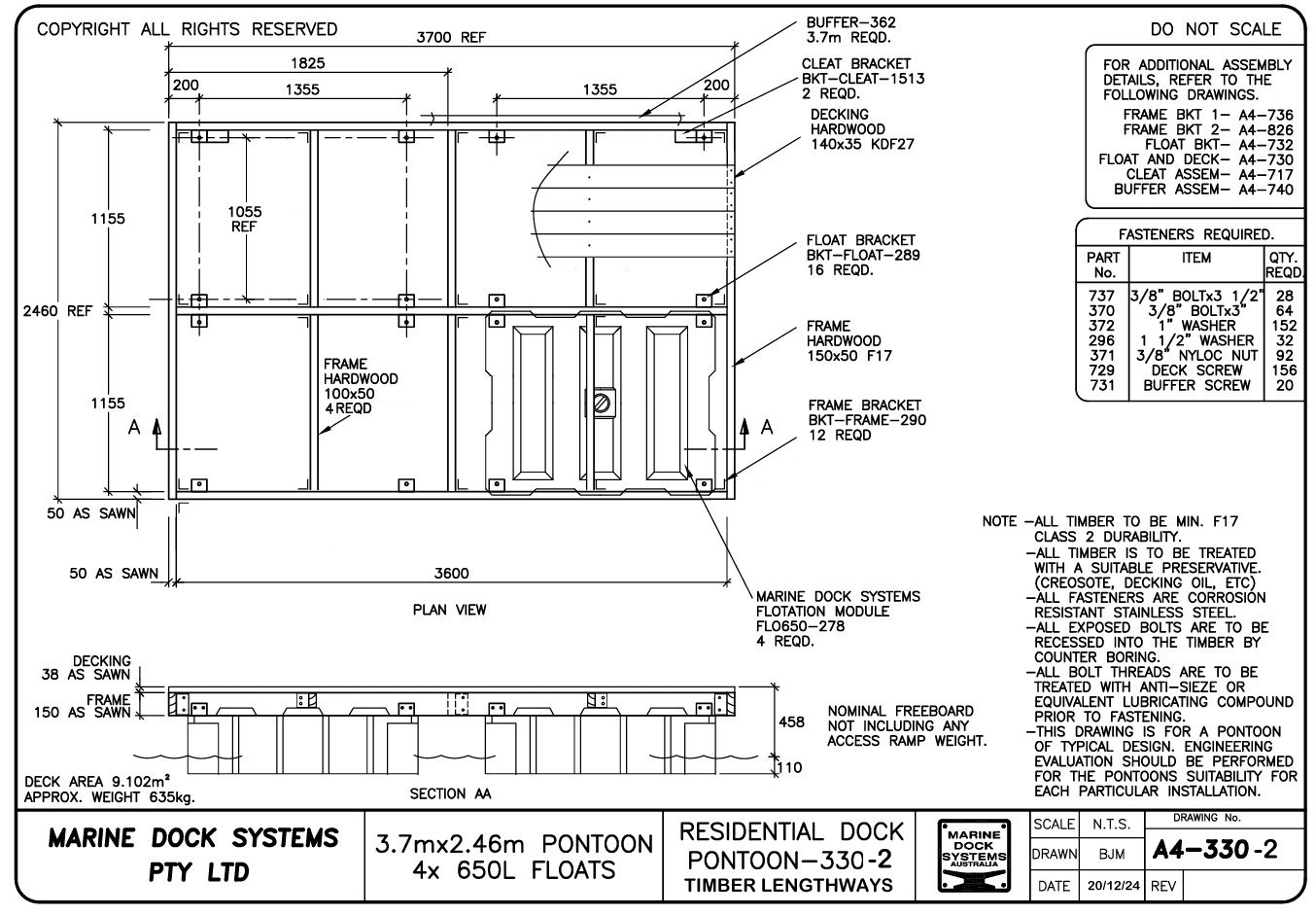

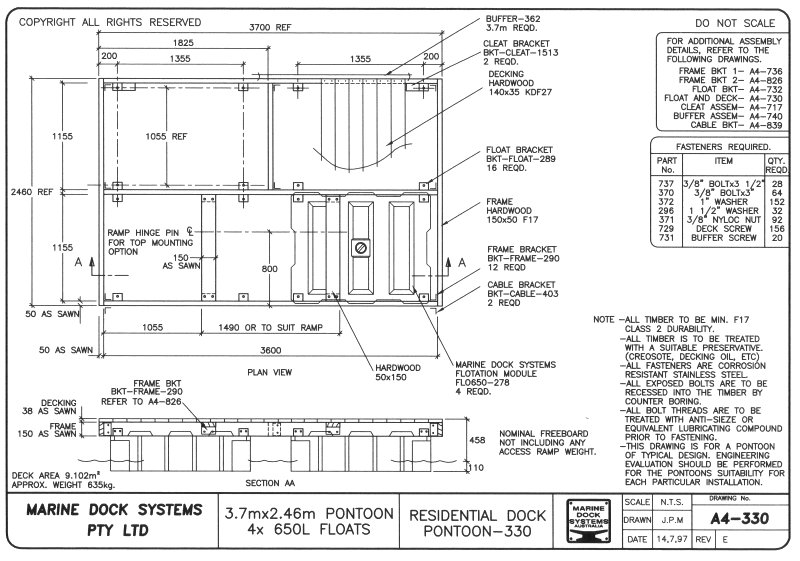

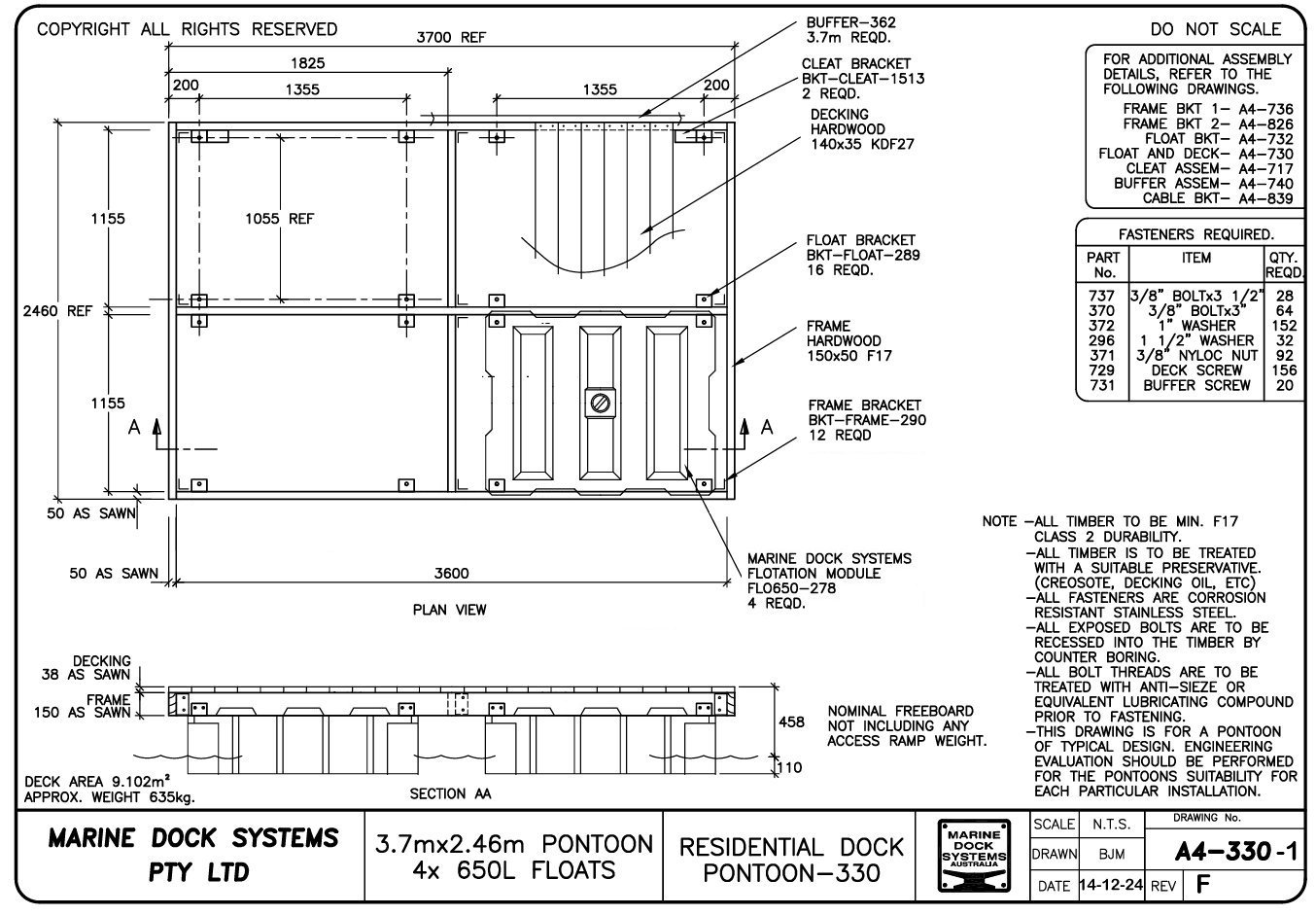

Drawing a4-0330 Pontoon 330

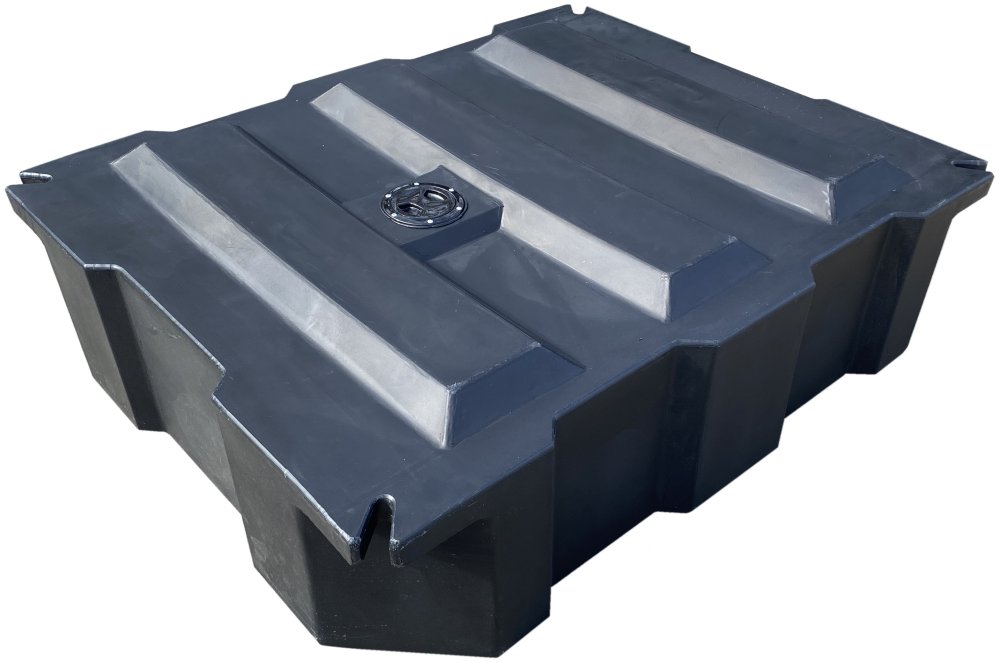

Dwg a4-0278 650 Litre float
Drawing a4-0717 Cleat-361 Assembly detail

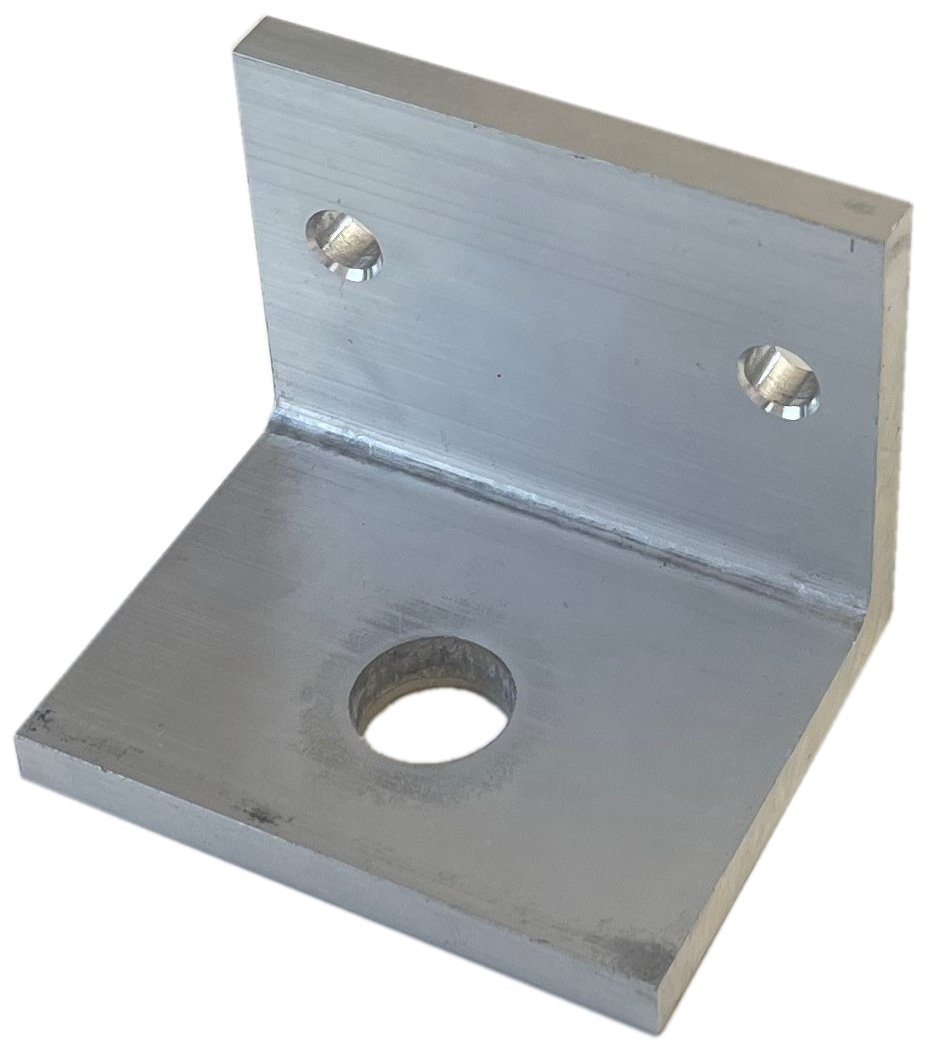

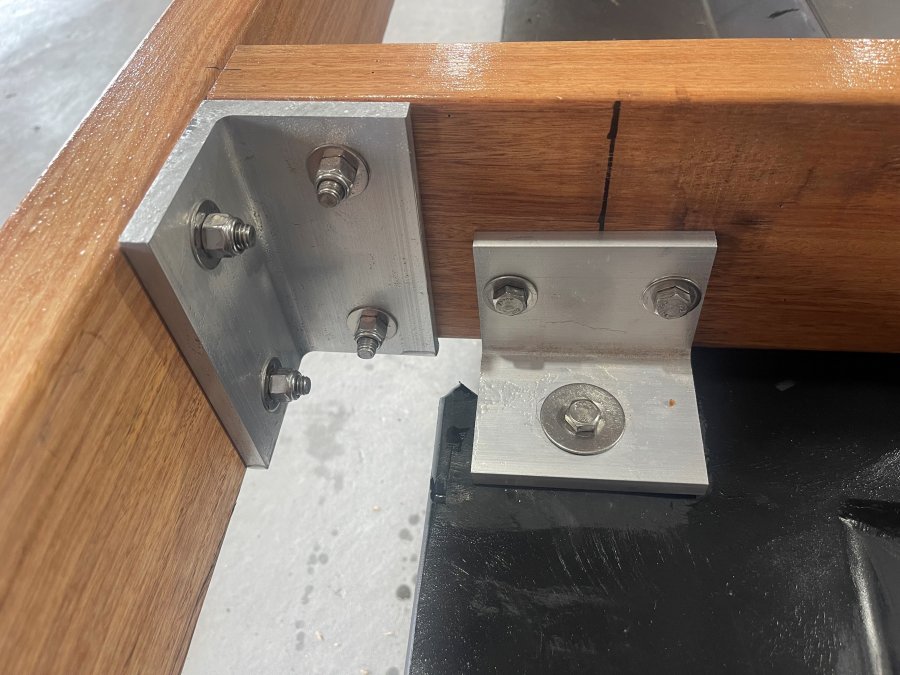

Drawing a4-0730 Float and Deck Assembly detail
Drawing a4-0732 Float and Deck Assembly detail #2

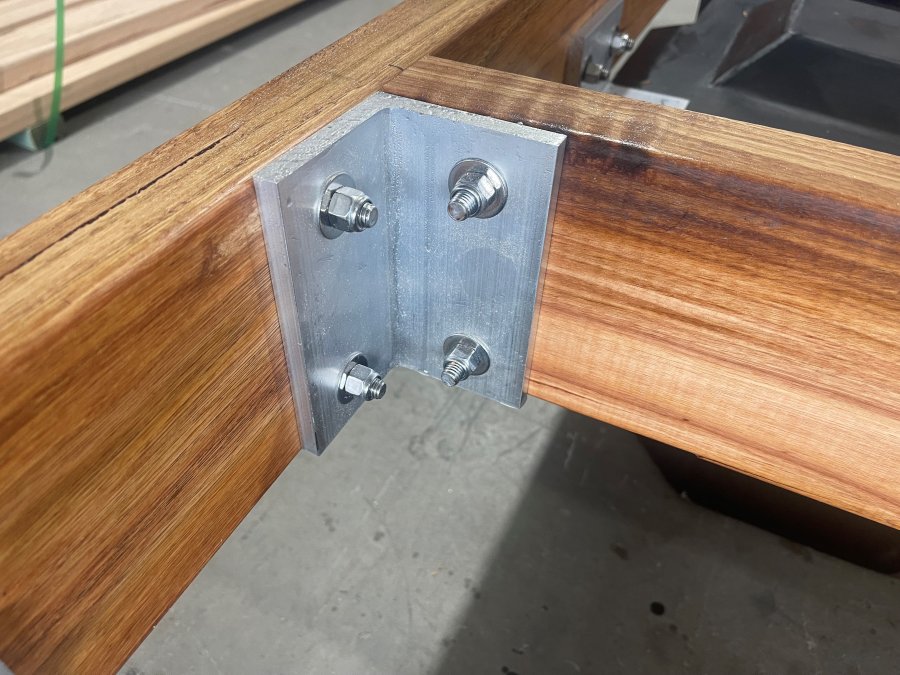

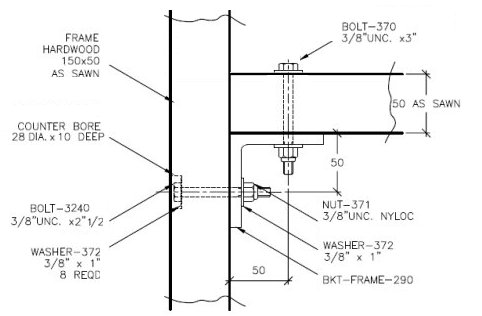

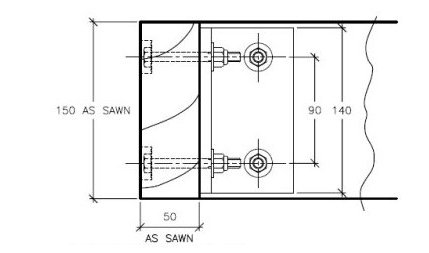

Drawing a4-0739 Frame Assembly detail
Drawing a4-0826 Ramp hinge support detail

Click here for larger image

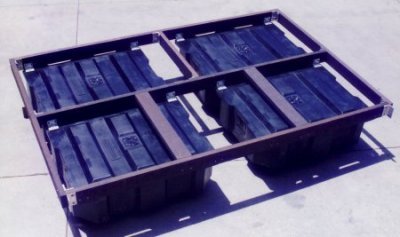

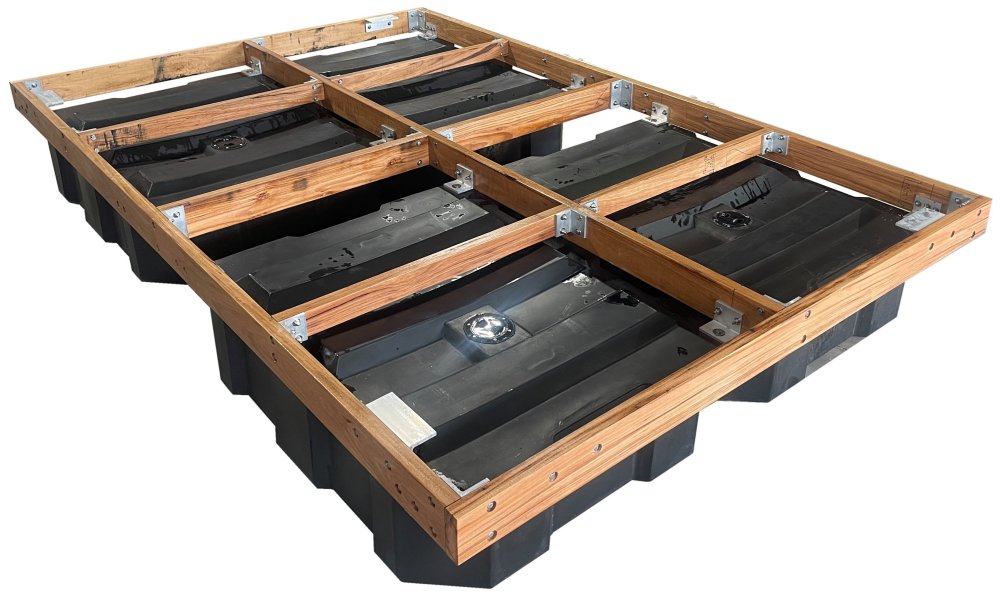

4 x 650 litre floats with frame.

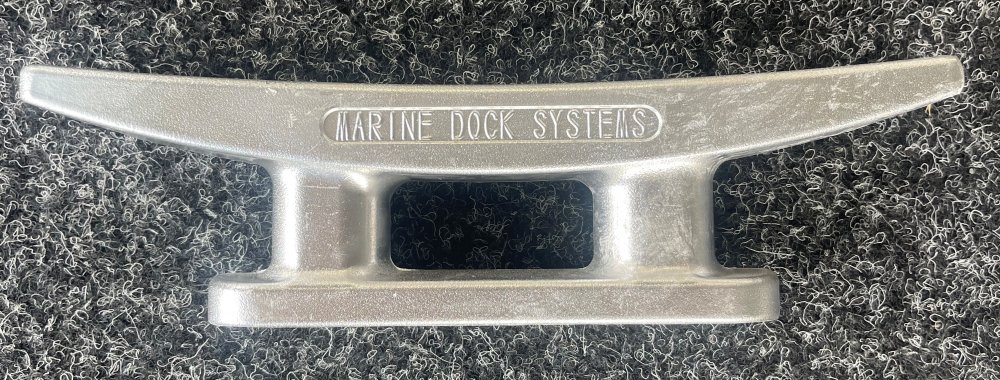

With Buffer on 3 sides. Including 4 cleats.

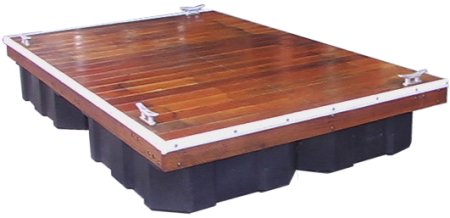

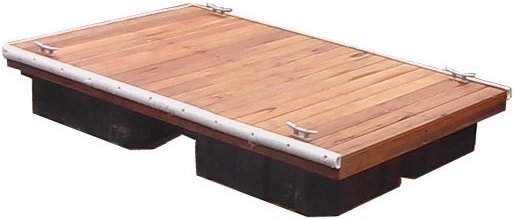

Residential pontoon 3.7 mtr x 2.46 mtr
Part # PONTOON-330
Including 4 x 650 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwood decking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides.
Floats only $2060 + GST
Floats and Hardware $3240 + GST
Floats, Hardware and Timber $4250 + GST
Fully Built $5210 + GST
a4-330 Residential pontoon 3.7 mtr x 2.46 mtr

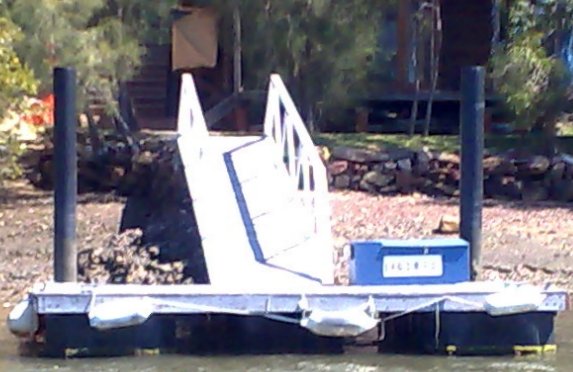

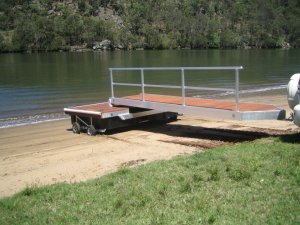

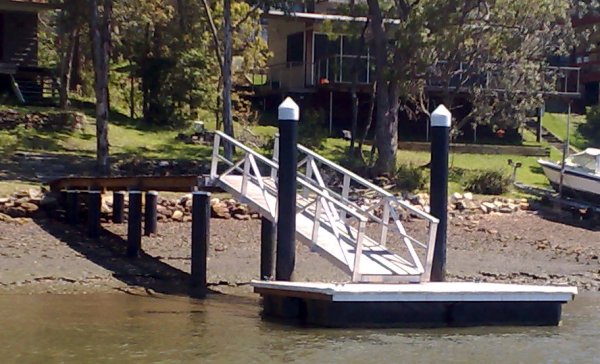

Pontoon330 shown here, with tow ramp.
