Pontoon - 2719
Residential Pontoon 4.5 mtr x 2.55 mtr
4 x 1200 Litre floatation modules
F27 kiln dried 150 x 50 Hardwood frame
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware

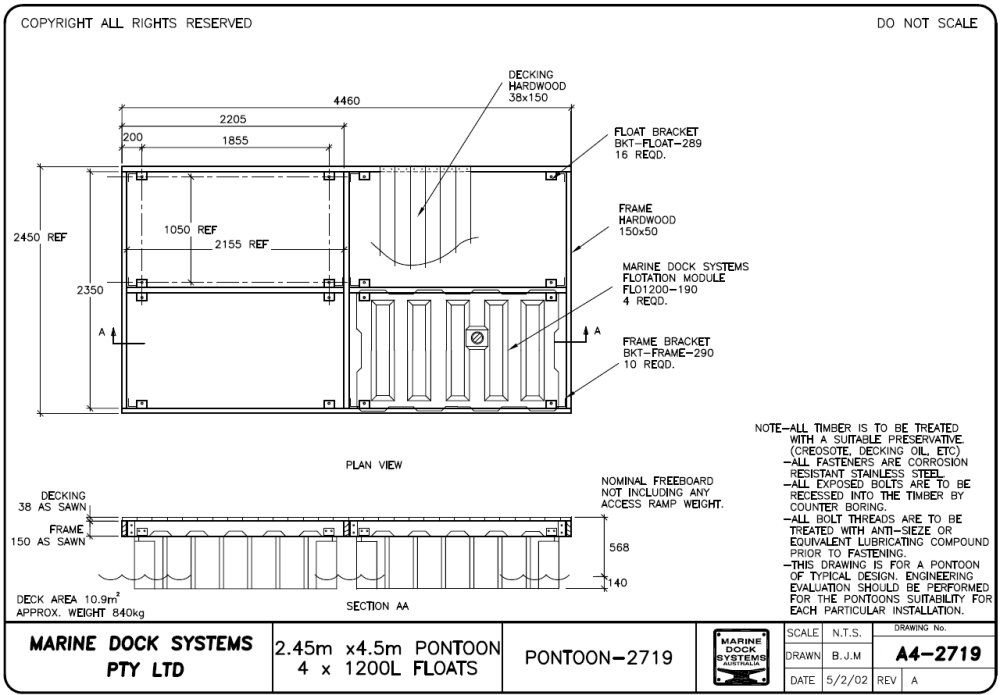

a4-2719 Residential pontoon 4.5 mtr x 2.55 mtr

Floats only $3040 + GST
Floats and Hardware $4260 + GST
Floats, Hardware and Timber $5610 + GST
Fully Built $6560 + GST

Associated drawings
a4-0190 - 1200 Litre float

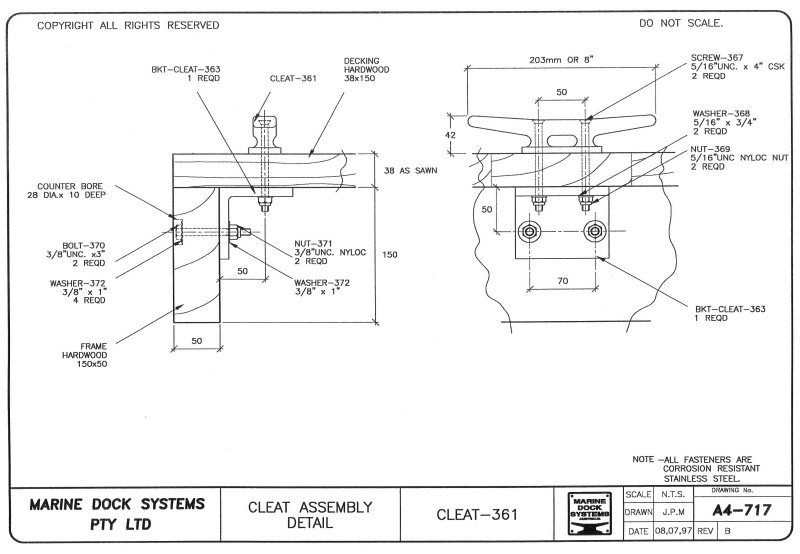

Drawing a4-0717 Cleat-361 Assembly detail

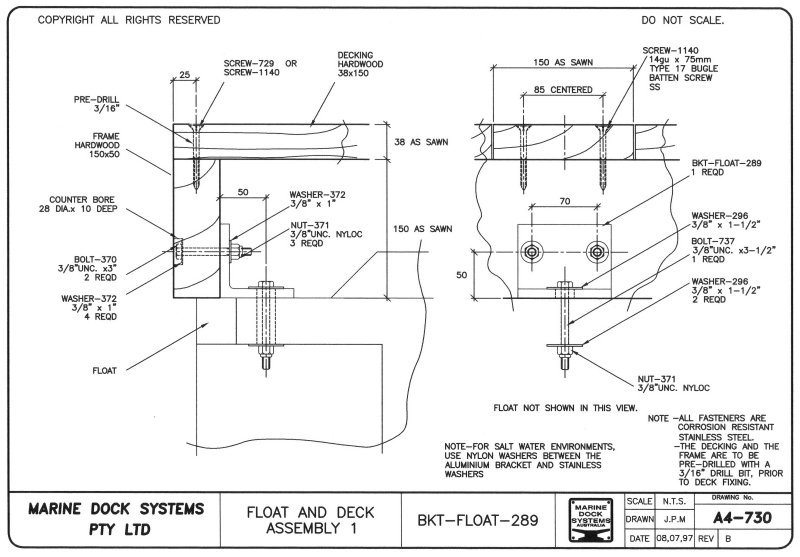

Drawing a4-0730 Float and Deck Assembly detail
Drawing a4-0732 Float and Deck Assembly detail #2

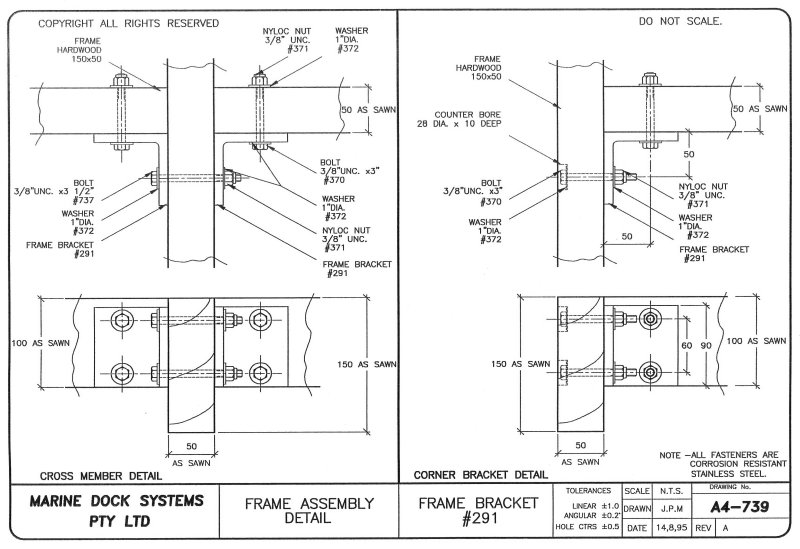

Drawing a4-0739 Frame Assembly detail

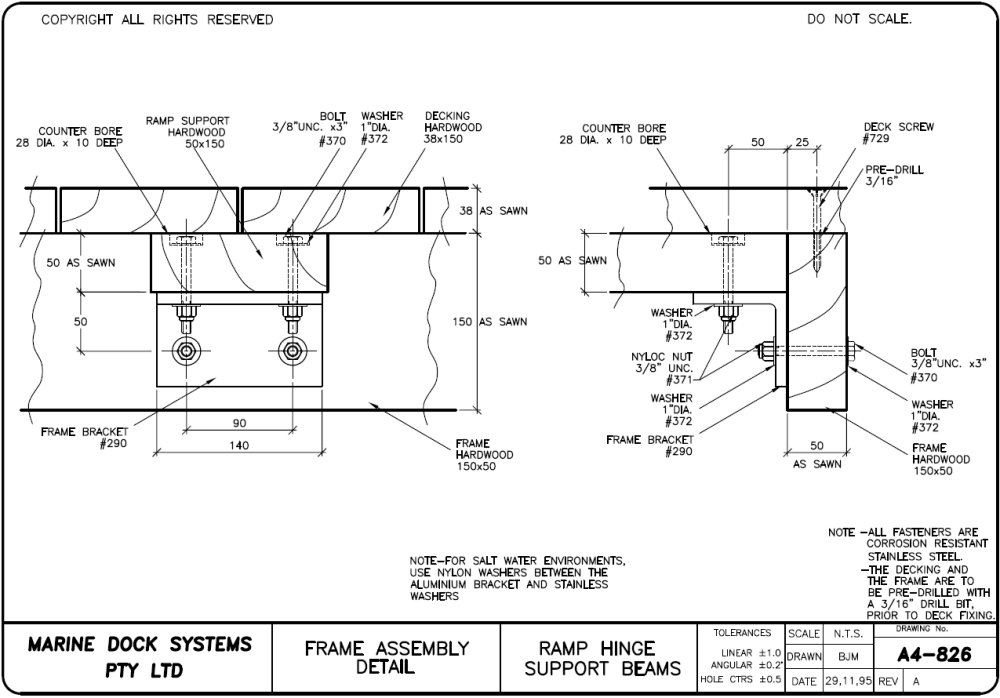

Drawing a4-0826 Ramp hinge support detail

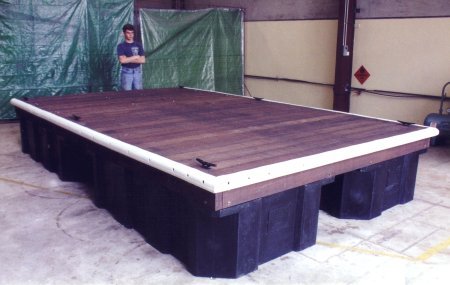

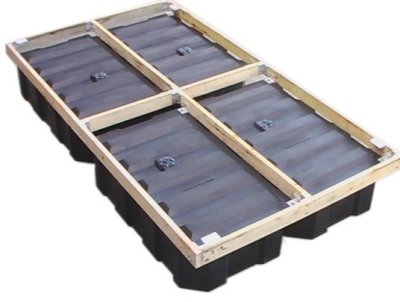

4 x 1200 litre floats with frame.

  Extra cleats or buffer on different sides, its up to you and your needs. This pontoon was built in our factory at Riverstone Sydney approx 1990 by Brett Mackay. MDS - Marine Dock Systems Or build your own pontoon and save. See prices below for pontoon kits to make your own quality pontoon.

<
font color="#000000" size="2">

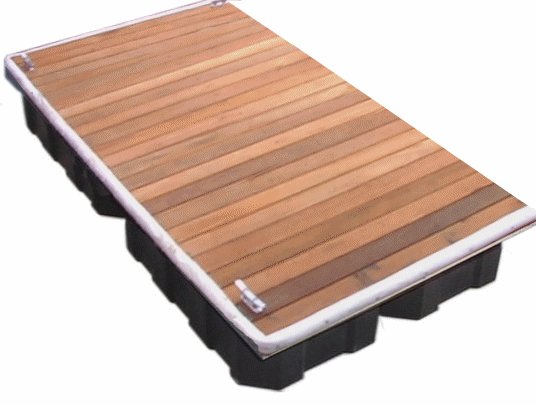

With Buffer on 3 sides. Including 4 cleats.

Residential Pontoon 4.5 mtr x 2.55 mtr
Part # PONTOON-2719
Including 4 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides.
Floats only $3040 + GST
Floats and Hardware $4260 + GST
Floats, Hardware and Timber $5610 + GST
Fully Built $6560 + GST
a4-2719 Residential pontoon 4.5 mtr x 2.55 mtr

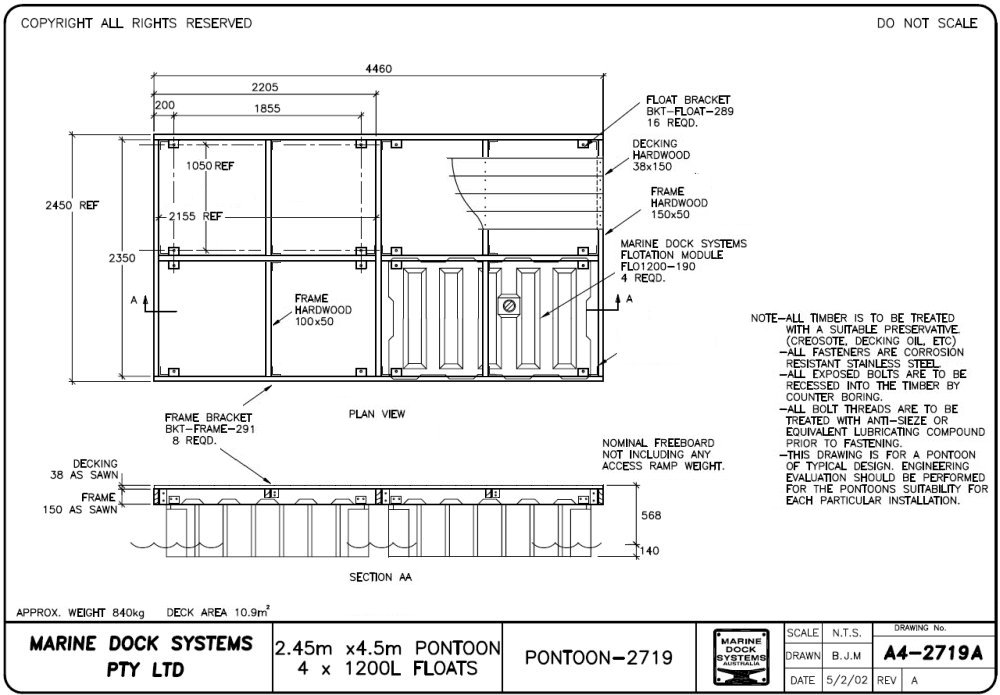

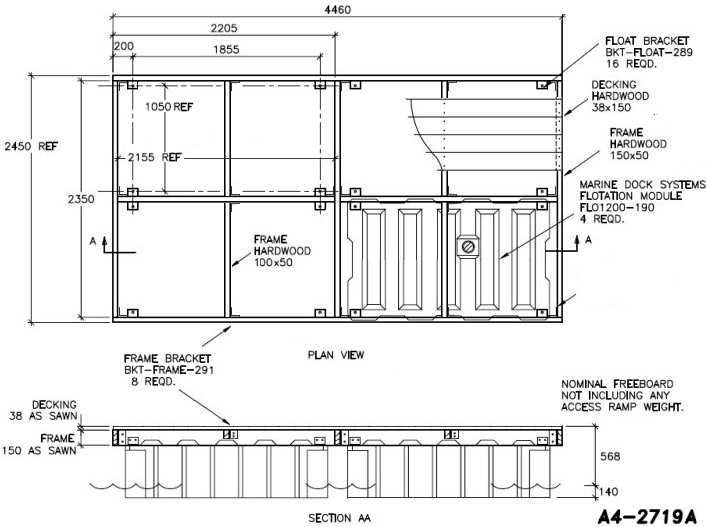

Pontoon 4.5 x 2.5 mtr Timber Frame

A4-2719 - Pontoon 4.5 mtr x 2.45 Timber Frame and Deck

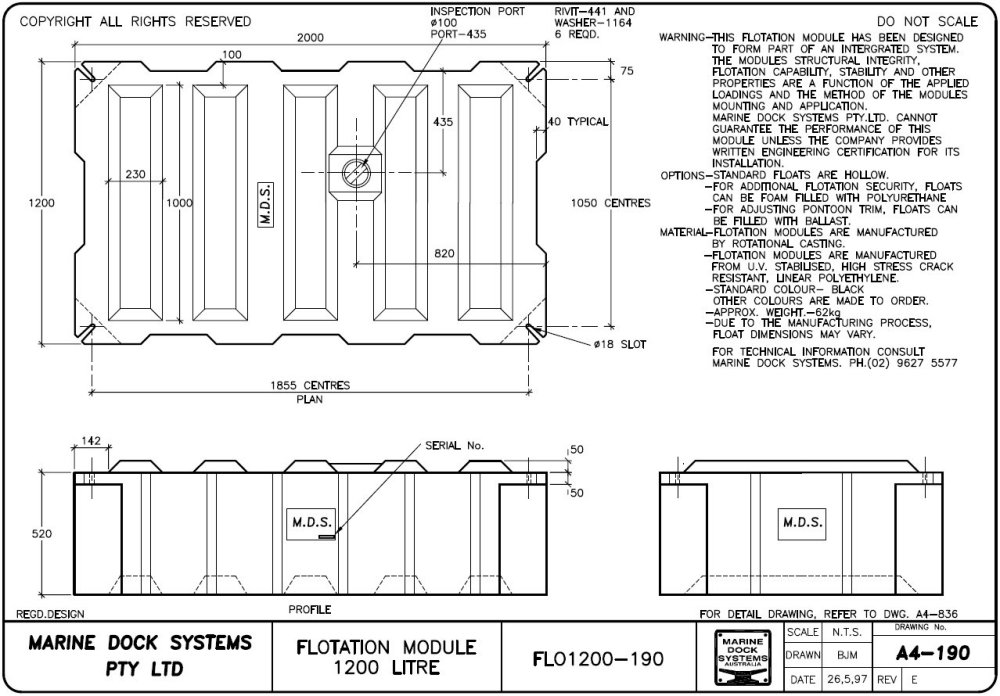

1200 Litre Flotation Module

A4-0190 - 1200 Litre # FLO1200-190

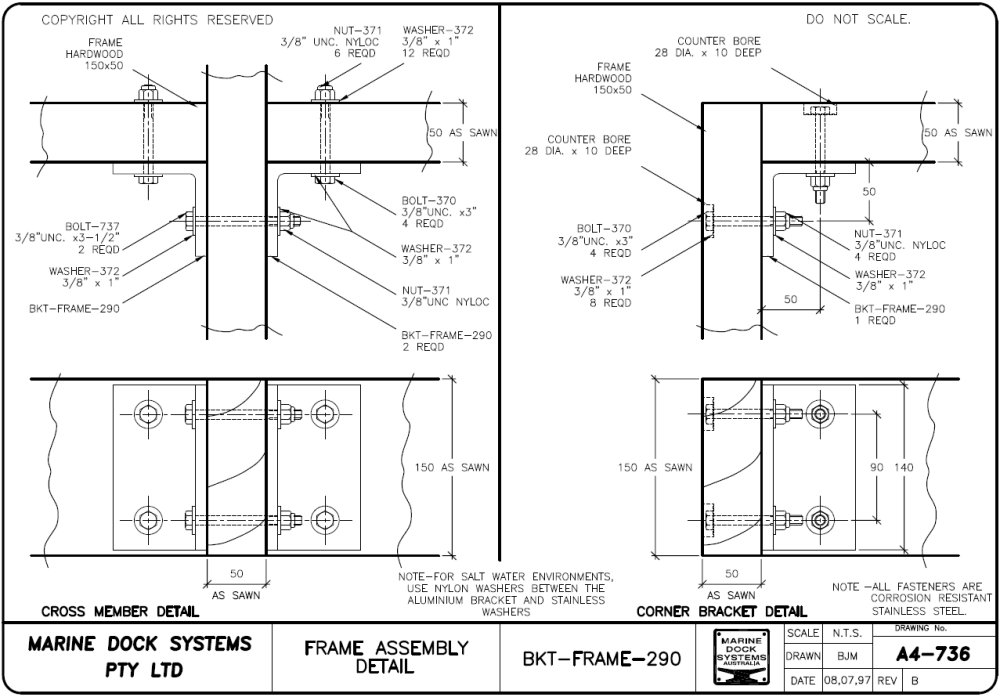

Frame Assembly detail

A4-0736 - Frame Assembly detail

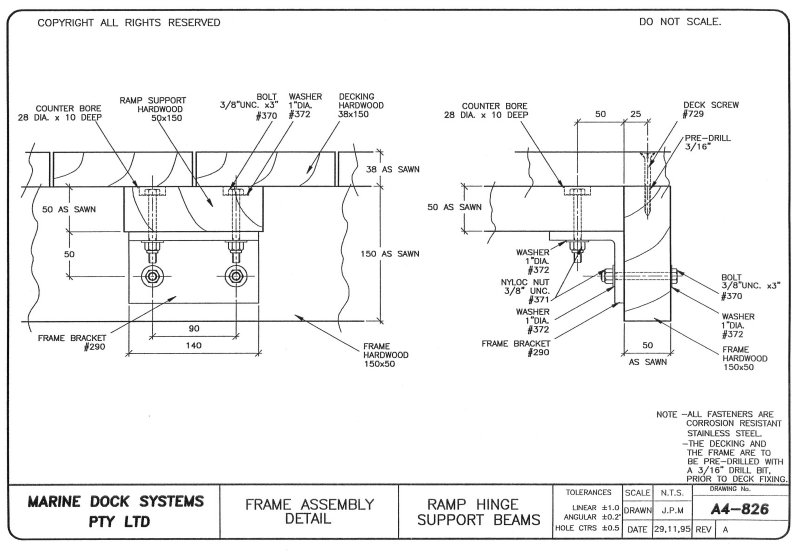

Ramp Bracket Support

A4-0826 - Ramp Bracket Support Detail

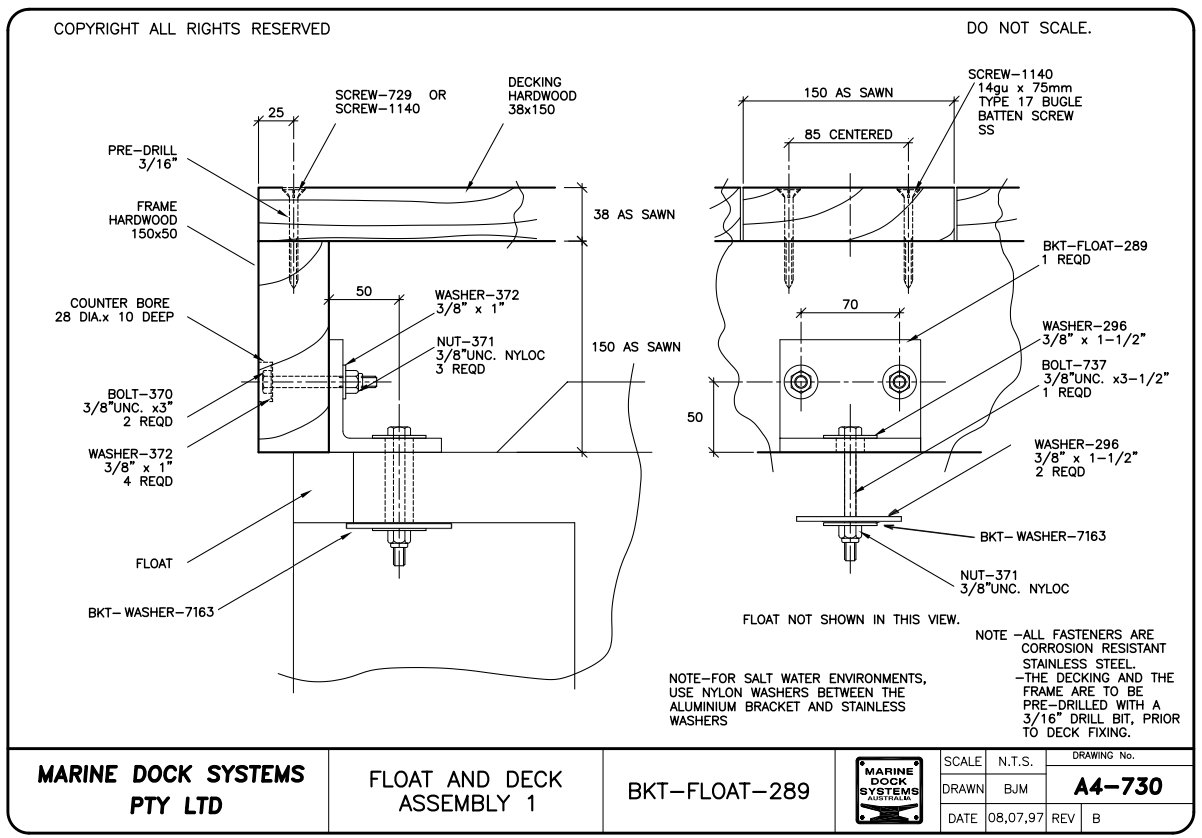

Float and Deck Assembly Timber

A4-0730 - Float and Deck Assembly detail

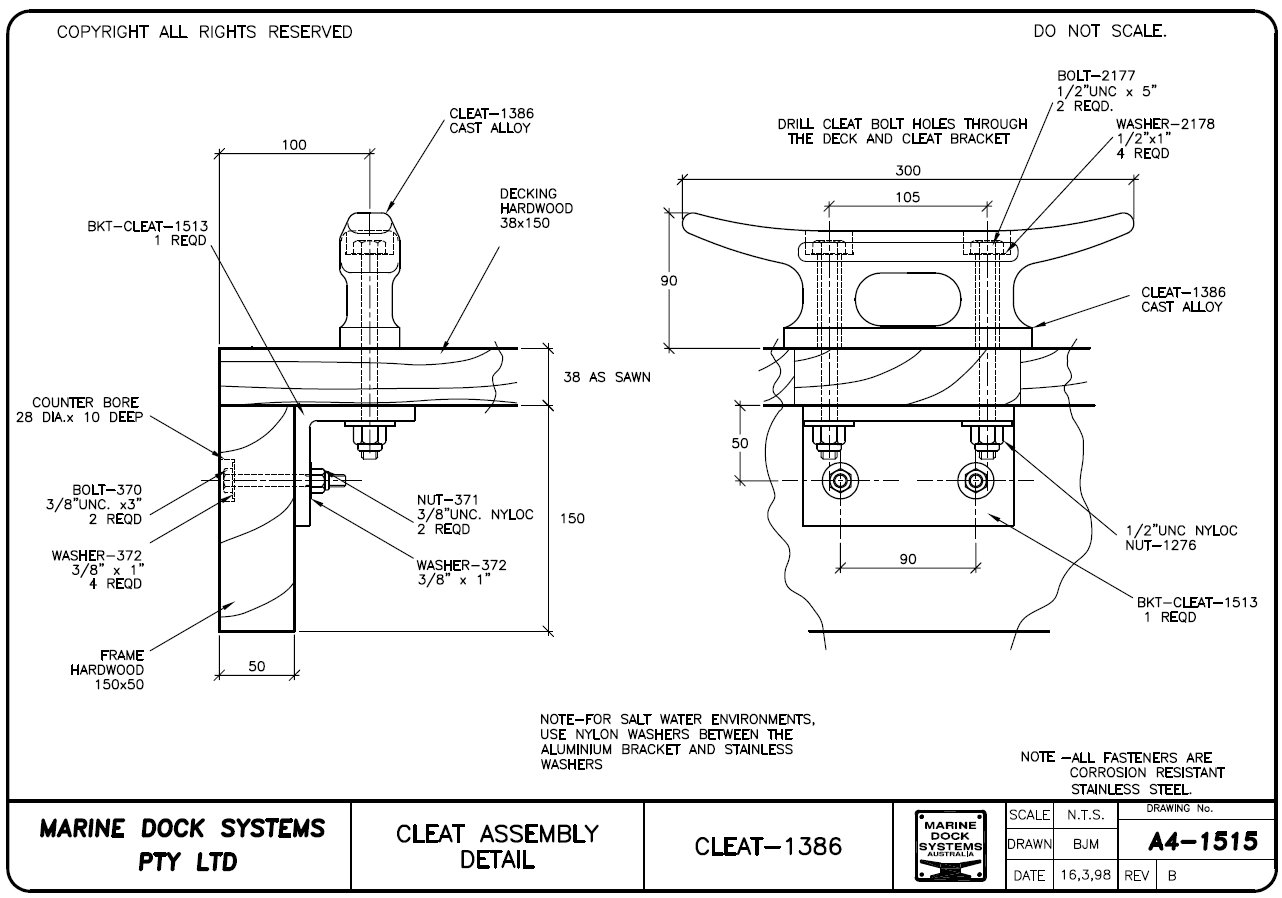

Install Cleat Detail Timber Frame

a4-1515 - 300mm Cleat installation tiber frame

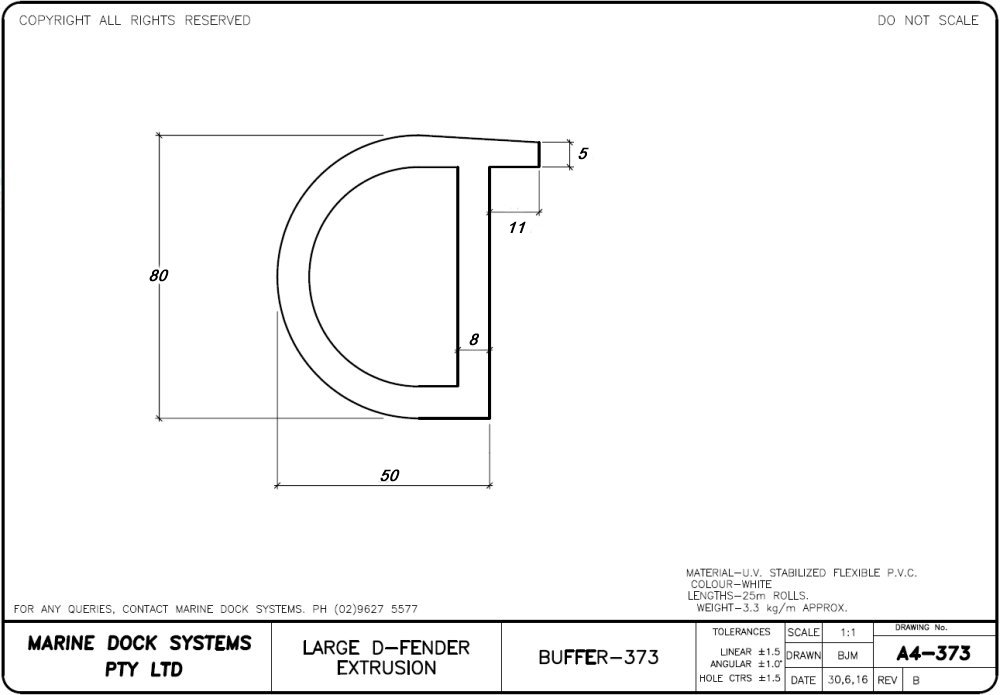

Marine Fender D Section

Marine Fender D Section

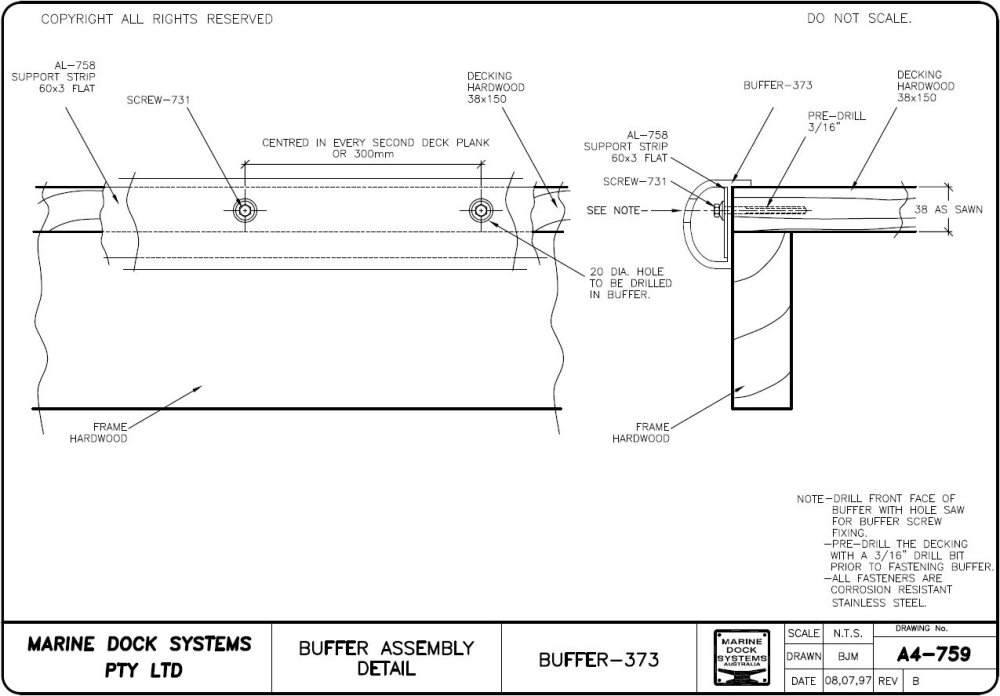

A4-0759 - Large D Buffer Detail

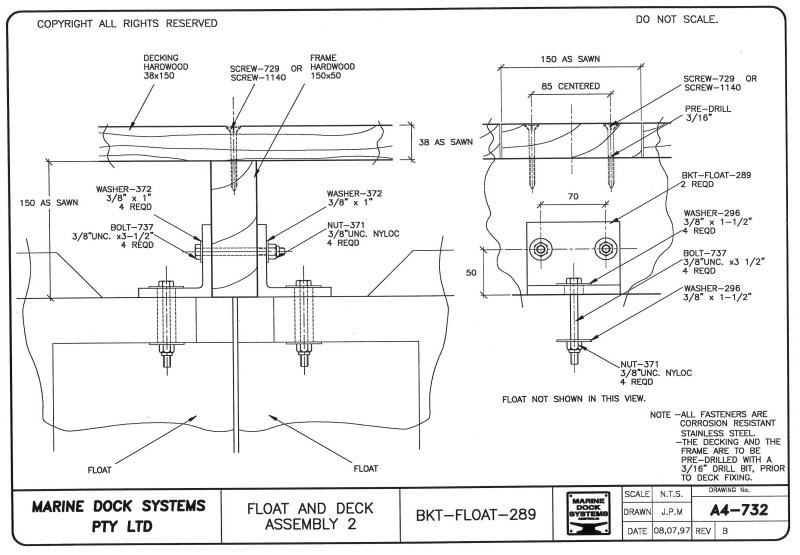

Float Bracket Assembly

A4-0732 - Float Bracket Assembly Detail
