PILE CAPS

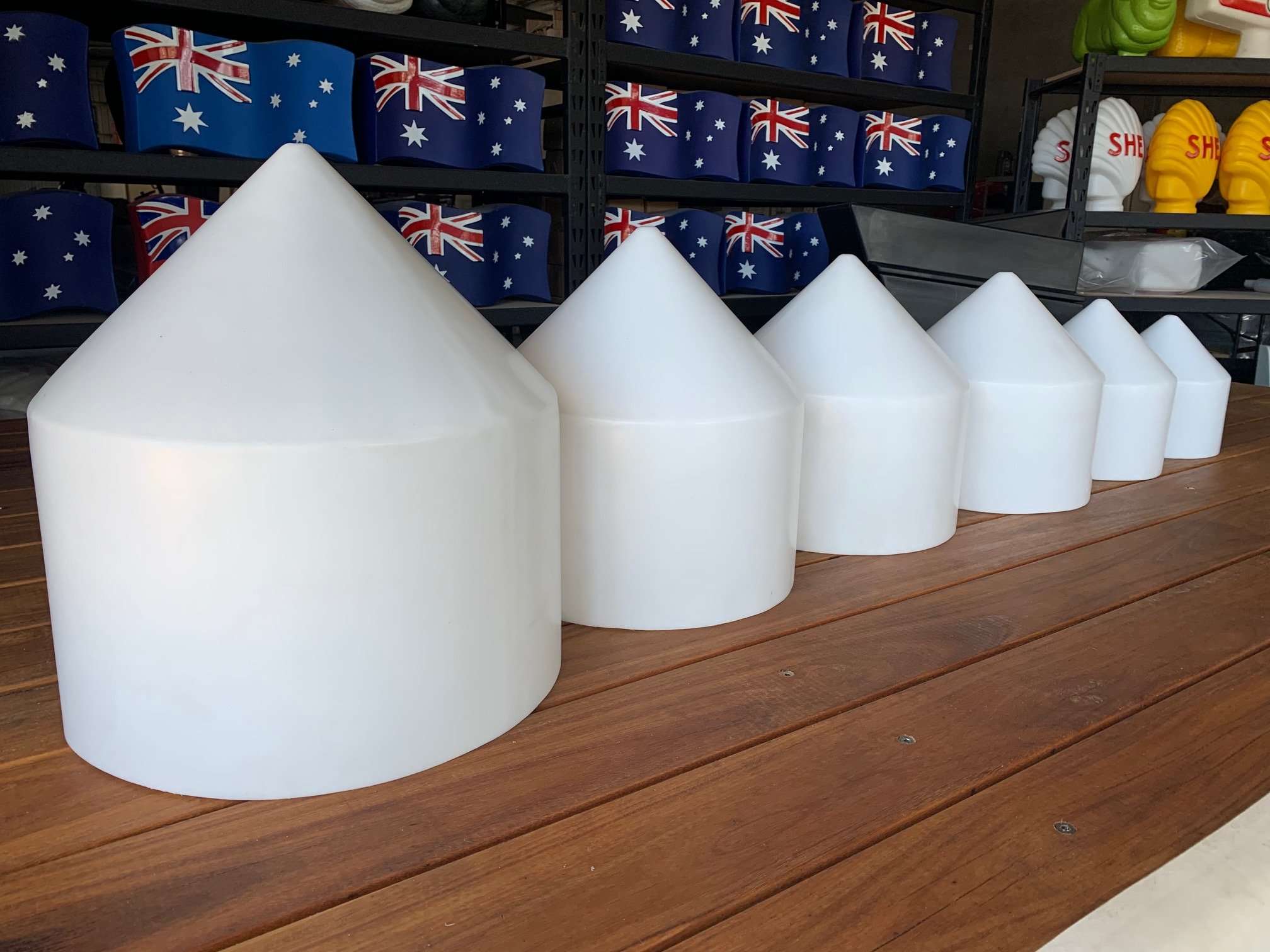

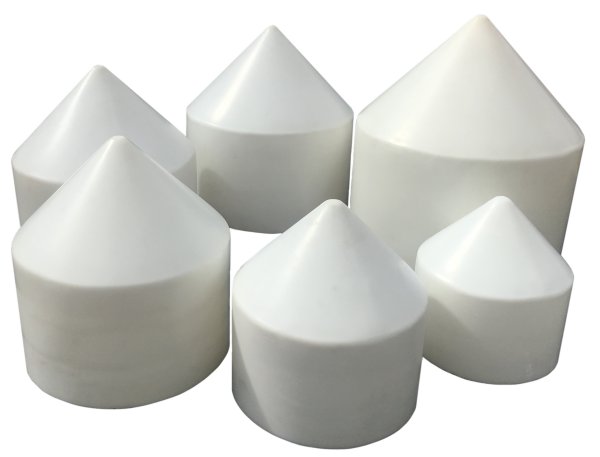

There are 6 individual sizes available. Pile Caps are made from U.V. stabilised, high stress crack resistant, linear polyethlene. Standard color is white. Other colors are made to order.

Floats
Enquiry

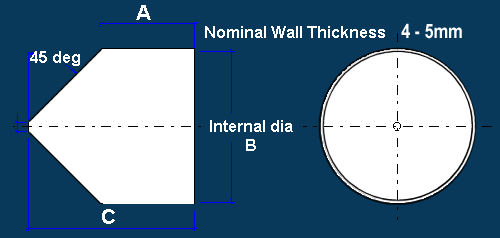

a4-0382 - Pile caps pdf drawing


Part No. #
PILE230-382
PILE275-384
PILE315-383
PILE350-385
PILE385-386
PILE425-387
Diameter - B
230mm
275mm
315mm
350mm
385mm
425mm
Height - C
265mm
305mm
355mm
385mm
420mm
480mm
Height - A
150mm
170mm
200mm
210mm
230mm
270mm
Weight
0.68kg
0.92kg
1.27kg
1.69kg
1.85kg
2.58kg
pile caps

Under Research and development at the moment please enquire. To fit poly poles.
PILE360-2803
360mm dia
389mm
214mm
1.80kg
PILE405-2804
405mm dia
439mm
242mm
2.39kg
PILE455-2800
455mm
500mm
278mm
3.05kg
