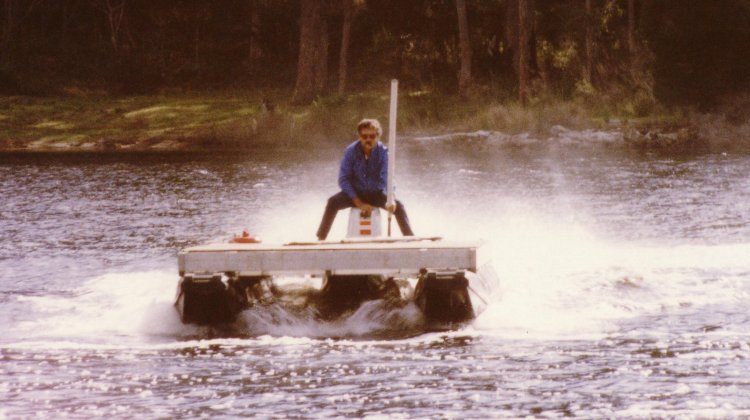

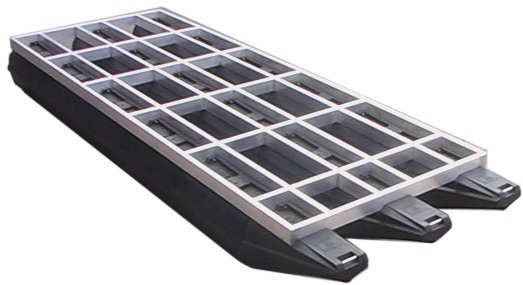

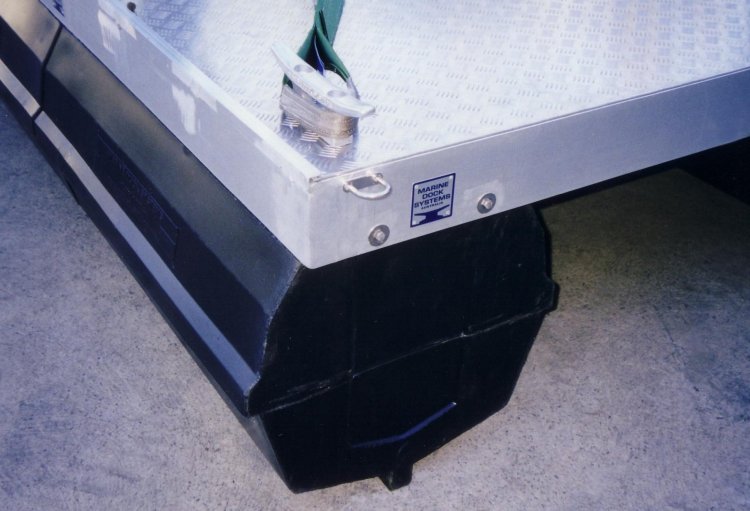

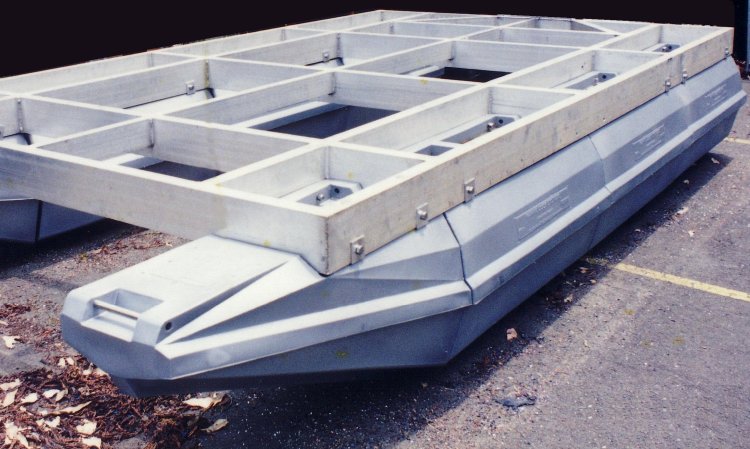

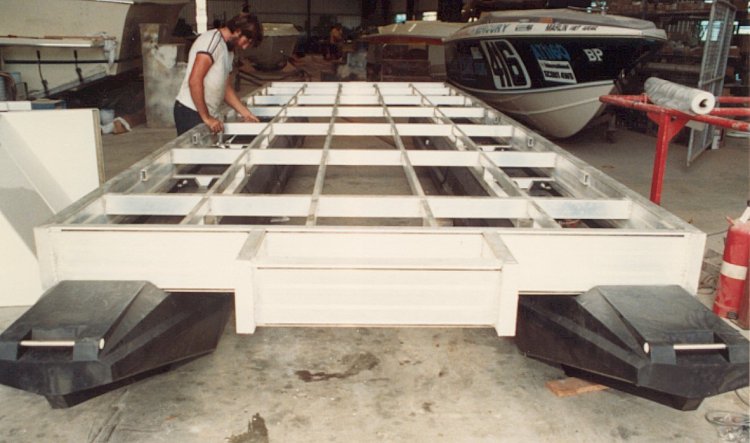

MOVING CRAFT Marine Dock Systems has designed many moving craft modules using the 333 Litre floats. The 333 Litre floats support 160kgs each, allowing for a variety of applications.

A4-0184 - 333 Litre float

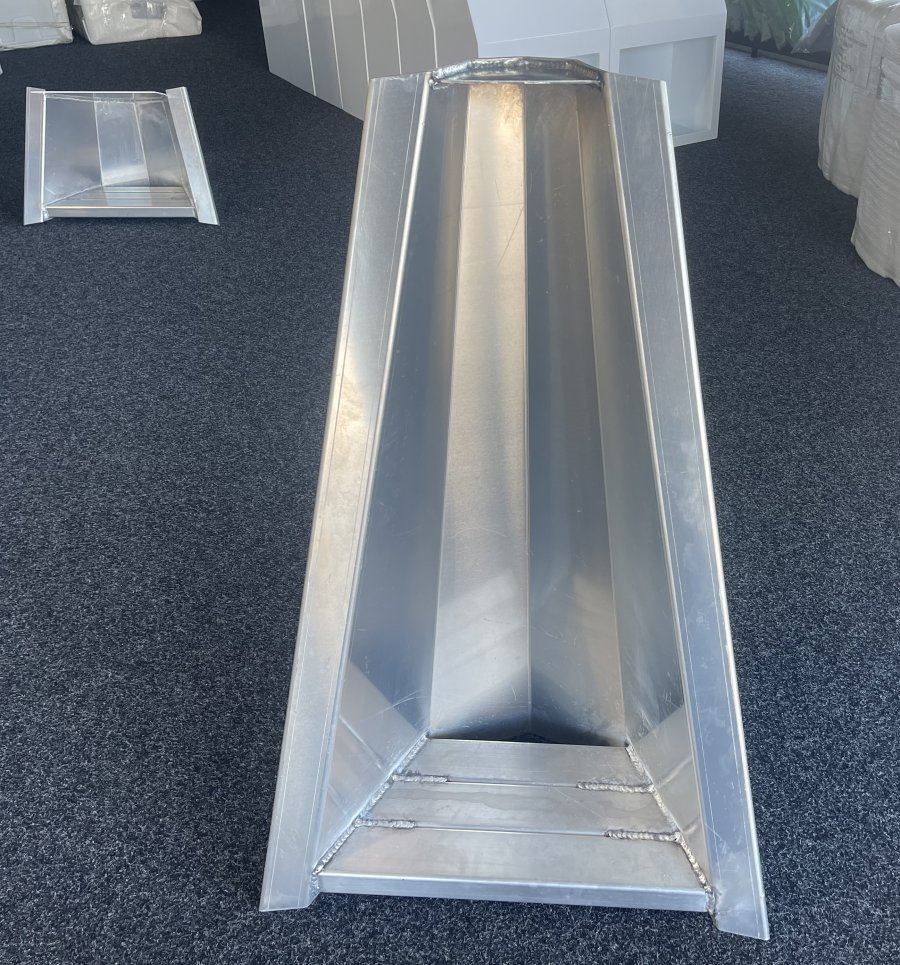

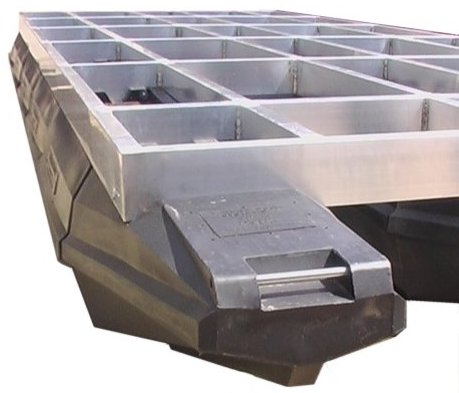

A4-0306 - 333 Nose Cone

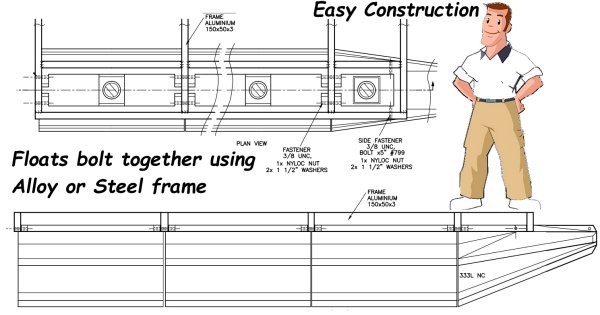

A4-0774 - assembly detail

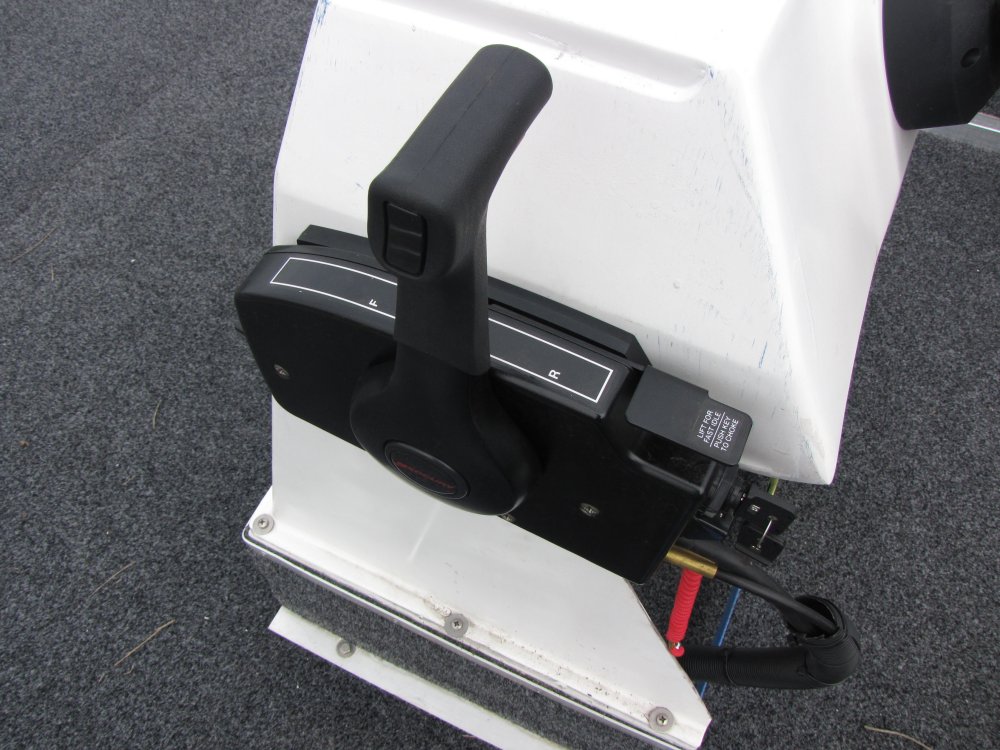

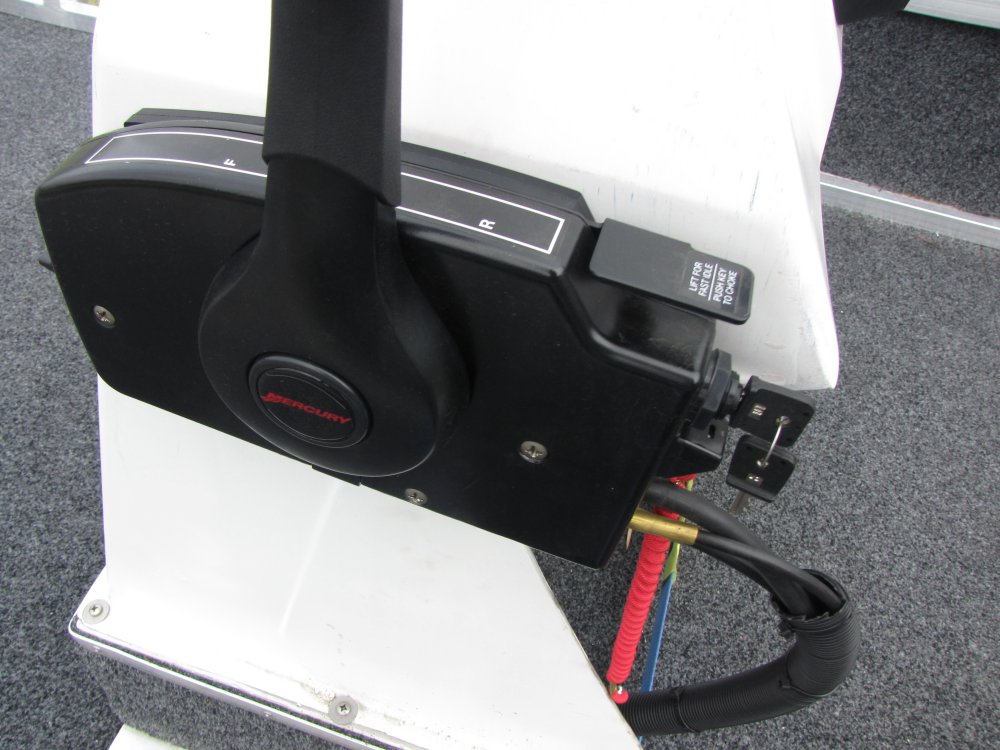

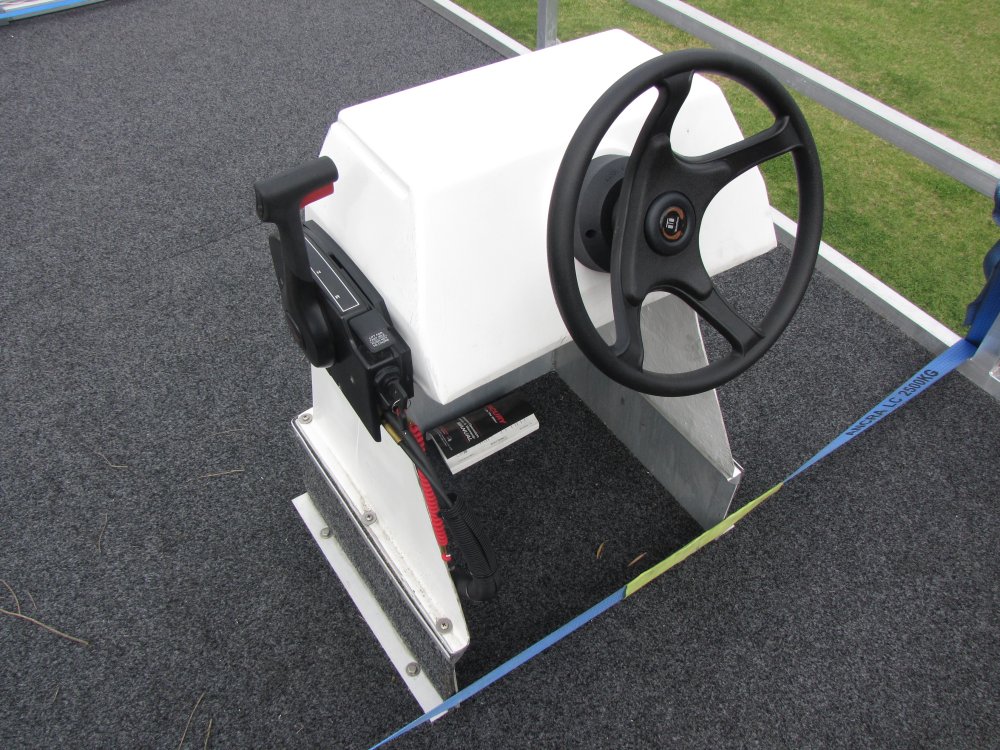

A4-3023 - Boat Console

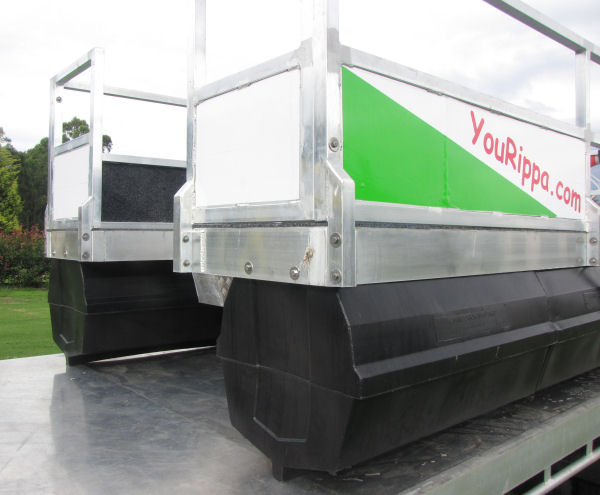

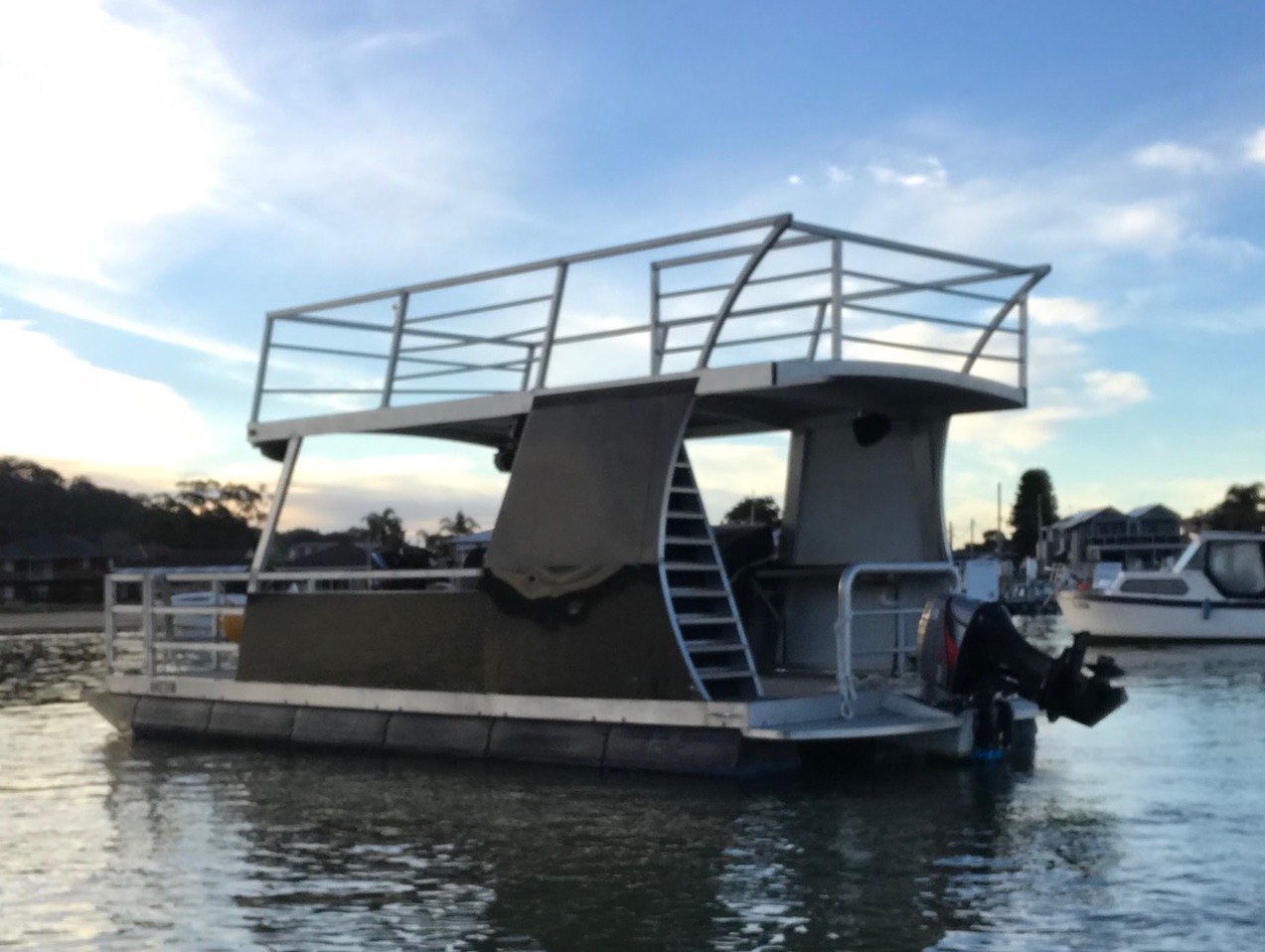

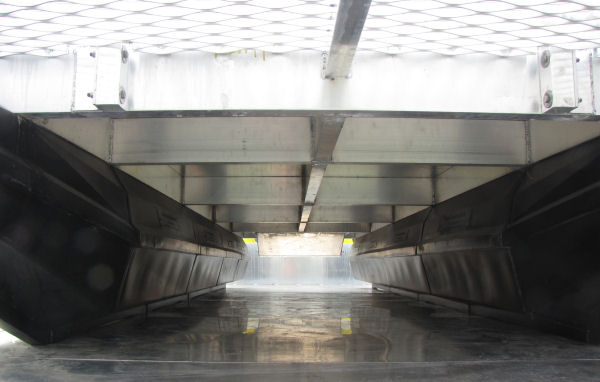

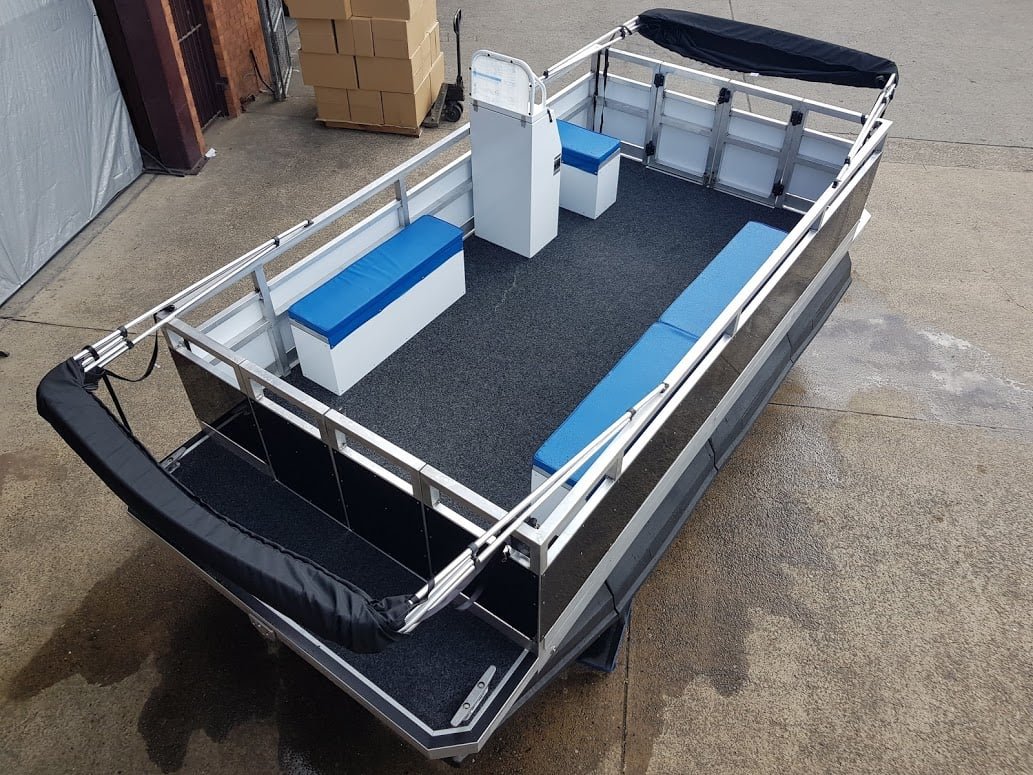

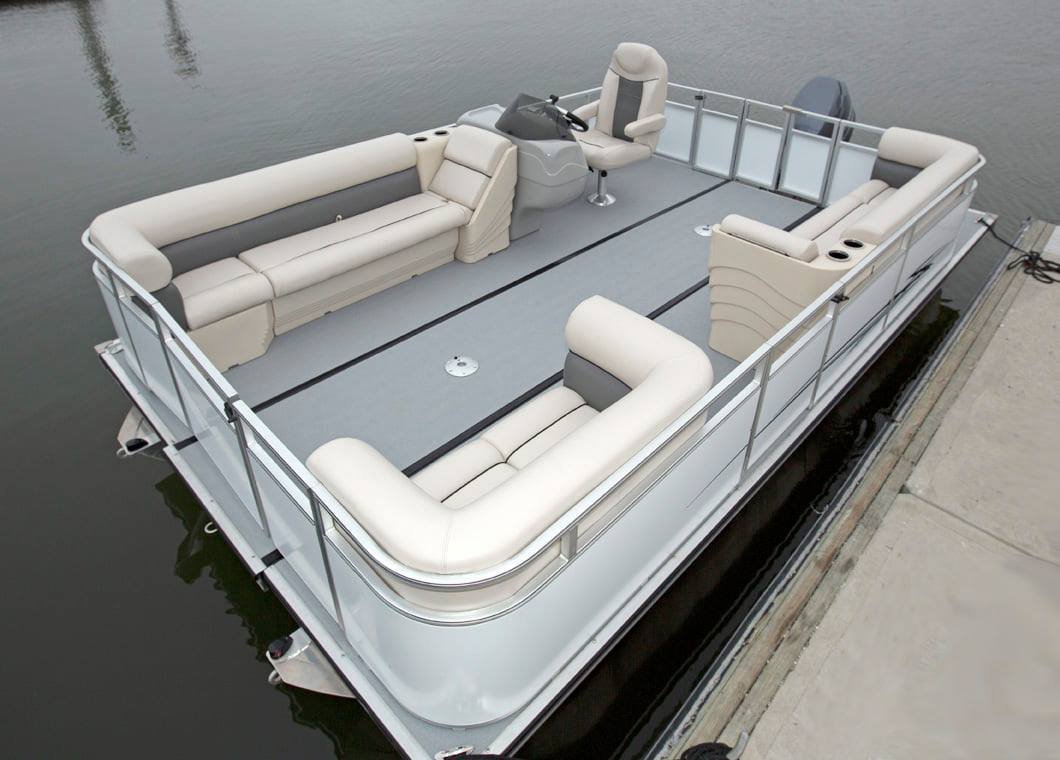

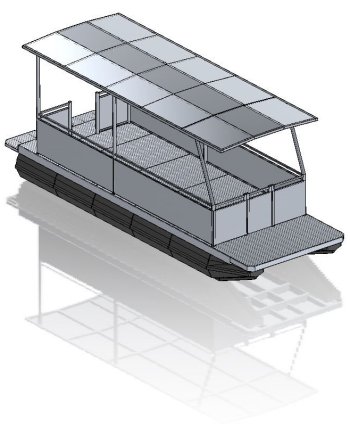

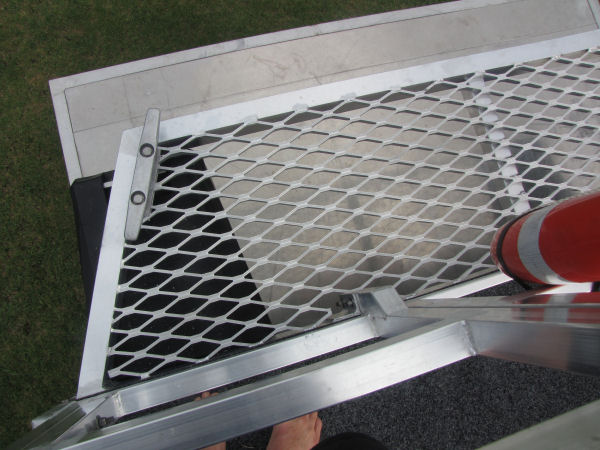

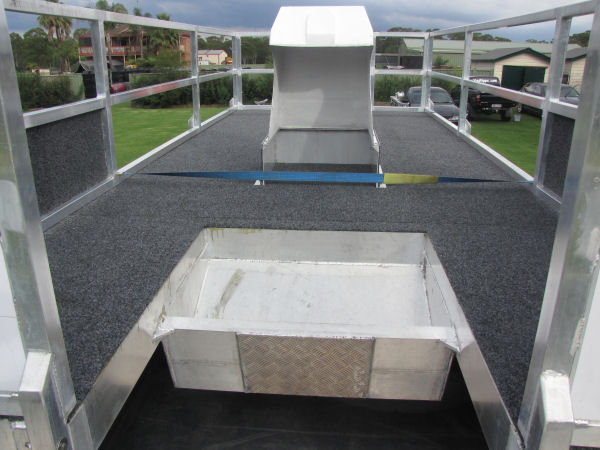

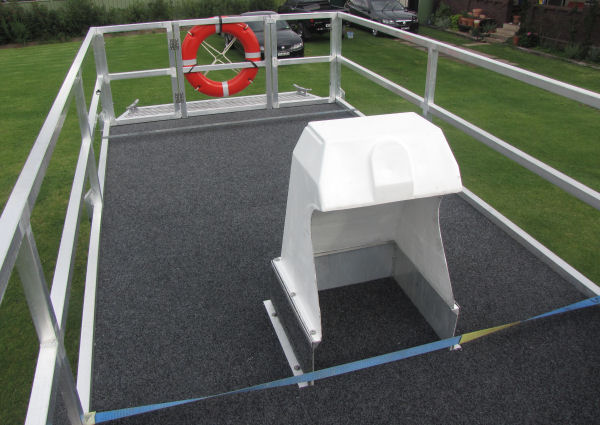

Party Boat
Click Here for Installation Page

Effluent Pontoon
Click Here for Installation Page

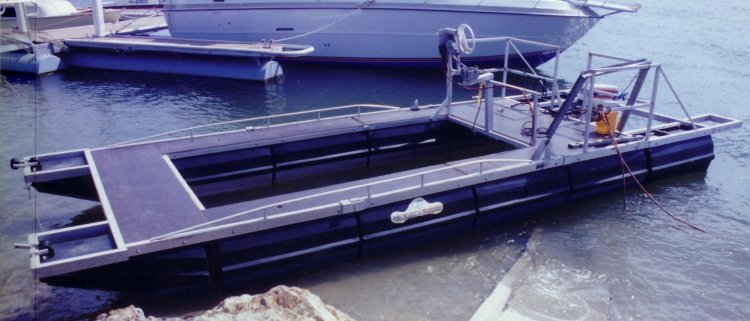

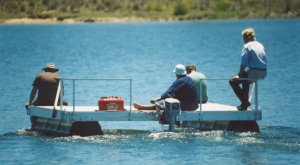

MOVING CRAFT
3.4 Mtrs Long
2.5mtr wide

Floats only $2310
Frame and Floats $4995

Drawing - BOAT-0340
Moving Craft 3.4m x 2.5m

Model 2.0 mtrs wide
- Drawing A4-1893

Floats 150 kg
Frame 72 kg
Total weight 222 kg
Max Load 600kg

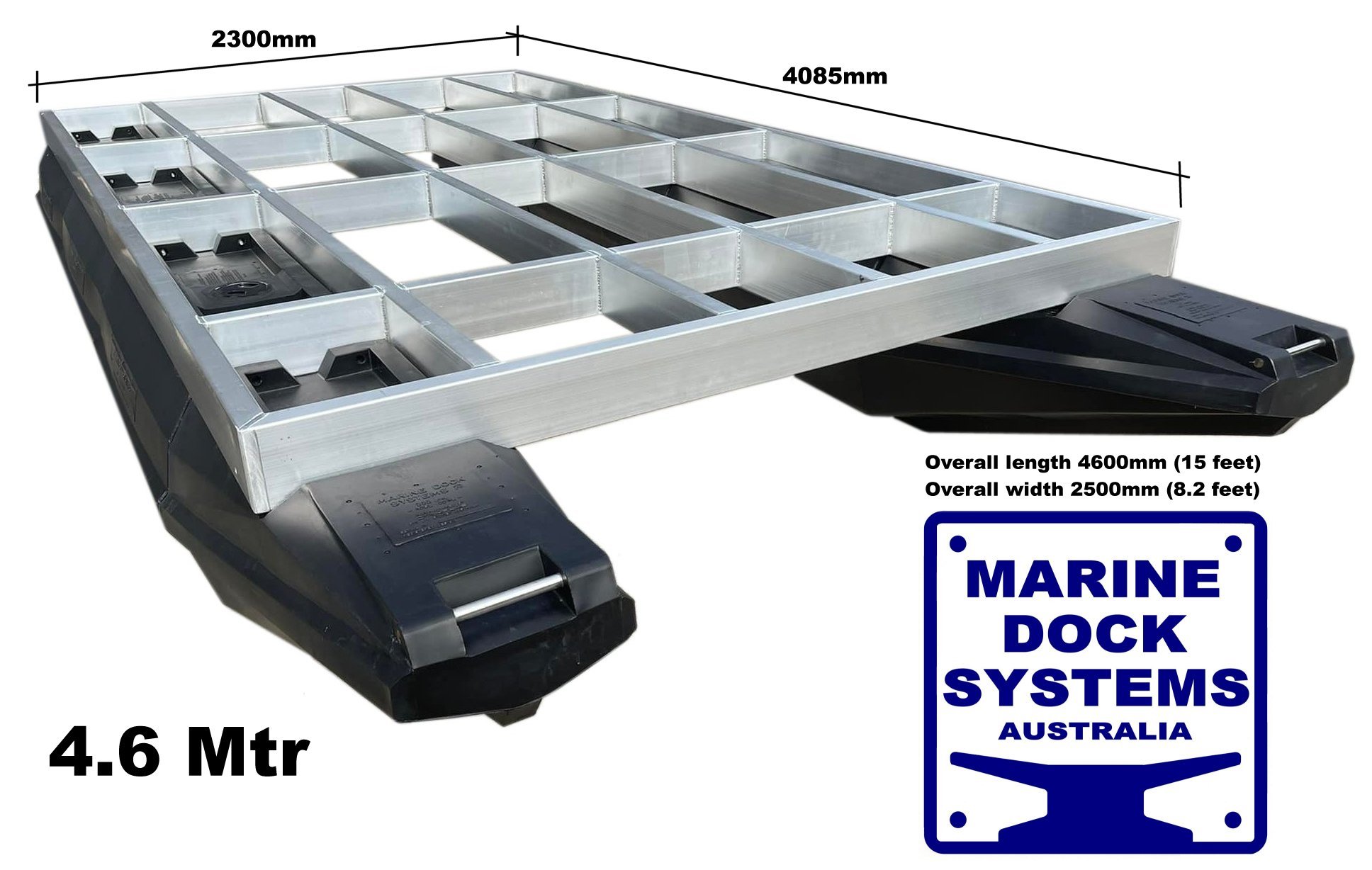

MOVING CRAFT
4.6 Mtrs Long
2.5mtr wide

Floats only $3080
Frame and Floats $6495

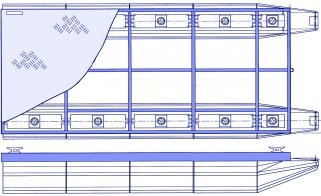

Drawing - BOAT-0460
Moving Craft 4.6m x 2.5m

- Drawing A4-1463

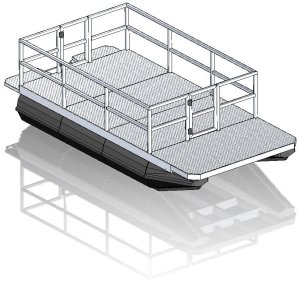

Model with handrail
- Drawing A4-2579x

A4-1840 Moving Craft 4.6m x 2.5m

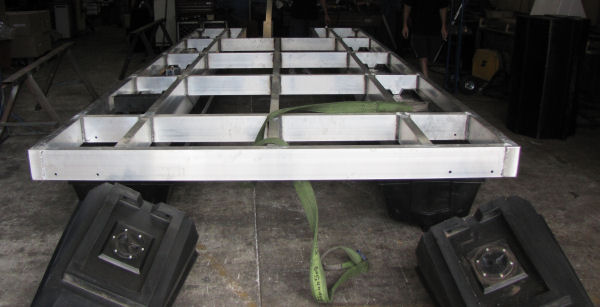

Aluminium frame detail

Floats 200 kg
Frame 96 kg
Total weight 296 kg
Max Load 900kg

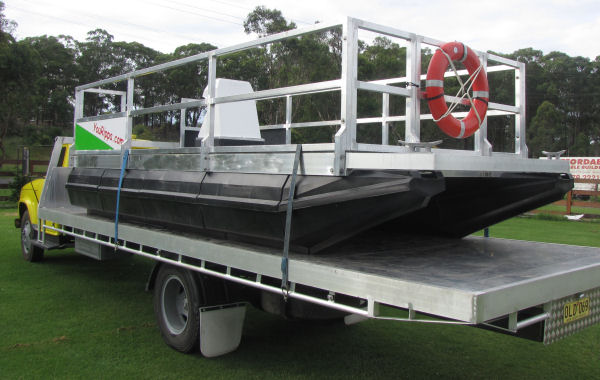

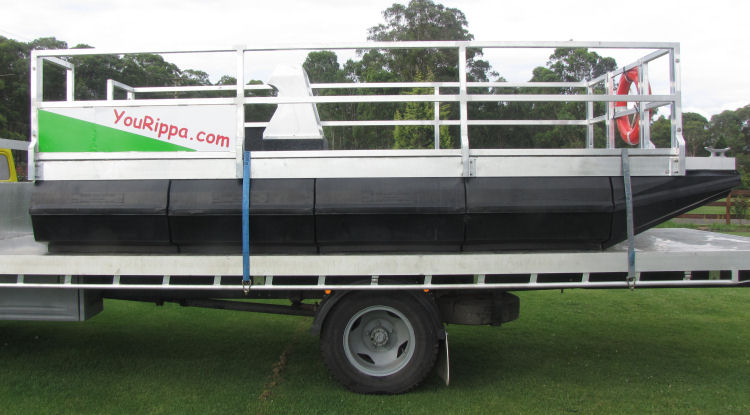

MOVING CRAFT
5.7 Mtrs Long
2.5mtr wide

Floats only $3850
Frame and Floats $7995

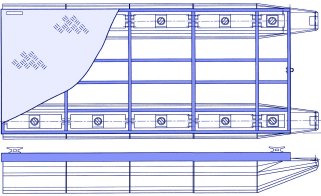

Drawing - BOAT-0570
Moving Craft 5.7m x 2.5m

More pics.
- Pic # 1
- Pic # 2
- Pic # 3

Floats 250 kg
Frame 120 kg
Total weight 296 kg
Max Load 1200kg

MOVING CRAFT
6.9 Mtrs Long
2.5mtr wide

Floats only $4620
Frame and Floats $9595

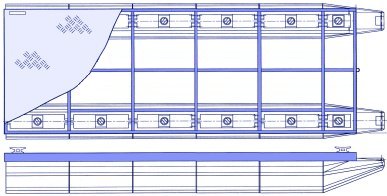

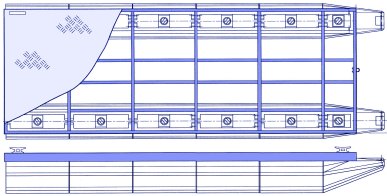

Drawing - BOAT-0690
Moving Craft 6.9m x 2.5m

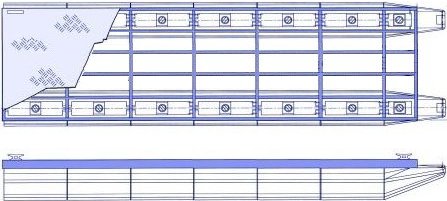

A4-0233 Aluminium frame drawing

MOVING CRAFT
6.9 Mtrs Long
3.2mtr wide

Floats only $6930
Frame and Floats $11,995

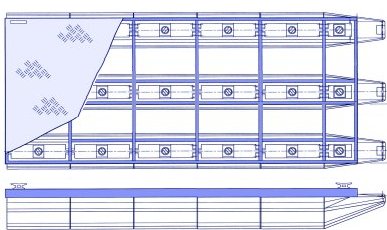

BOAT-0690-0320
Moving Craft 6.9m x 3.2m

- Drawing A4-0775

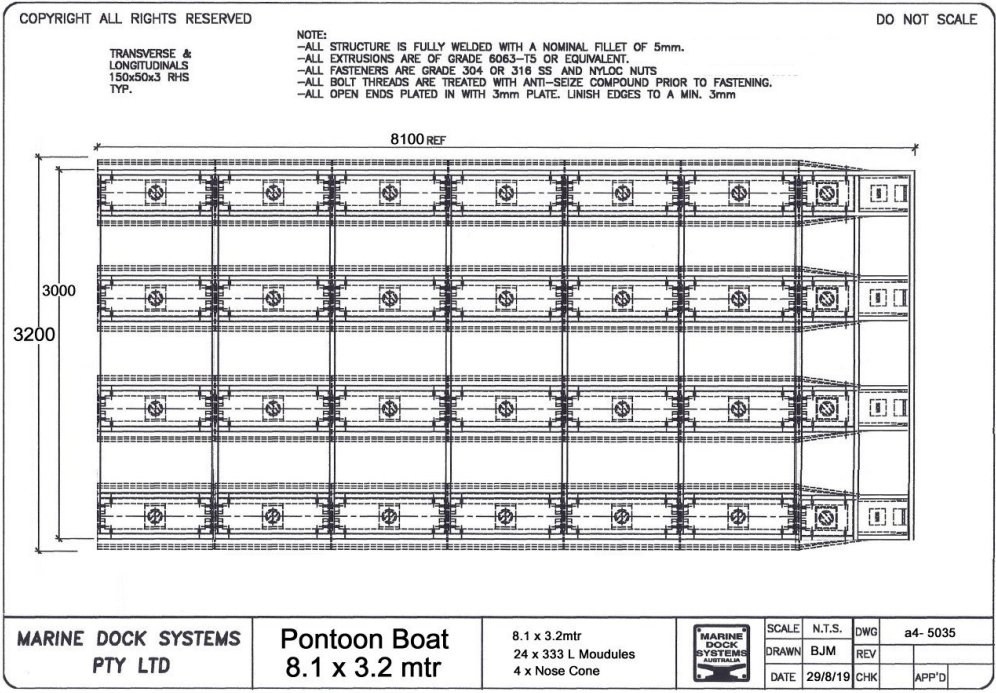

MOVING CRAFT
8.1 Mtrs Long
3.2mtr wide

Floats only $8085
Frame and Floats $13849

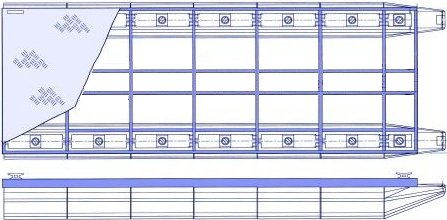

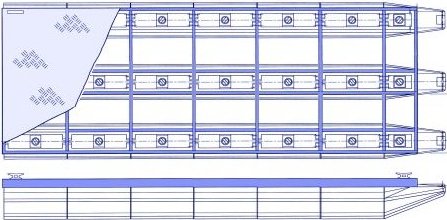

A4-0949 - Moving craft Frame detail 8.1m x 3.2m wide Extra wide

Floats
333 Litre Drawing A4-0184

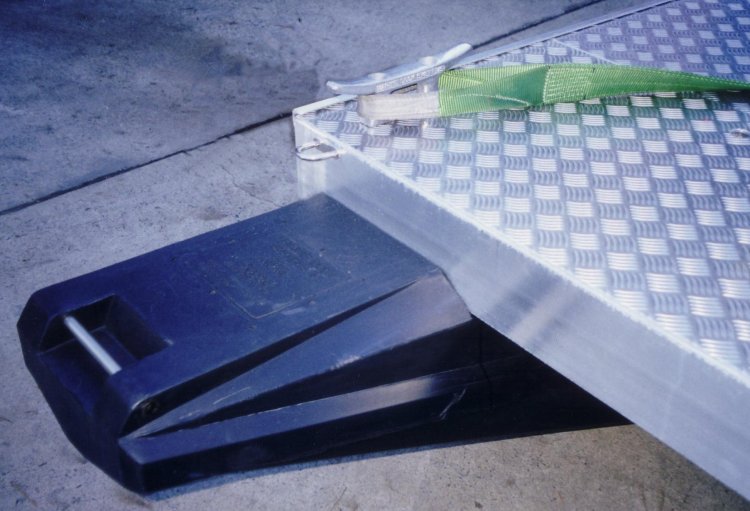

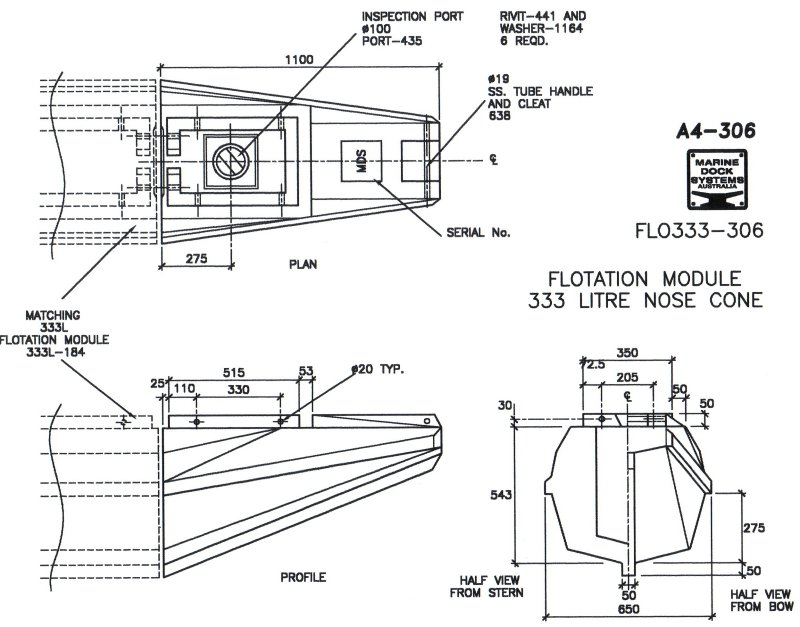

333 Litre Nose Cone Drawing A4-0306

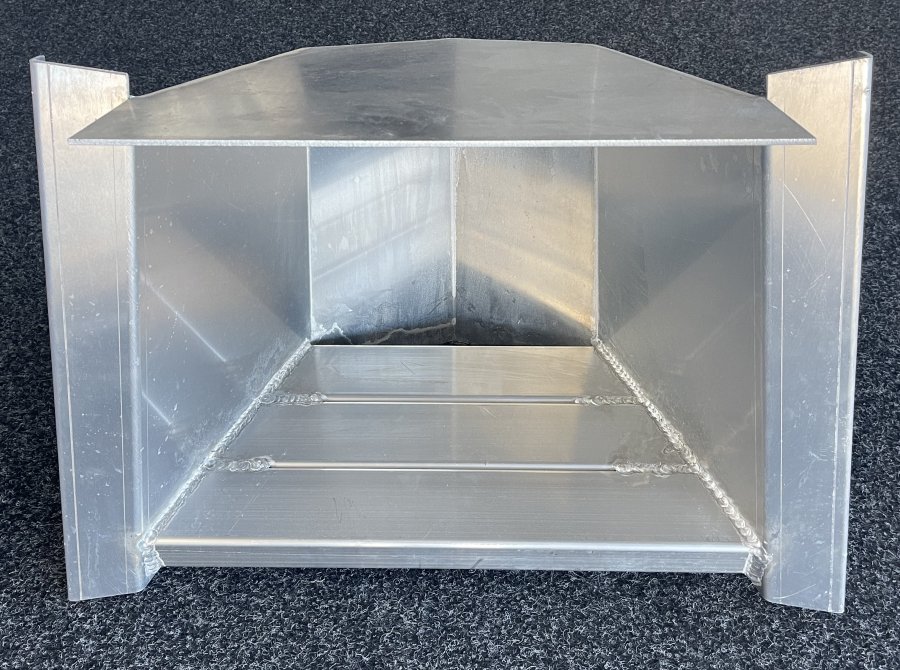

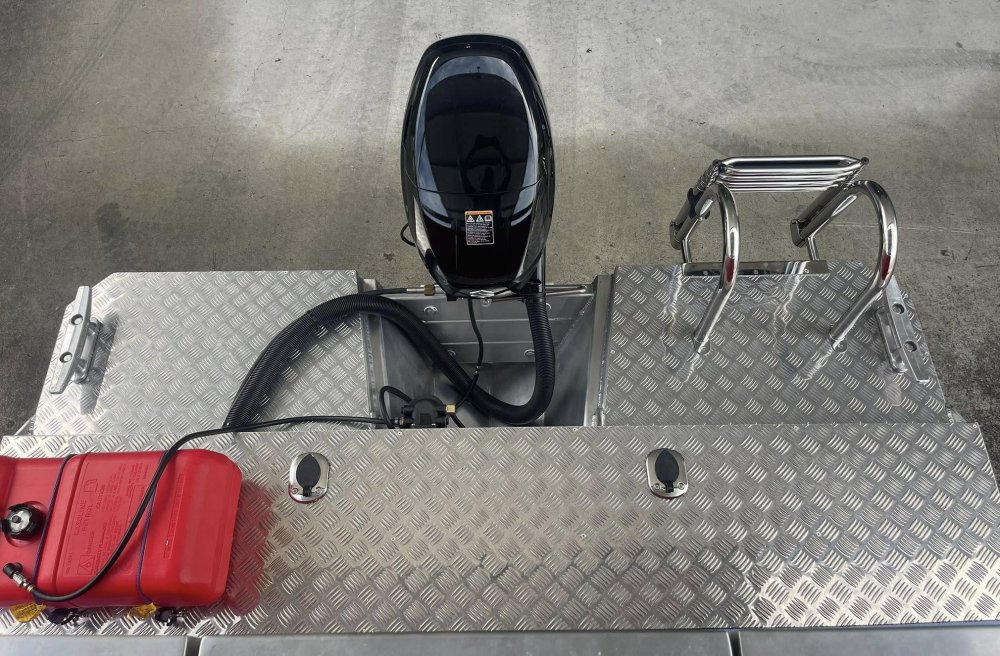

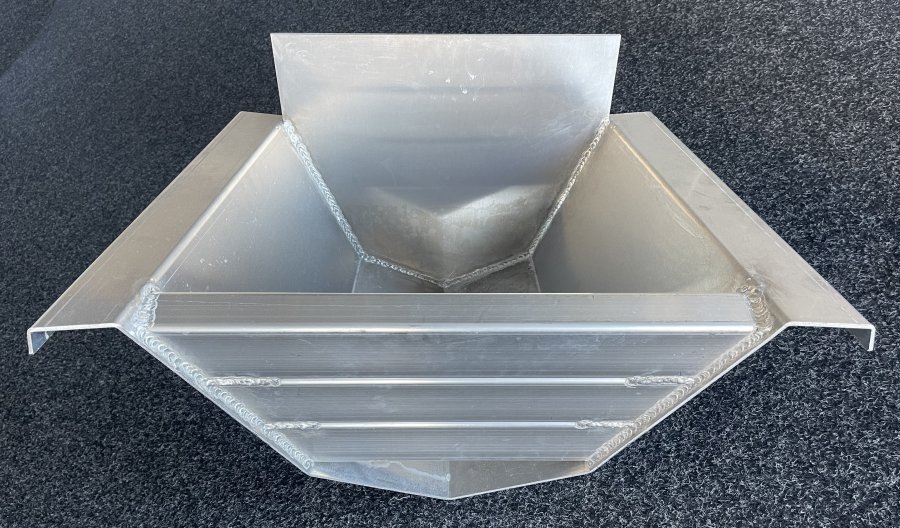

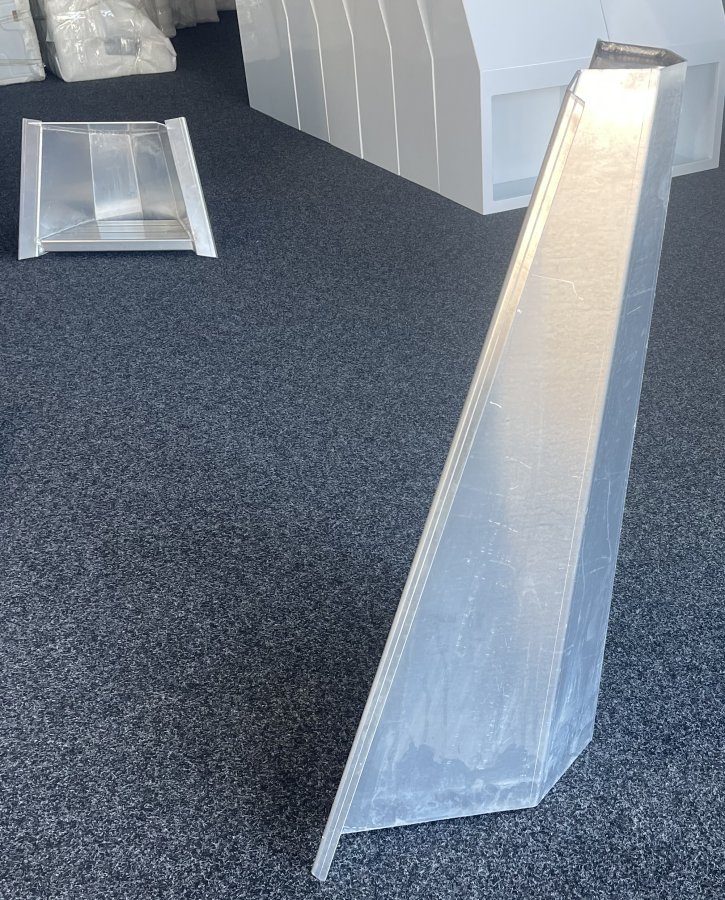

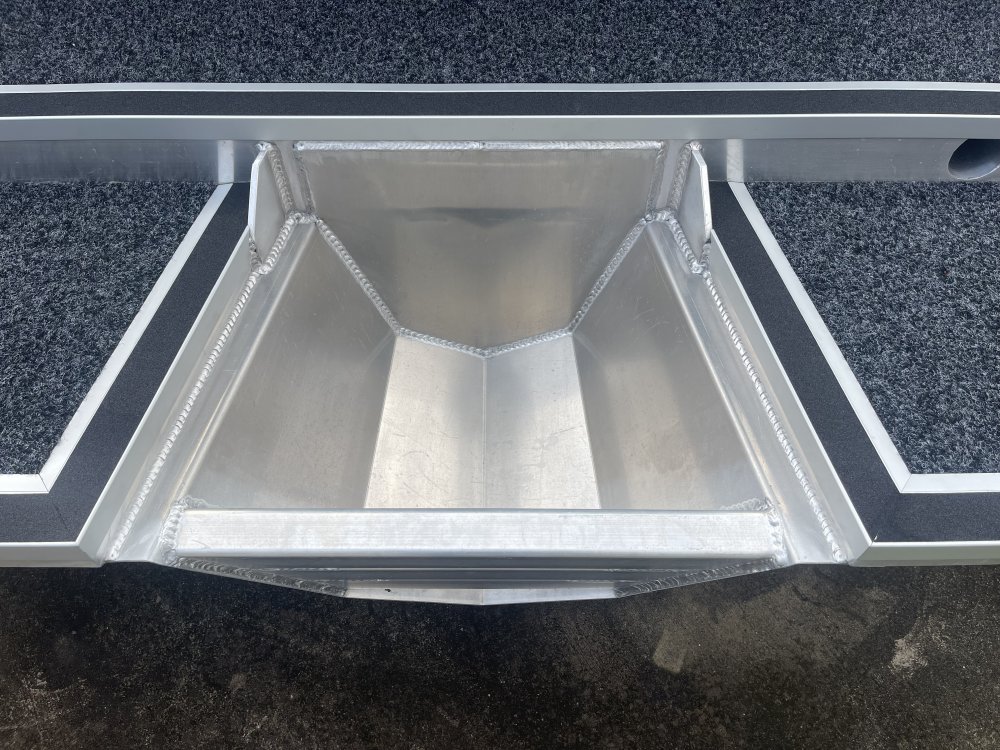

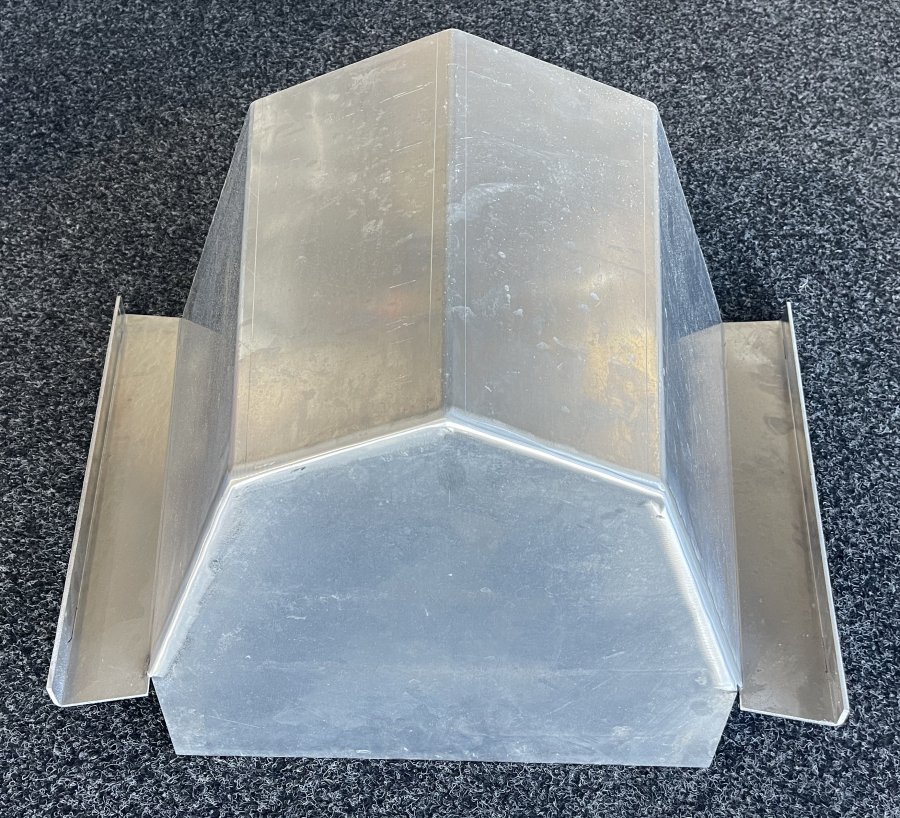

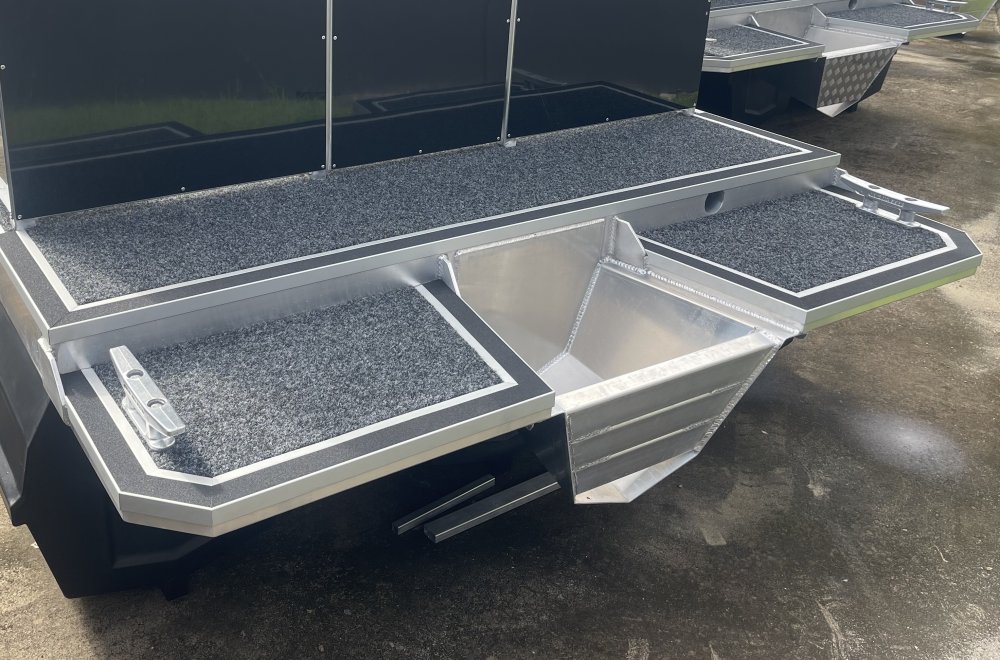

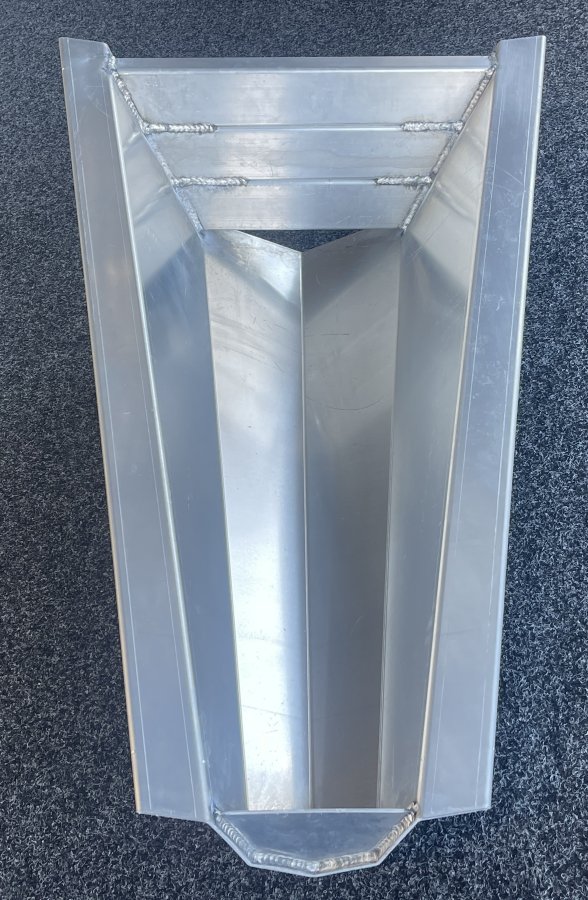

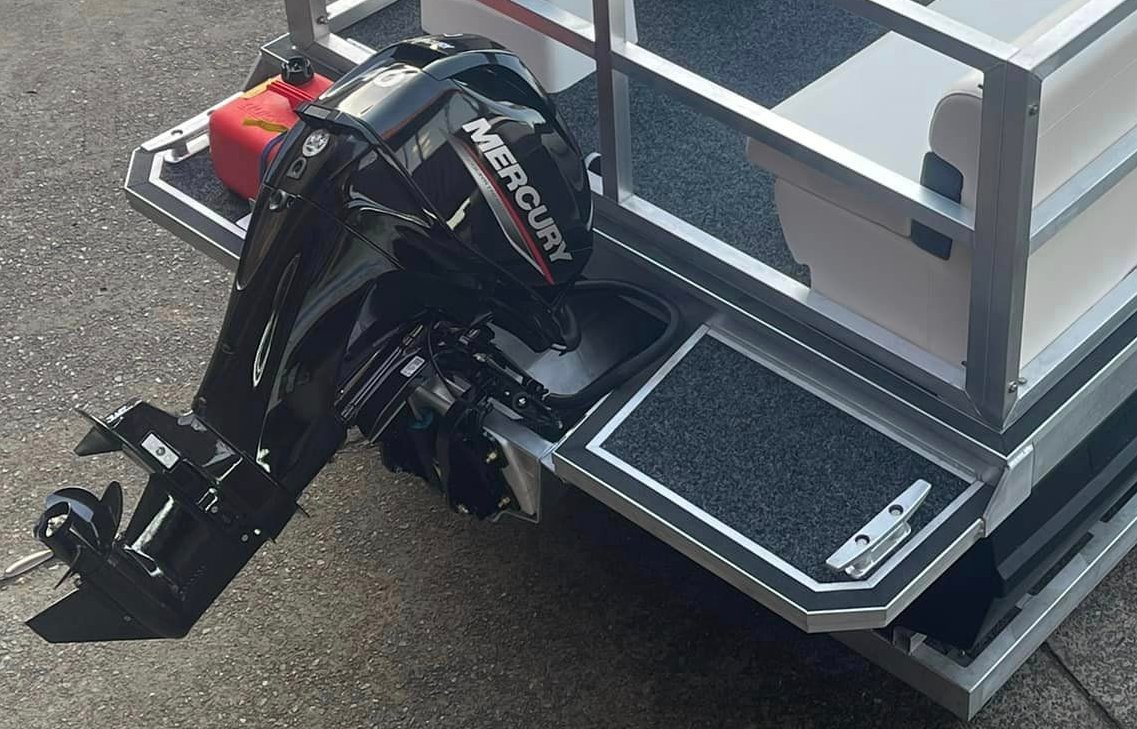

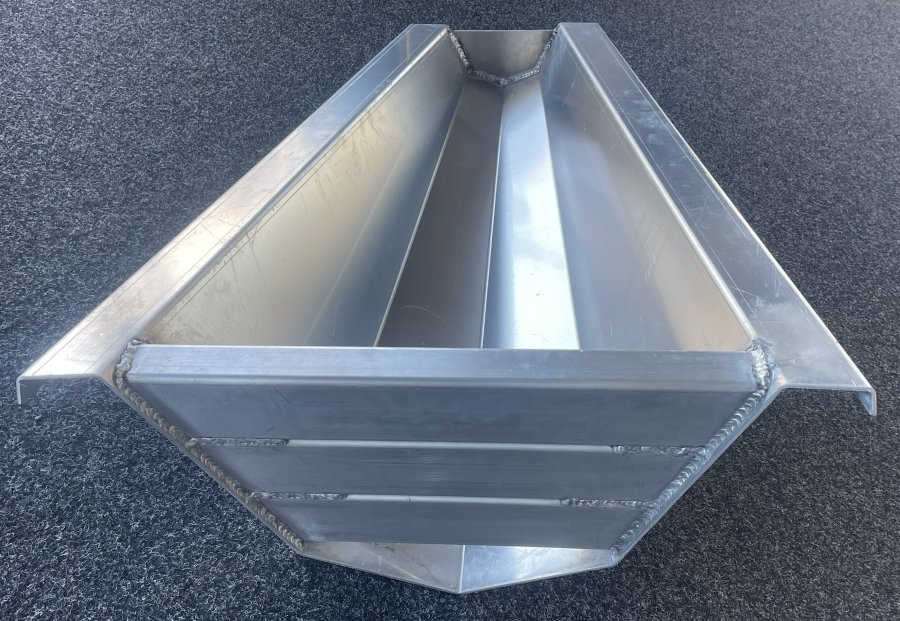

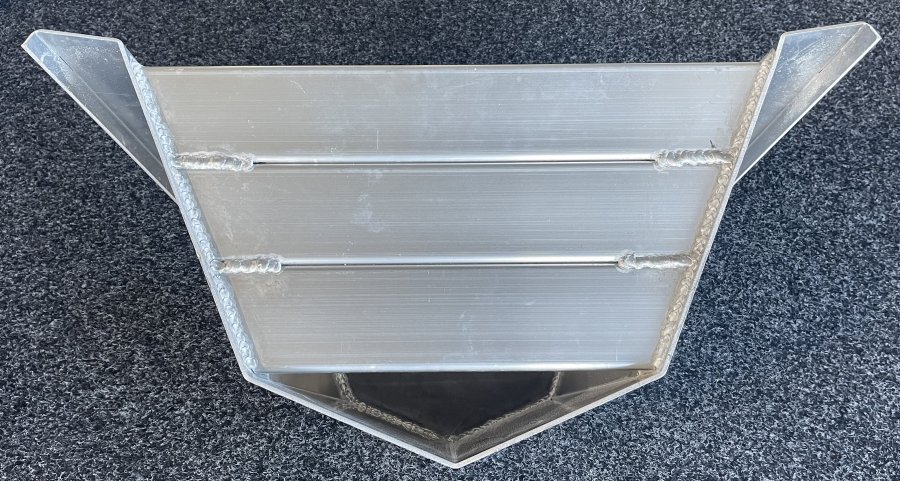

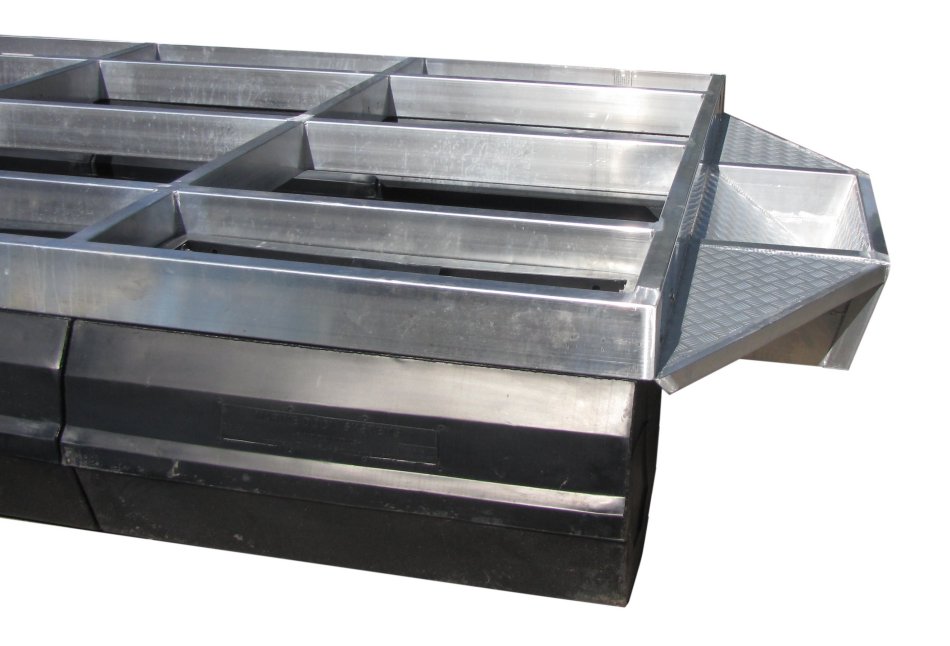

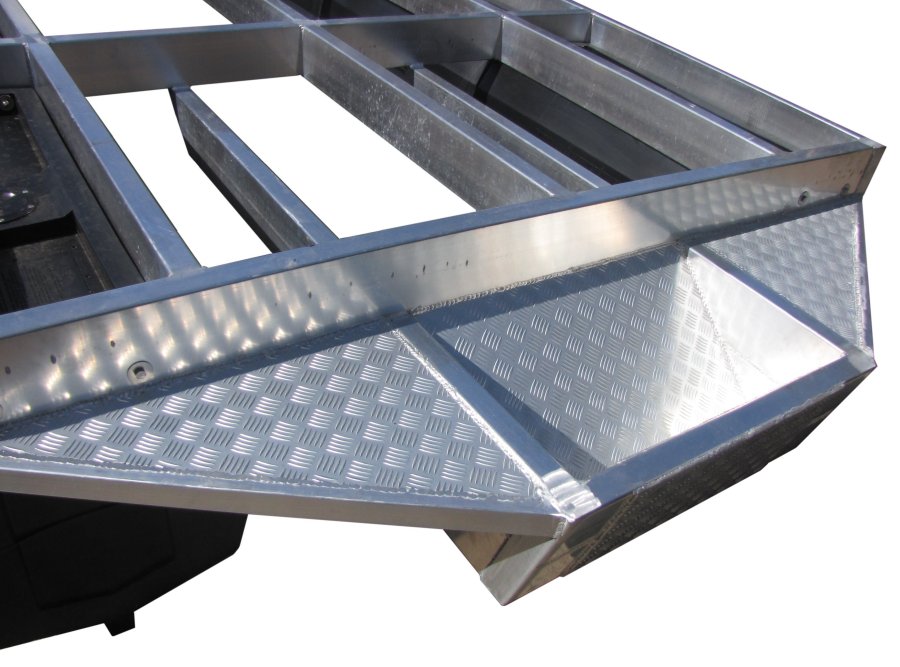

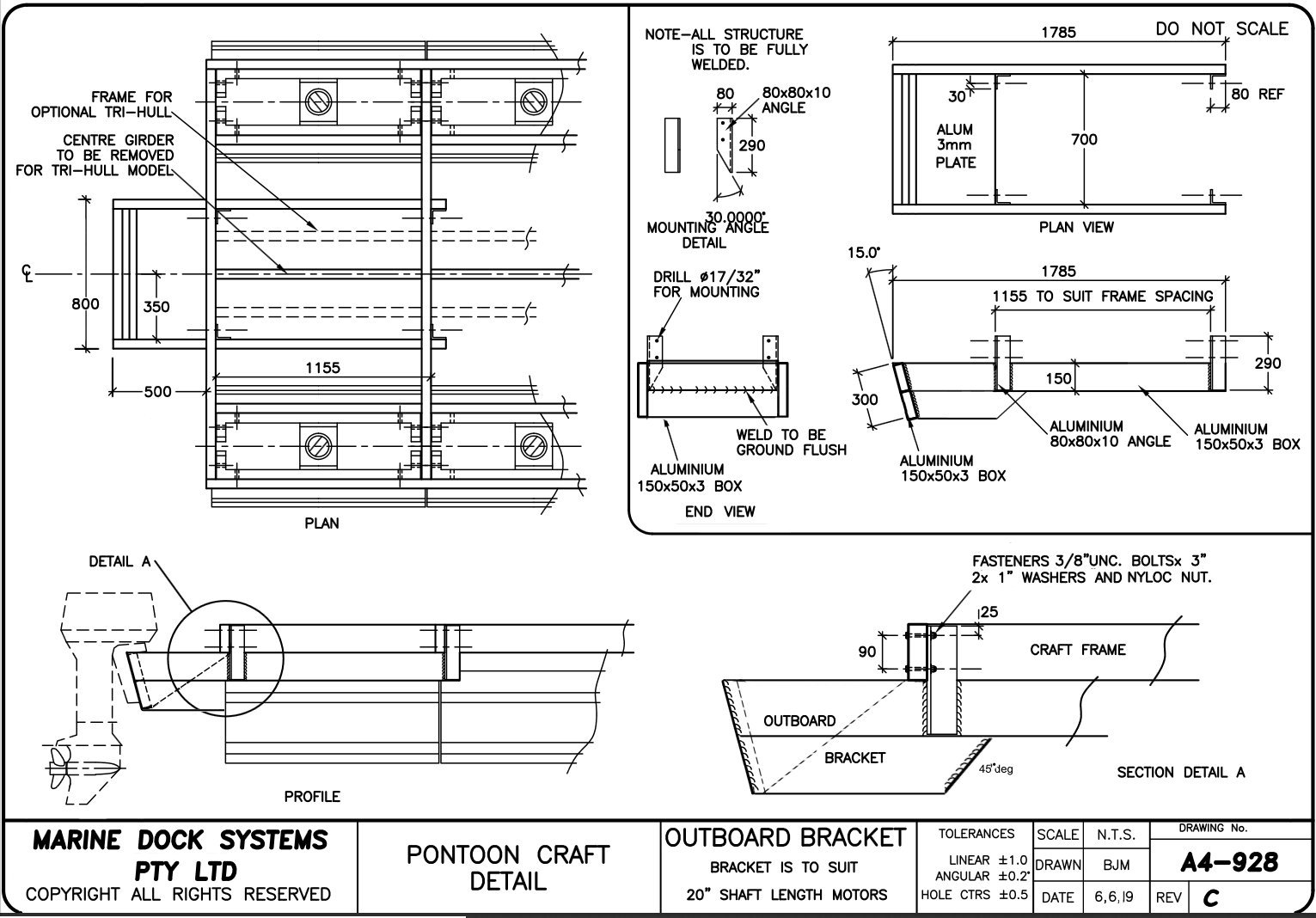

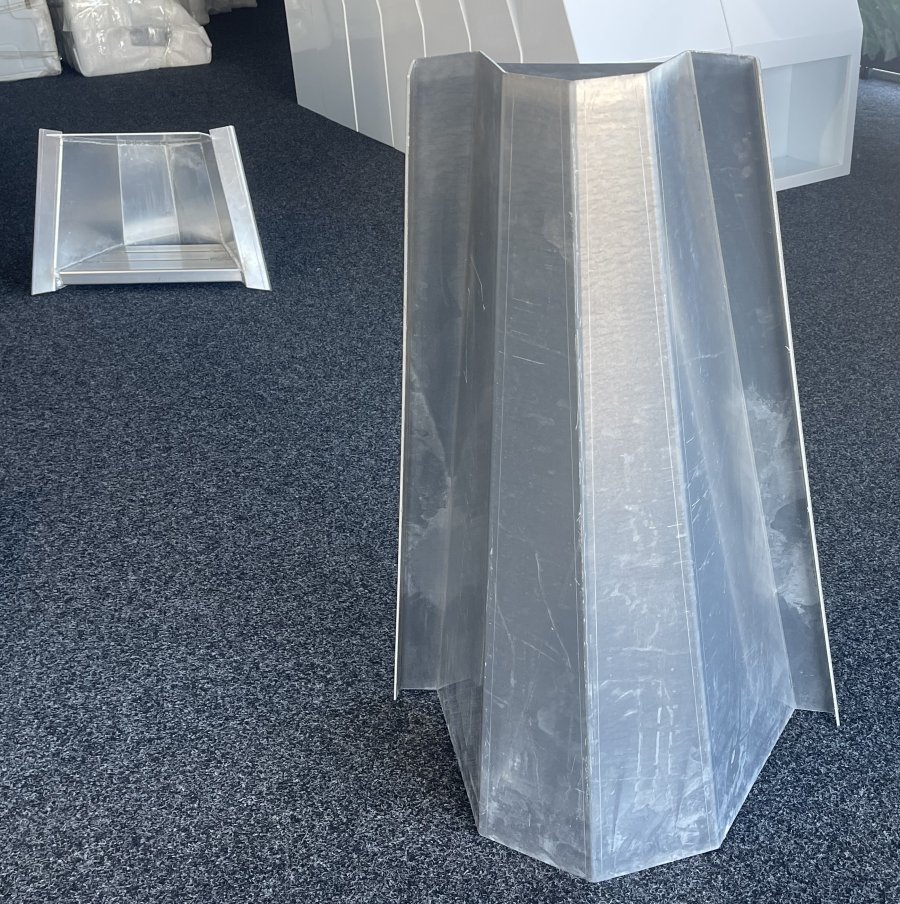

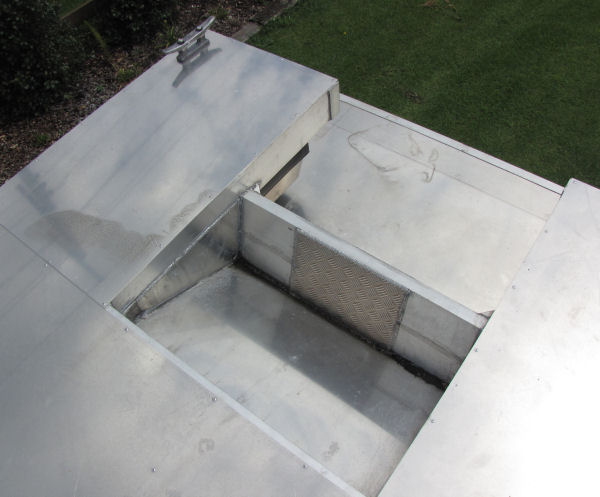

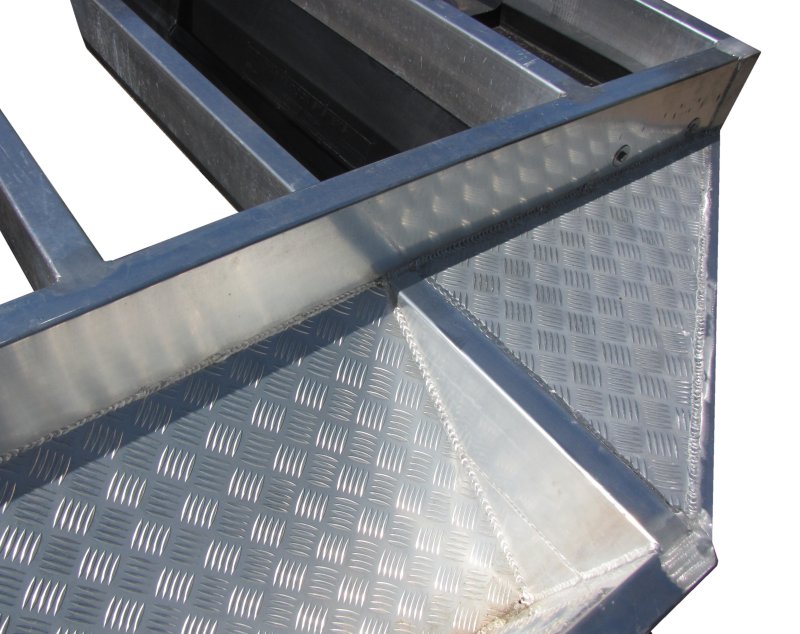

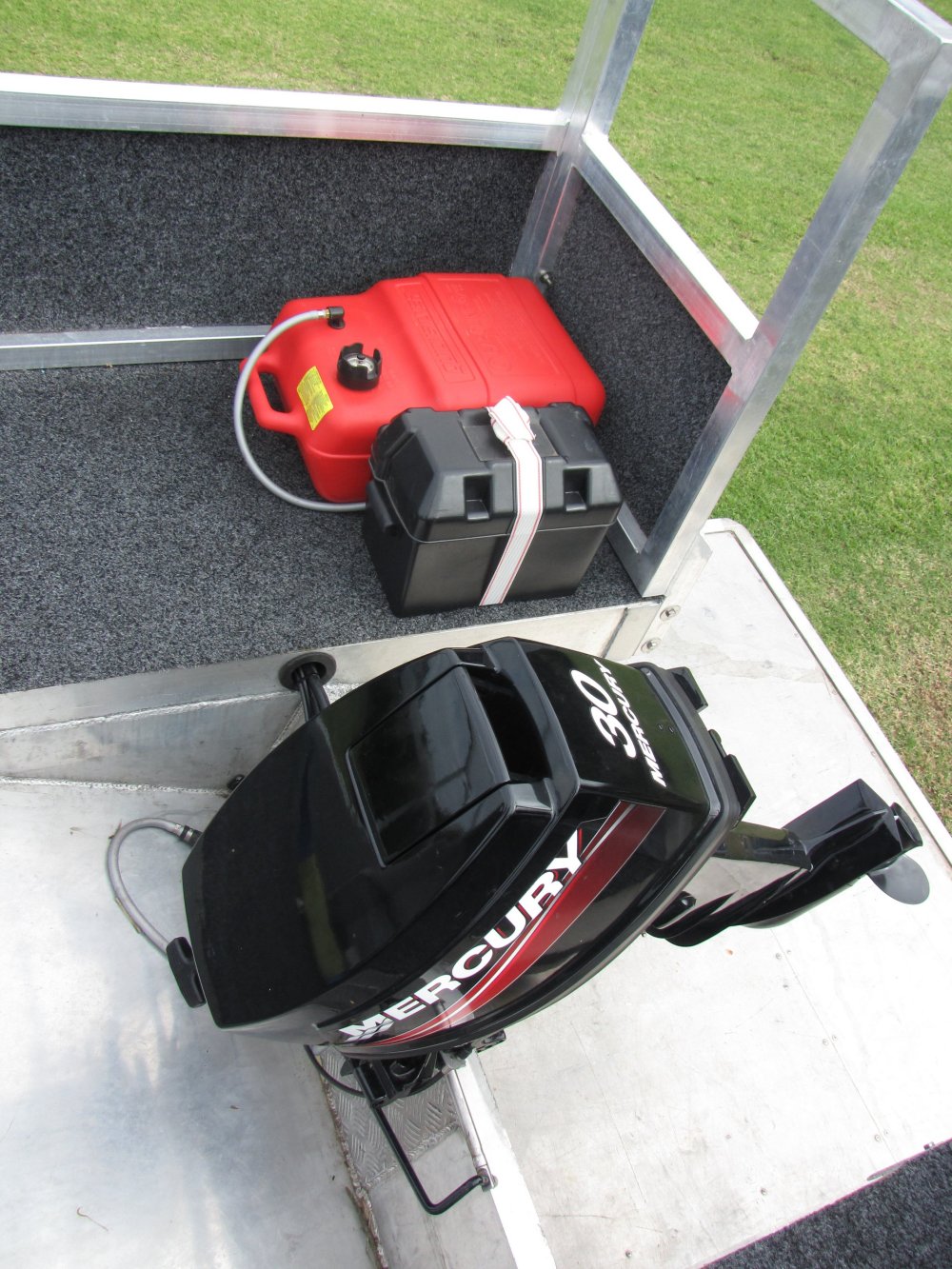

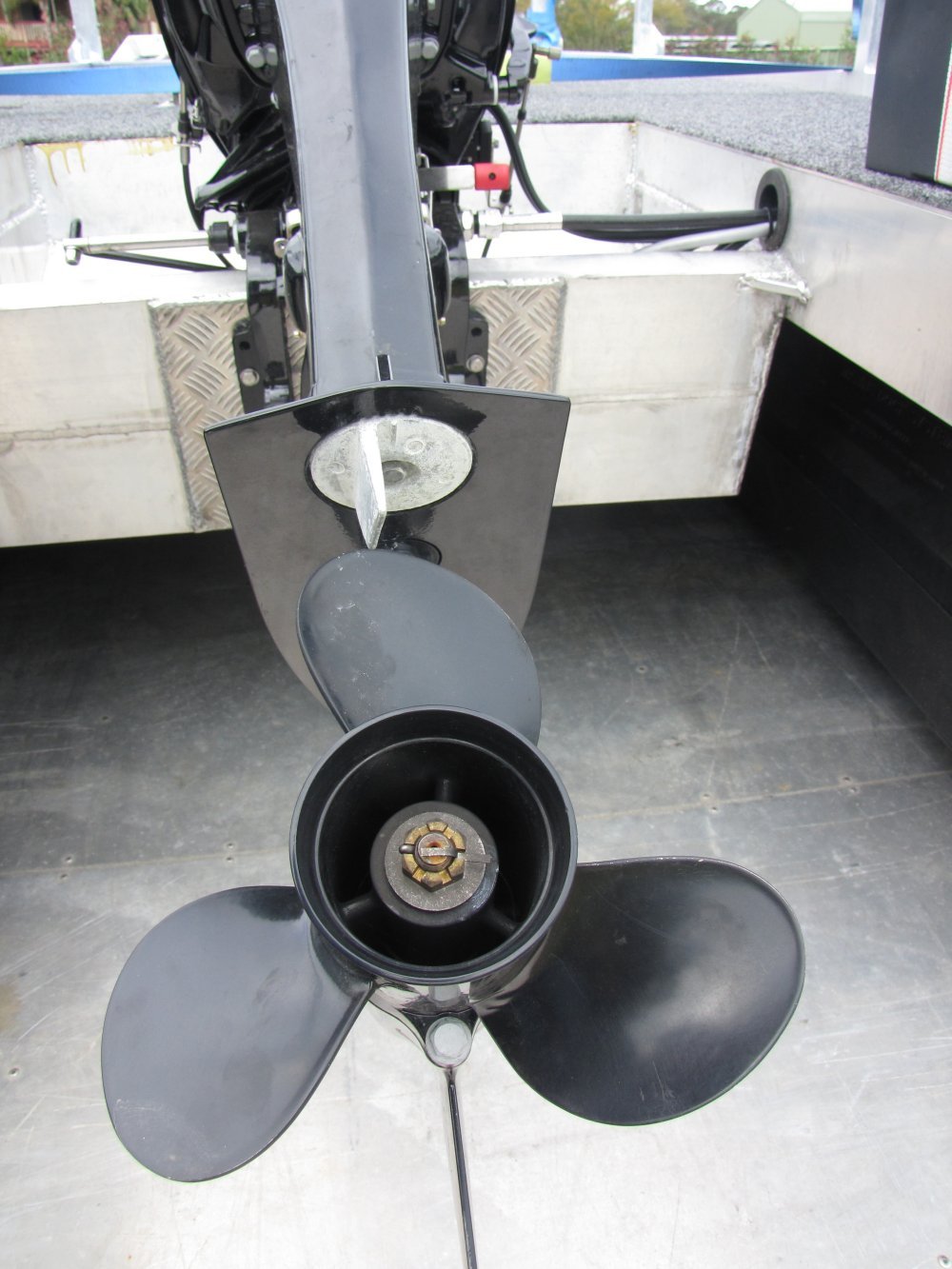

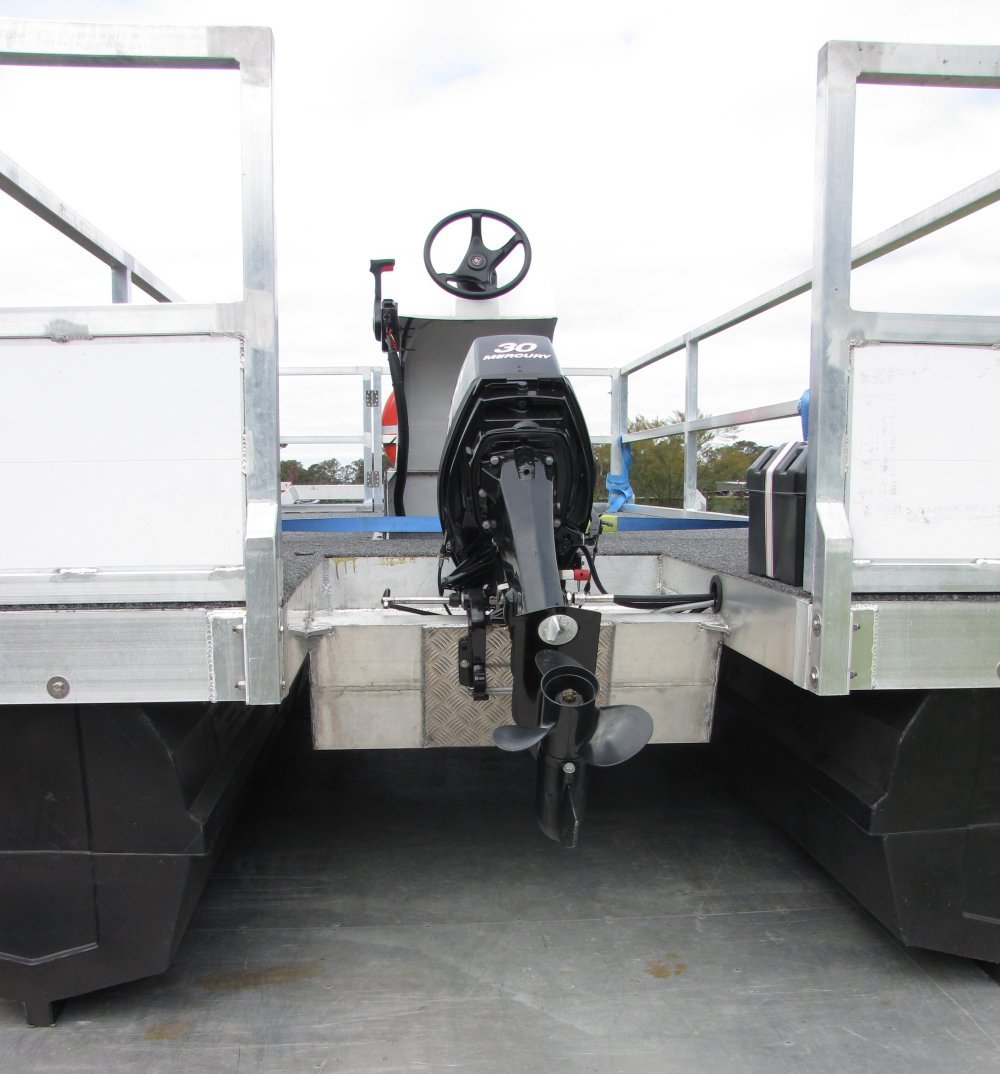

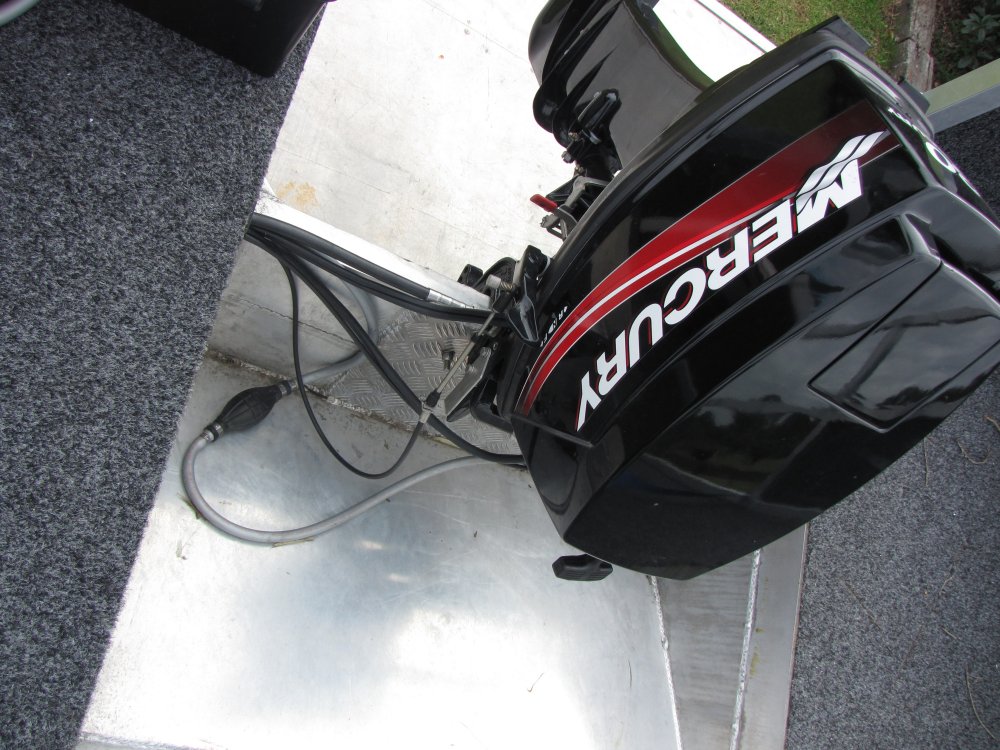

Outboard Motor Bracket

A4-0928 - Outboard Motor Bracket
- Drawing A4-0928

More pics. Click to enlarge

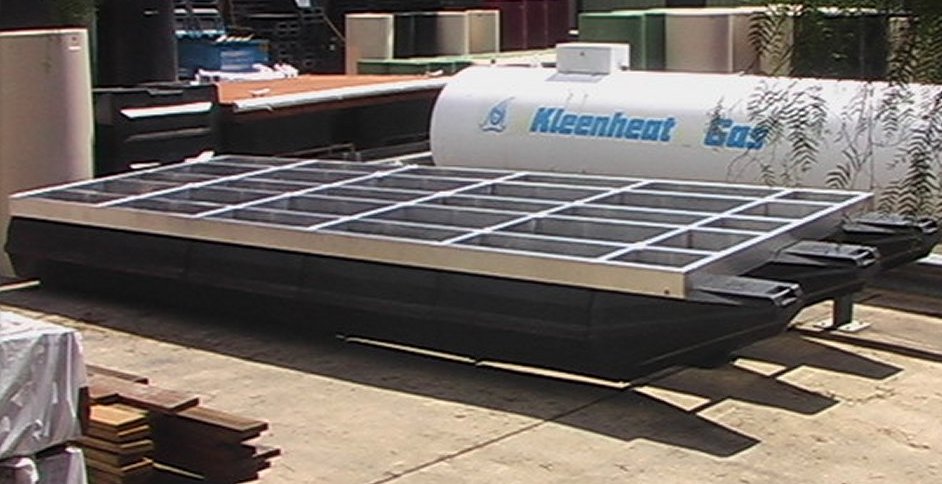

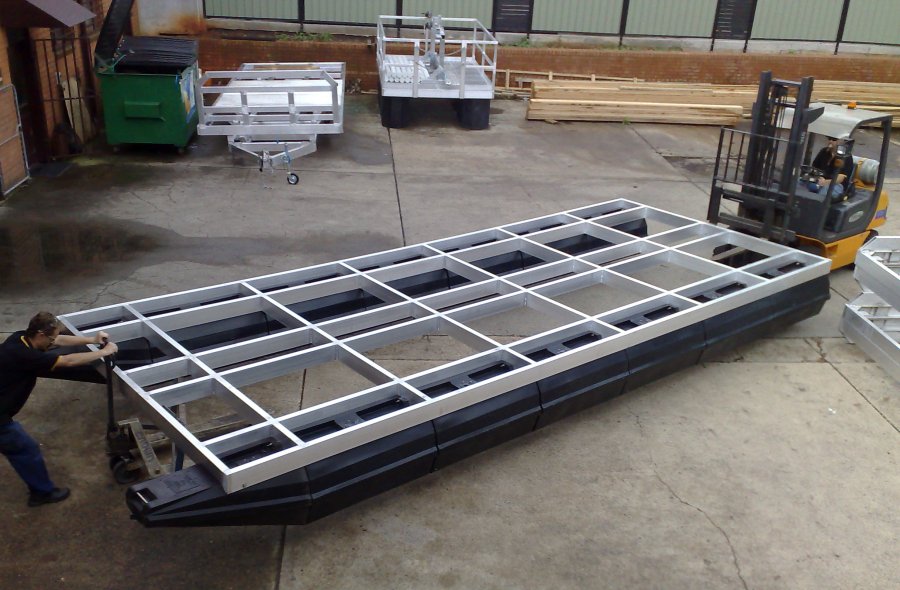

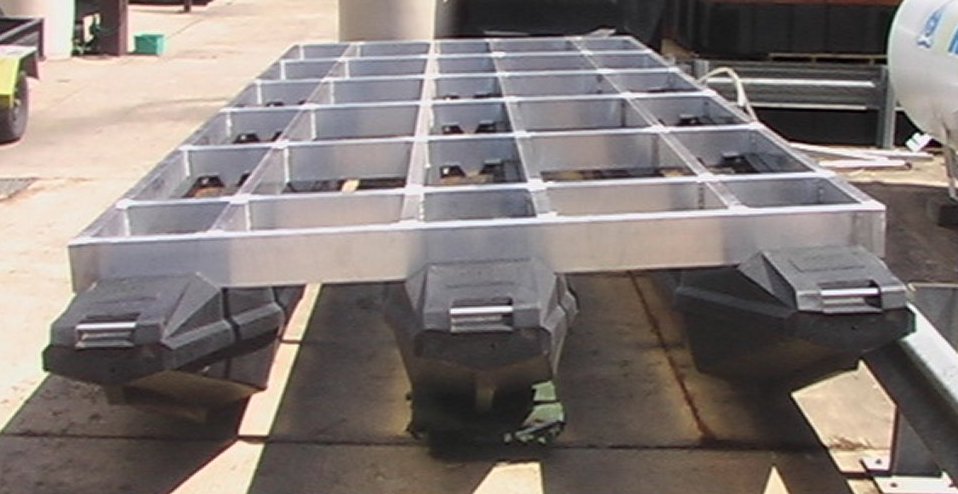

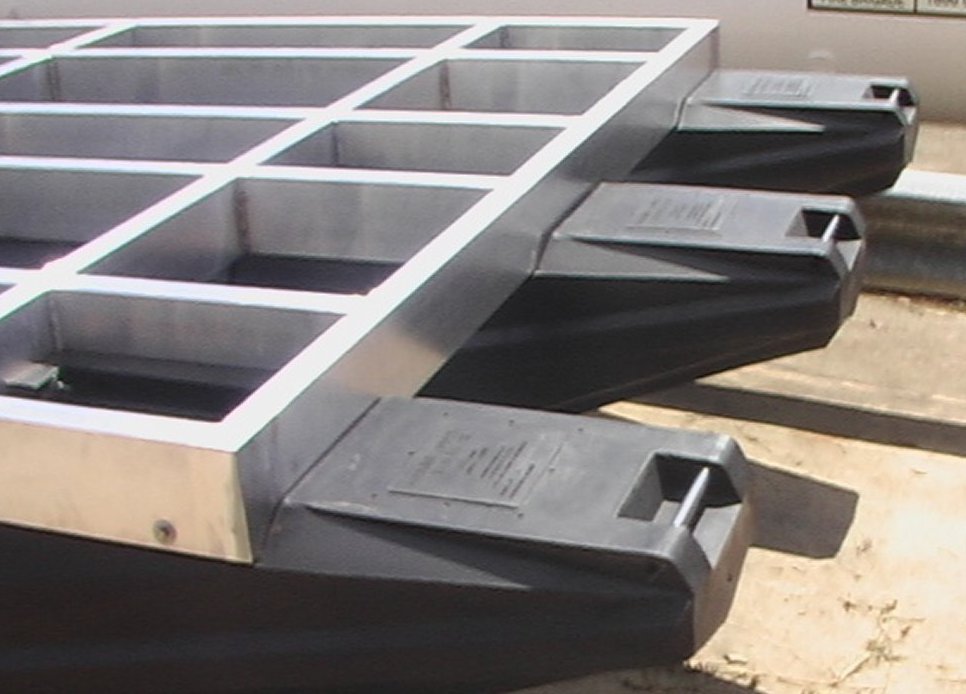

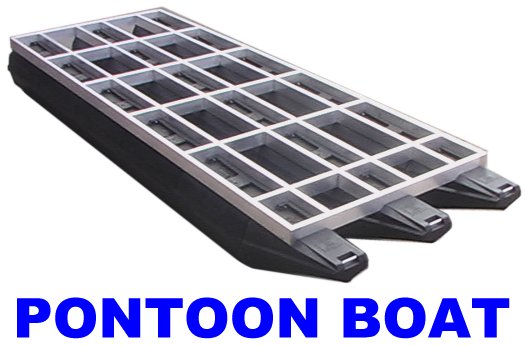

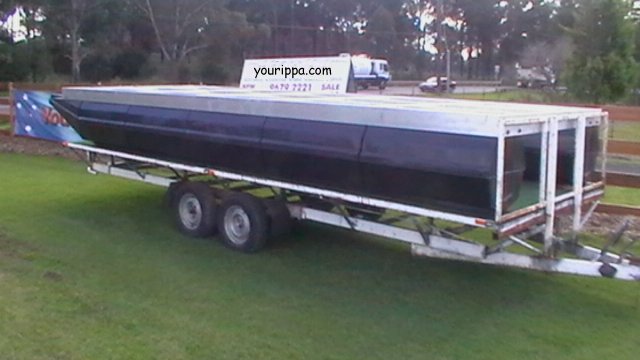

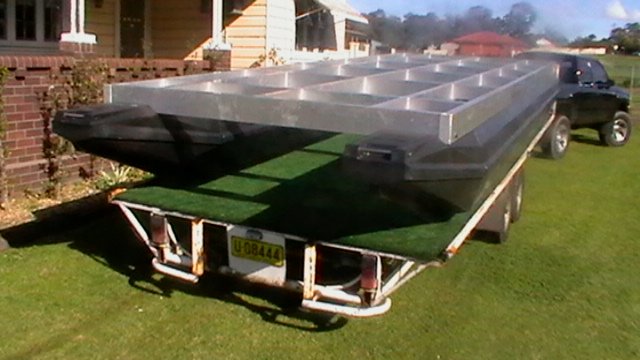

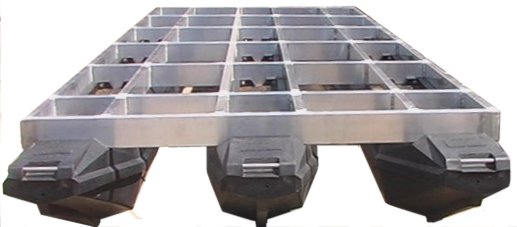

This boat has three rows of floats for extra flotation. This boat can take 2250kg. as is.
Consisting of 15 x 333 Litre Floatation modules and 3 x Nose cones

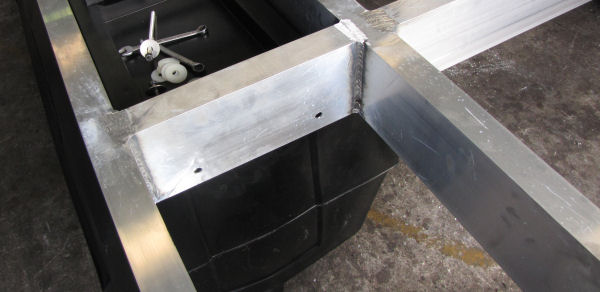

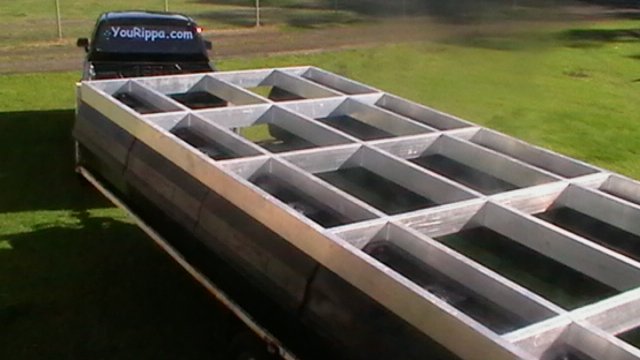

Frame is made from 150 x 50 x 3mm aluminium RHS and is fully welded

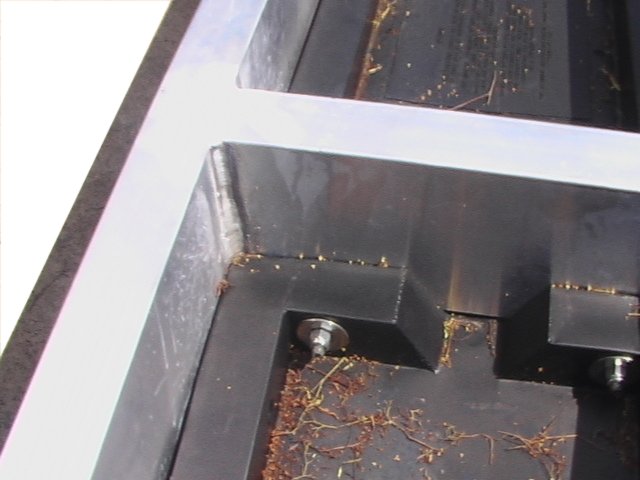

304 Stainless steel bolts have been used to attach the floats to the frame
Frame platform size 2400mm wide x 6400 mm long.
Total length includnig nose cones 6910mm.

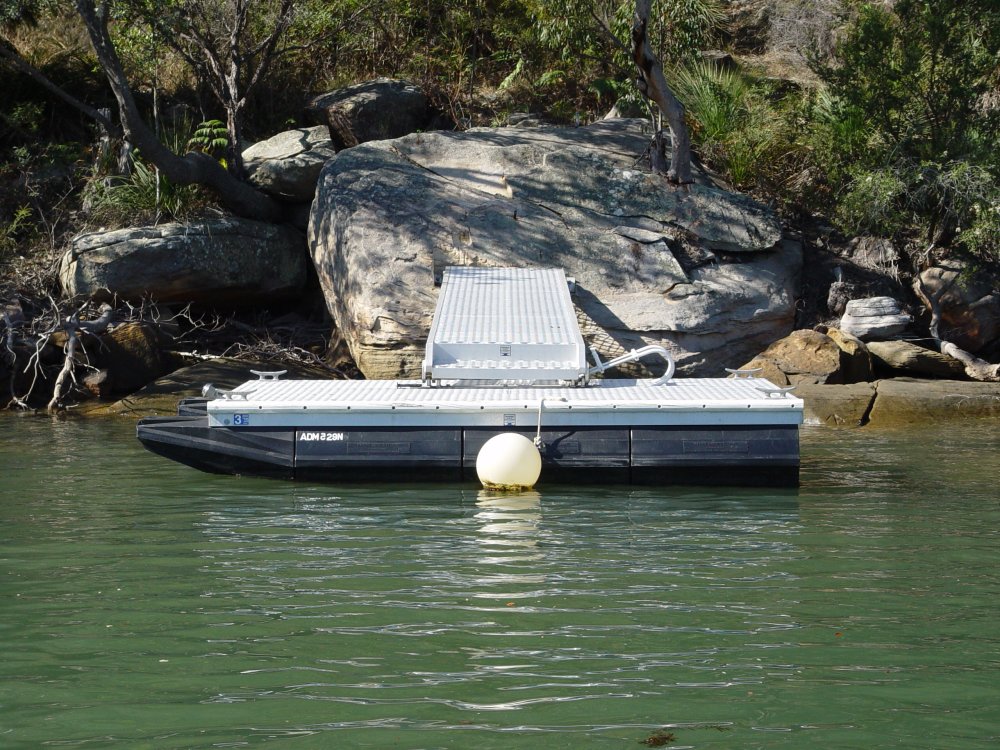

MOVING CRAFT - EFFLUENT PONTOON

CLICK ON IMAGES FOR ENLARGEMENTS
