RAMPS and GANGWAYS.

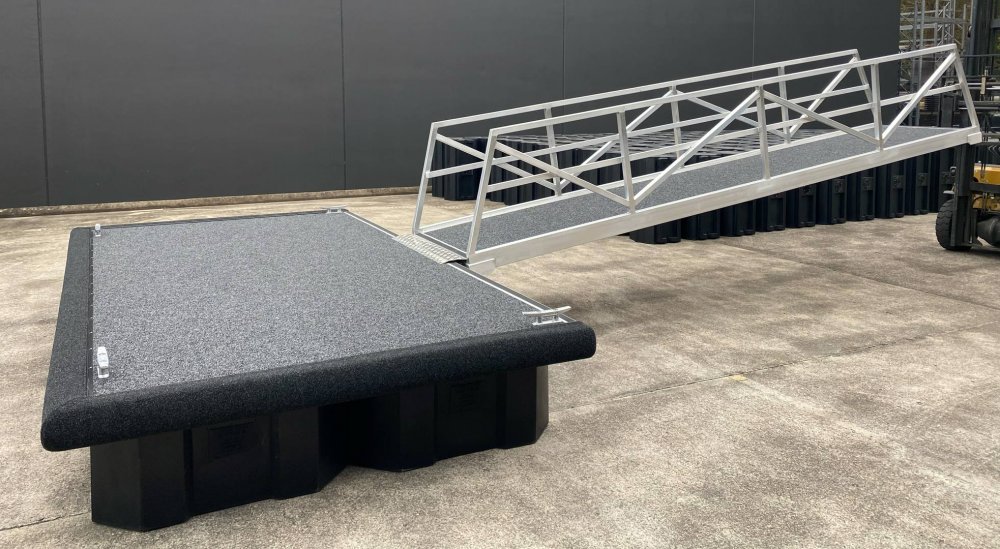

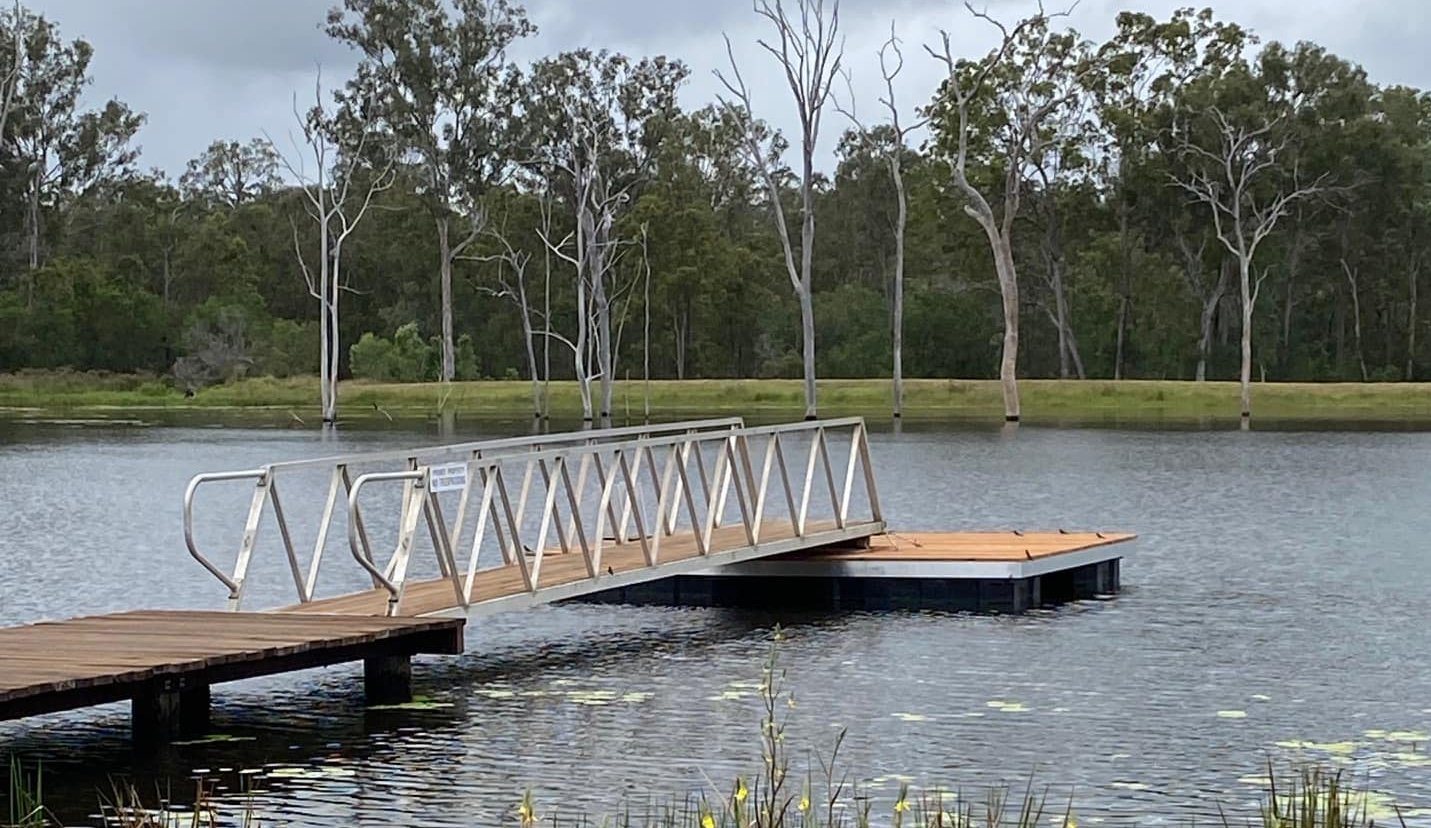

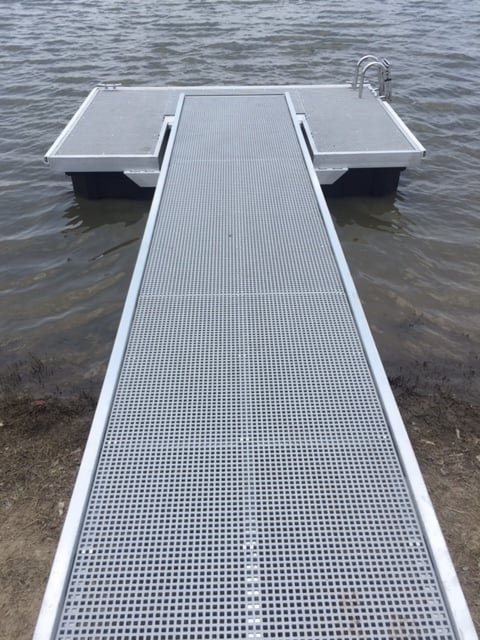

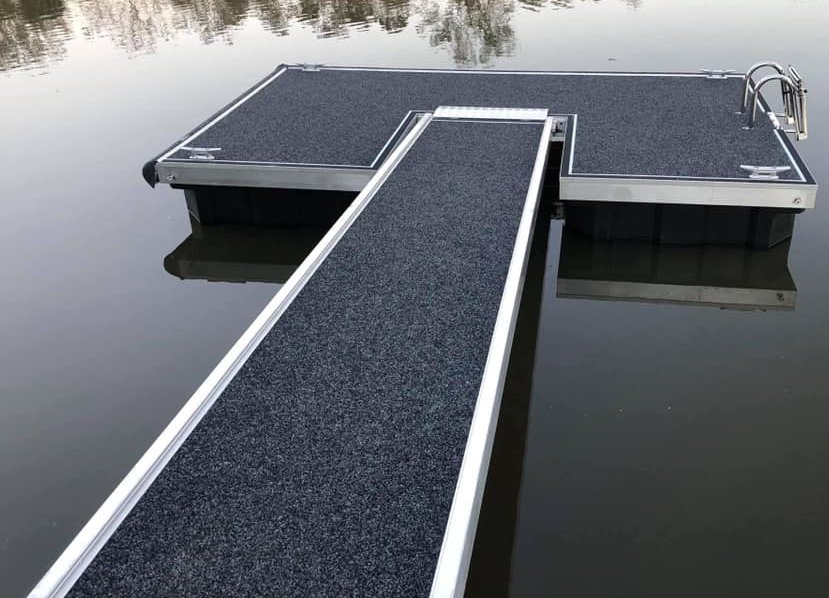

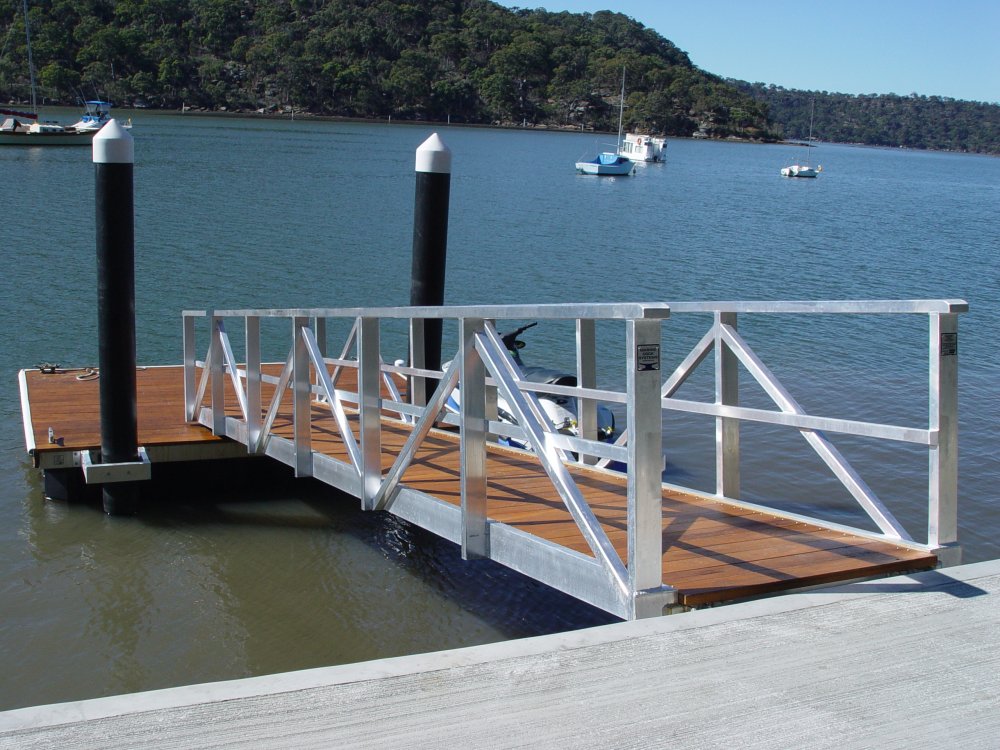

Marine Dock Systems can design and manufacture your ramp or gangway for your floating pontoon or marina. Fully welded aluminium frames, can be decked with aluminium, marine carpet, timber or expanded aluminium mesh.
Floats
Enquiry

WARRAGAMBA DAM Moveable ramp
Sydney Catchment Authority

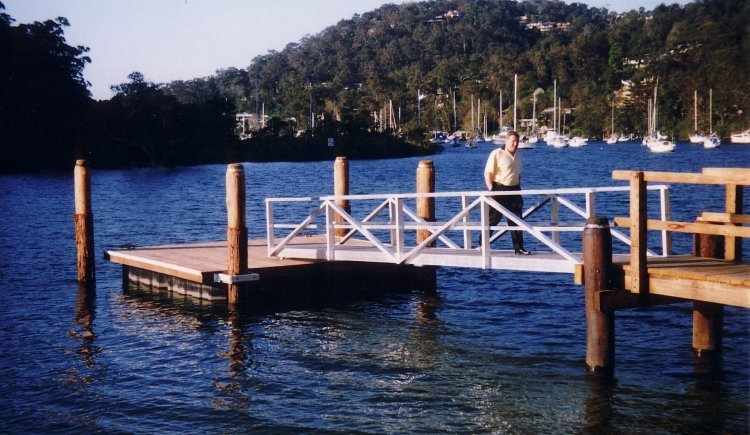

Standard Domestic Ramp 6 mtr x 1.2 mtr
Part # RAMP-0527
F27 kiln dried 200 x 75 Hardwood frame
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware.

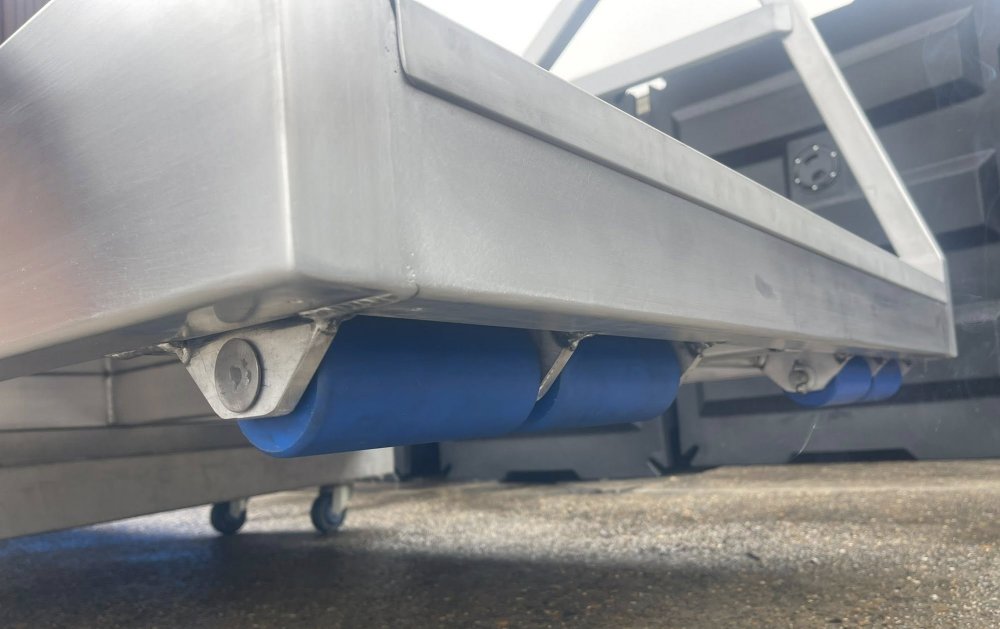

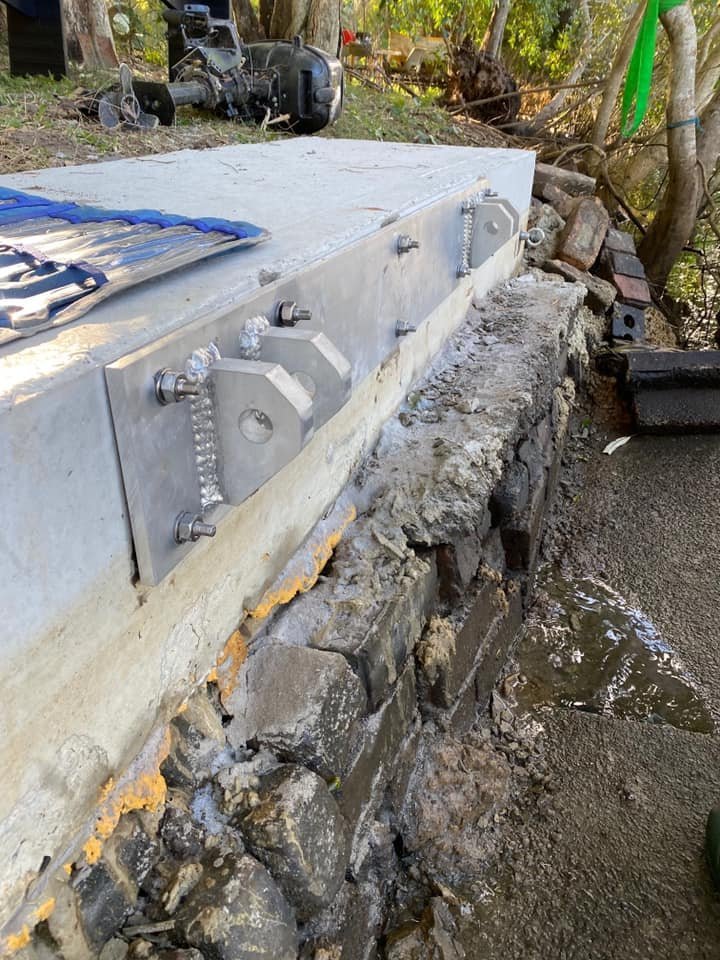

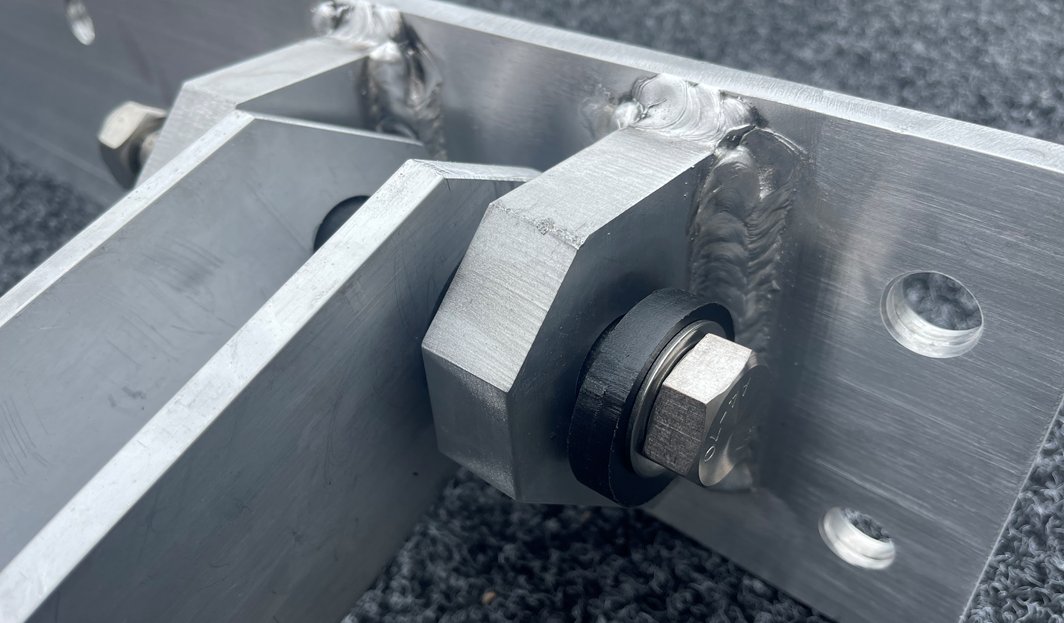

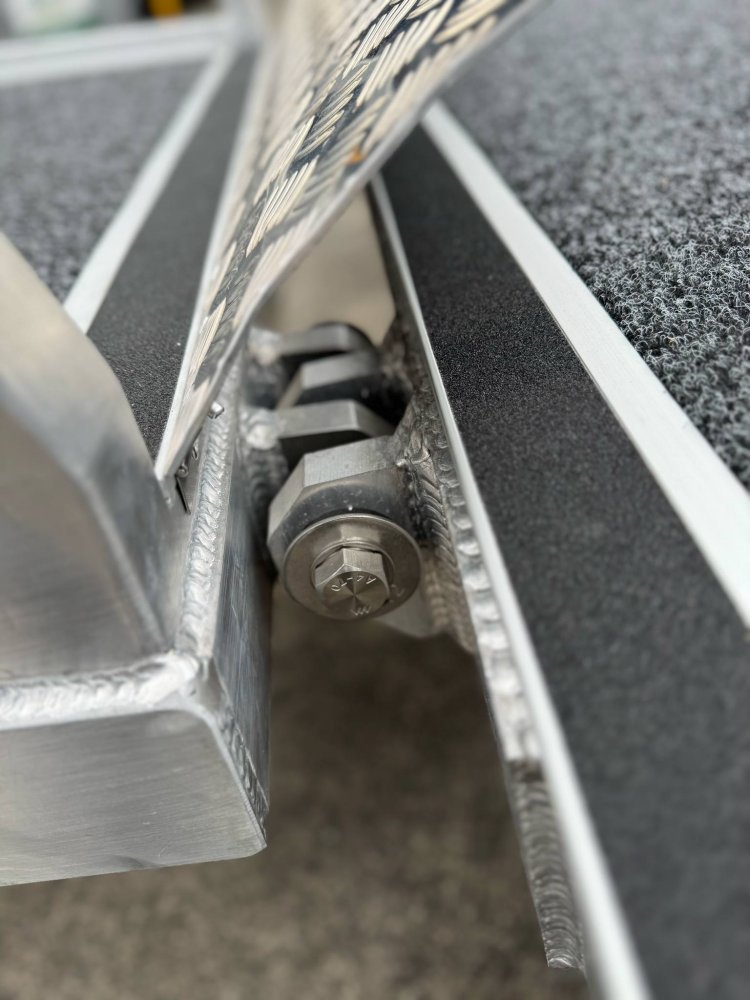

Including aluminium hinges and nylon rollers.

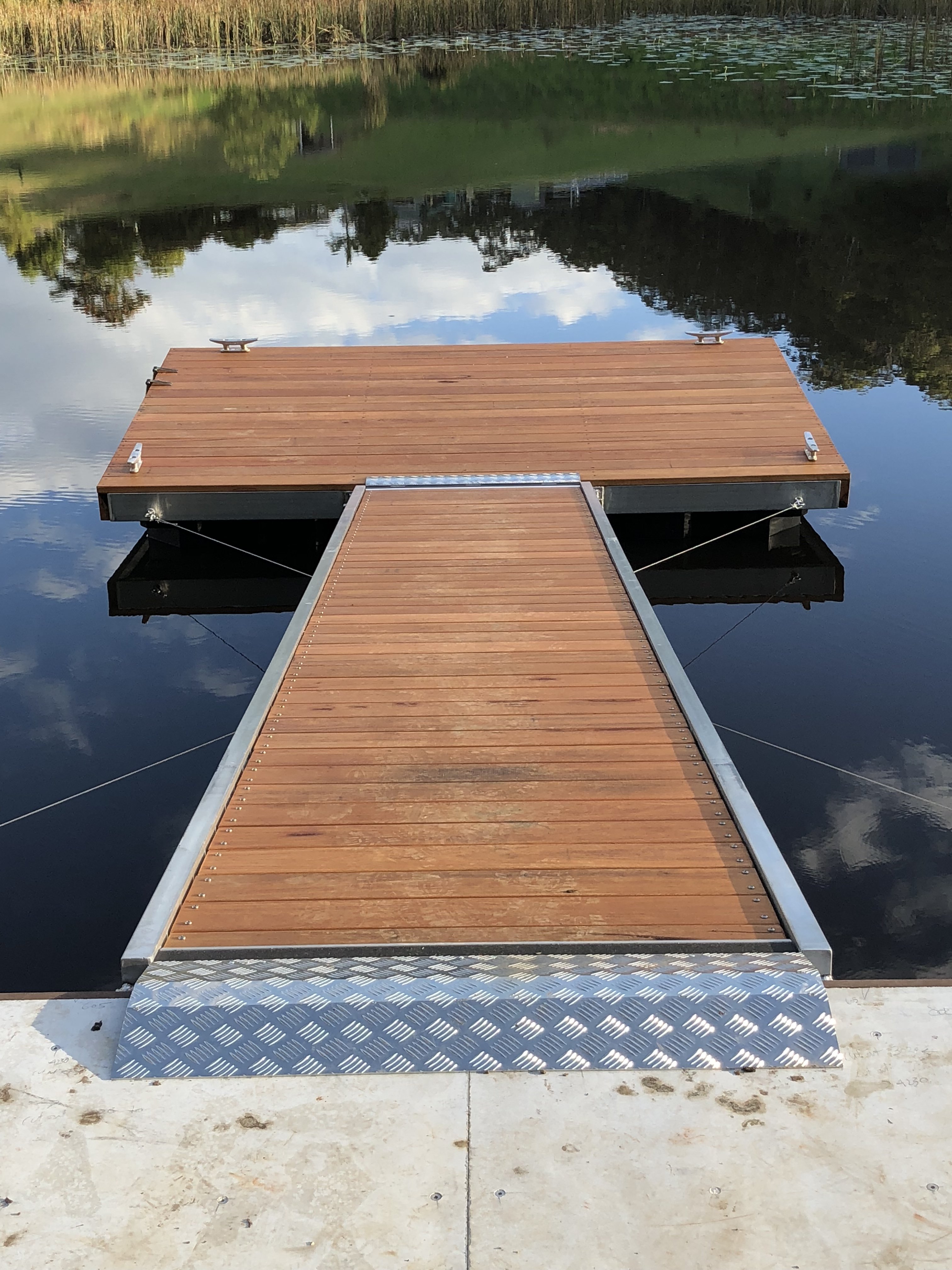

The hardwood timber we normally use is a Queensland Blackbut, it is kiln dried and has penciled edeges for a nice walking surface. We have used this timber for over 30 years now and have found it to be very resilliant to the harsh water conditions.

Timber ramp 6 mtr x 1.2

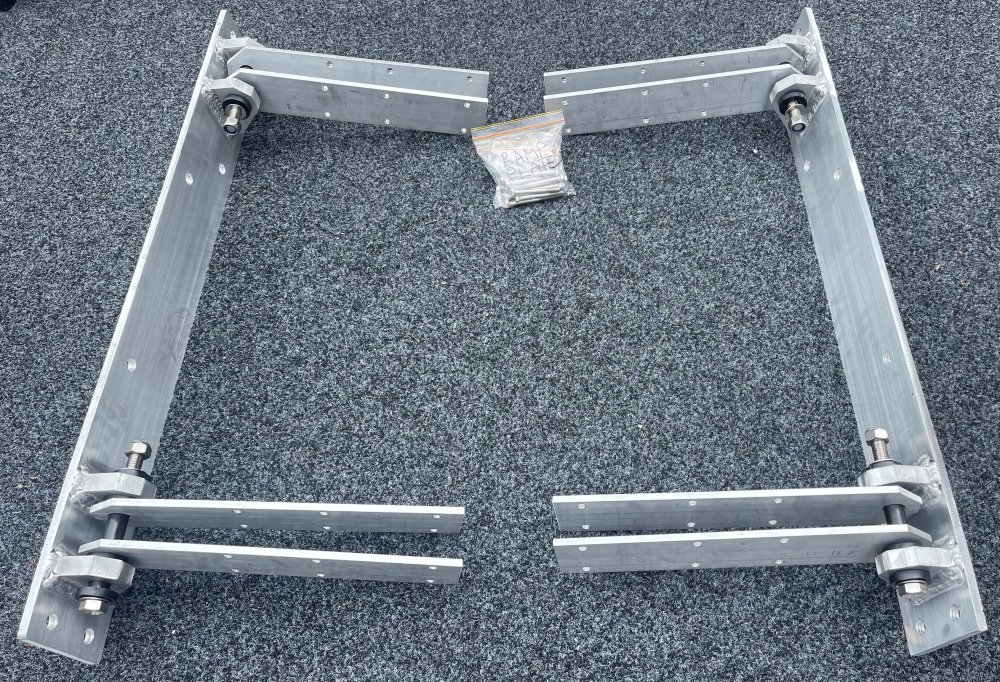

Hinges and hardware only (no timber) $1,210.00 inc GST
Build it yourself kit $2,359.50 inc GST
Fully Built $3,151.50 inc GST

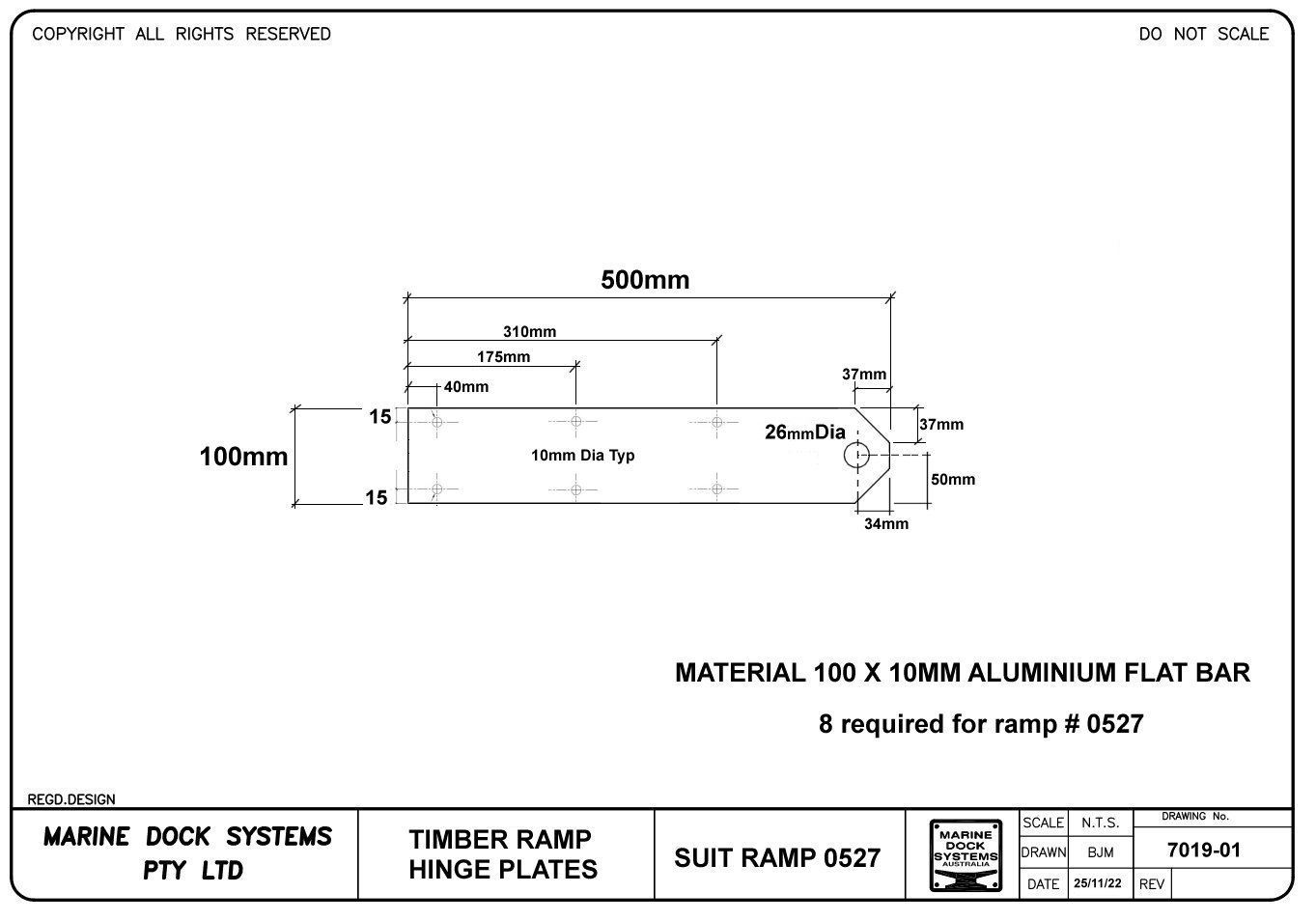

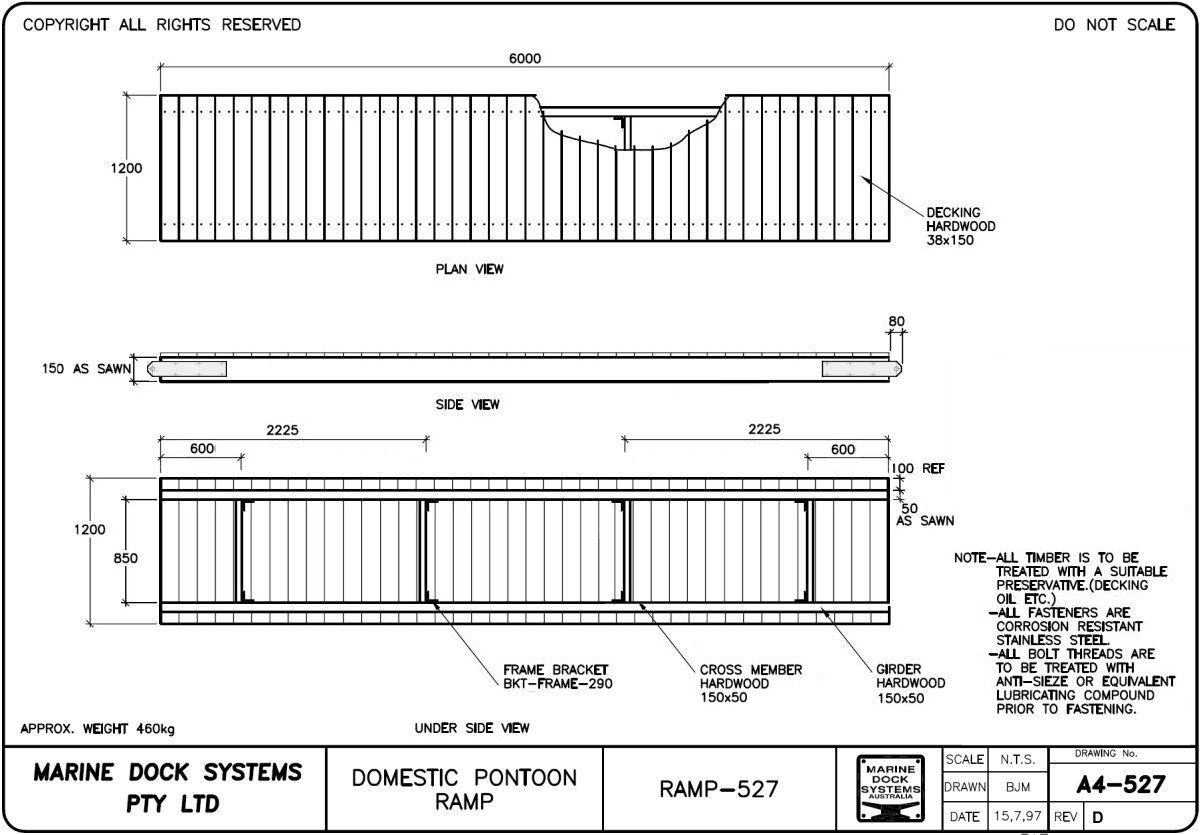

A4-0527 Timber ramp 6 mtr x 1.2

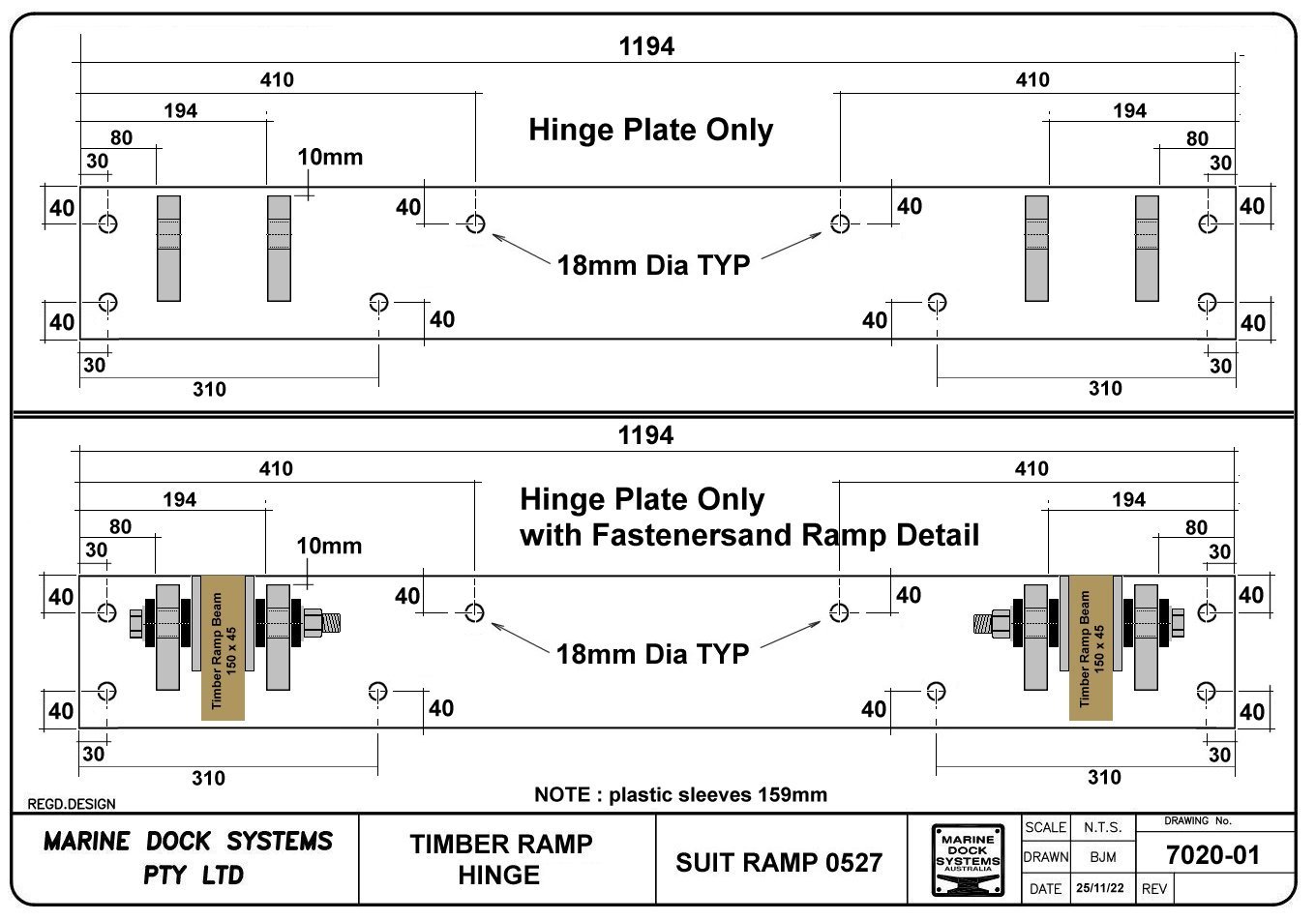

A4-2949 - Shore End Hinge Detail
A4-2846 - Pontoon End Roller Detail
A4-2845 - Pontoon End Hinge Detail

Associated and superseeded drawings
A4-2724 - Ramp Hinge Detail Stainless



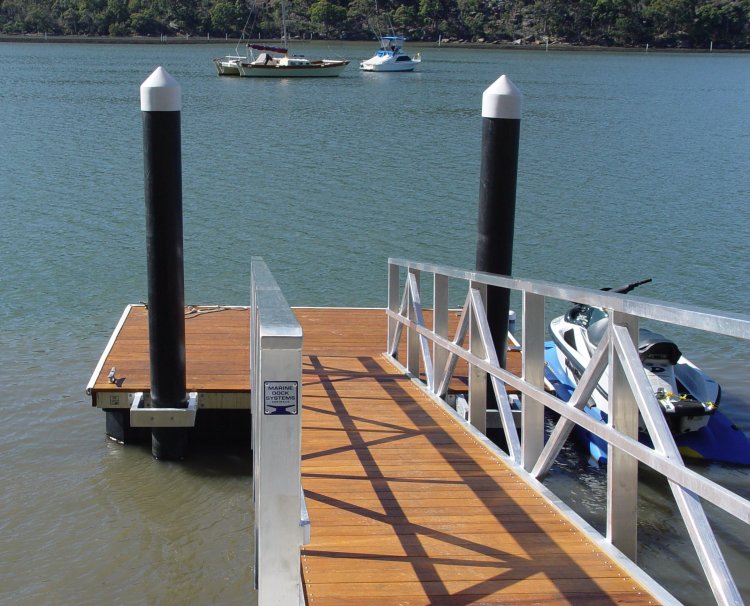

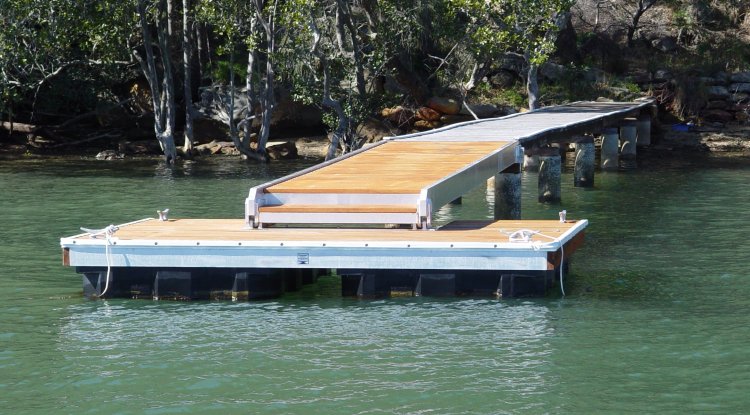

Aluminium Domestic Ramp 6 mtr x 1.2 mtr
Part # RAMP-2577
200 x 50 RHS Aluminium
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware.
Including aluminium / stainless hinges.

Hinges and hardware only (no timber) $3,828.00 inc GST
Build it yourself $4,537.50 inc GST
Fully Built $5,087.50 inc GST

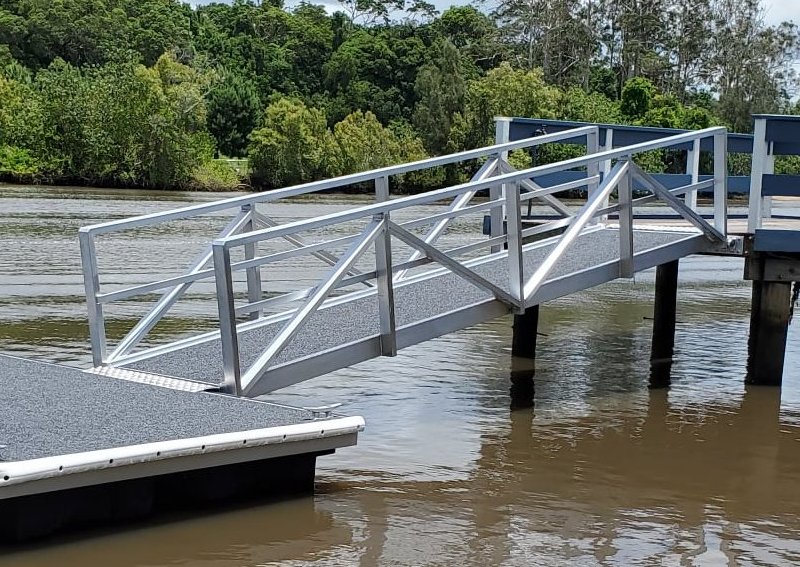

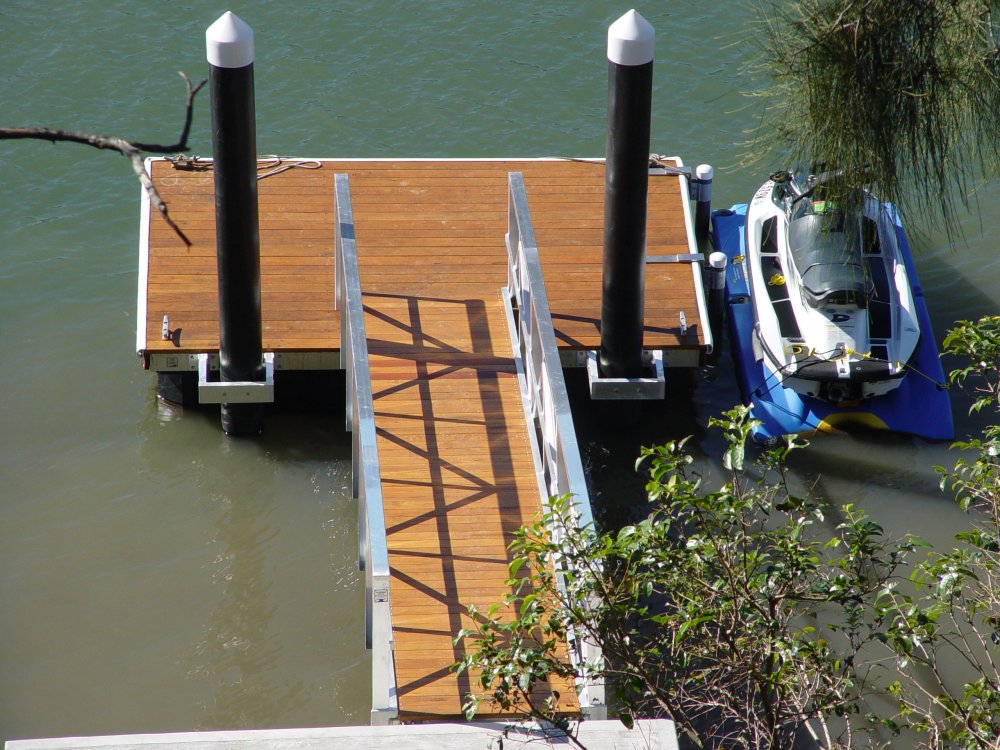

Fully welded aluminium frame decked with hardwood timber, Queensland Blackbut, it is kiln dried and has pencilled edges for a nice walking surface. Engineered to withstand rough conditions. Can be supplied with nylon rollers or hinge on the pontoon end.

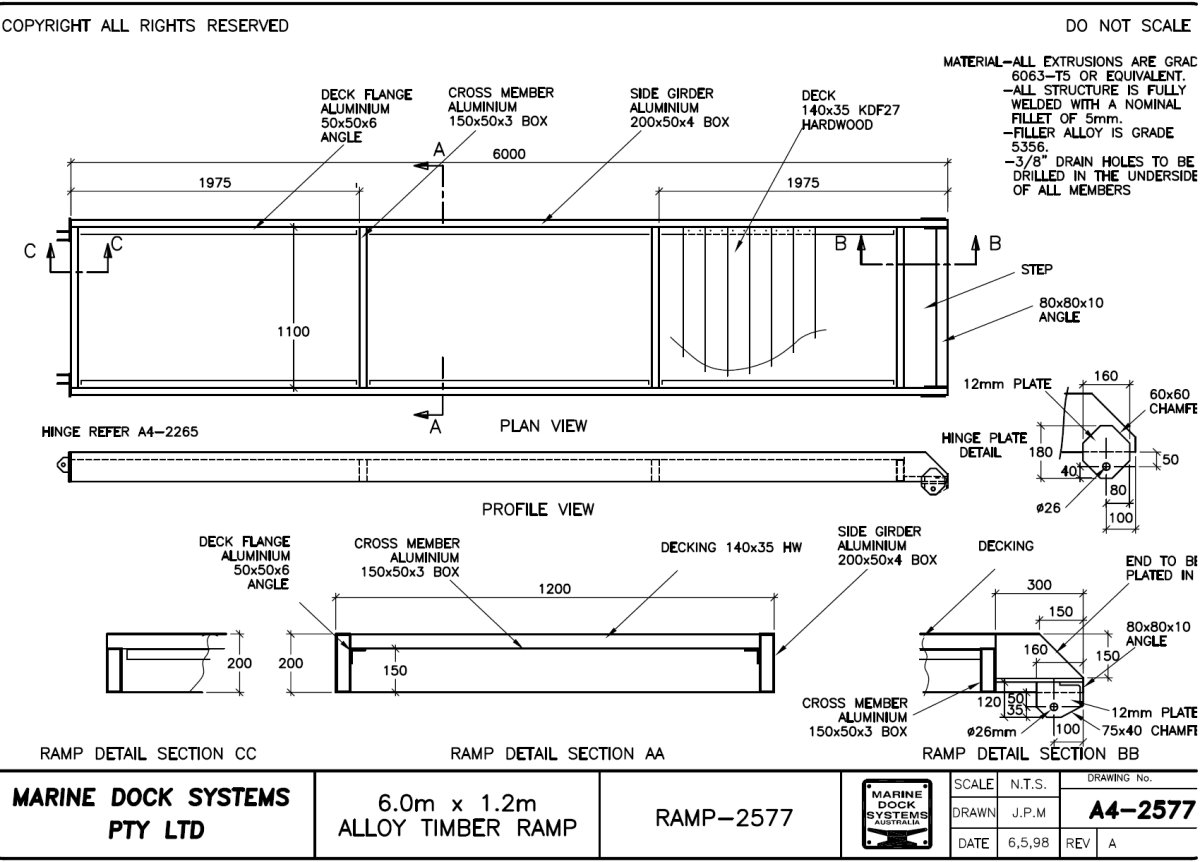

a4-2577 Aluminium Ramp 6 mtr x 1.2 mtr

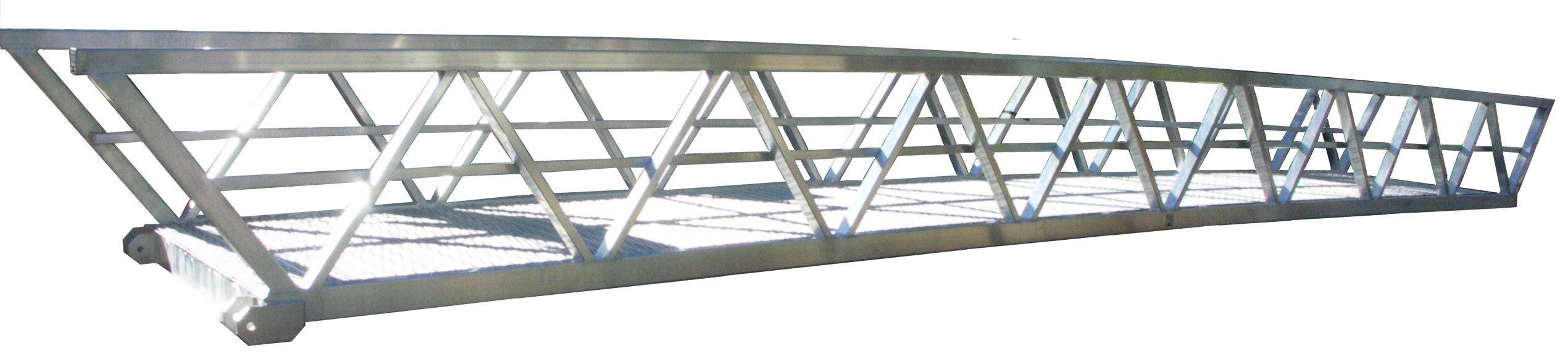

Trussed Aluminium Ramp 6 mtr x 1.2 mtr
Part # RAMP-1940
150 x 50 RHS Aluminium mains trussed
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware.
Including aluminium / stainless hinges.

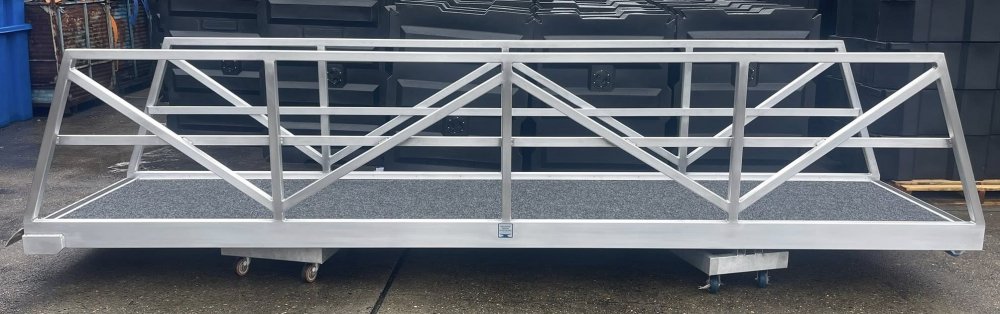

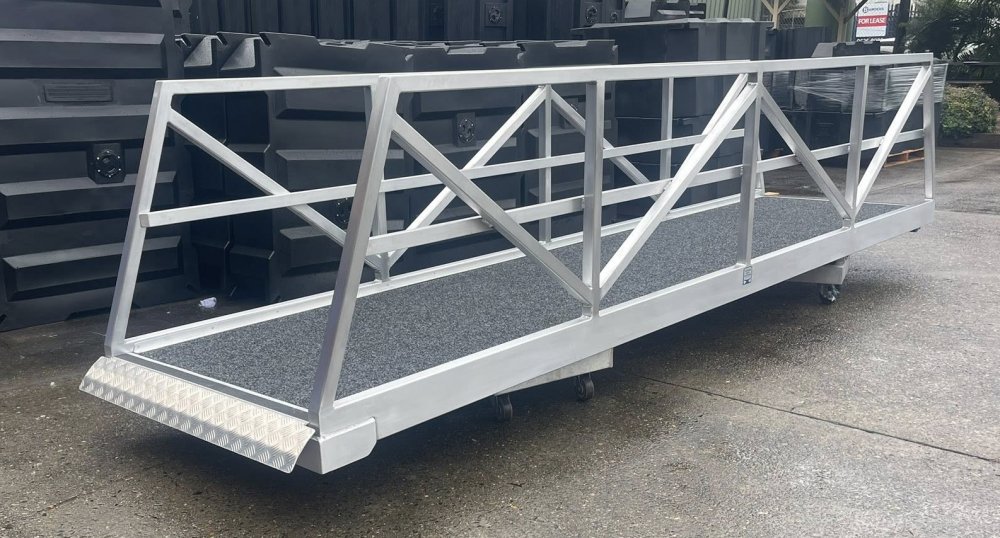

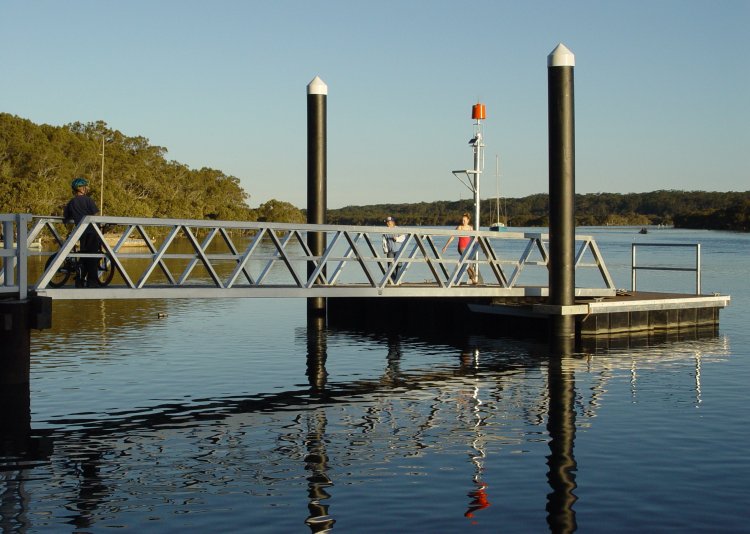

Fully welded trussed aluminium gangway with timber decking.

Frame, Hinges and hardware only (no timber) $4,350.50 inc GST
Build it yourself kit inc timber $5,060.00 inc GST
Fully Built $5,610.00 inc GST

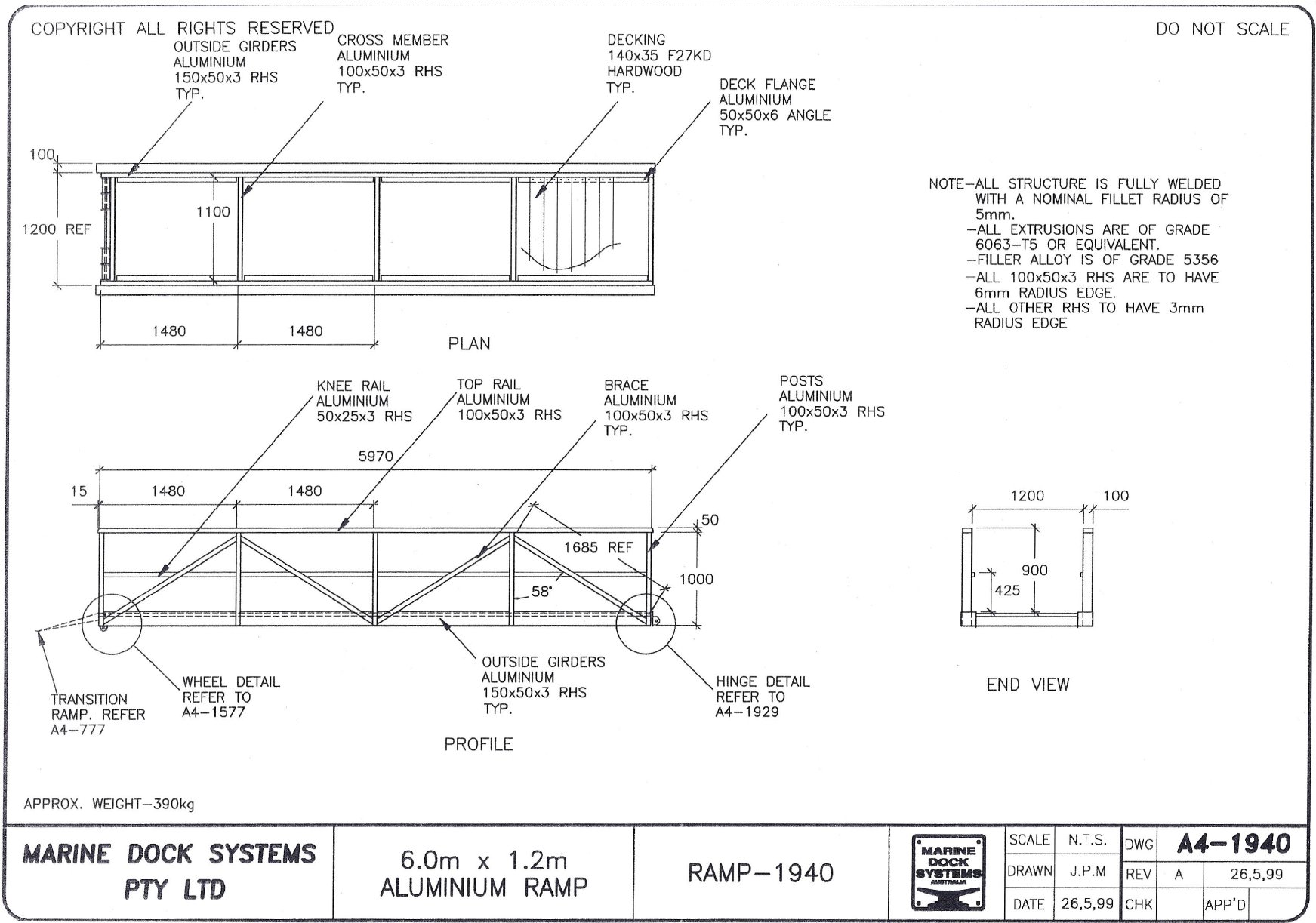

a4-1940 - Trussed alloy timber ramp - 6mtr X 1.2mtr
a4-1929 - Ramp Hinge Detail / Trussed alloy timber decking.
a4-1577 - Wheel Detail Trussed alloy timber ramp




Trussed Aluminium

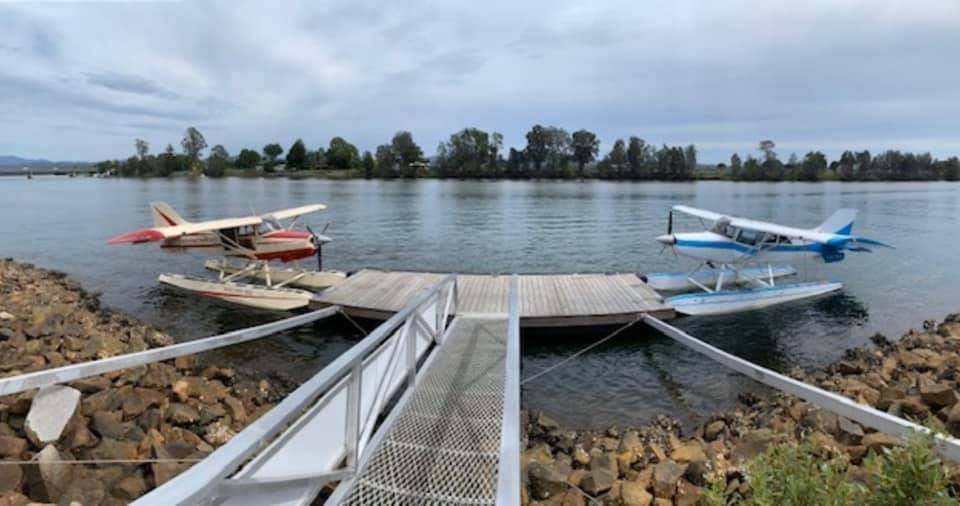

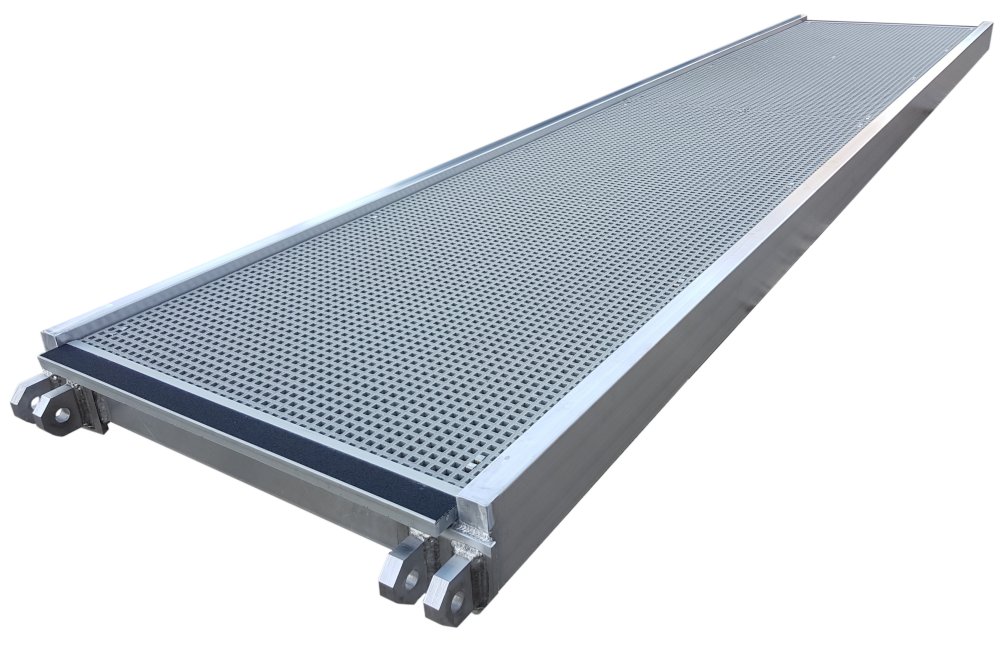

Sea Grass Ramp 6 mtr x 1.2 mtr
Part # RAMP-1940X
150 x 50 RHS Aluminium mains trussed
Aluminium mesh decking
All stainless steel and aluminium hardware.
Including aluminium / stainless hinges. Engineered to withstand rough conditions. Can be supplied with nylon rollers or hinge on the pontoon end.

Fully Built $5,775.00 inc GST

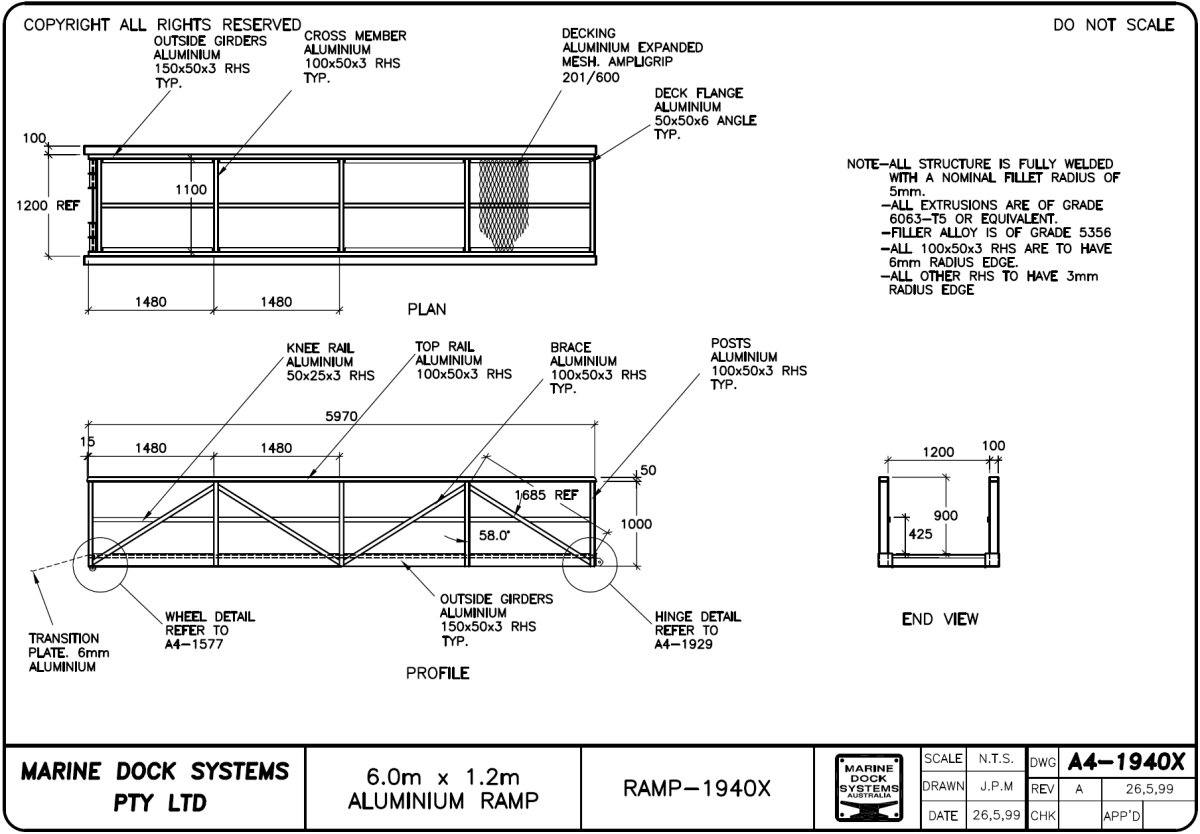

a4-1940X Trussed Aluminium - 6mtr X 1.2mtr




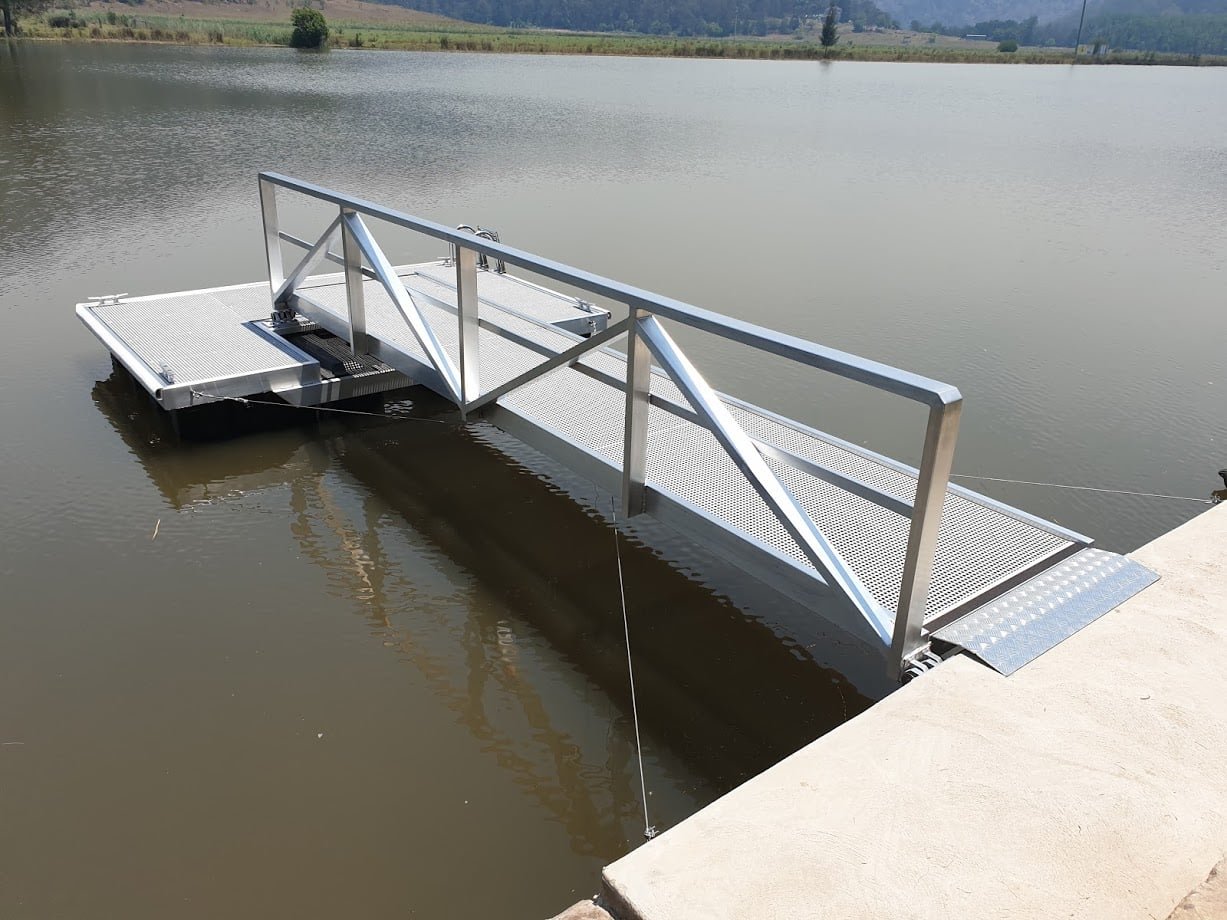

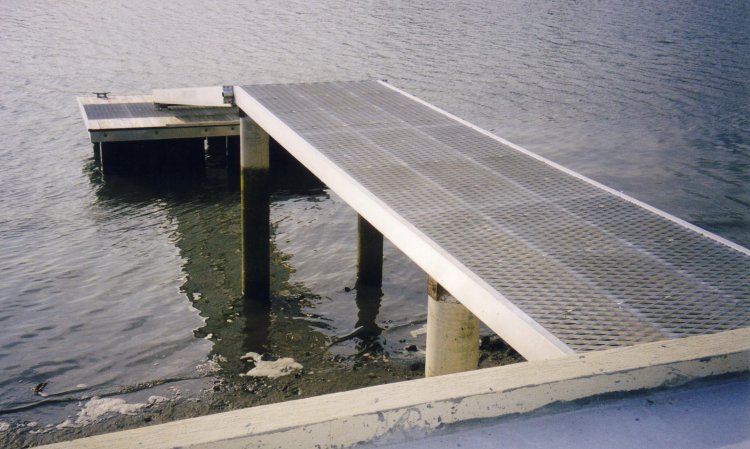

Residential Sea Grass Ramp 6 mtr x 1.2 mtr
Part # RAMP-1864
200 x 50 RHS Aluminium main beams
Expanded aluminium mesh decking
All stainless steel and aluminium hardware.

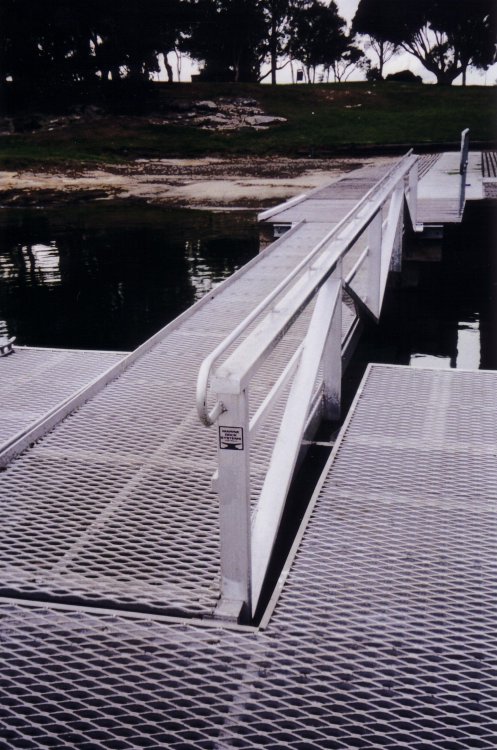

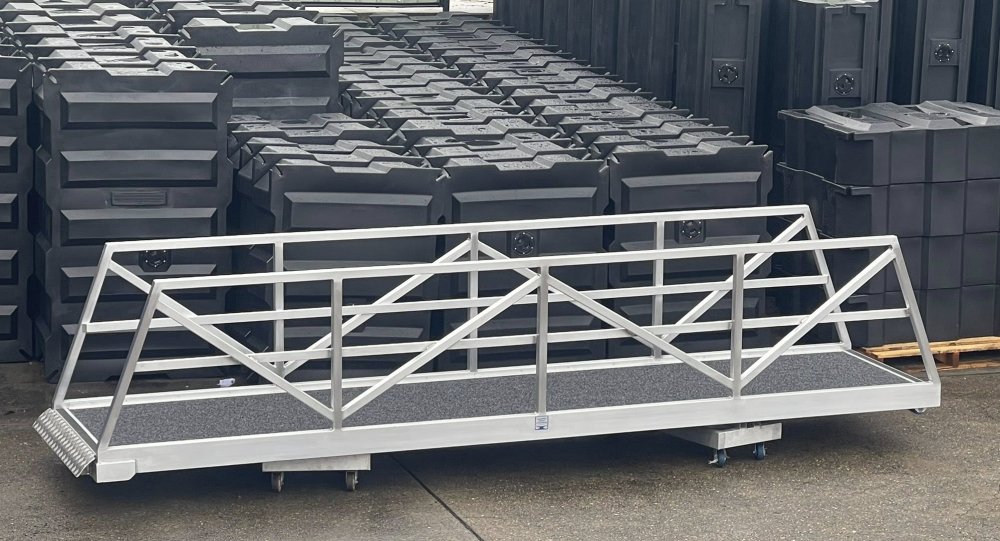

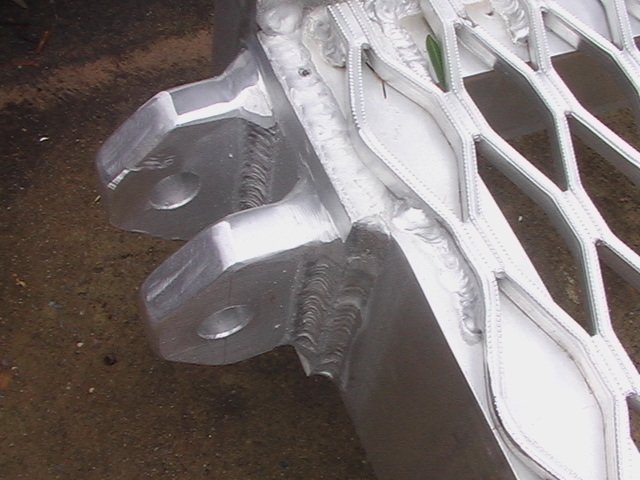

Fully welded aluminium gangway with expanded aluminium mesh, great for sea grass also has very good anti slip properties.

Fully Built $5,307.50 inc GST

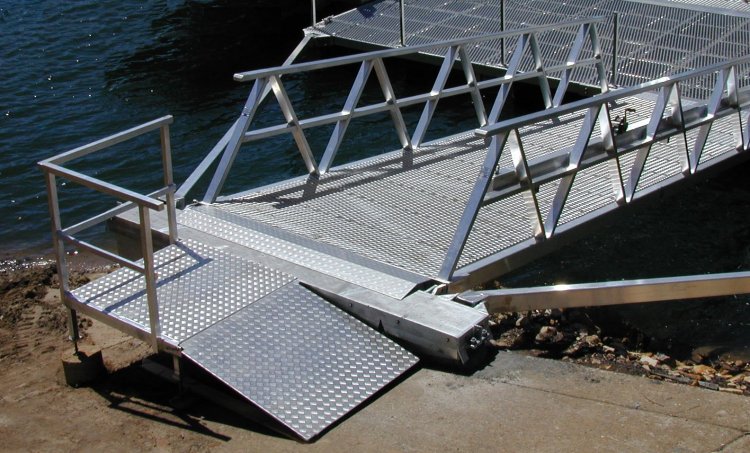

Ramp 1864 with hand rail one side

Many other sizes available
CLICK ON IMAGES FOR ENLARGEMENTS






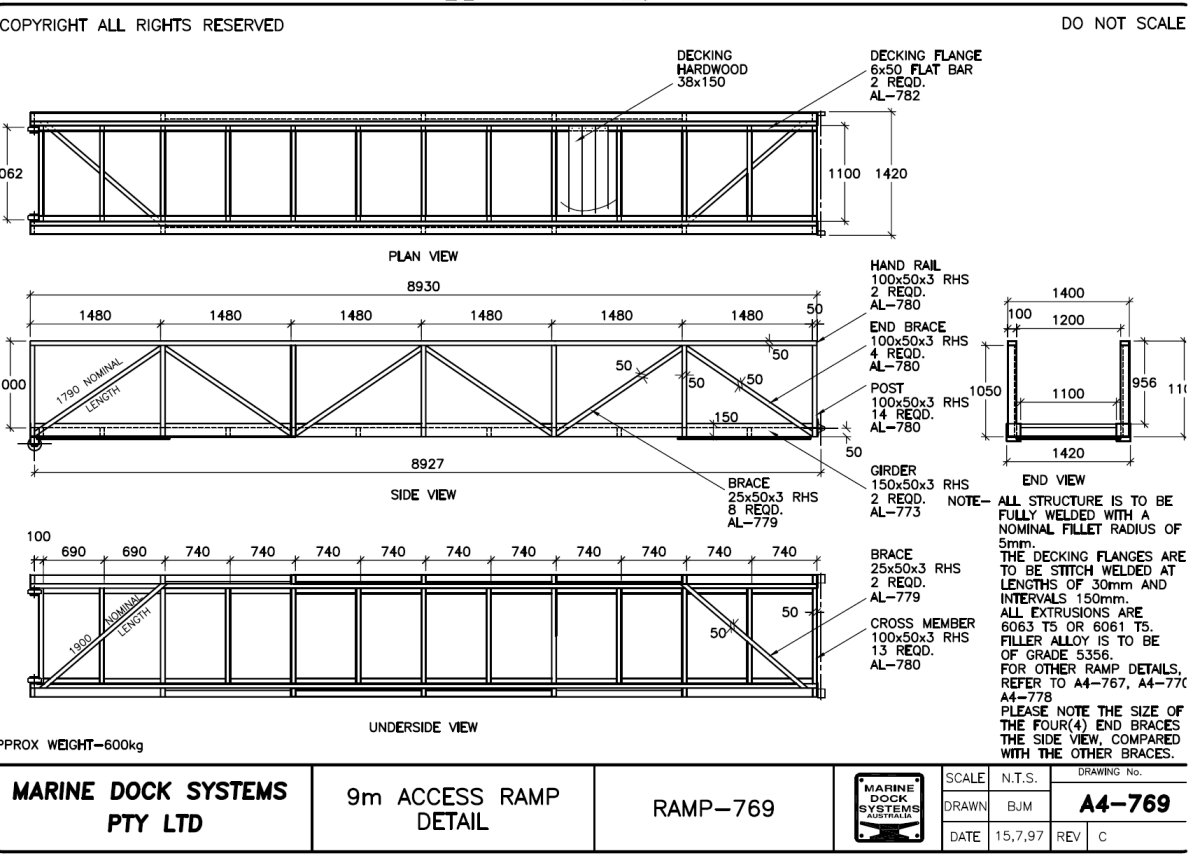

9m x 1.4m Trussed alloy timber ramp

A4-0719 - 9m x 1.4m Trussed alloy timber ramp
8.5m x 1.25m Trussed alloy timber ram

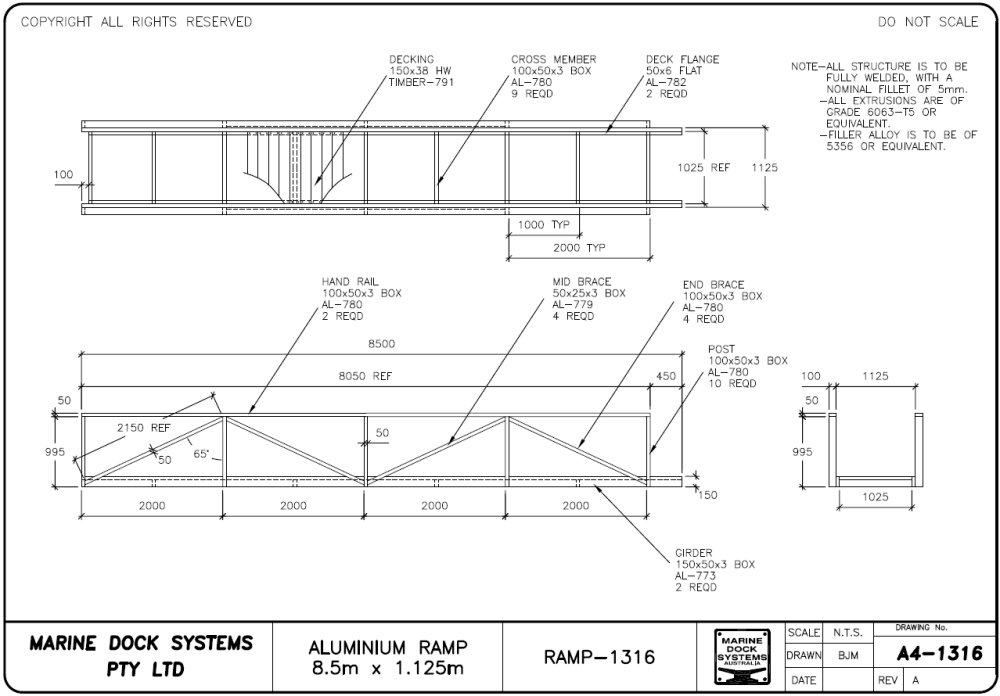

A4-1316 8.5m x 1.25m Trussed alloy timber ramp

Seagrass jetty section 6m x 1.2m

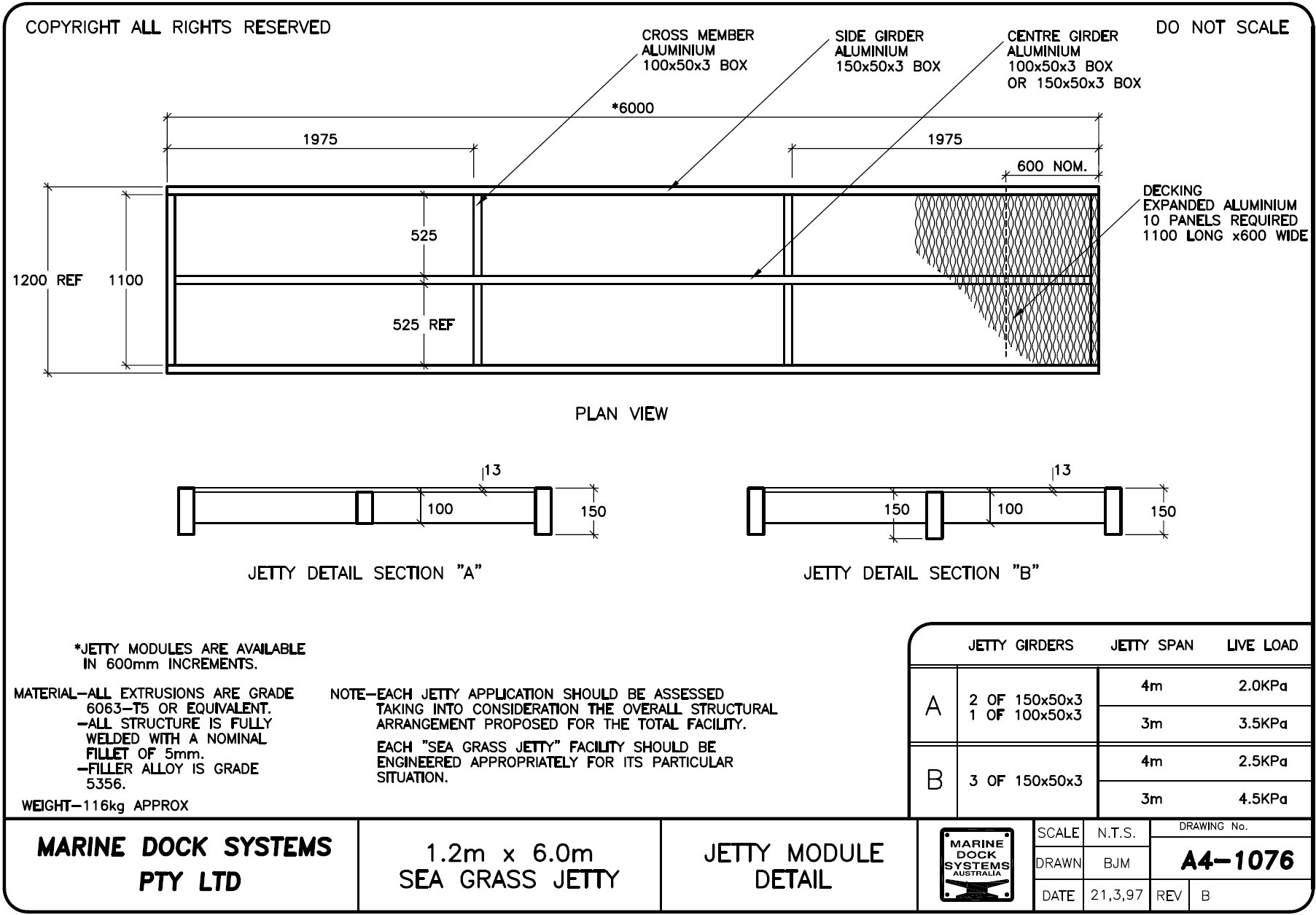

a4-1076 - Seagrass jetty section 6m x 1.2m
Floating Ramp 6 x 1.25 mtr

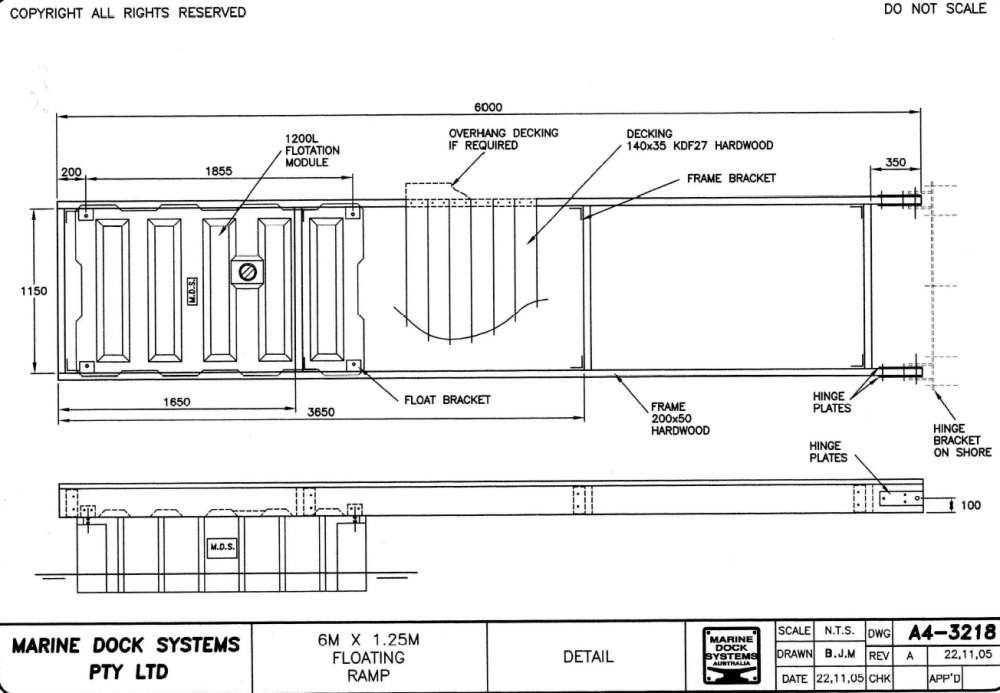

A4-3218 - Floating Ramp 6 x 1.25 mtr - 1 x 1200 litre float

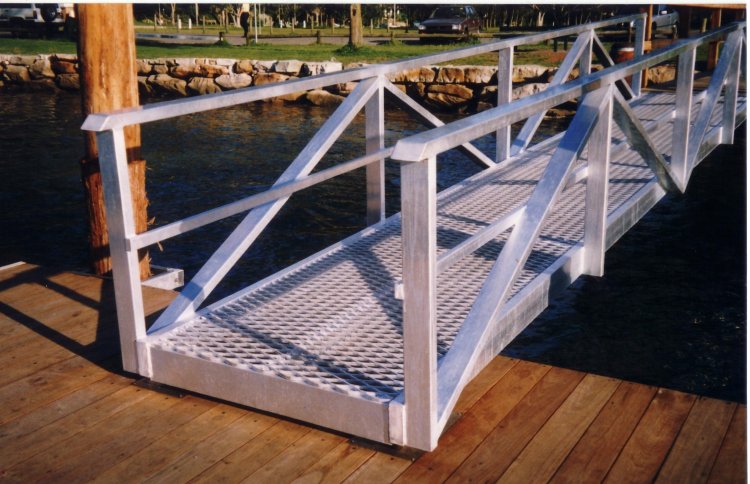

8m x 1.4m Trussed alloy mesh ramp

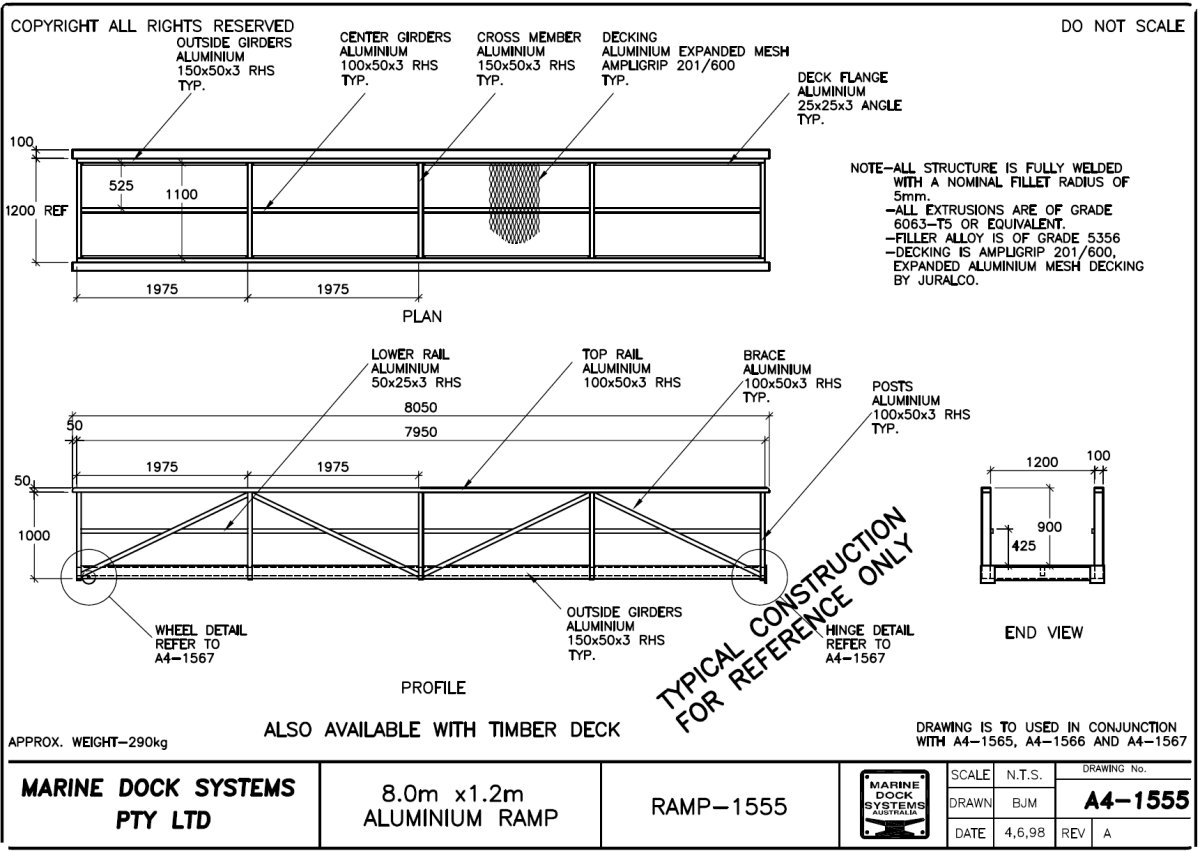

a4-1555 8m x 1.4m Trussed alloy mesh ramp

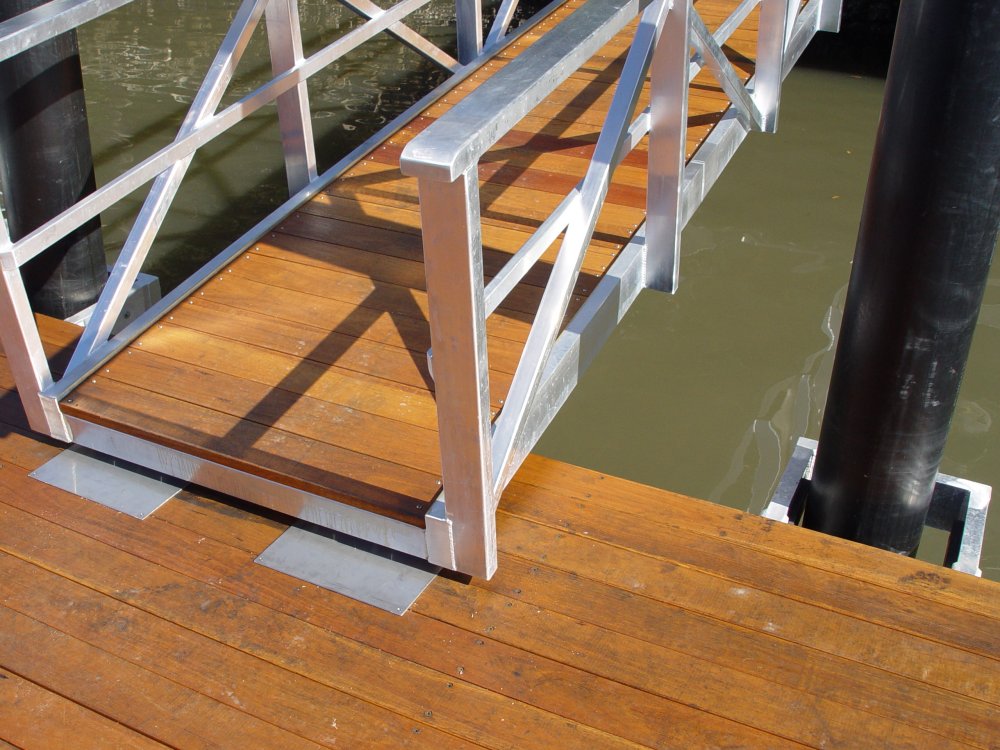

Wheel Detail pontoon end.

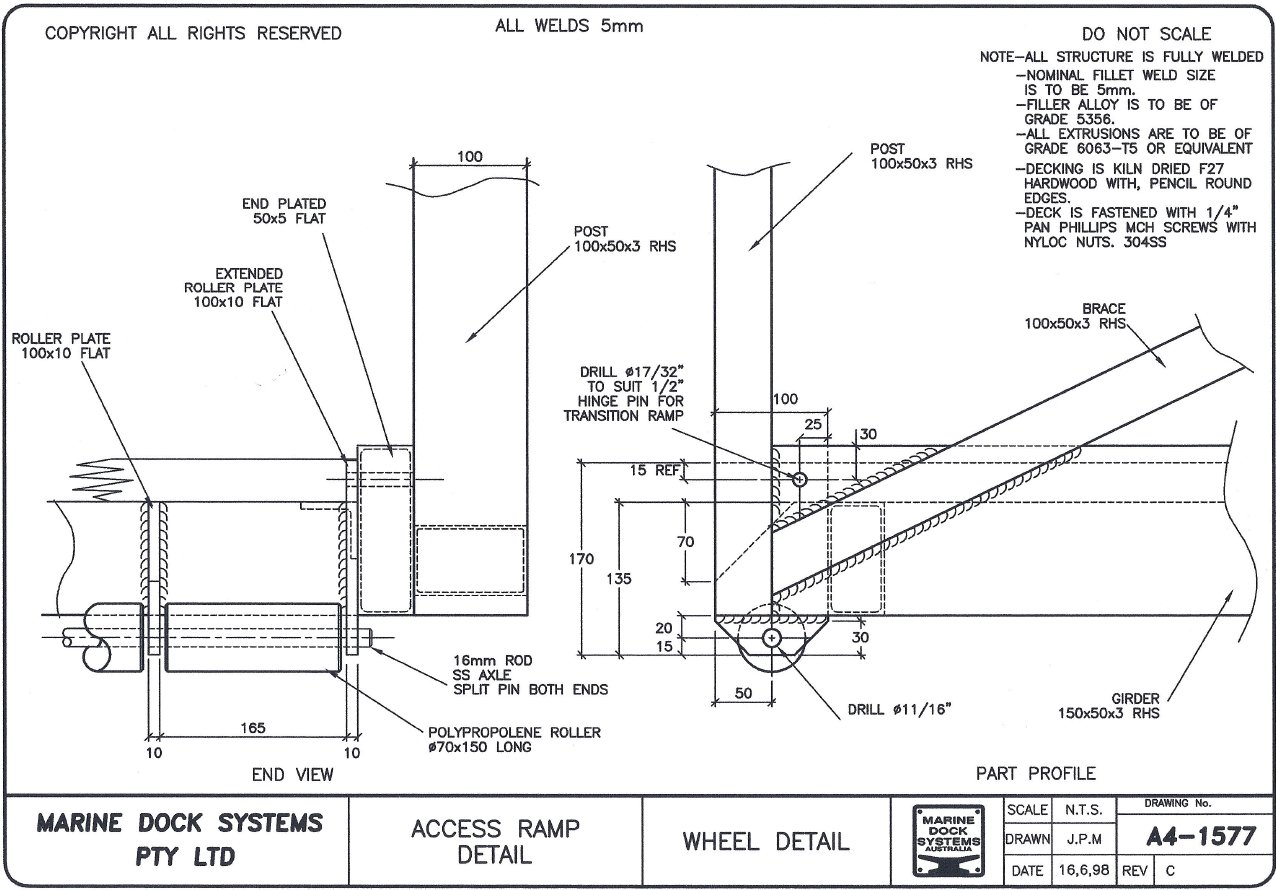

A4-1577 - Wheel Detail Trussed alloy timber ramp

4m x 1.5m Trussed alloy timber ramp

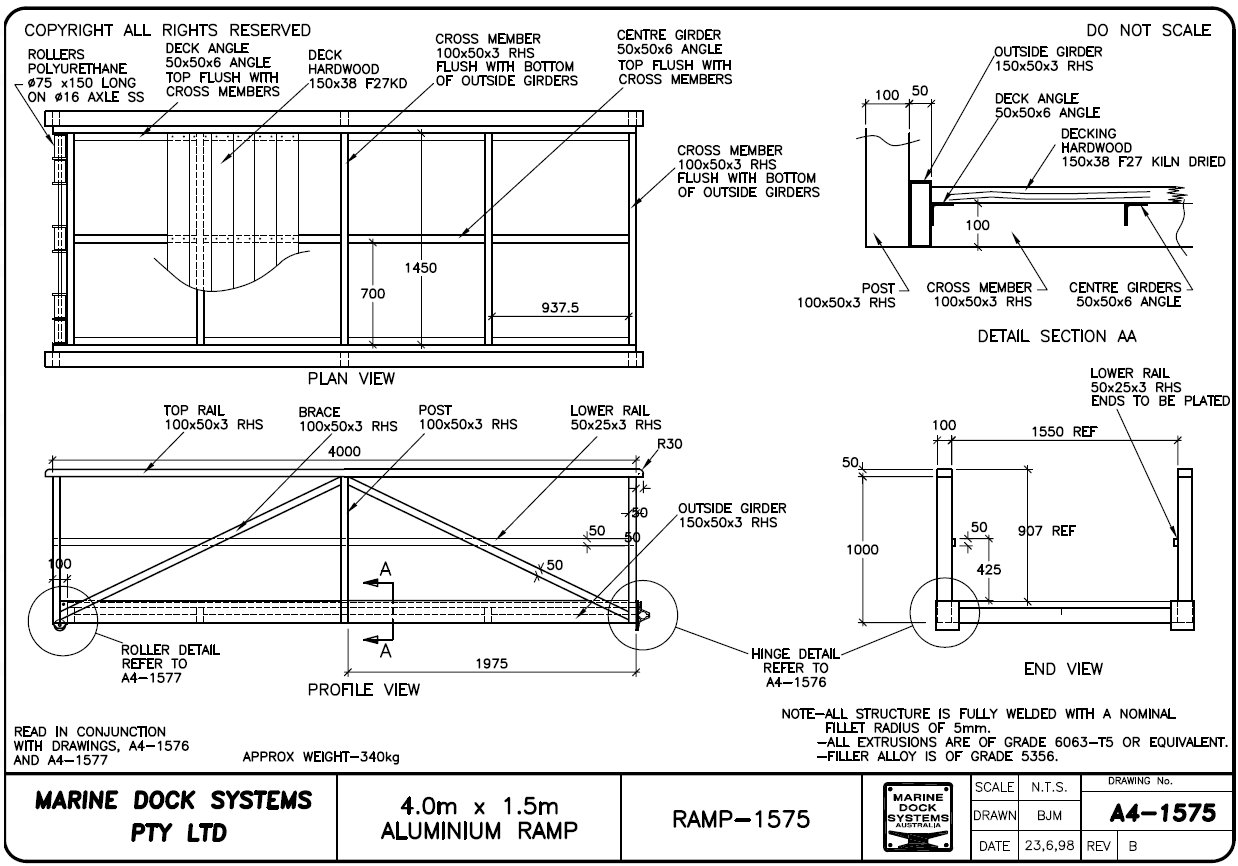

A4-1575 4m x 1.5m Trussed alloy timber ramp

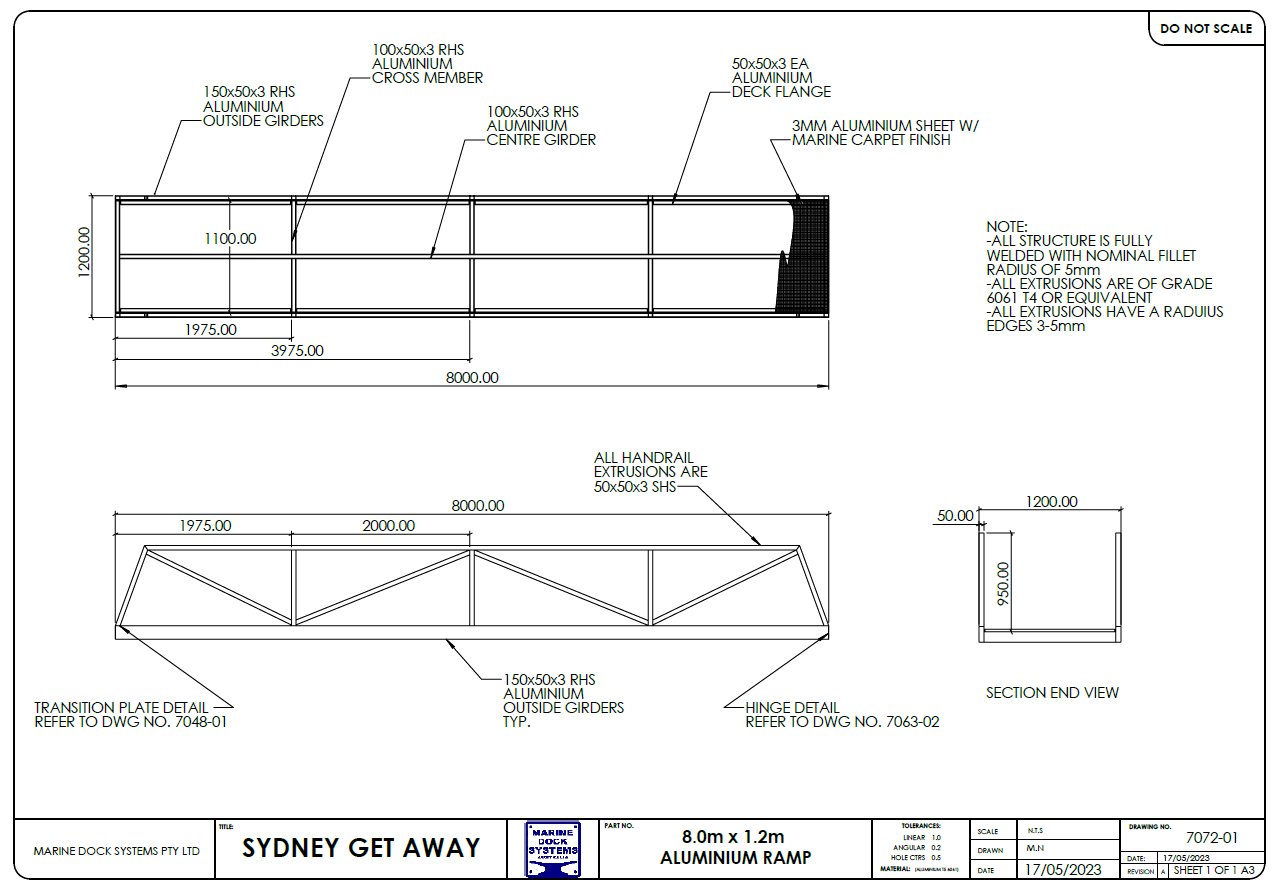

8m x 1.2m Trussed alloy mesh ramp

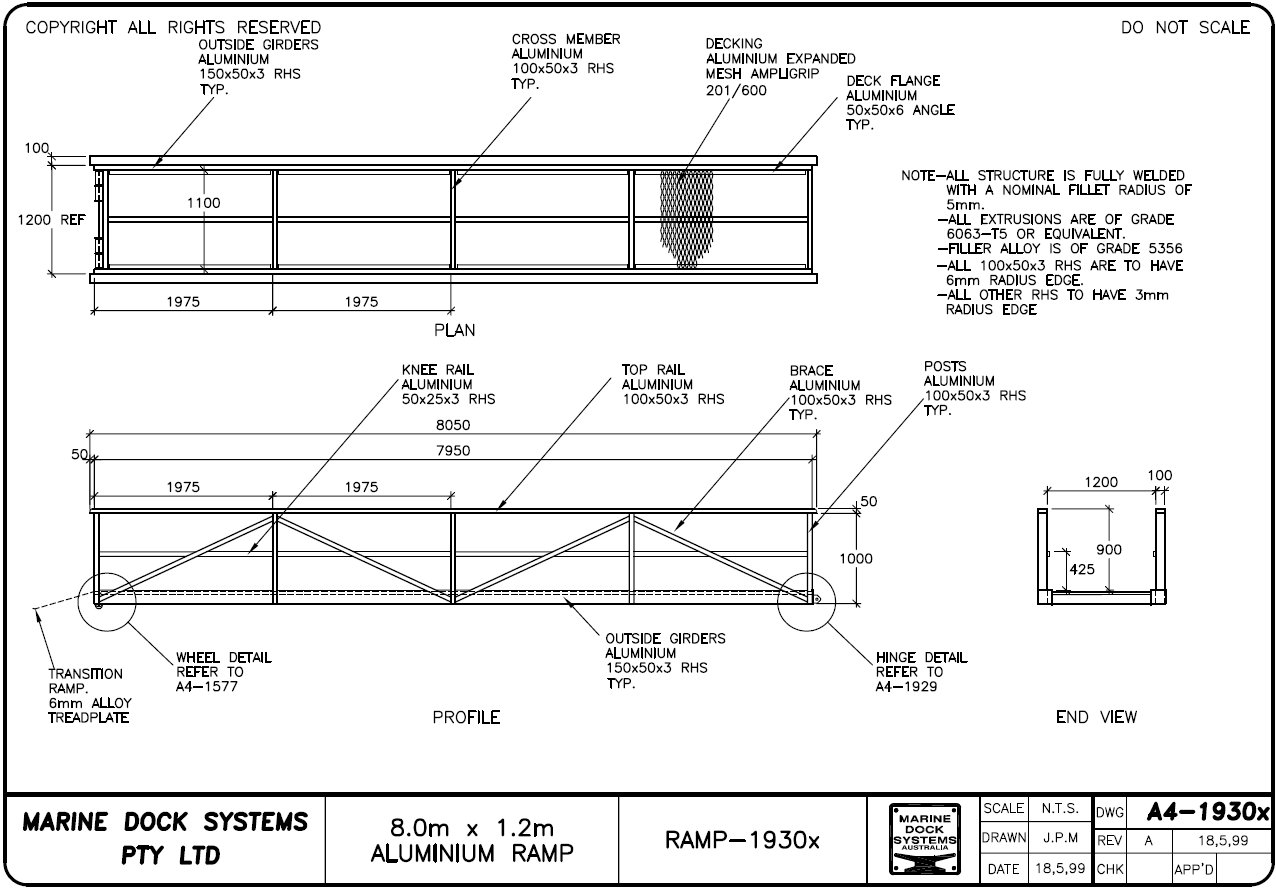

A4-1930x 8m x 1.2m Trussed alloy mesh ramp

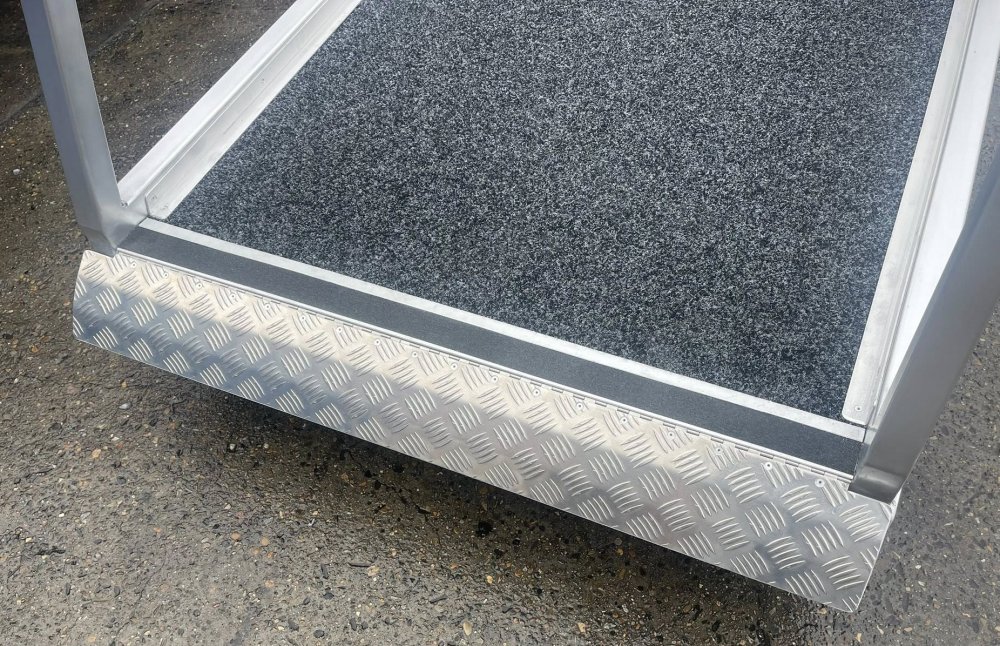

6 x 1.4m with transition plate

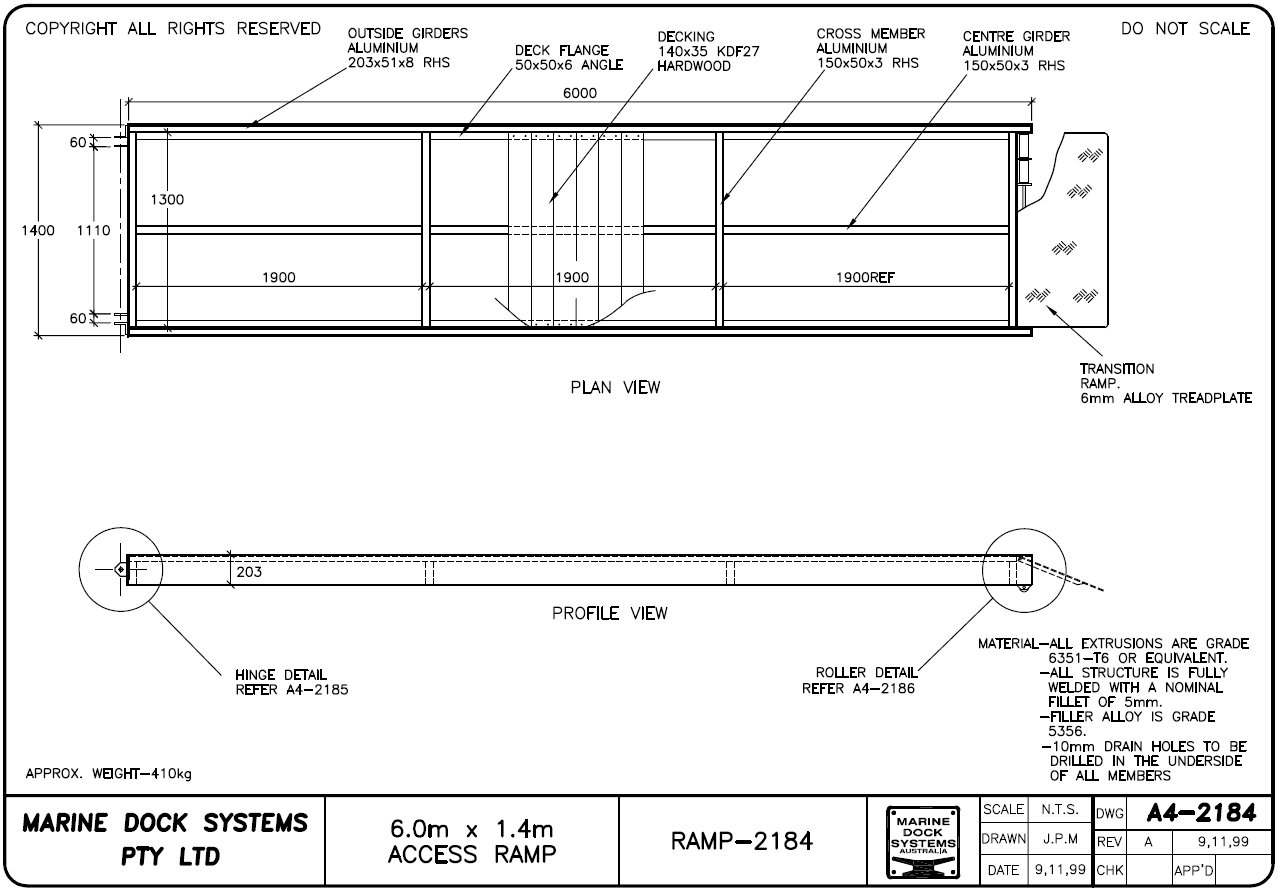

A4-2184 6 x 1.4m ALLOY TIMBER RAMP HINGE-ROLL
6 x 1.4m with step

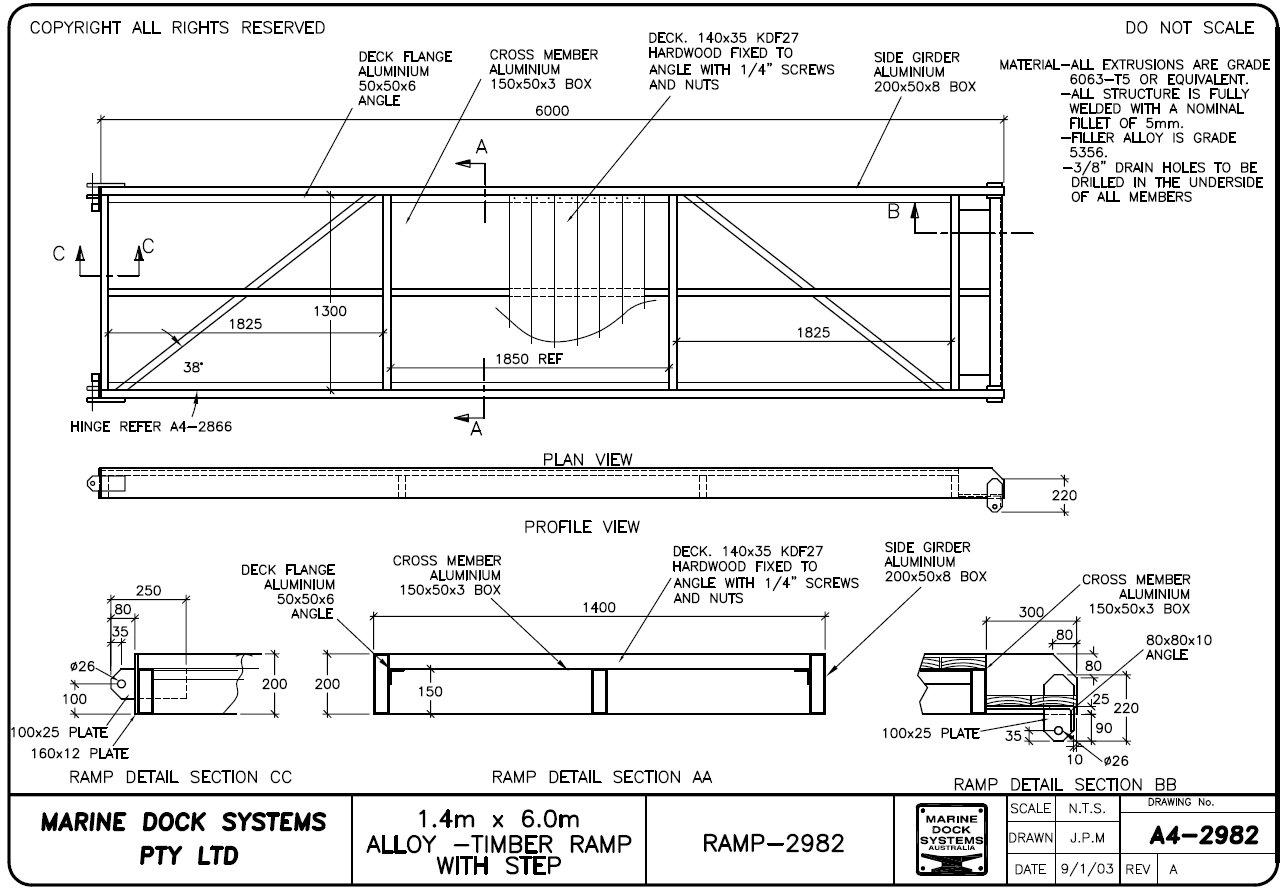

A4-2982 6M X 1.4M ALLOY RAMP-NO HANDRAIL

6 x 1.4m Seagrass

A4-2982x-SEAGRASS RAMP
Floating Aluminium Walkway Ramp

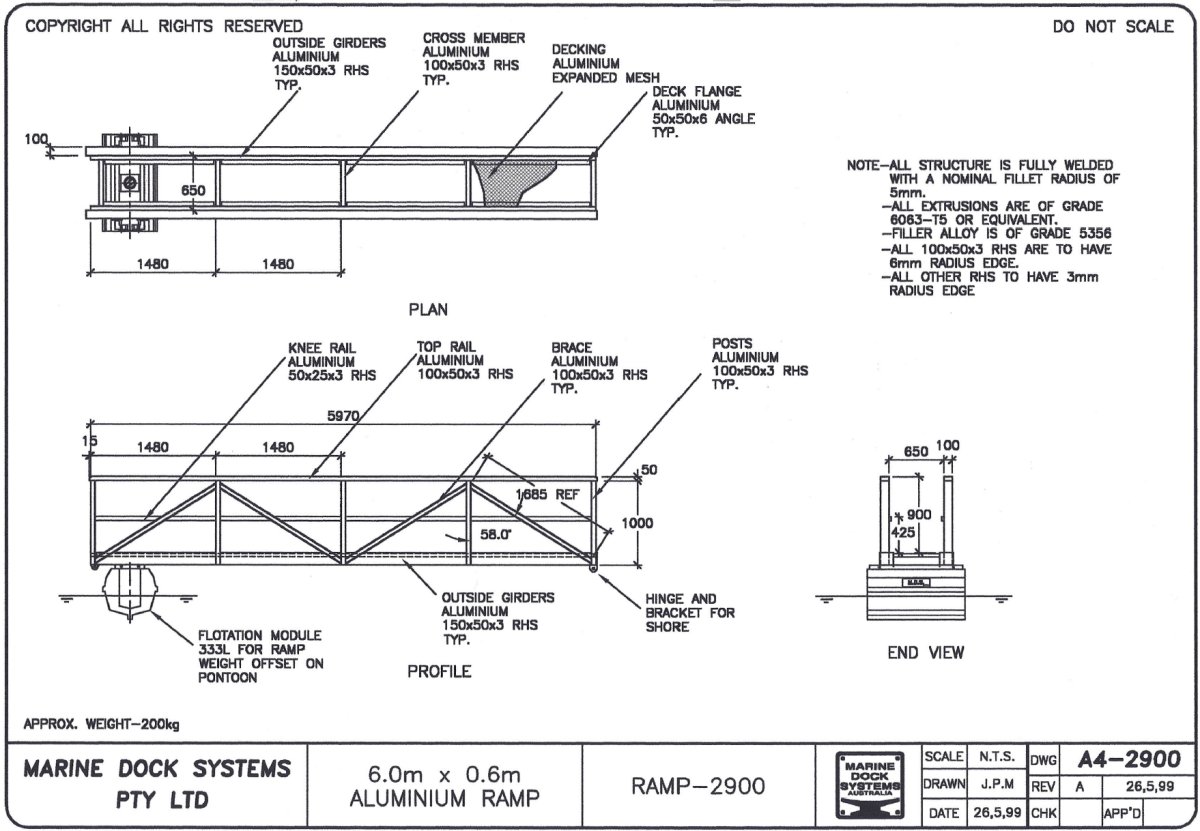

A4-2900 - 6mtr x 0.6 with 333 litre float attached

Bracket to suit 900 wide ramp

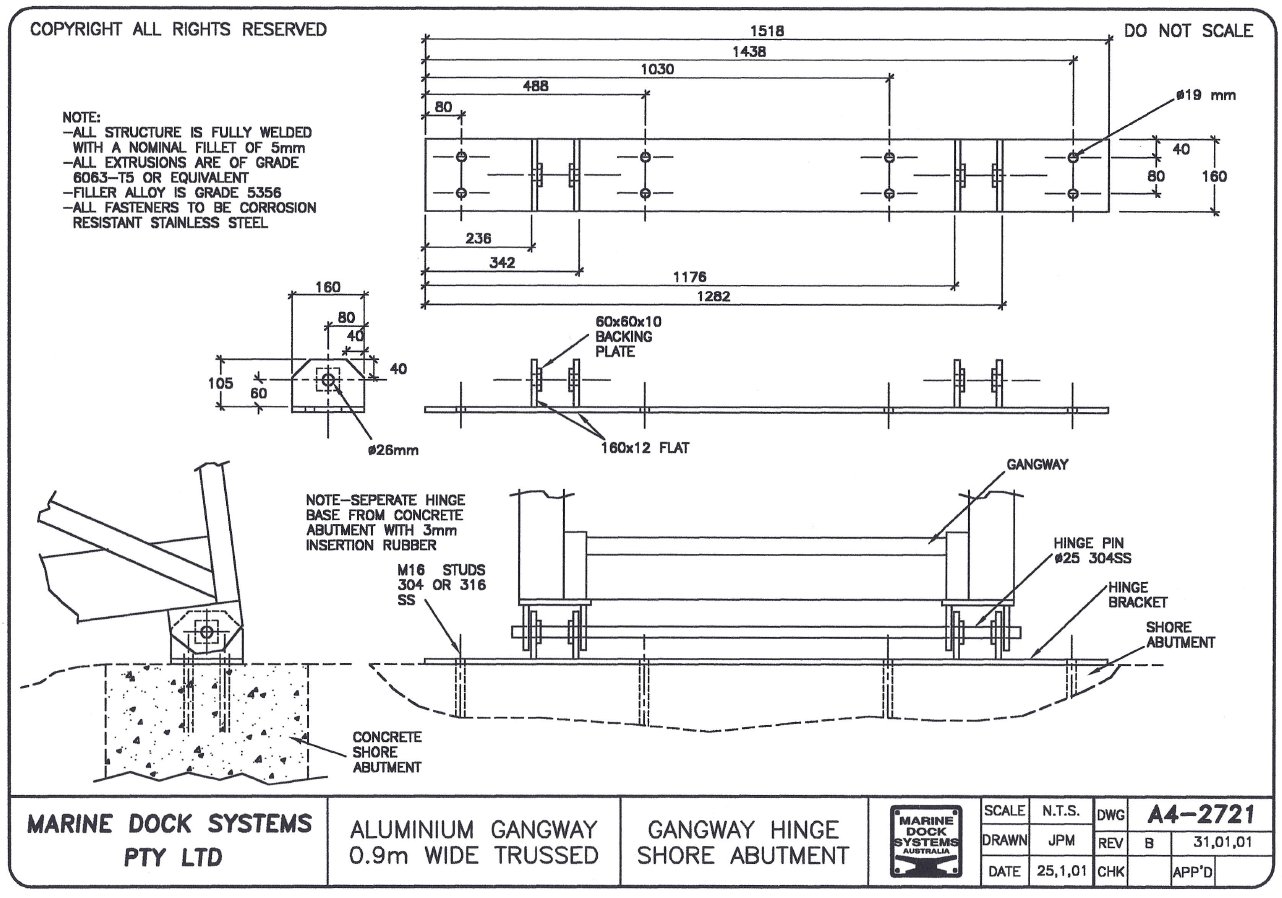

A4-2721 - Bracket to suit - 20 mtr x 0.9 wide
16 mtr x 0.9 wide Gangway

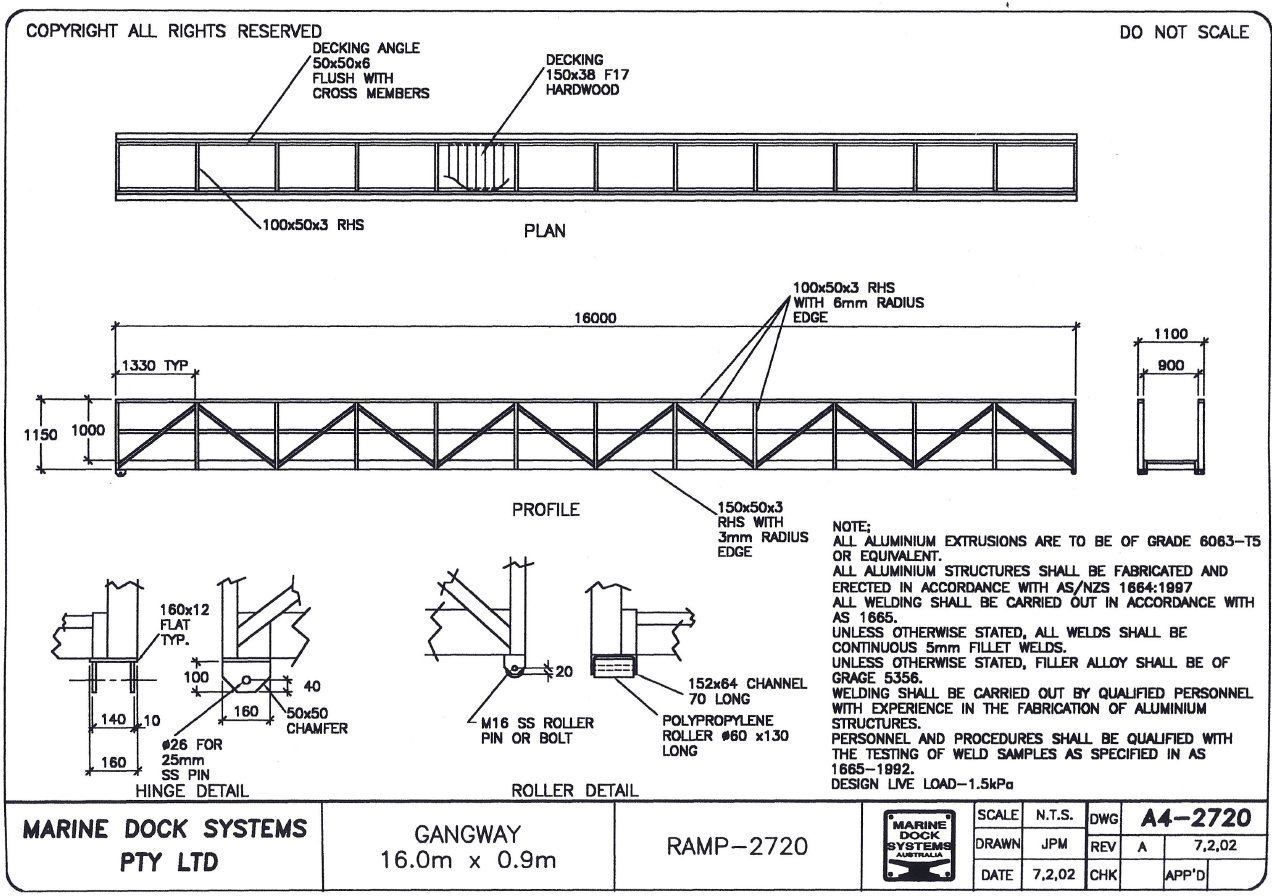

A4-2720 - Aluminium Ramp 16 mtr x 0.9 wide

Cambered Aluminium Ramp 6mtr x 1.2

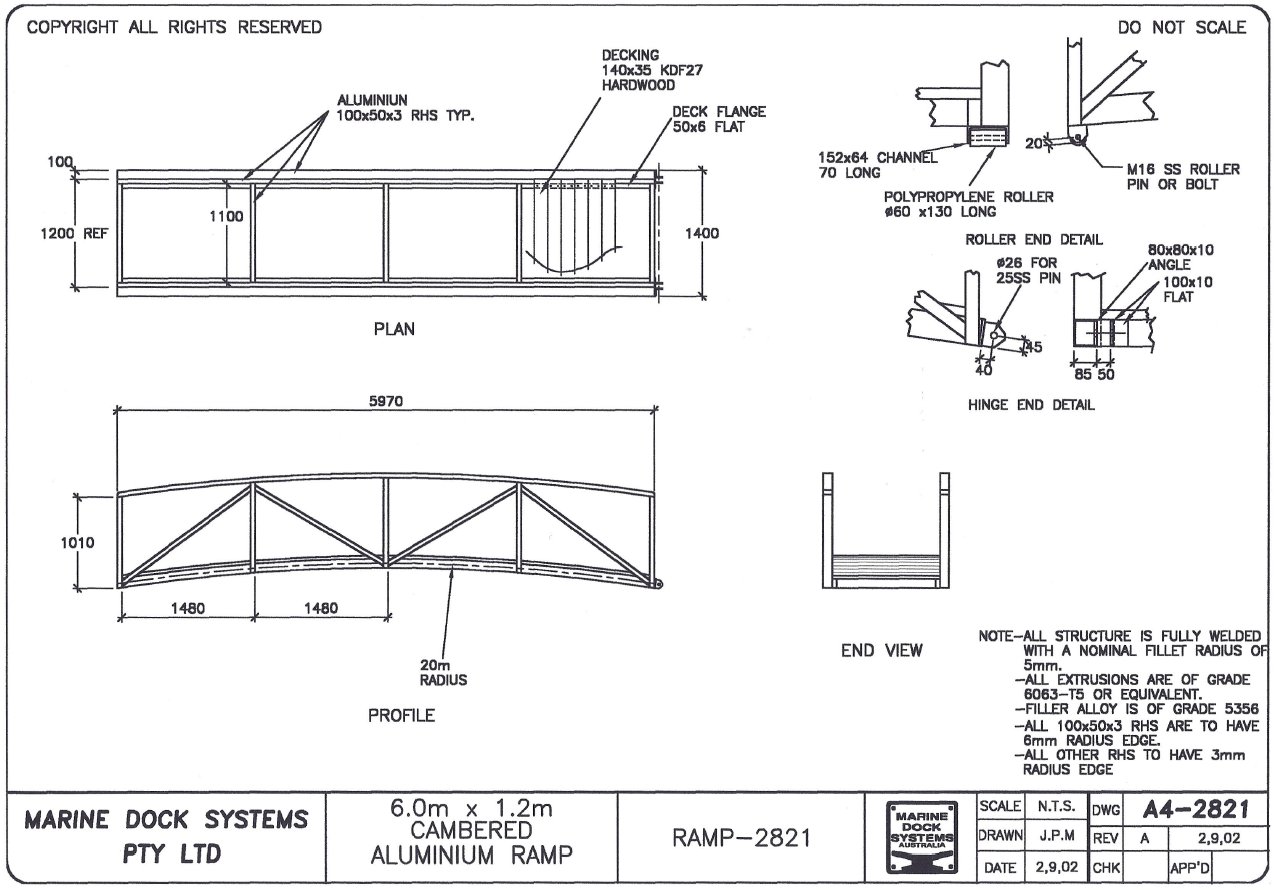

a4-2821 - Cambered Aluminium Ramp 6mtr x 1.2
Trussed 12 x 0.9mtr

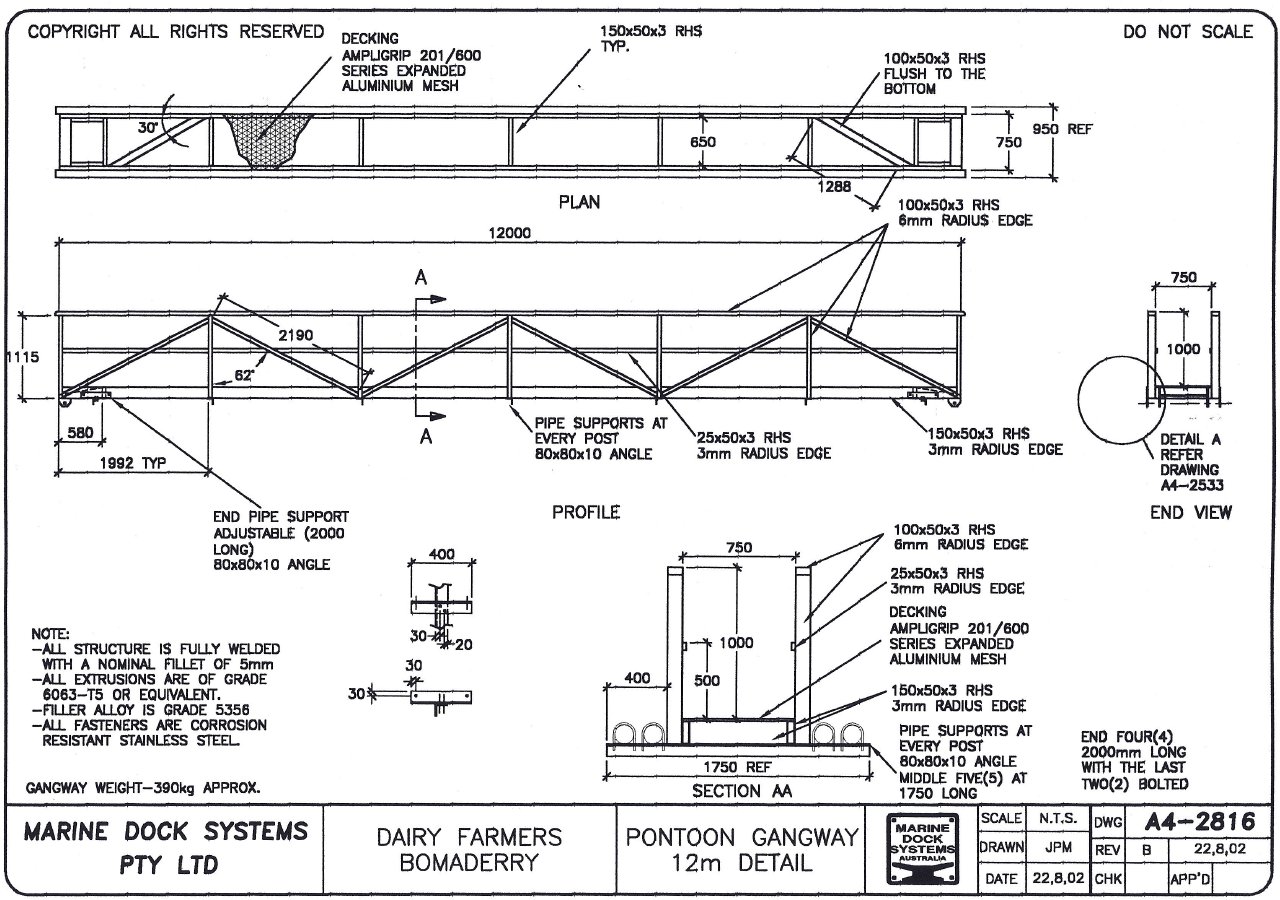

A4-2816 - Aluminium Ramp 12mtr x 0.9 Industrial

Aluminium Walkway Ramp

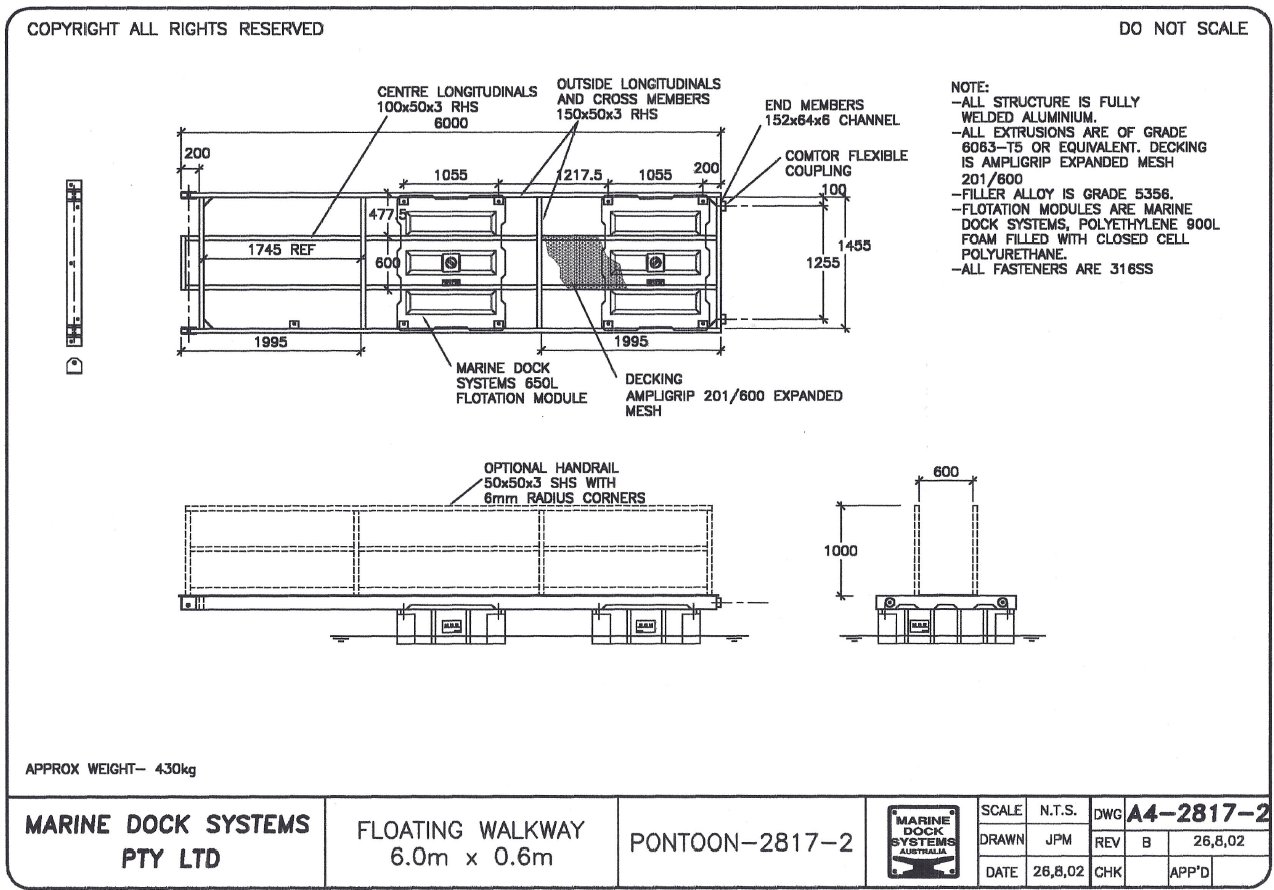

A4-2817-2 - Aluminium Walkway Ramp - 2 x 650 Litr
Floating Walkway - 3 x 650 Litre

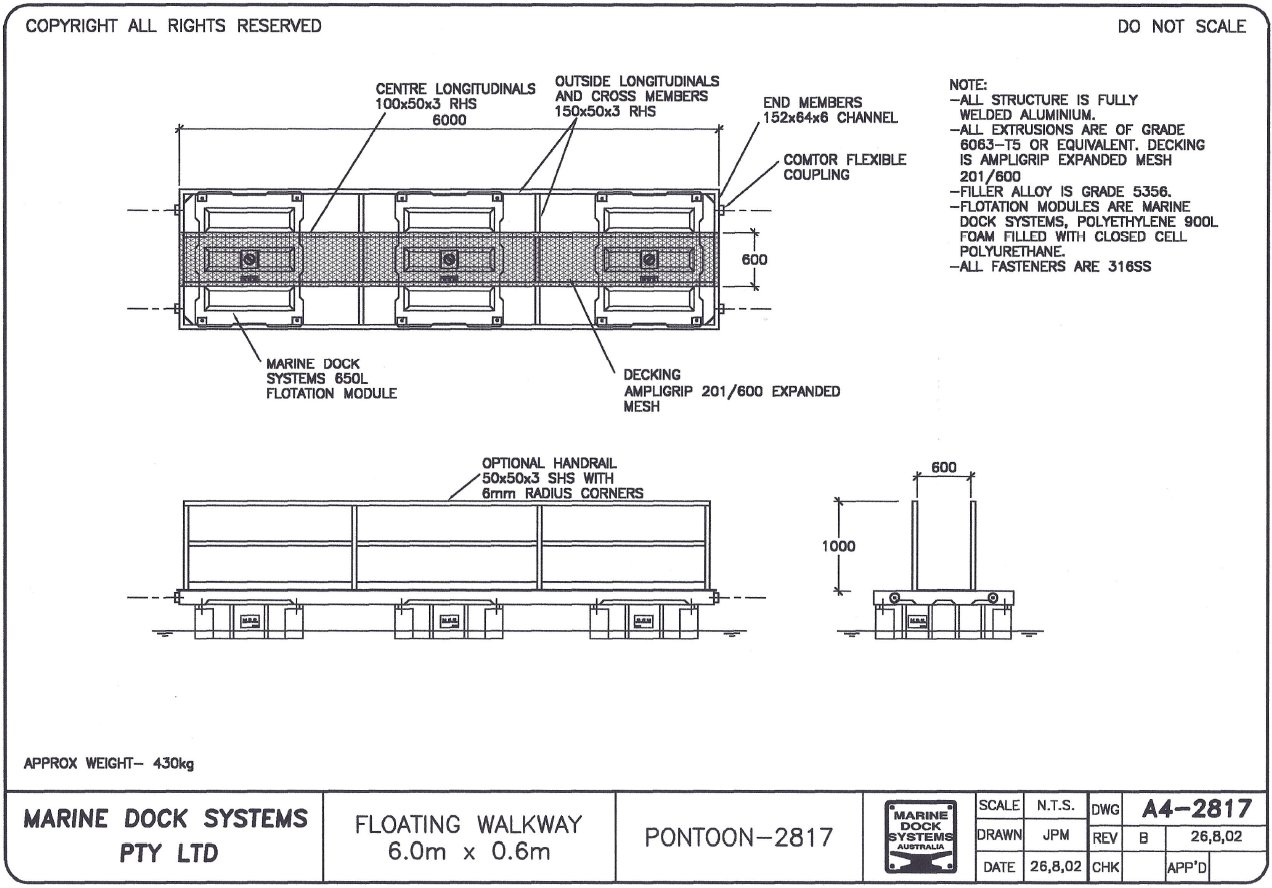

A4-2817 - Aluminium Walkway - 3 x 650 Litre

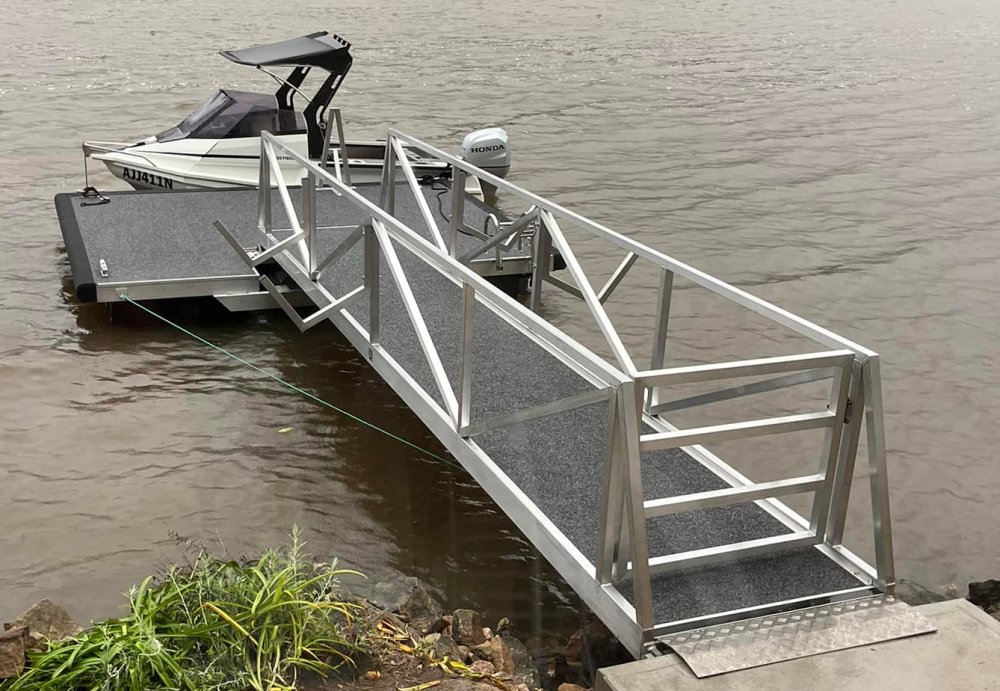

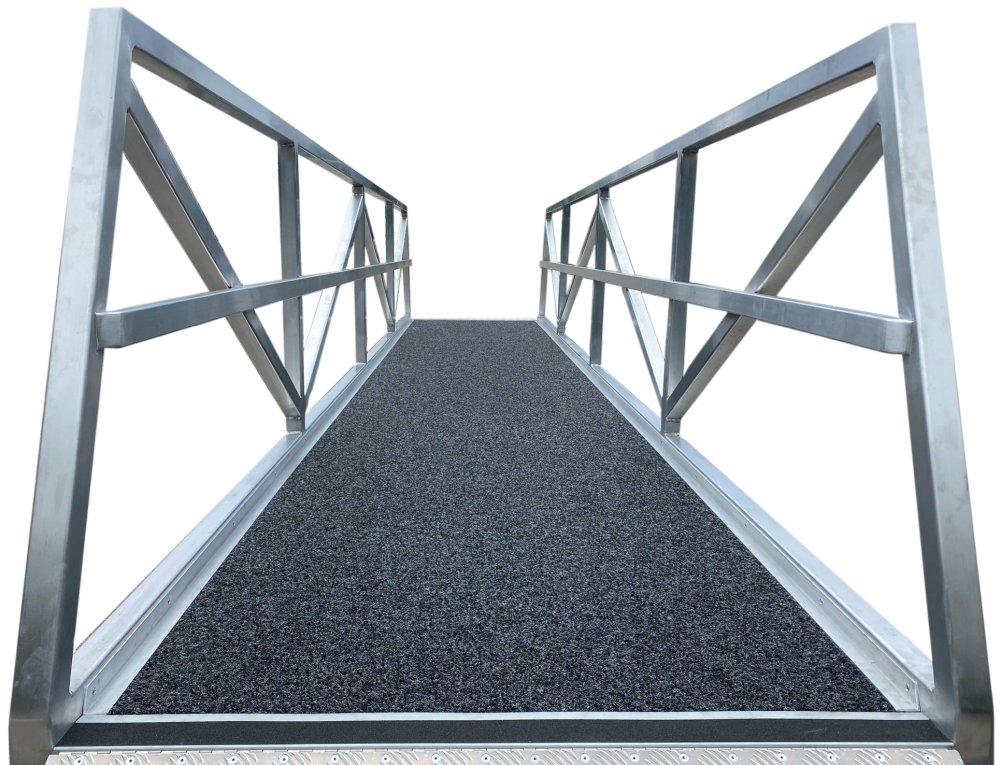

6mtr x 1.2 with trussed handrails

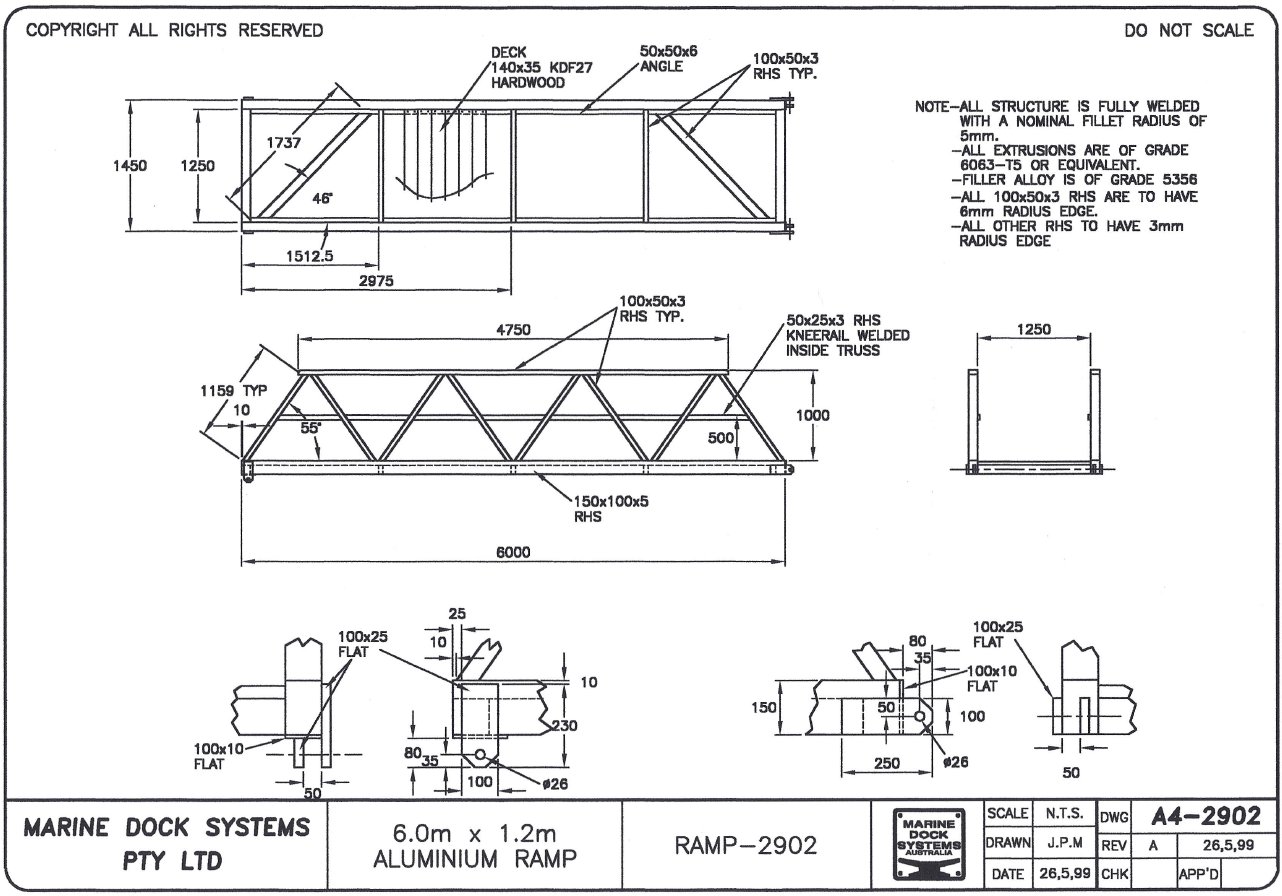

A4-2902 - Aluminium Ramp 6mtr x 1.2 with trussed handrails
Bracket suit ramp 2902

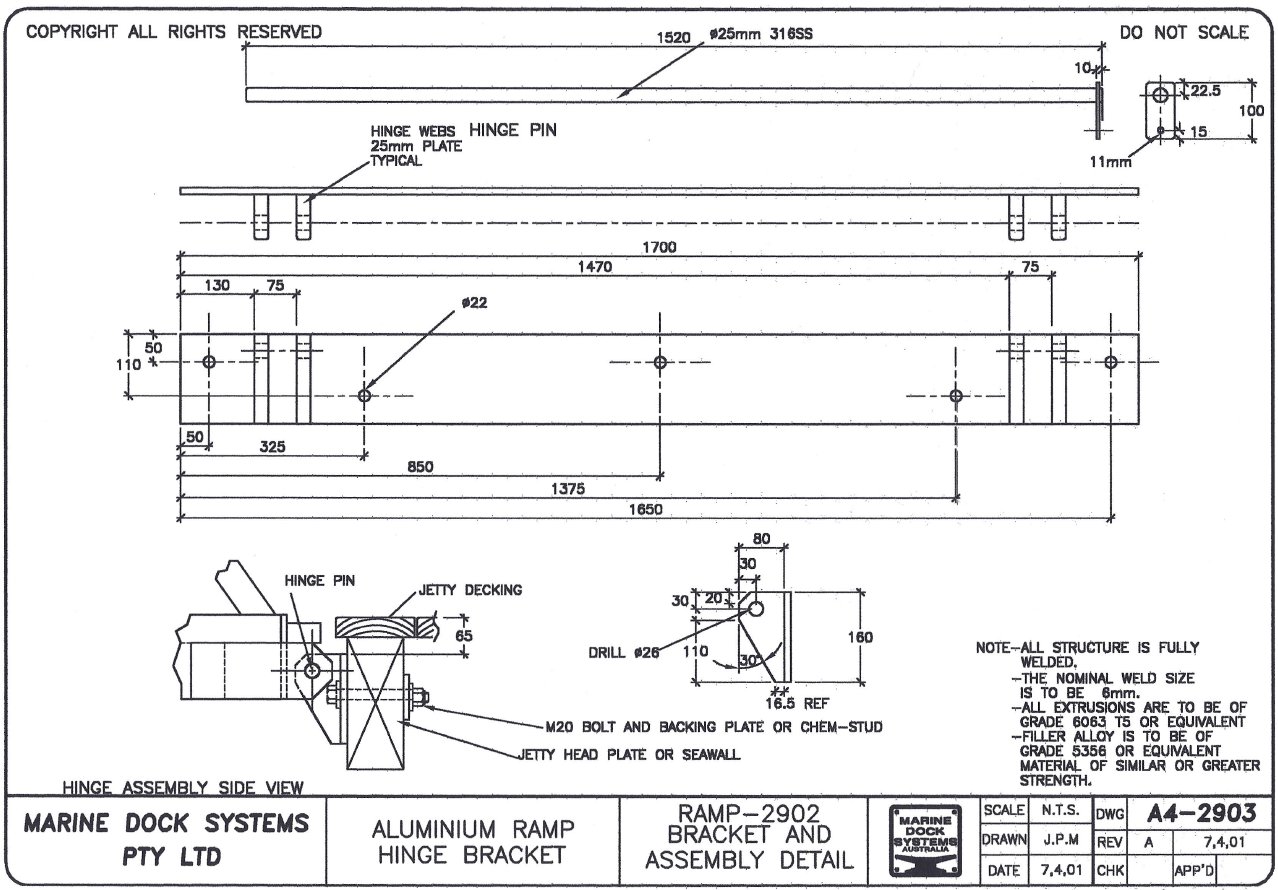

A4-2903 - Ramp Hinge Bracket suit ramp 2902

a4-2907 - Portable Folding Aluminium Ramp 3.5 mtrs x 0.6
a4-2910 - Boat Ramp Pontoon 20 mtrs x 2.15 wide
a4-2943 - Aluminium Timber Ramp 6mtr x 1.2 with optional handrail
a4-2949 - Ramp Hinge Detail suit Tiber Ramp 1.2 mtrs wide
a4-2954 - Cambered Aluminium Timber Ramp 5.1 mtr x 1.3 with Trussed handrails
a4-2957 - Ramp Hinge Detail suit Alloy Ramp 1.8 mtrs wide
a4-2961 - Ramp Aluminium Framed Timber 6mtr x 1.2 with transition plate
a4-2962 - Ramp Trussed Aluminium Framed Timber 9 mtr x 1.2 with transition plate
a4-2970 - Bridge Trussed Aluminium Framed Timber Deck 12 mtr x 2.25
a4-2971 - Bridge Abutment Details
a4-2982 - Ramp Aluminium Framed Timber Decking 6mtr x 1.4 with step hinged both ends

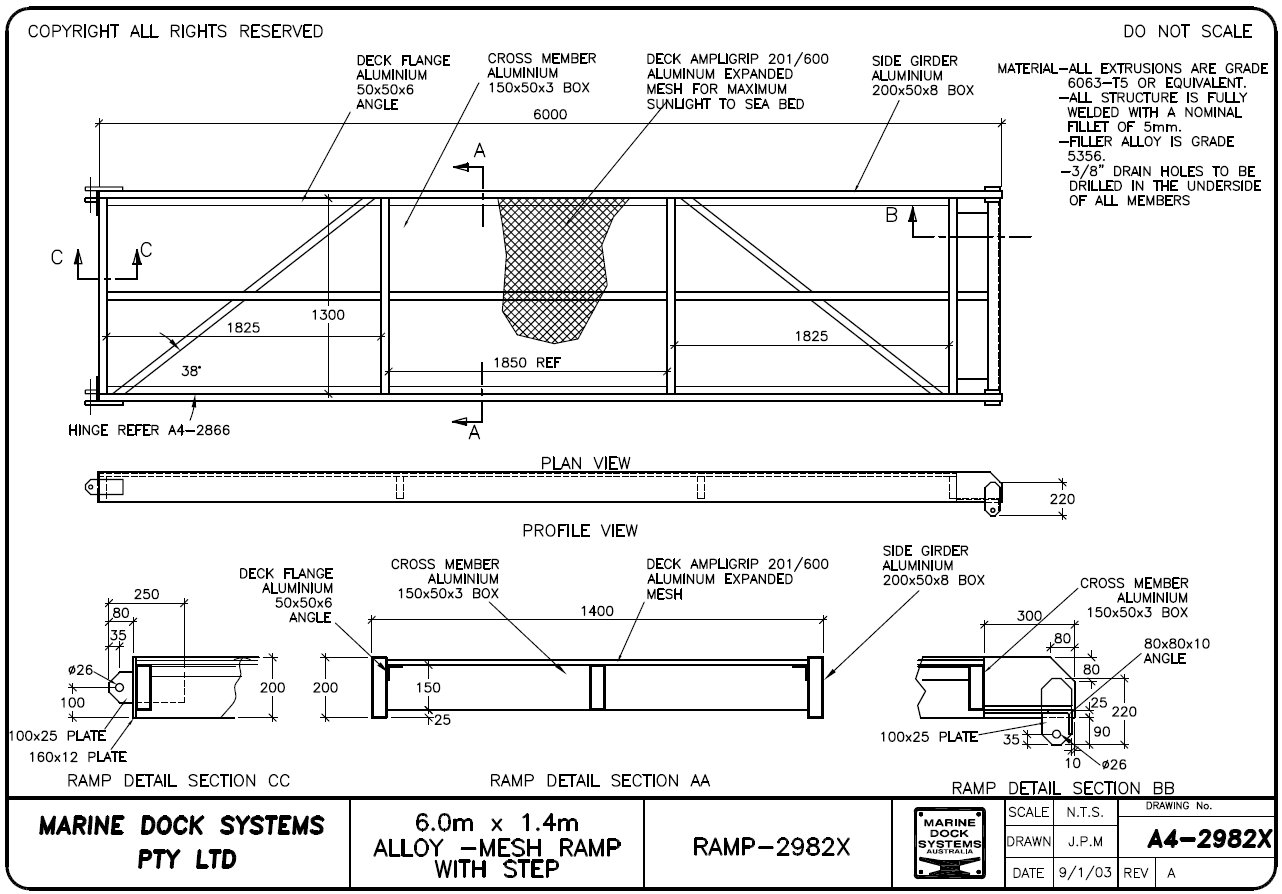

a4-2982x - Ramp Aluminium Framed Expanded Alloy Decking 6mtr x 1.4 with step hinged both ends
a4-2983 - Ramp Aluminium Hinge Detail suit 1.4 wide
a4-2983-2 - Ramp Aluminium Hinge Detail suit 1.4 wide
a4-3145 - Aluminium Trussed Ramp 4.3 mtrs x 0.9 wide
a4-3159 - Aluminium Trussed Ramp 2.5 mtrs x 1.2 wide
