CLEATS

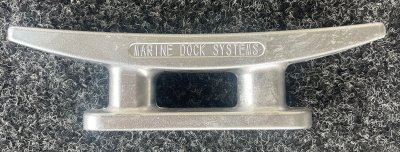

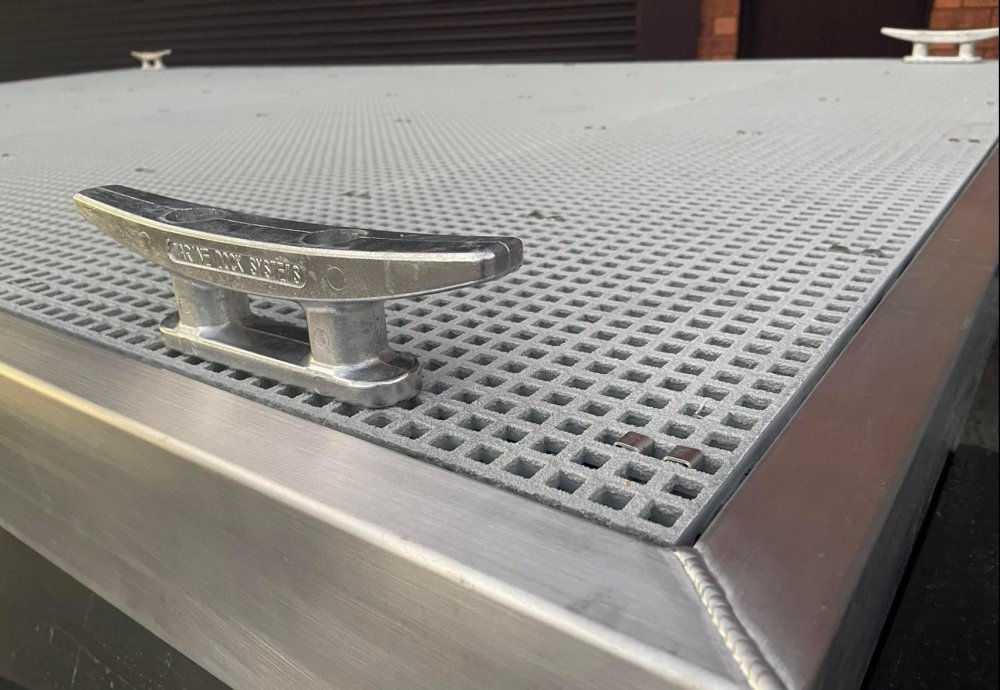

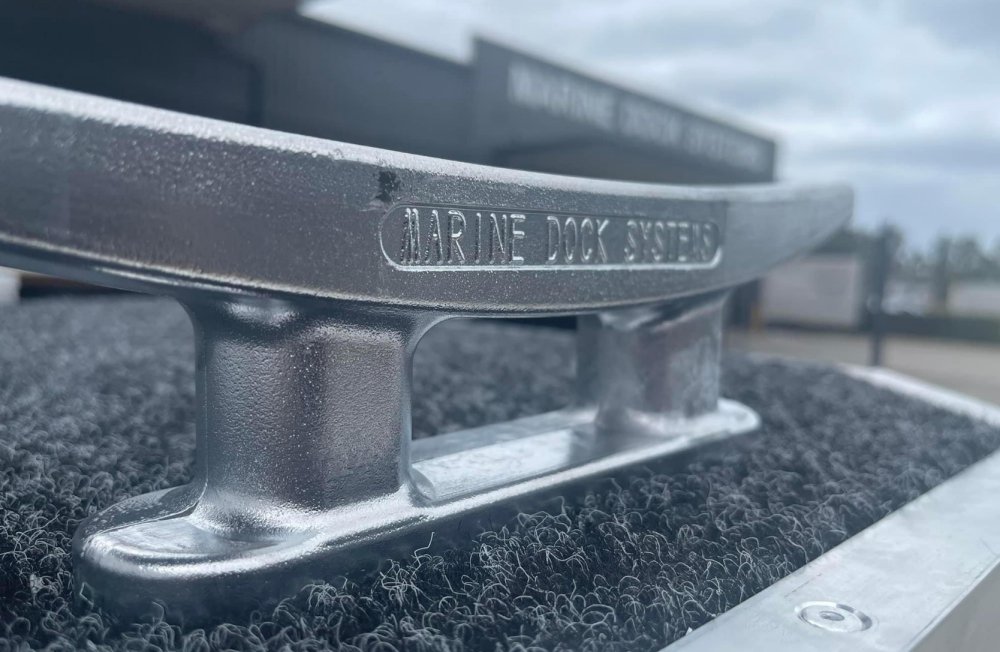

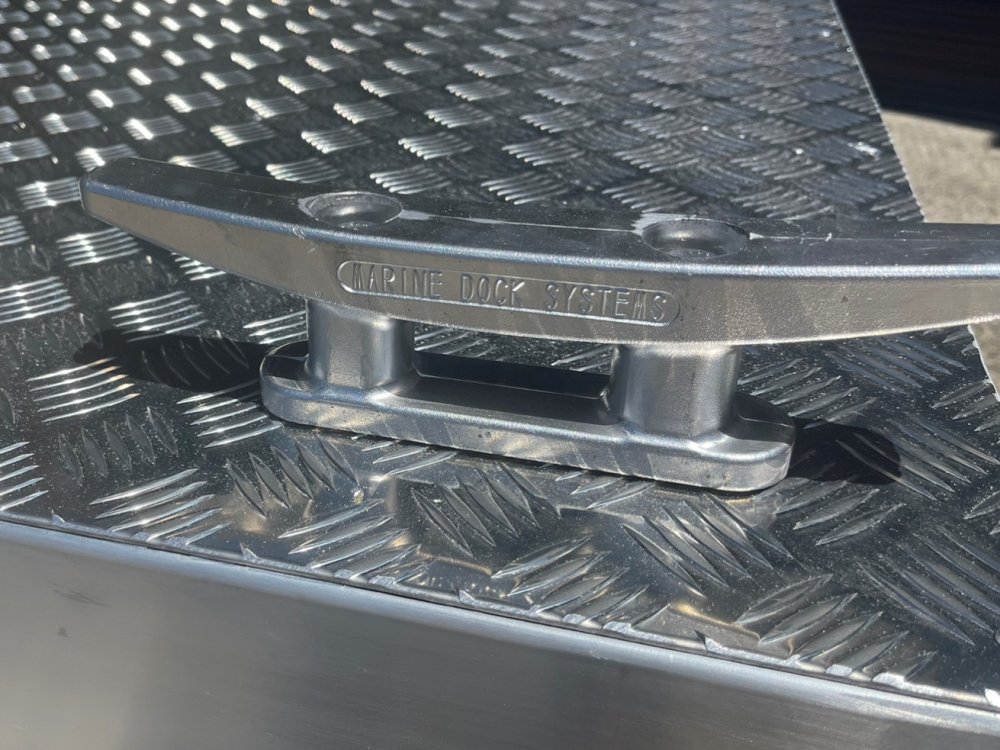

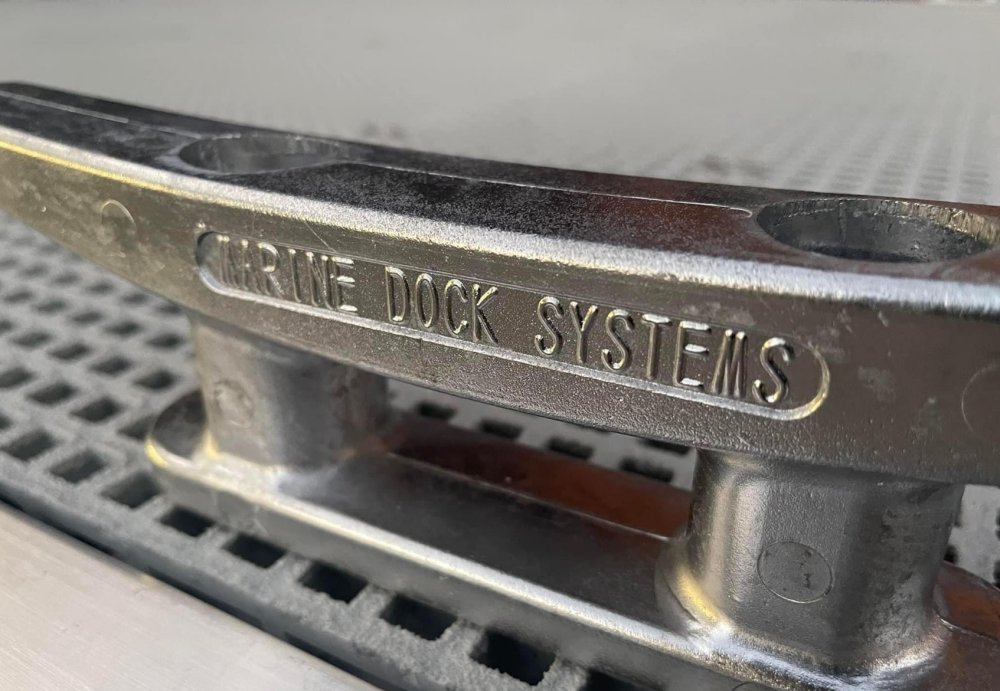

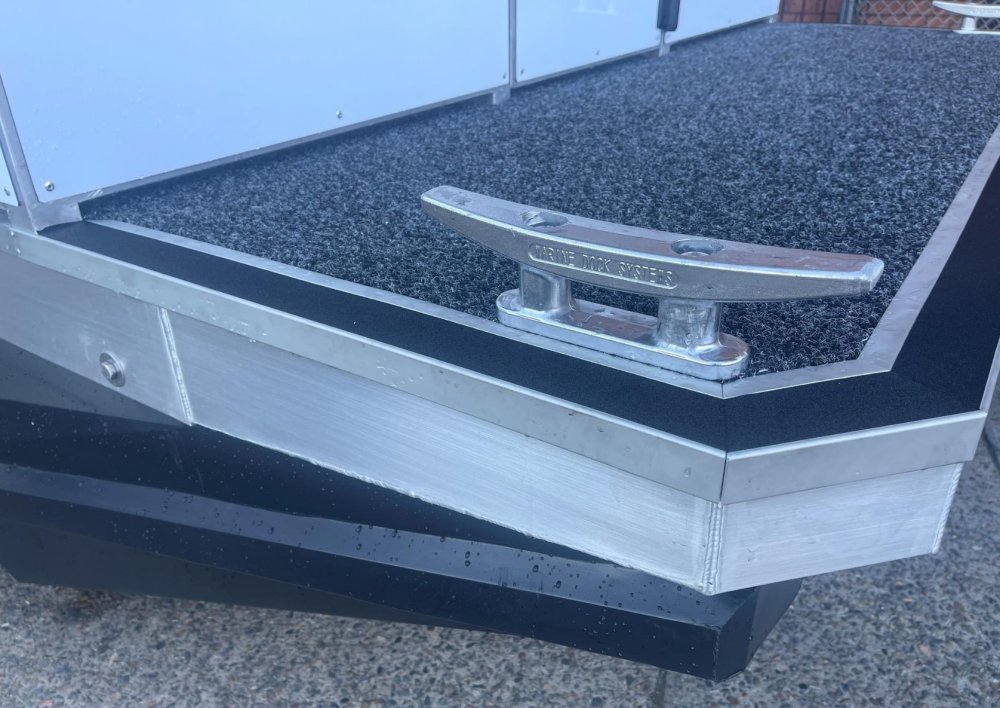

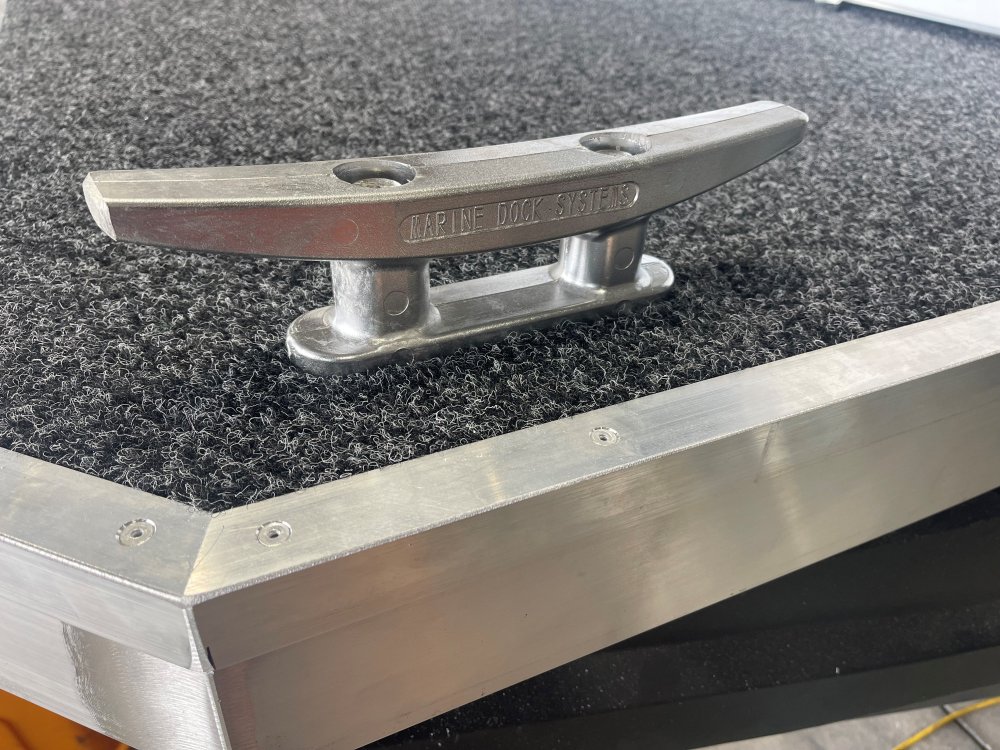

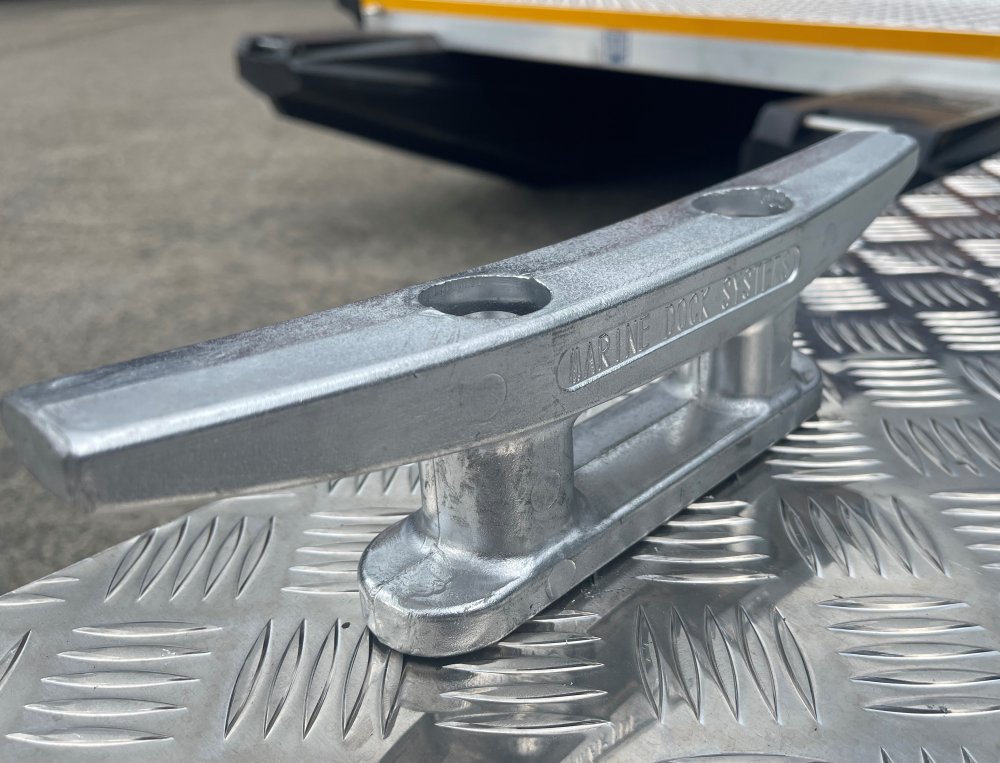

Cleats are cast in Marine Grade Aluminium. Marine Dock Systems supplies 3 individual sizes, the standard size is 300mm.
Floats
Enquiry

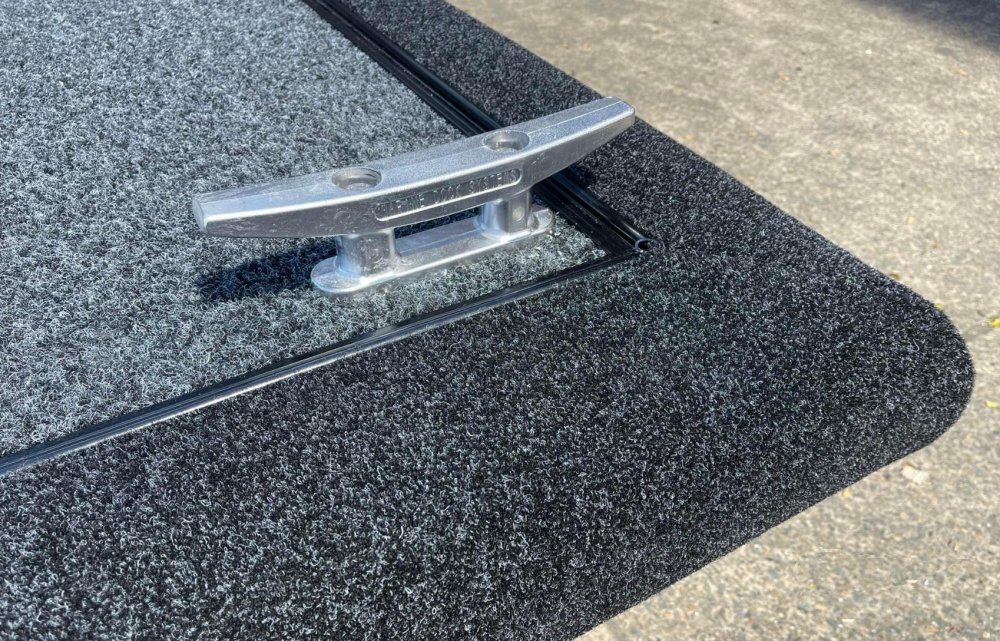

a4-1515 - 300mm Cleat installation tiber frame

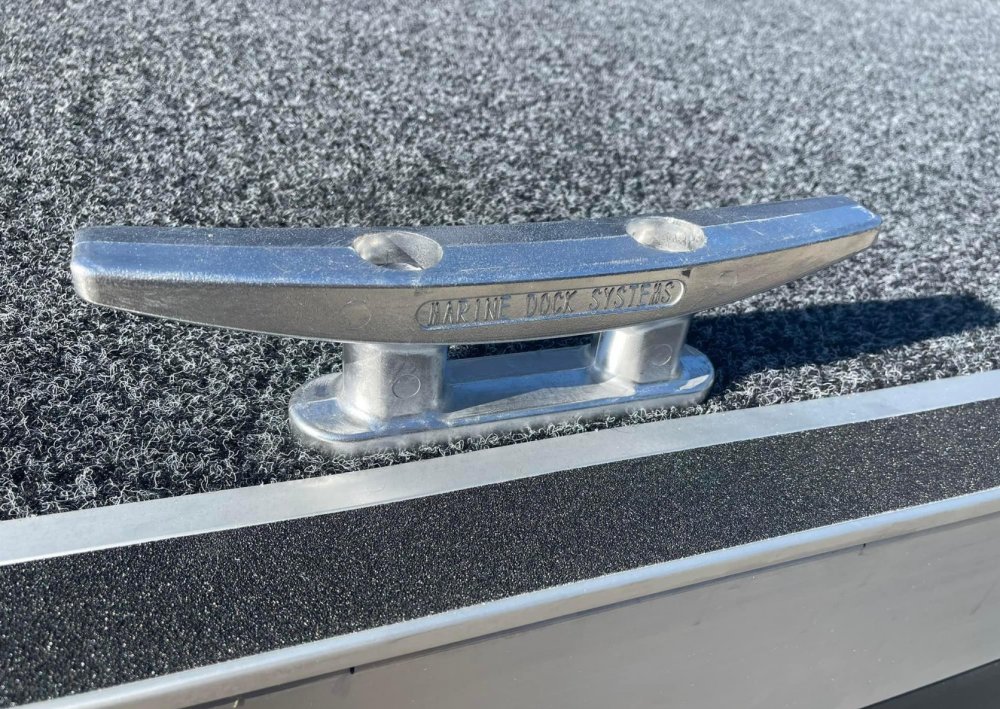

a4-1908 - 300mm Cleat installation alloy frame
Technical Information and Part #'s for Cleat sizes

Cleat Part No. A B C D E F - BOLT WEIGHT
CLEAT-1385 240mm 135mm 47mm 75mm 85mm 3/8" or 10mm 0.59kg
CLEAT-1386 300mm 165mm 40mm 90mm 105mm 1/2" or 12mm 0.82kg
CLEAT-1387 380mm 210mm 50mm 120mm 130mm 5/8" or 16mm 1.95kg


Installation Timber Frame

a4-1515 - 300mm Cleat installation tiber frame

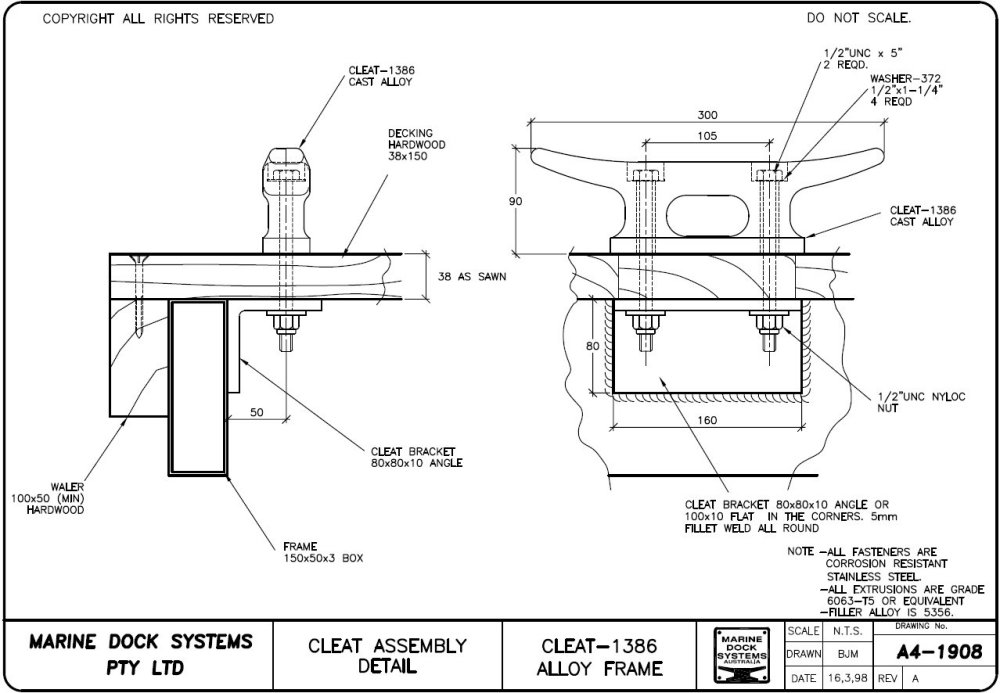

Installation Aluminum Frame

a4-1908 - 300mm Cleat installation alloy frame


Deck and Pile Bollards
Bollards sometimes have to be customised for easy and optimum docking,

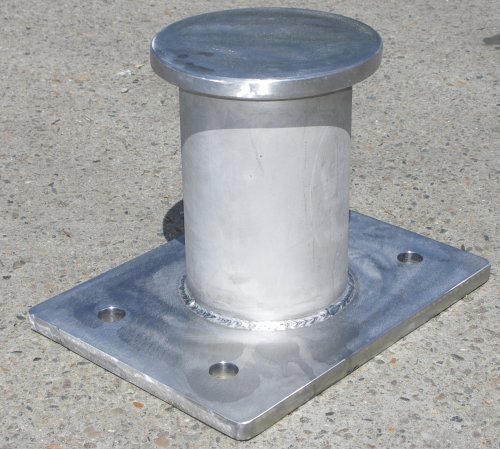

Custom Bollard 220mm

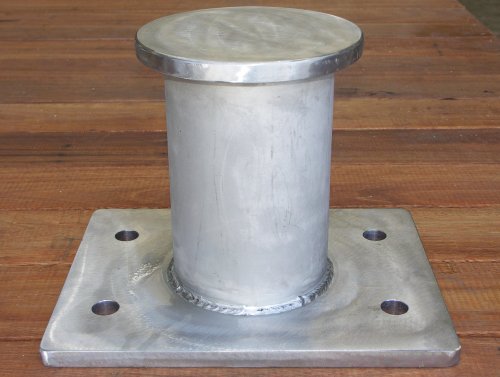

A4-3173 - Stainless Steel Bollard 220mm Sydney Ferries
Custom Pile Bollard

A4-3198 - Pile Bollard/td>
