FLOTATION MODULES
The Flotation Modules are moulded in one piece from tough, high stress crack-resistant, thermoplastic polyethylene resin. The modules are self coloured with carbon black pigment for maximum 'ultra violet light resistance'. They are not effected by osmosis, marine organisms or chemicals normally present in the marine environment. In built mounting lugs allow direct connection of the modules to the frame work system. Floats can be filled with water or concrete to add ballast to increase stability. Ballast can also be used to raise and lower the float for different freeboard requirements. Floats can also be foam filled for extra security if required.
CLICK ON FLOATS FOR TECHNICAL INFORMATION


Tech Drawing
1200 litre Float
Part # FLO-1200-190
This unit was designed for commercial applications and larger residential docks.
Size
2000mm long
x 1200mm wide
x 570mm deep
More info. Click here.


Tech Drawing
900 litre Float
Part # FLO900-279
Designed as a finger float for large marinas, however, it can also be used under residential docks that require high freeboard. Size
2000mm long
x 900mm wide
x 570mm deep
More info. Click here.


Tech Drawing

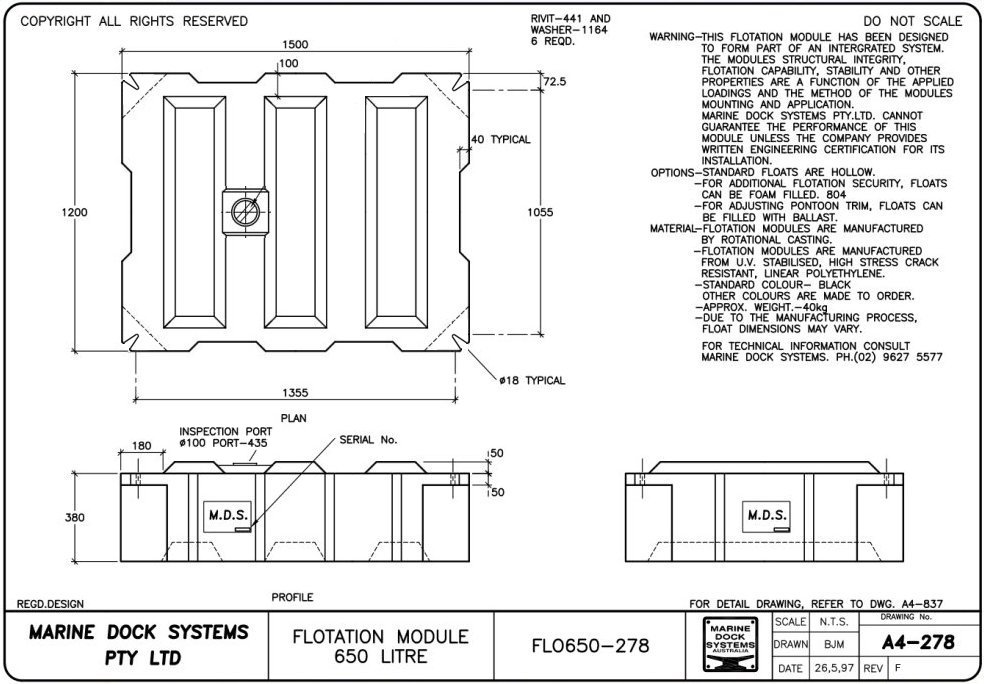

650 litre Float
Part # FLO650-278
This float has been specifically designed for use under residential docks. Size
1500mm long
x 1200mm wide
x 430mm deep
More info. Click here.


Tech Drawing
550 litre Float
Part # FLO550-1052
This float has been specifically designed for use under "Sea Grass" pontoons and effluent treatment pontoons. The narrow width and larger depth of the float allows us to build pontoons with a much smaller water plane area in comparison to deck area. Size 1500mm long x 600mm wide x 750mm deep Load capabilities 275kg each $455 + GST each More info. Click here.


Tech Drawing
333 litre Pontoon Hull
Part # FLO-333-184
This is a multi purpose float, it can be used for providing flotation for smaller docks, and, when mounted in line with the matching nose cone, can form one of the hulls of a catamaran travelling craft. Size 1145mm long x 650mm wide x 643mm deep Load capabilities 150kgMore info. Click here.


Tech Drawing
333 Nose cone
Part # FLO-333NC-306
This float was designed to help create a bow section for moving craft when joined with the 333 Litre Flotation Module can form one of the hulls of a catamaran travelling craft. Size 1145mm long x 650mm wide x 643mm deep Load capabilities 50kg eachMore info. Click here.


840 Litre House Boat Float Drawing Tech Drawing
840 litre House Boat Pontoon Hull
Part # FLO-840
Houseboat pontoon float when mounted in line with the matching nose cone, can form one of the hulls of a catamaran travelling craft.
Float has 840 litre capacity
1440mm Long x
1110mm Wide x
590mm Deep
46kg each
Load capabilities 400kg
More info. Click here.


440 Litre House Boat Nose Cone Drawing Tech Drawing
House Boat Nose cone
Part # FLO-840NC
This float was designed to help create a bow section for house boat when joined with the 840 Litre Flotation Module can form one of the hulls of a catamaran travelling craft.
Nose cone 440 litre capacity
1150mm Long x
1110mm Wide x
590mm Deep
35kg each
Load capabilities 100kg each
More info. Click here.

Marker buoy
Part # FLO230-187
he 230 Litre Float can be used separately or end to end in a line to create a great barrier float. Size 1020mm long x 600mm Dia Load capabilities 110kg eachMore info. Click here.


a4-2728 - 2000 Litre float
2000 litre Float
Part # FLO2000-2728FF
This unit was maunufactured for max lift capacity, this unit is foam filled and can support up to 1800kg each. Used in industrial applications such as pump and or mixer pontonns Size 2000mm long x 1200mm wide x 950mm deep Load capabilities 1800kg each More info. Click here.

a4-2316 Hose Floats 100mm
