COMMERCIAL
PONTOONS / MARINAS

Marine Dock Systems designs
Alloy and Timber Systems
for a variety of applications.
Floats Enquiry





Marina Walkway 6mtr x 2mtr
Part # PONTOON-311
Including 4 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 2 sides. $7620 + GST

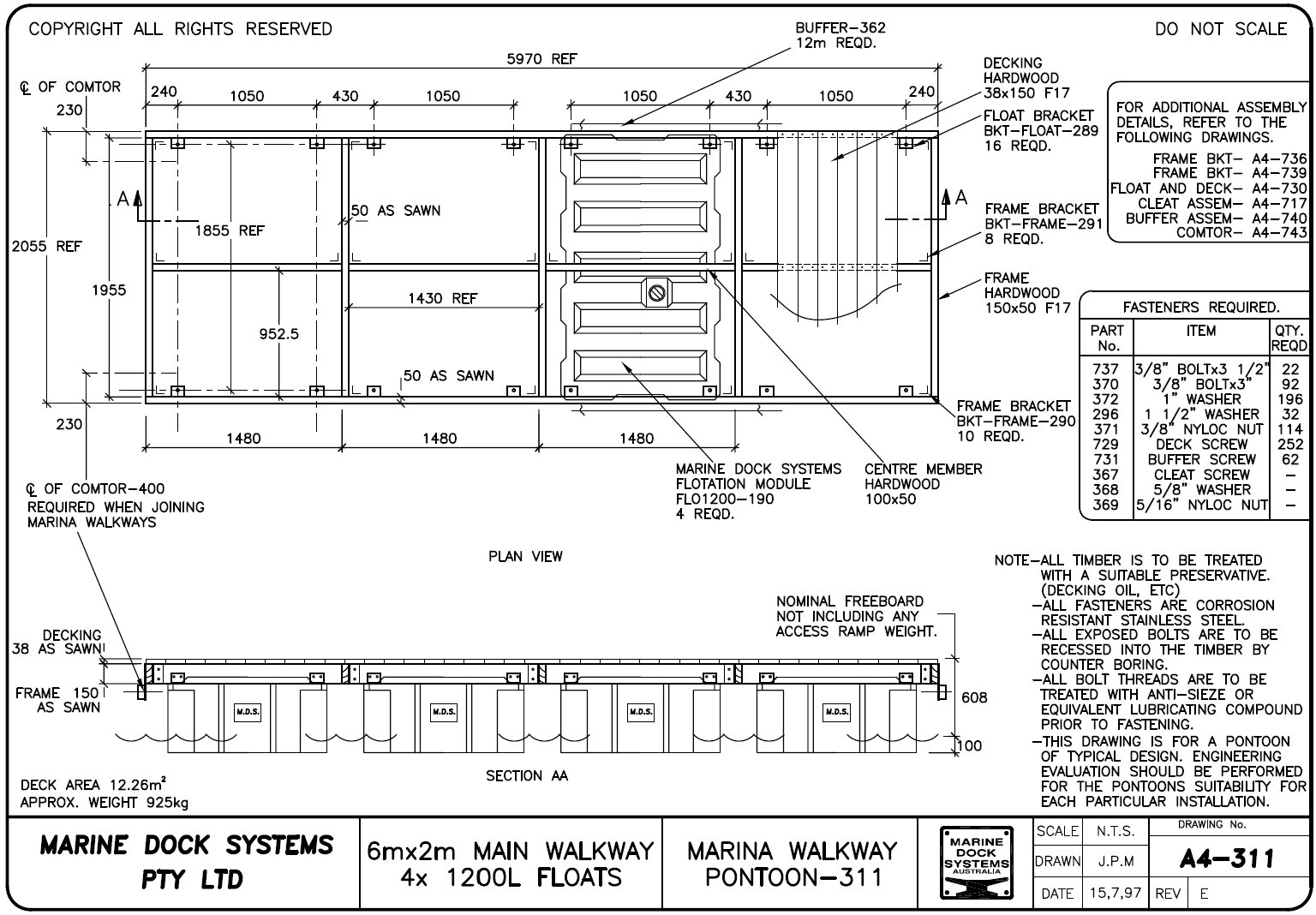

a4-0311 Timber walkway 6mtr x 2mtr

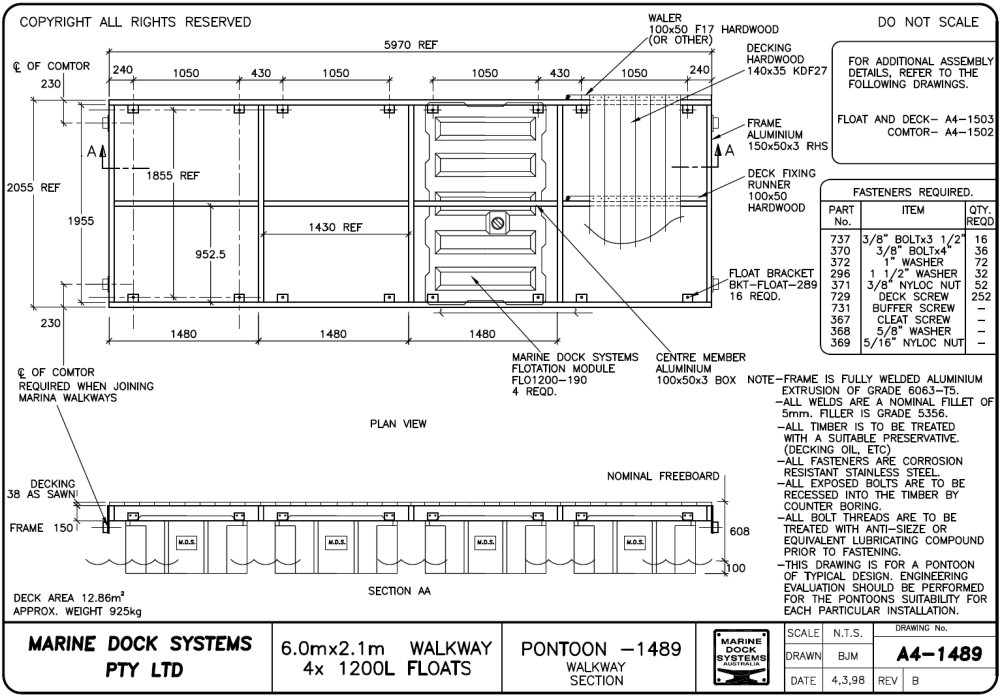

A4-1489 Pontoon 6m x 2.05m alloy frame timber deck $8910 + GST

Joining Sections Together

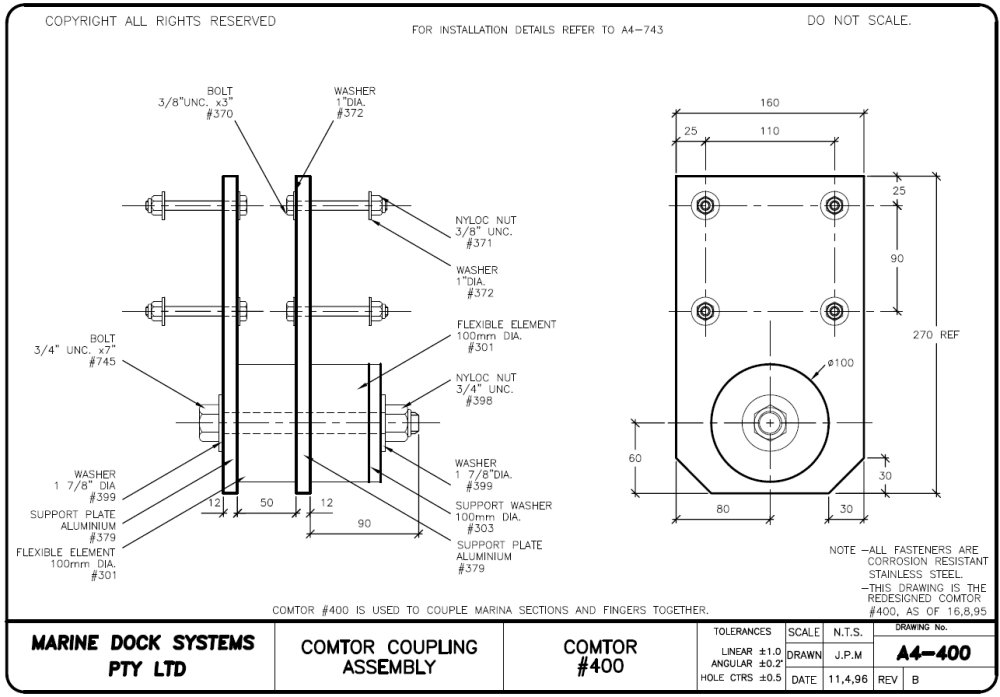

A4-0400 Comtor conecting unit

Timber Frame

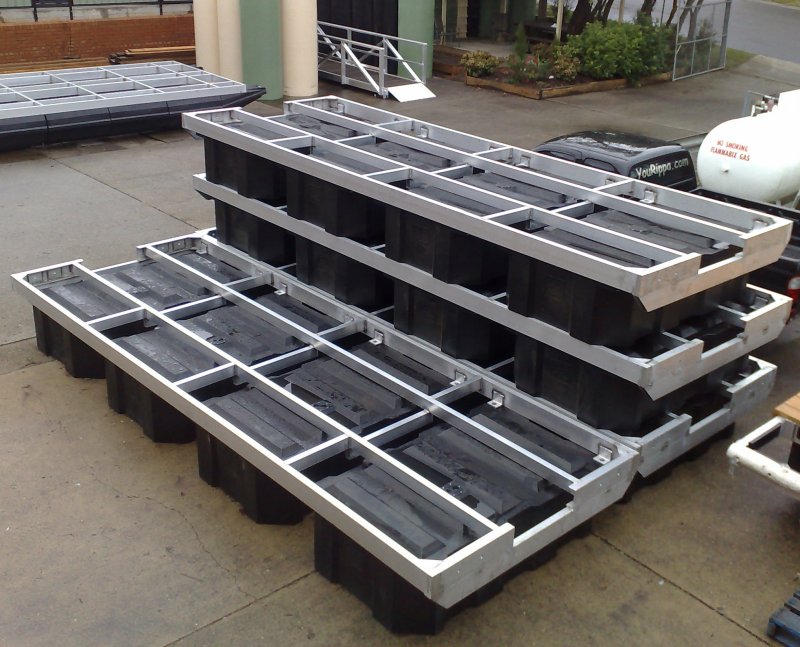

Aluminium Frame


Marina Finger 5mtr x 1mtr
Part # PONTOON-840
Including 2 x 900 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides. $5210 + GST
a4-0840 Marina Finger 5mtr x 1mtr
a4-1852 9.6mtr x 1.3 mtr - Alloy frame

Alloy frame and timber decking
a4-1365 4.5m x 1.55m Alloy timber walway pontoon (3 x 650 Litre Floats)
a4-1366 4.5m x 1.25m Timber walway pontoon (2 x 650 Litre Floats)
a4-1584 Pontoon 6m x 3m alloy frame timber deck (6 x 1200 ltre floats
a4-1600 Pontoon 7.45m x 2.05m alloy frame timber deck (6 x 1200 litre floats

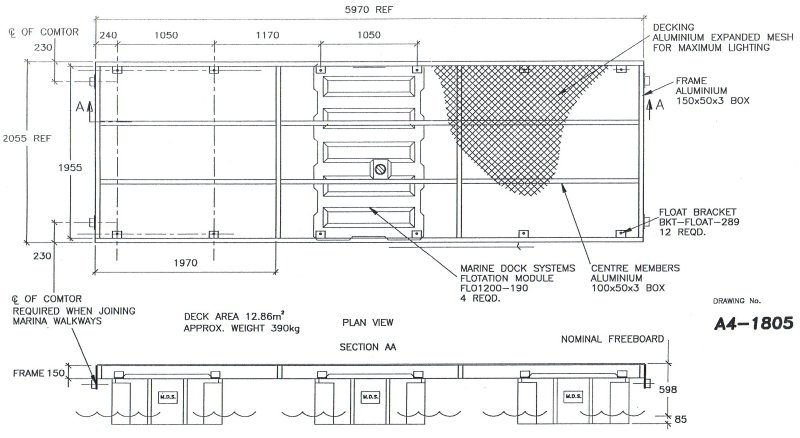

Drawing a4-1805 - PONTOON-1805 2055mm Wide x 5970mm Long (3 x 1200 Litre Floats)
a4-1852 Pontoon 9.6m x 1.35m alloy timber finger pontoon (4 x 1200 litre floats)
a4-1907 main walkway end detail
a4-1914 - Pontoon 6m x 2.05m alloy frame timber deck - services
a4-1916 - Pontoon 8.9m x 2.05m alloy frame timber deck - services
a4-1917 - Pontoon 7.45m x 2.05m alloy frame timber deck - services

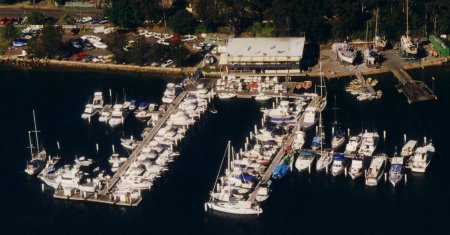

Marina Layout Samples
a4-0738 - Marina layout P.A.C
a4-1055 - Berowra waters boat shed layout
a4-1171 - Hawkesbury Congo Layout
a4-1510 - Newport Arms Layout
a4-1548 - Star Mooring Concept Layout
a4-2963 - Pontoon Finger 8.25 x 1.35 alloy frame timber deck - 4 x 1200 Floats
