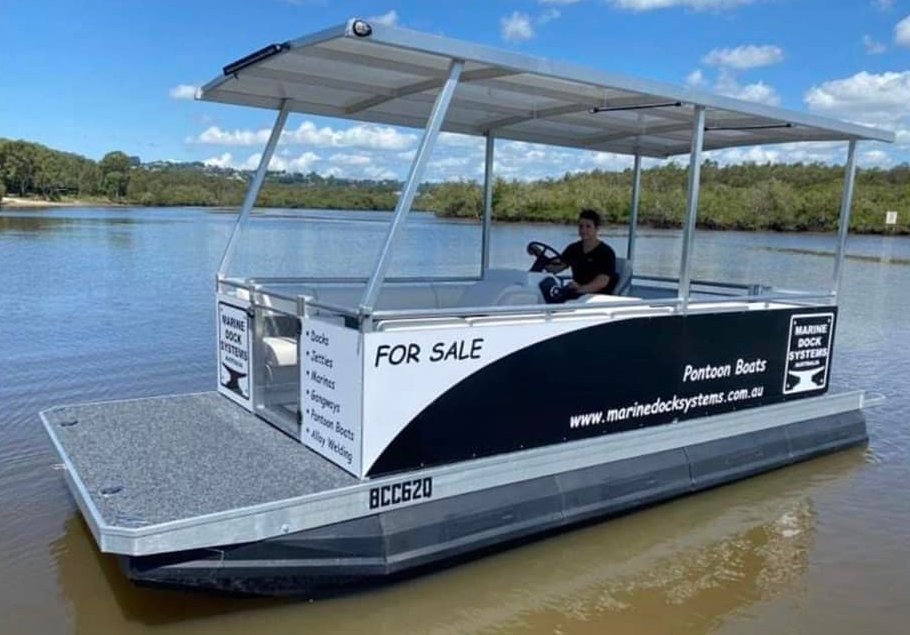

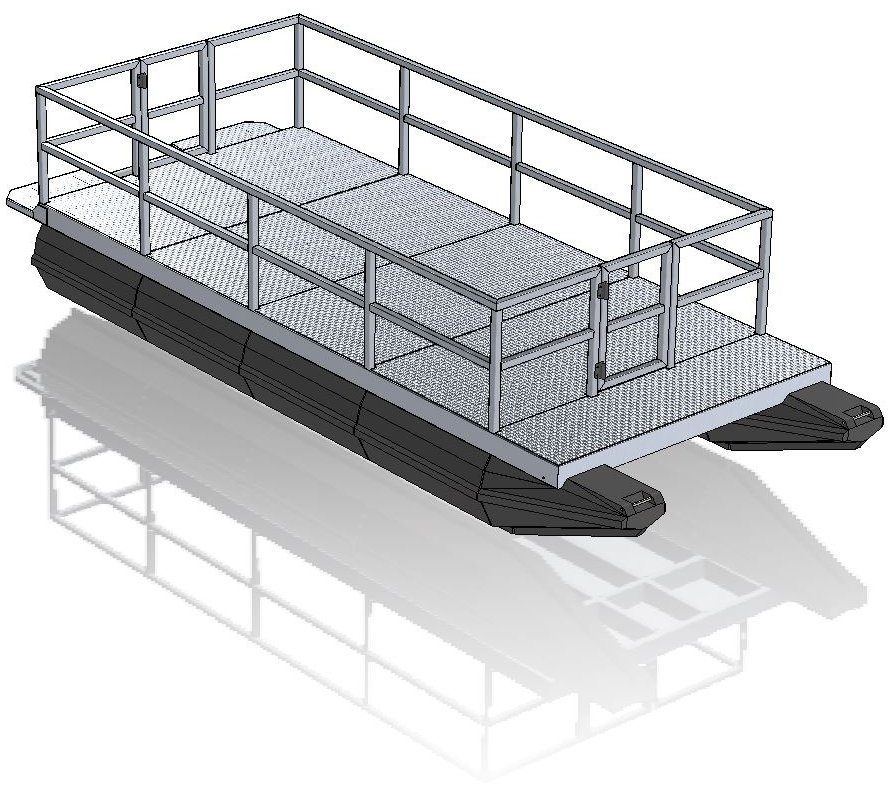

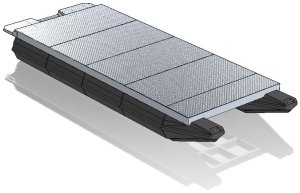

5.7 Metre Pontoon Boat (19 feet)
Our most popular size pontoon boat.
This pontoon boat is good for 1-6 people and is able to take upto 10 if a centre row of pontoons is added.
This model uses our 333 Litre floats and nose cones.
The 333 Litre floats will support 150kgs each.
Pontoon modules are moulded in one piece from tough, high stress crack-resistant, thermoplastic polyethylene resin. In built mounting lugs allow direct connection of the modules to the frame work system.
Floats are food grade and can be used for drinking water or waste storage.
Extra available include motor bracket carpet,

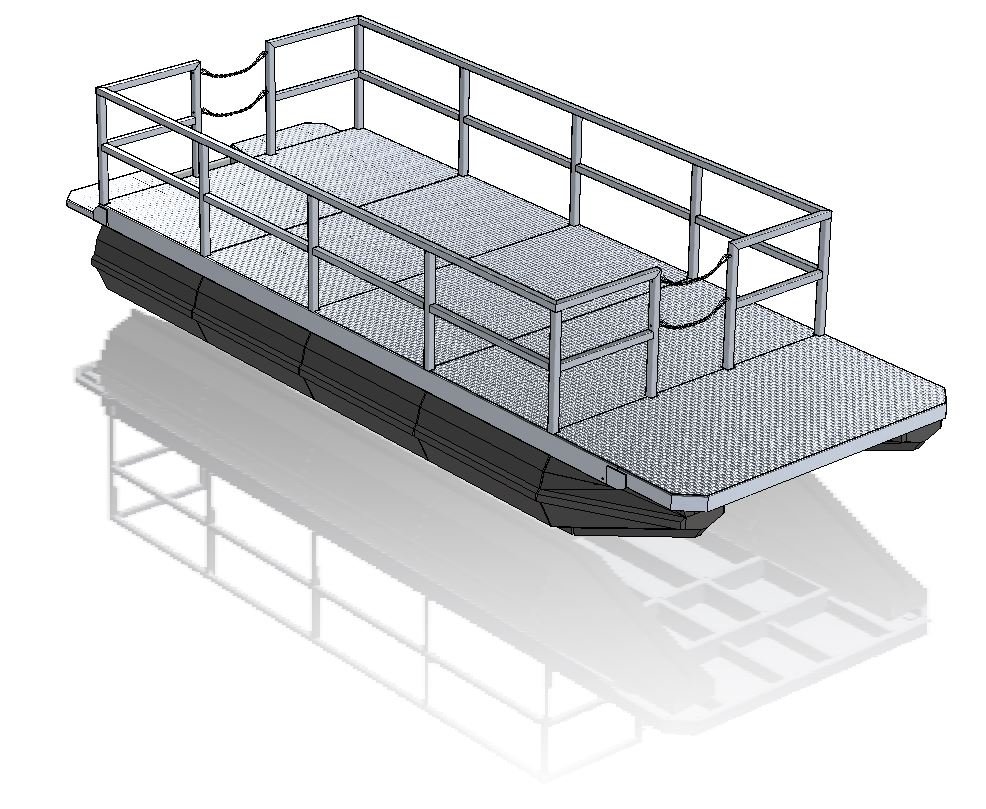

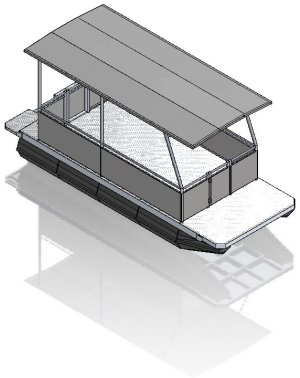

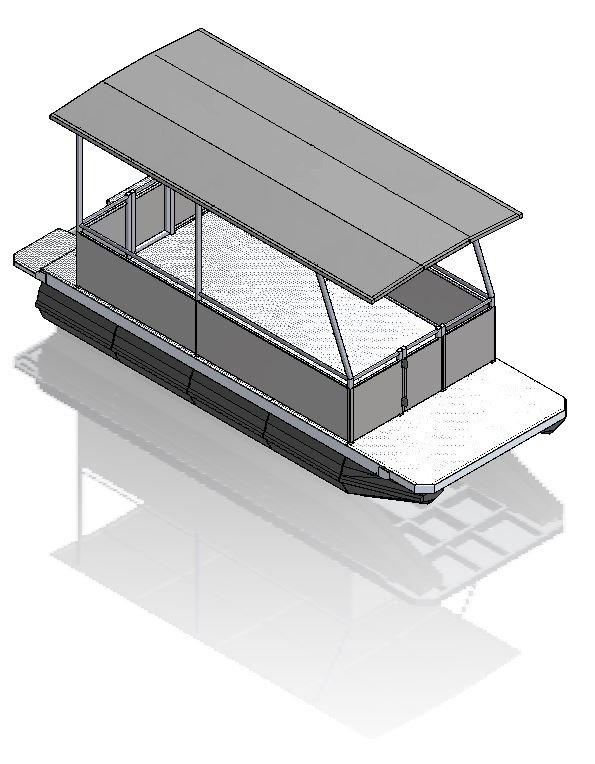

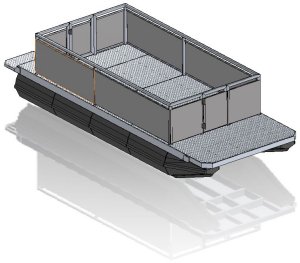

mooring cleats, habdrails with gates, hardtop roof, steering wheel console and furniture.
individual floats are also available and can be purchased separately
 PDF Price List
|
 YouTube Channel
|

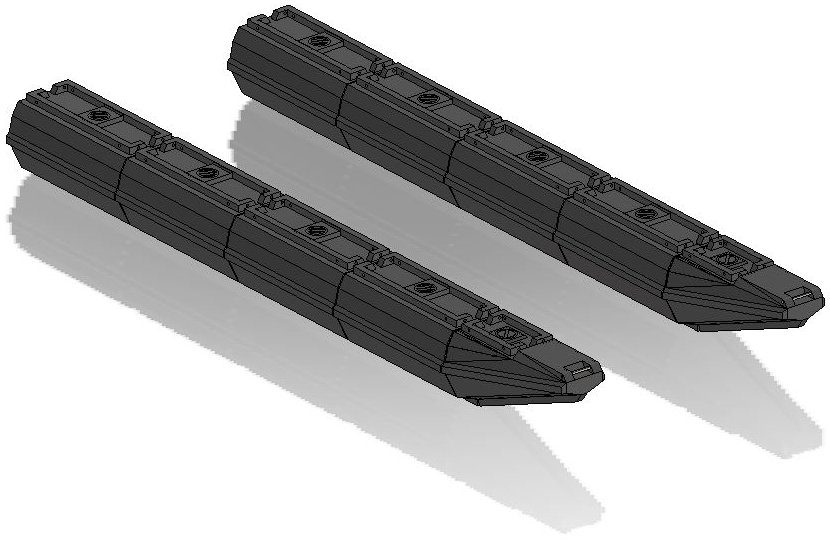

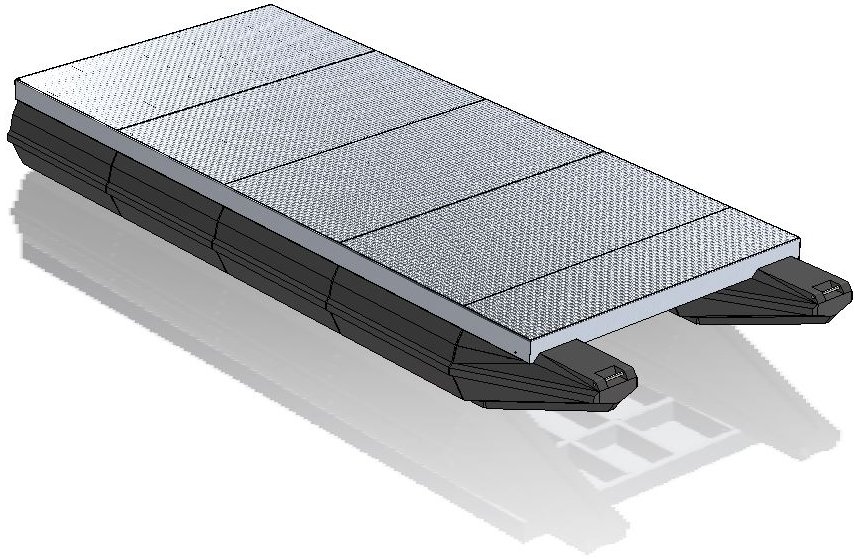

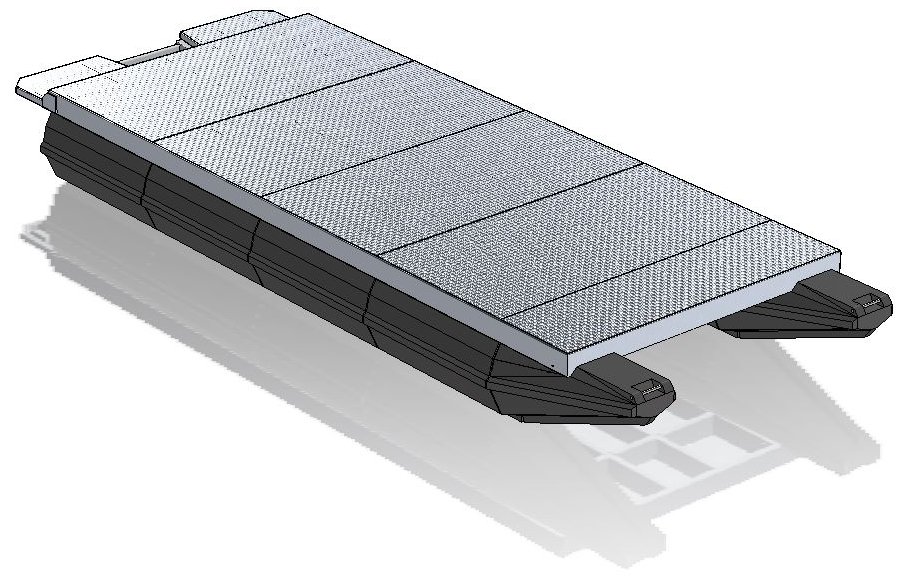

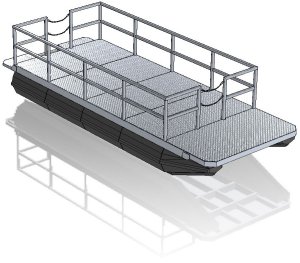

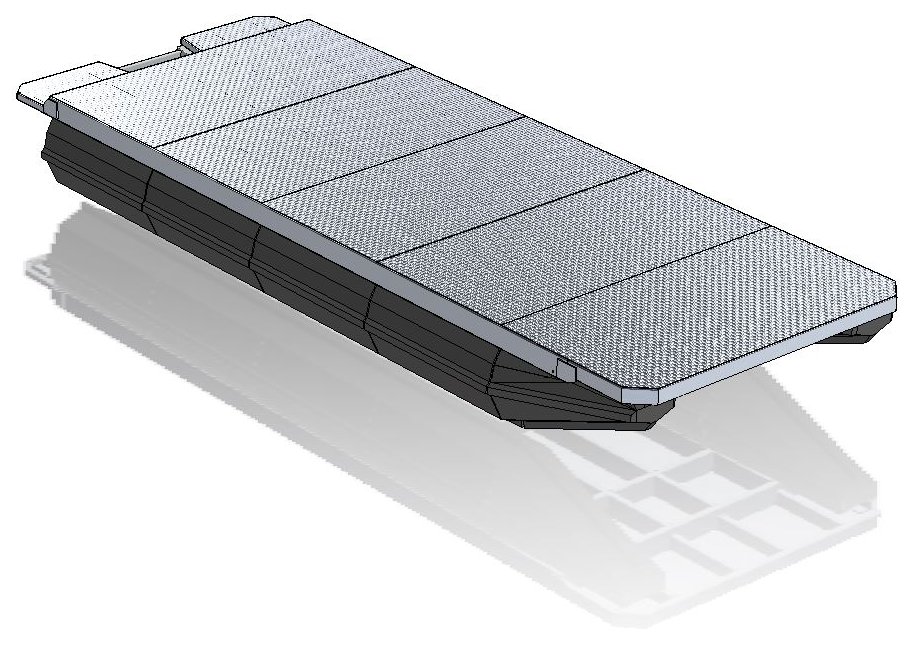

Option 1

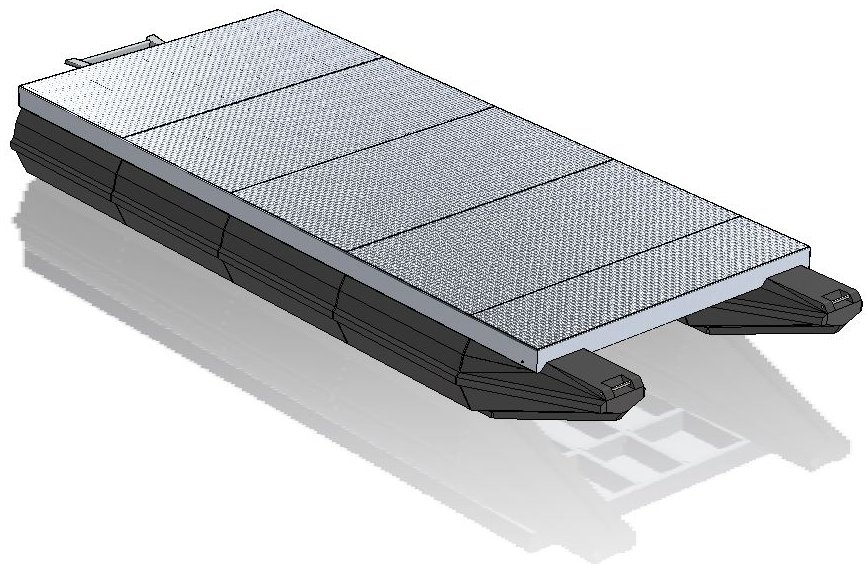

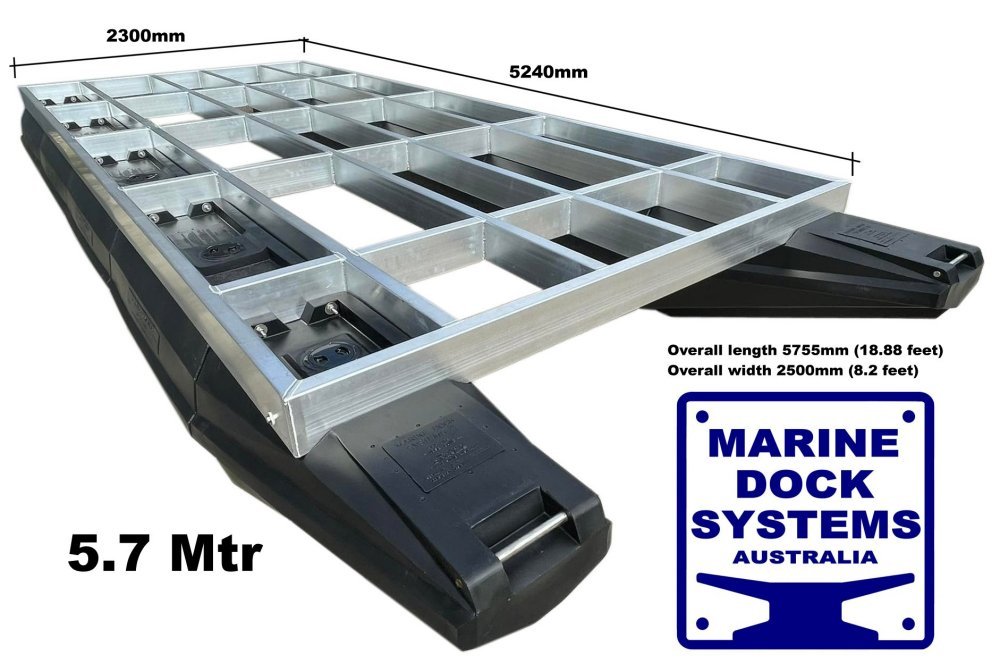

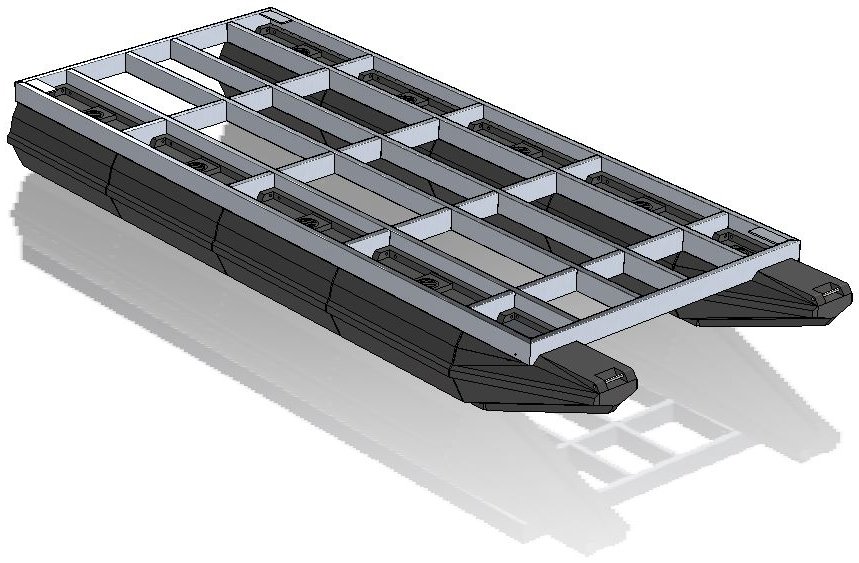

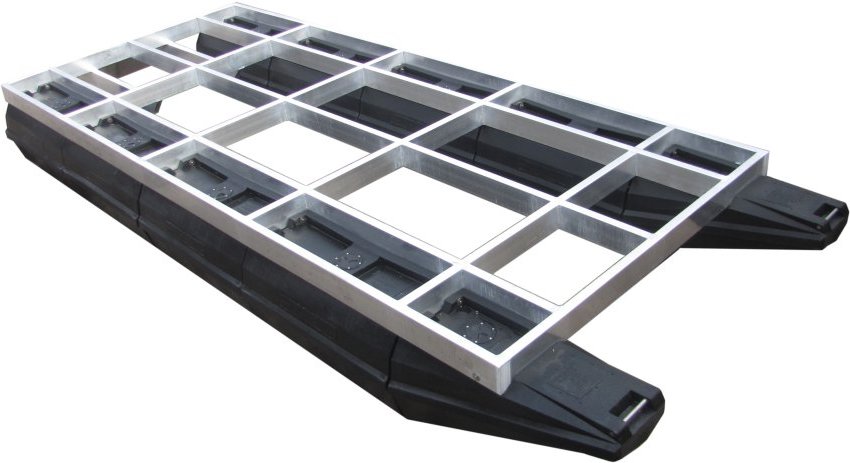

Pontoon hulls
Floats and fasteners
5.7 Mrs Long (19 feet)
Includes
8 x 333 Litre floats
2 x Nose cones.
4 x M10 x 120mm 304 SS bolts
16 x M10 x 170mm 304 SS bolts
20 x M10 304 SS nyloc nuts
40 x 3/8" X 1-1/2" 304 SS washers |
| |
Twin Hull
Approximate
Total weight 234kg
Max Load 1200kg

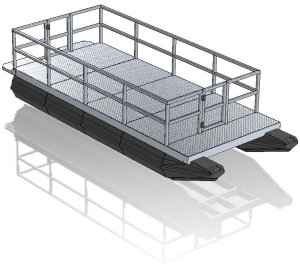

Tri Hull
Approximate
Total weight 351kg
Max Load 1800kg
PDF Price List
|
|
Drawings
 333 Litre Float
Nose Cone
|
Optional extra's

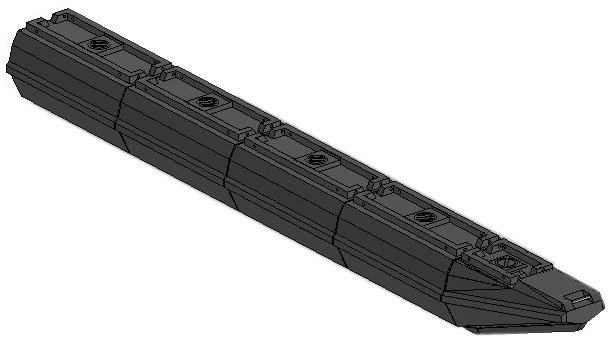

Centre row of floats (adds 600kg payload)
4 x 333 Litre Floats
1 x Nose Cone
4 x M10 x 120mm Stainless Steel Bolts
8 x M10 x 170mm Stainless Steel Bolts
12 x M10 Nyloc nuts stainless steel
24 x 3/8 x 1"1/2 304 stainless steel washers |
|
 |

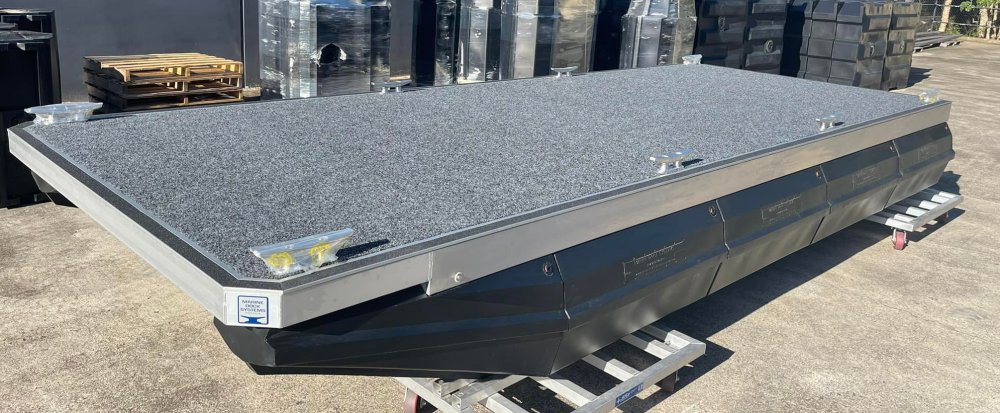

Grey Marine carpet
UV Stabilsed polypropylene
32 x 32mm alloy angle
Countersunk alloy rivets |
|
 |

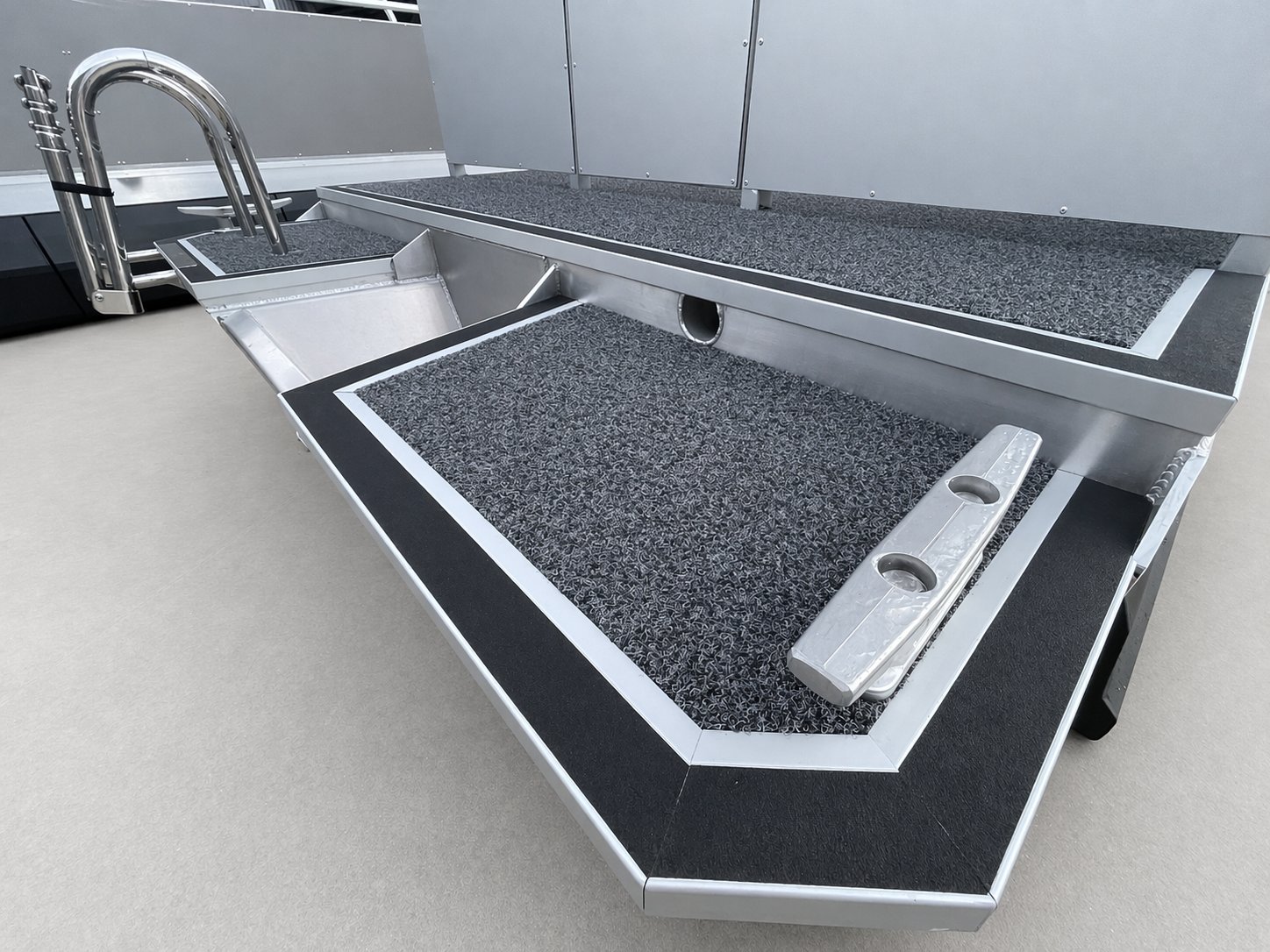

Mooring cleats 300mm
cast aluminium
with stainless steel fasteners
1/2 inch stainless steel bolts
More info... |
|
 |
Aluminium edging with grip tape
Countersunk alloy rivets |
|
 |
Fishing rod holders stainless steel
with stainless steel fasteners
|
|
 |

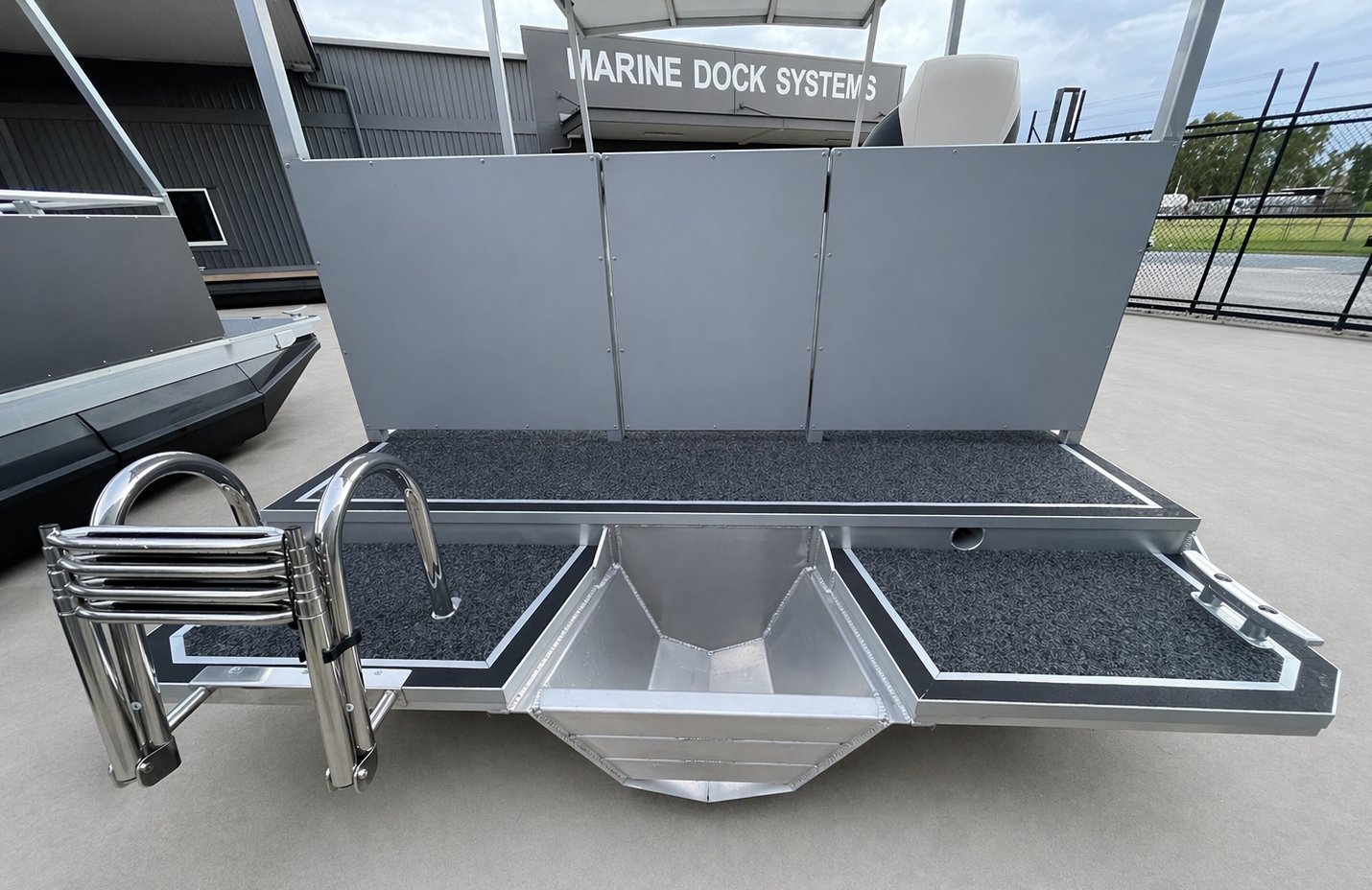

Folding stainless steel ladder
with stainless steel fasteners |
|
 |

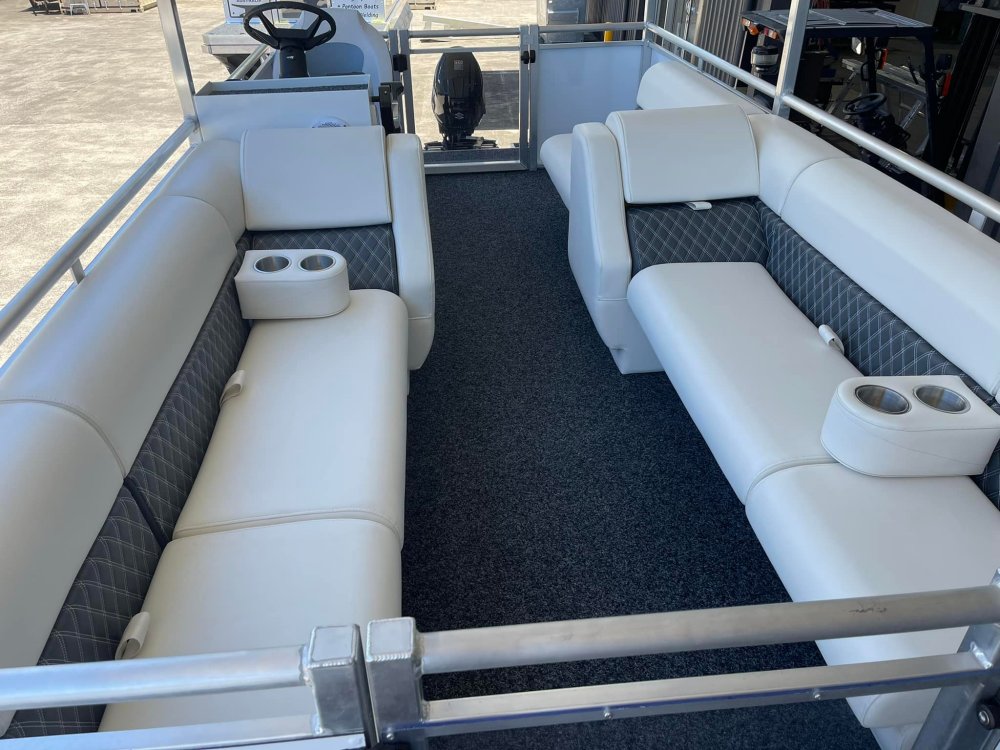

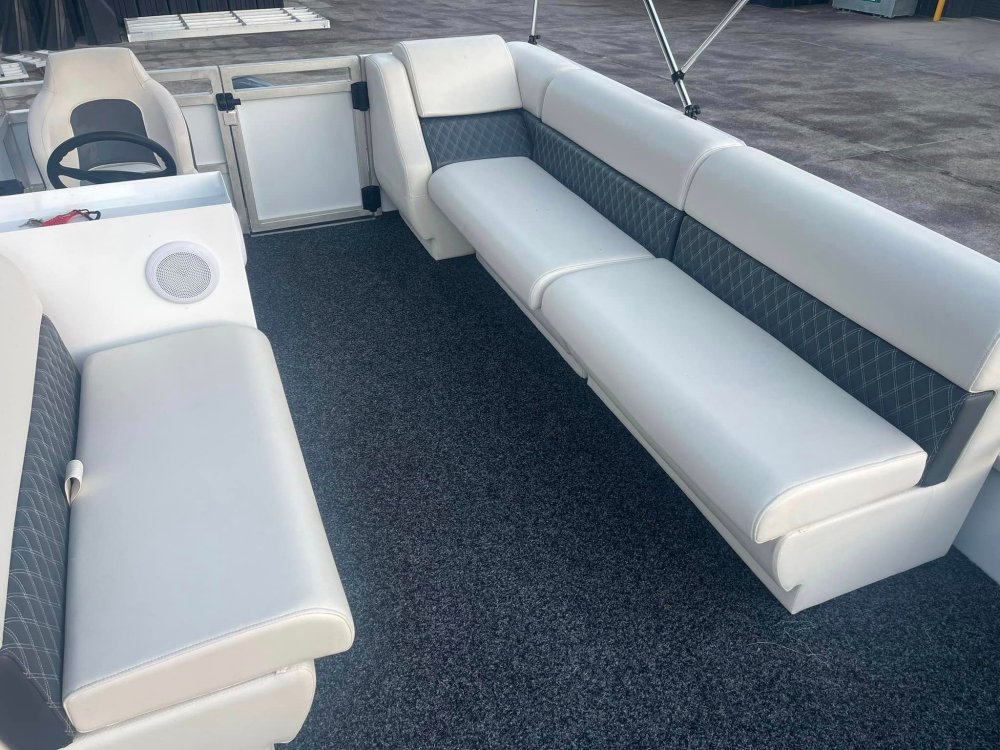

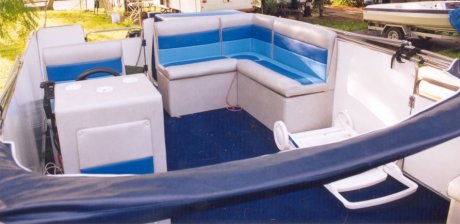

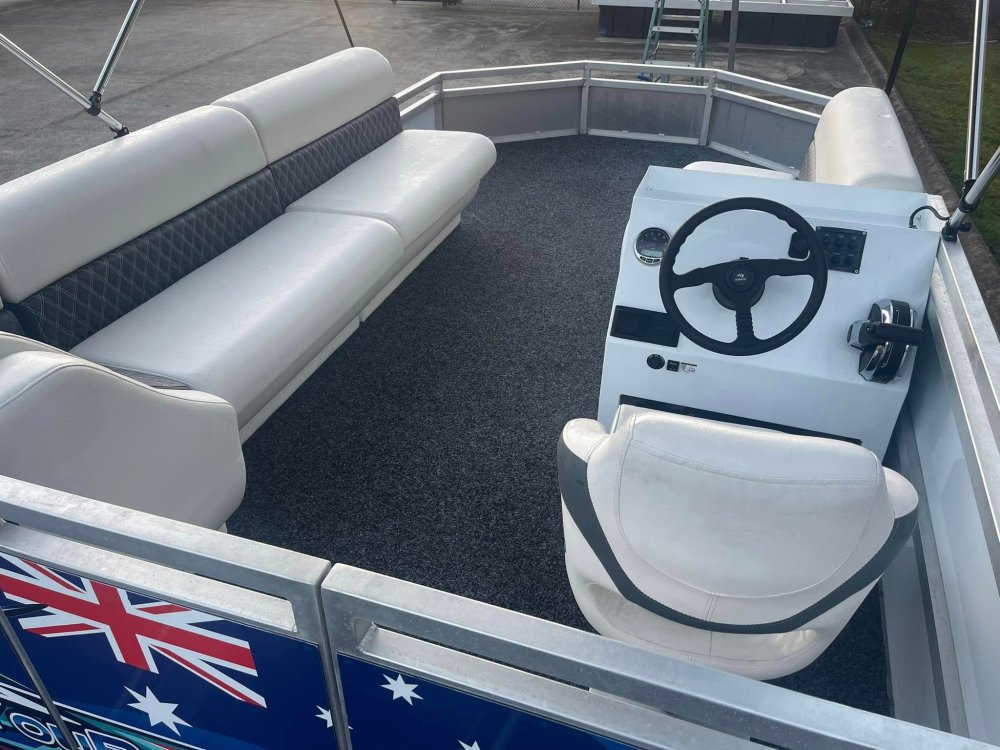

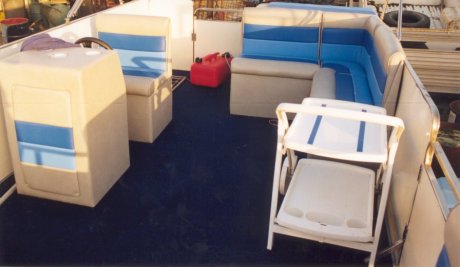

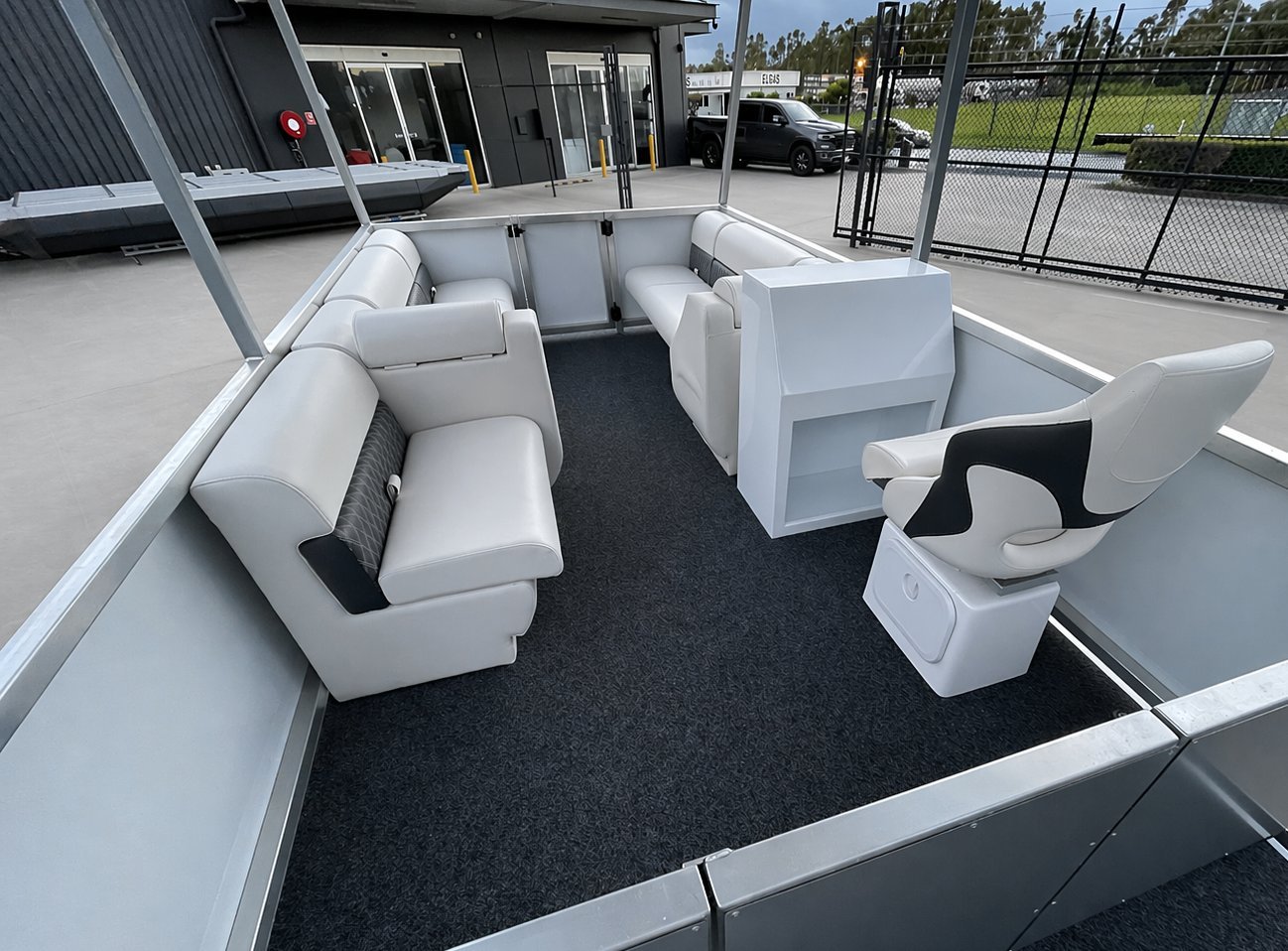

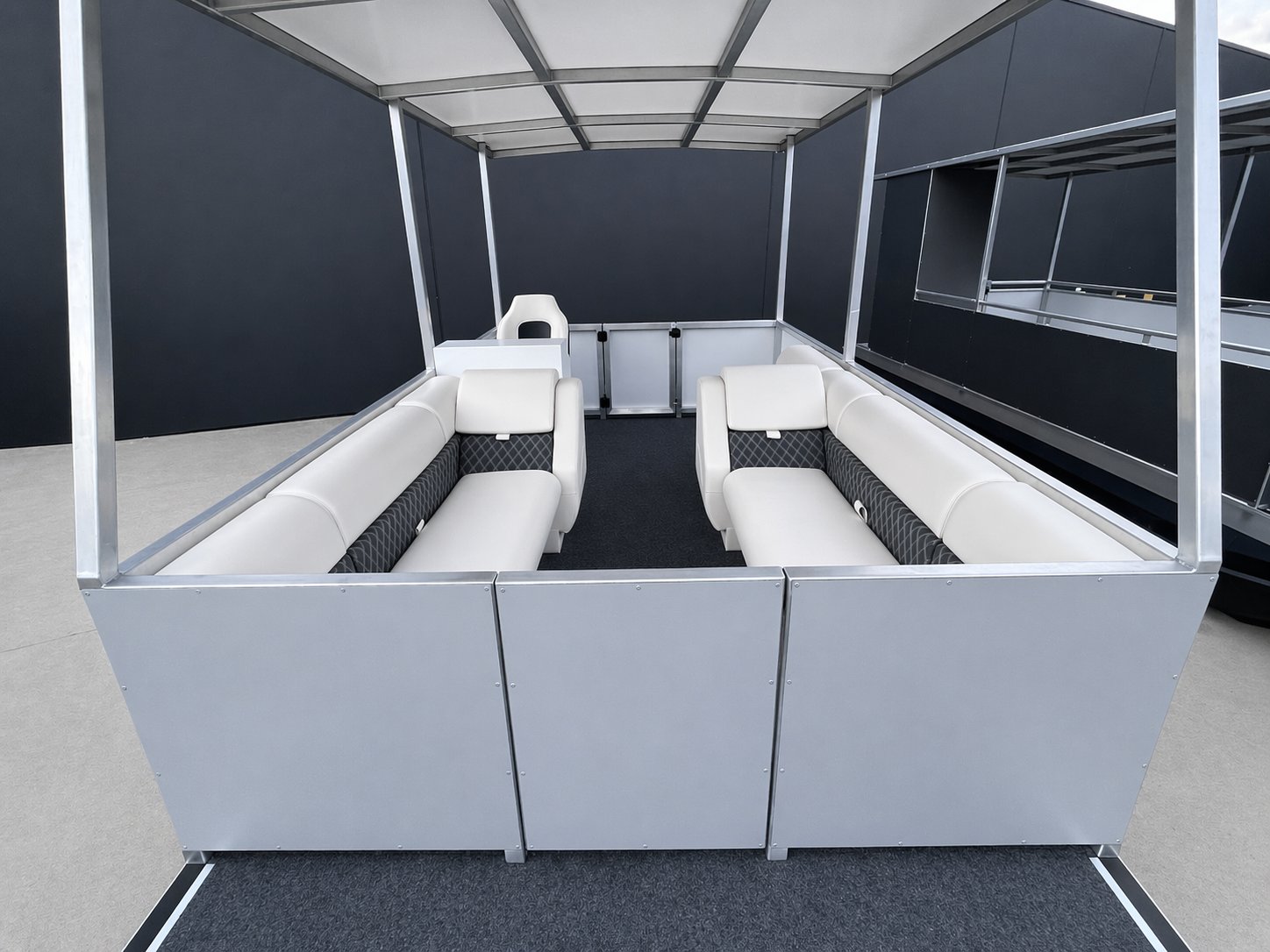

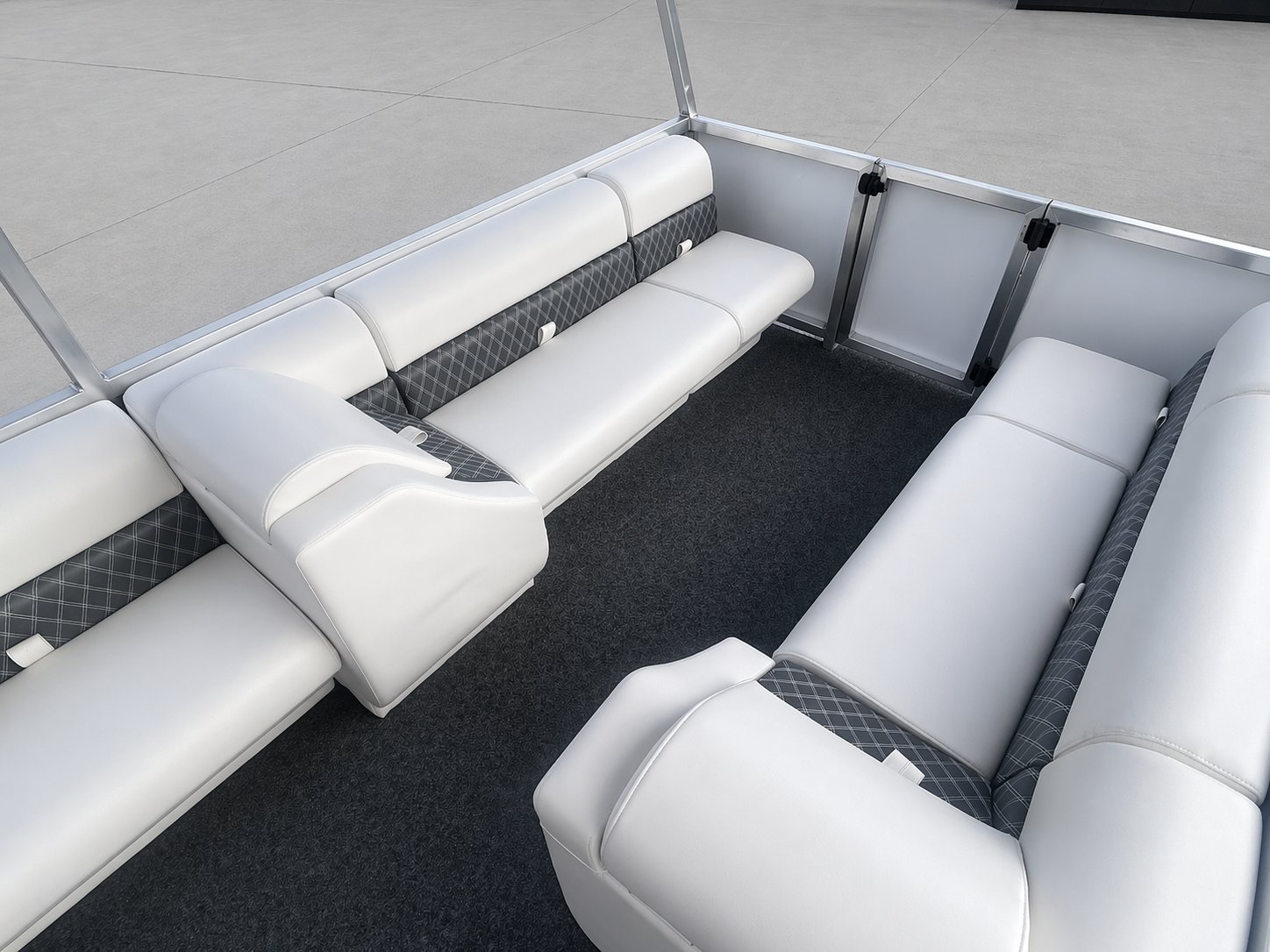

Pontoon Boat Furniture
Upholstered pontoon boat lounges. Our extra comfortable range includes Large straight lounge, meduim and small. Our pontoon seating is manufactured using polyethylene roto moulded bases which can handle extreme outdoor conditions, upholstered in heavy duty vynil. Lounges have lift up seats for storage, great for stowing away life jackets and more.
Click Here for details
|
|
 |

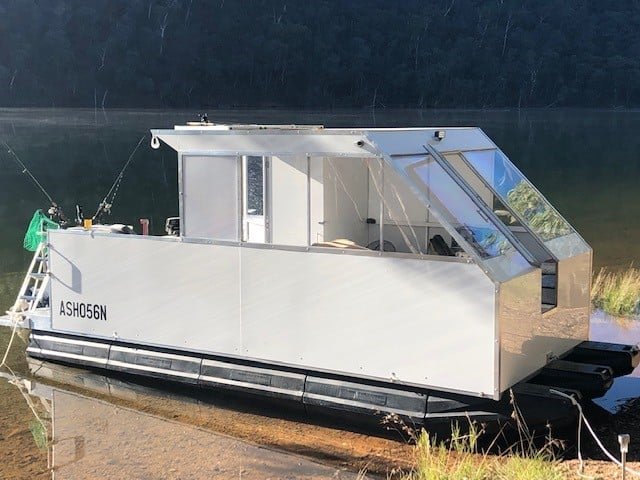

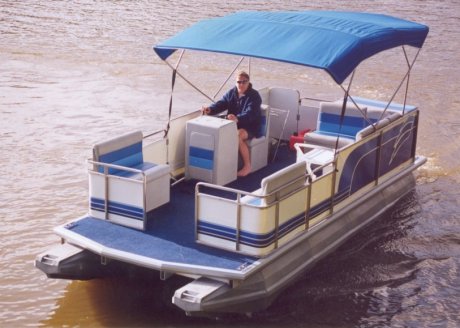

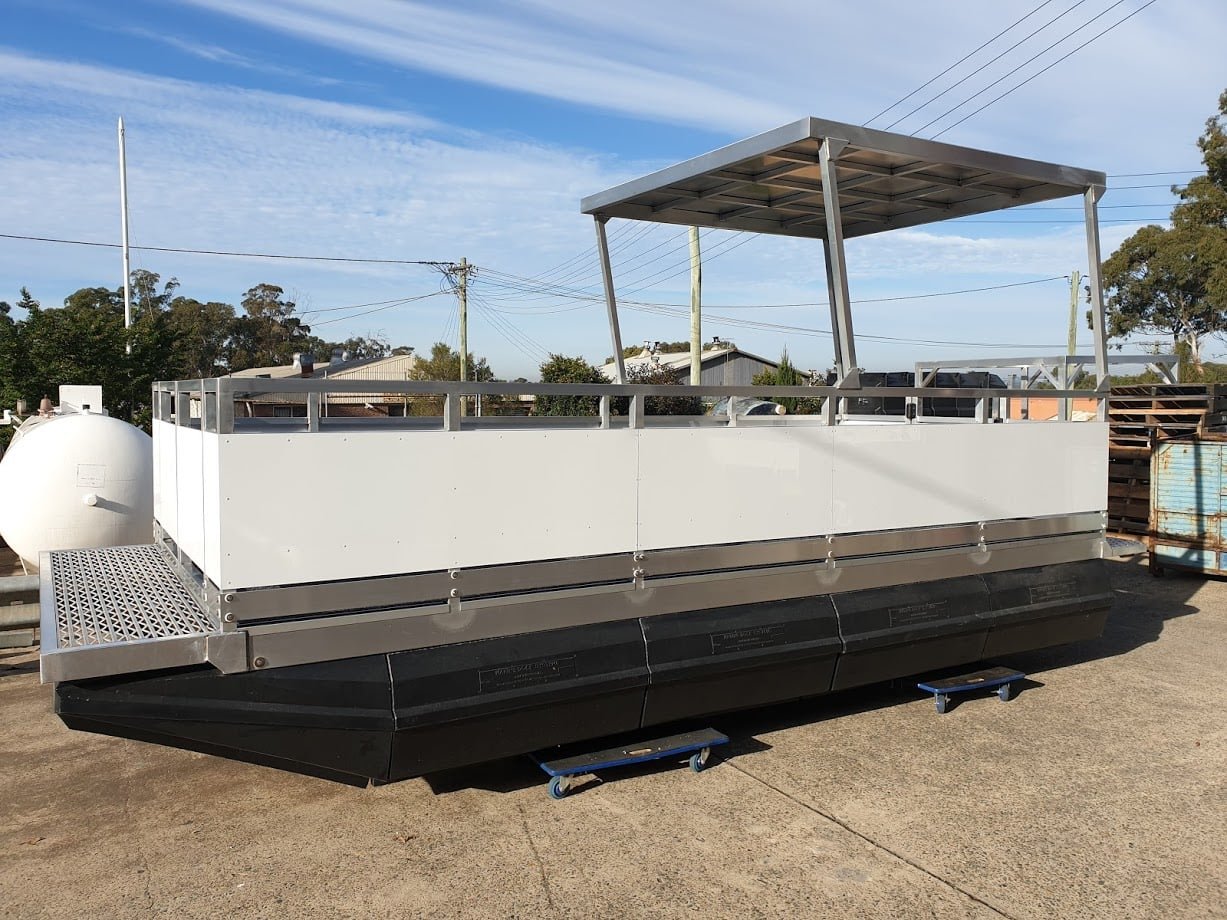

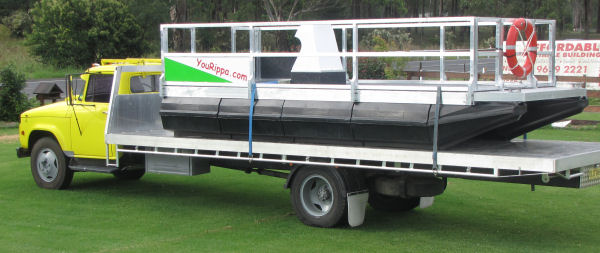

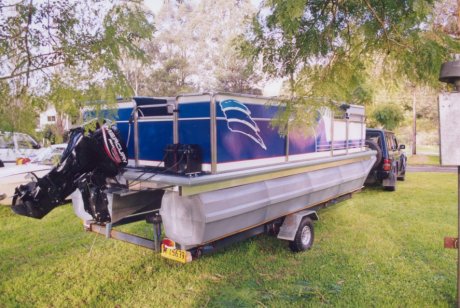

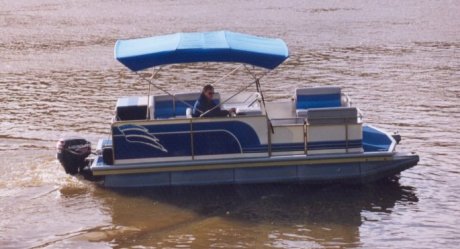

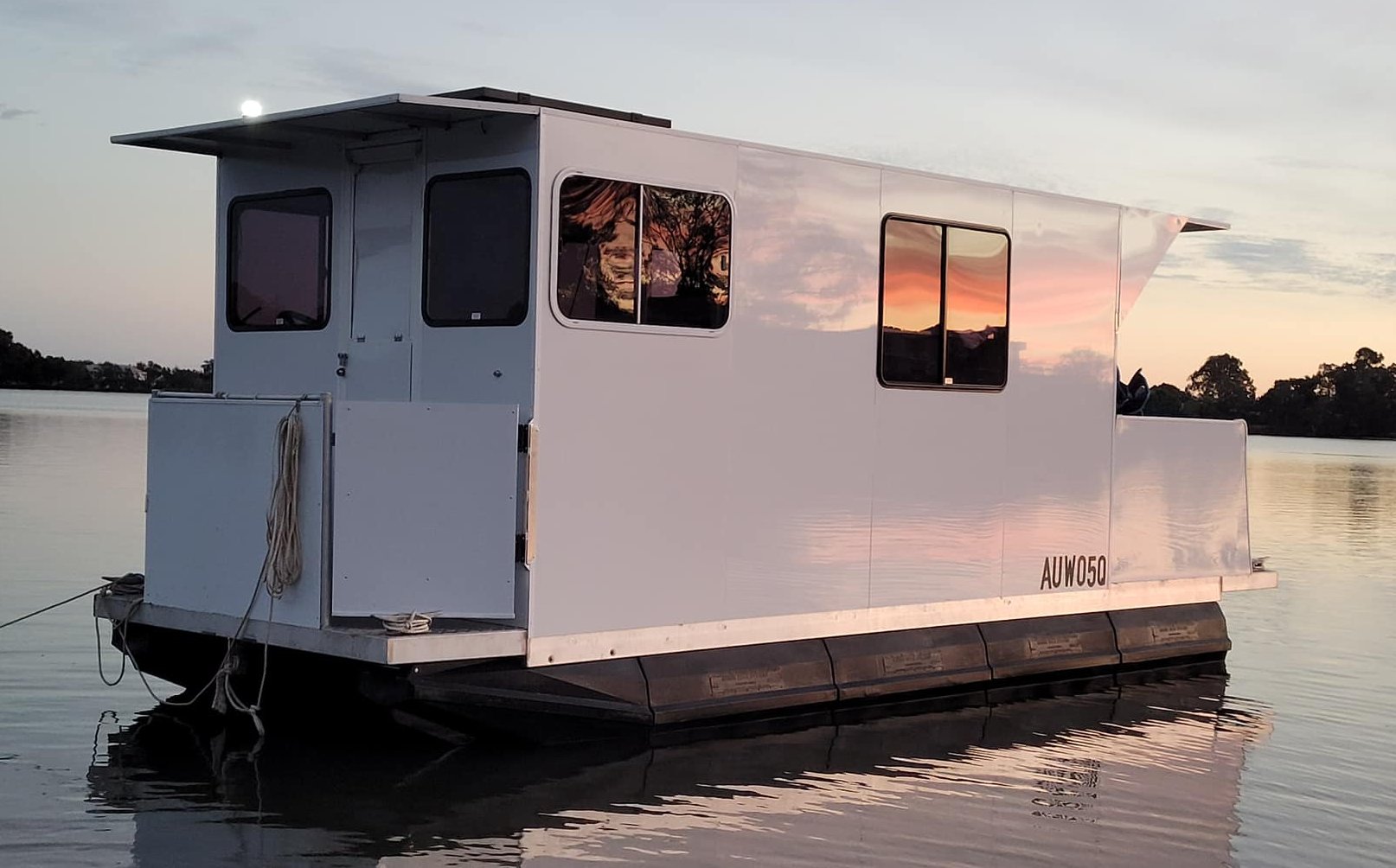

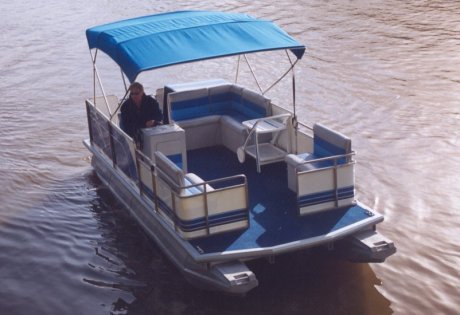

One of our customers built this boat himself. Well done!
Floats can be purchased separately

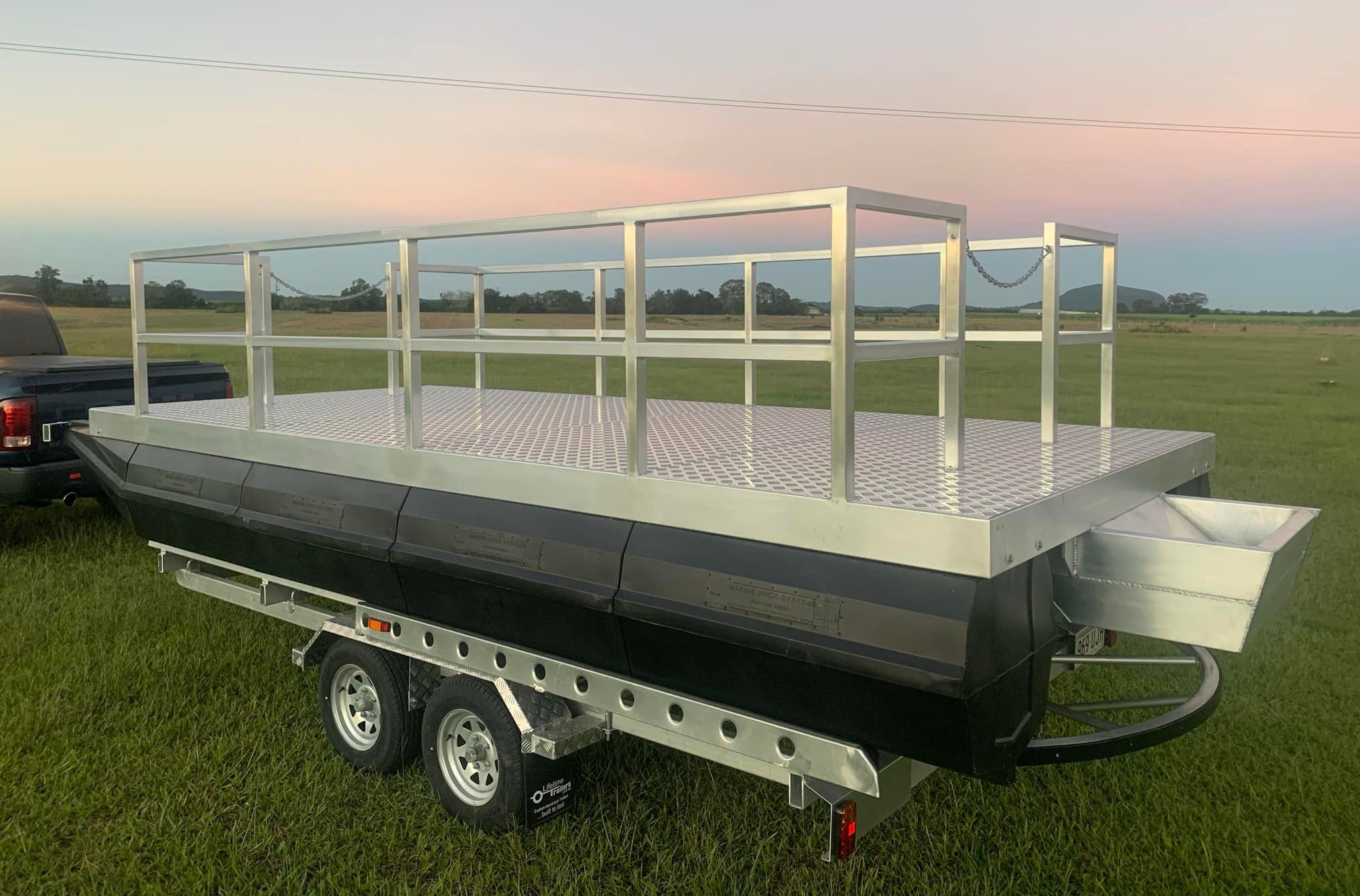

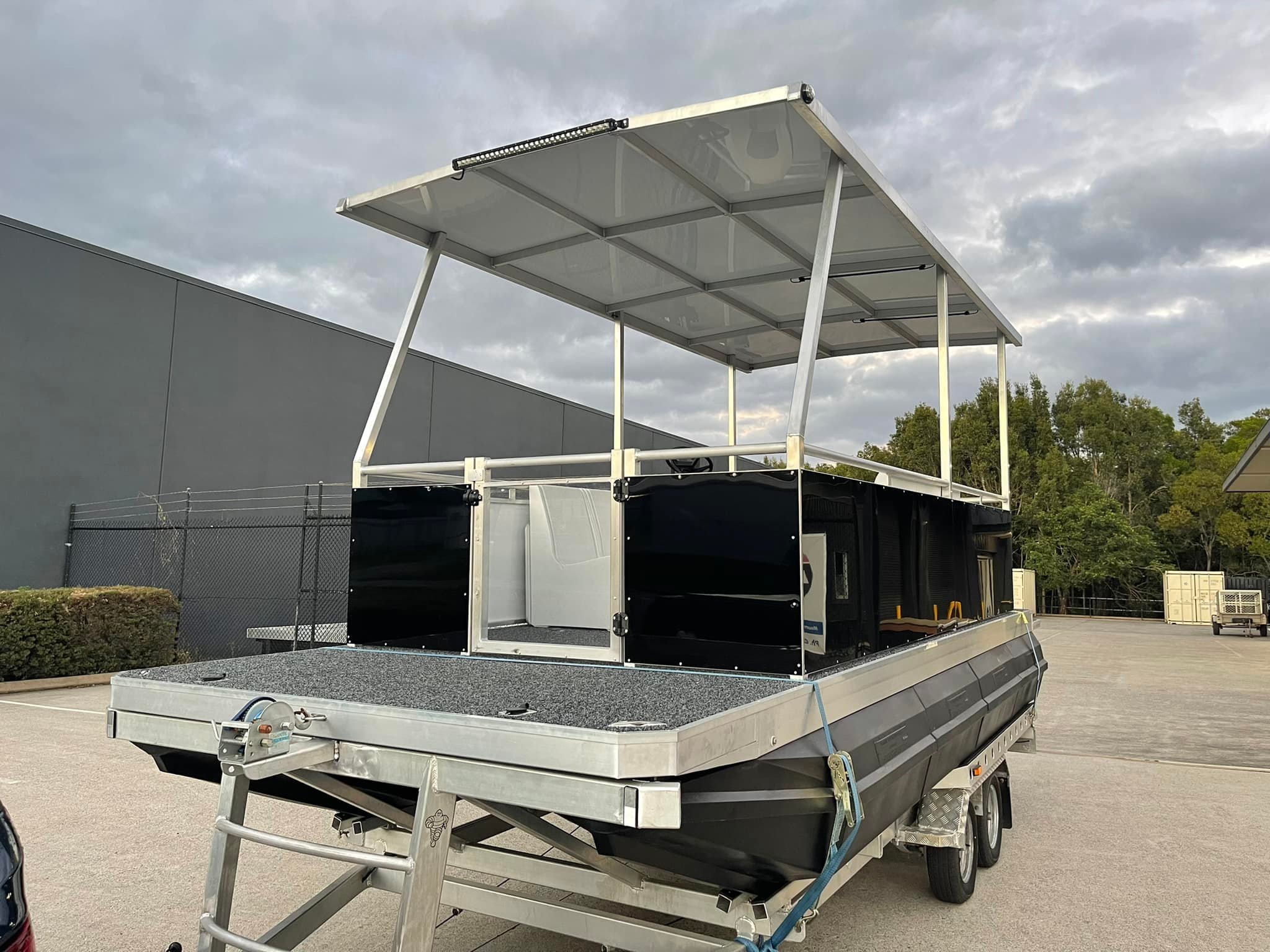

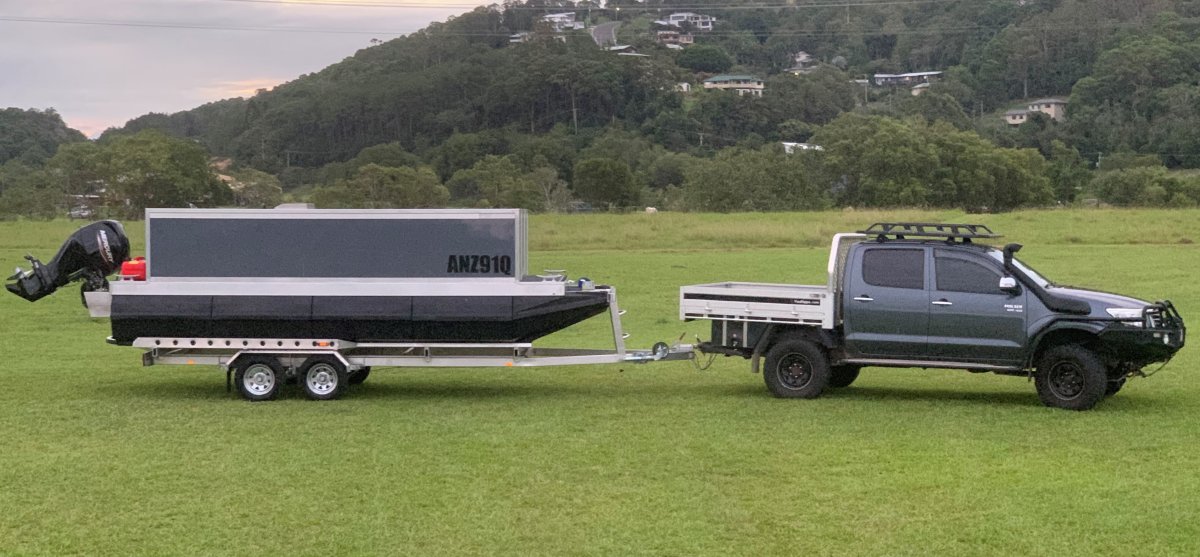

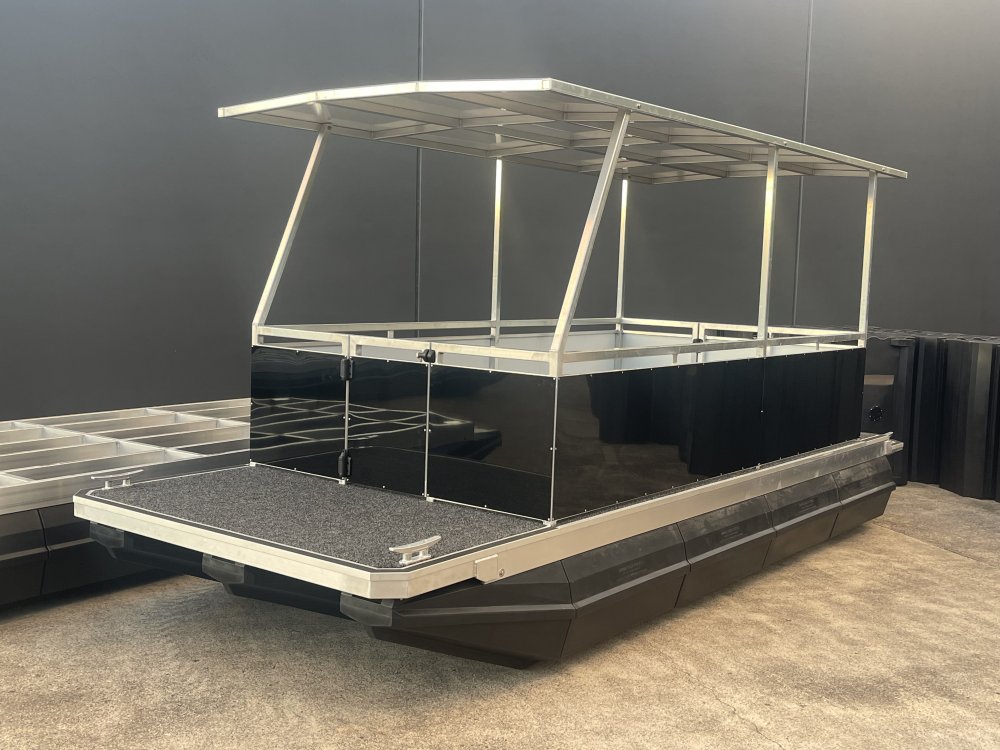

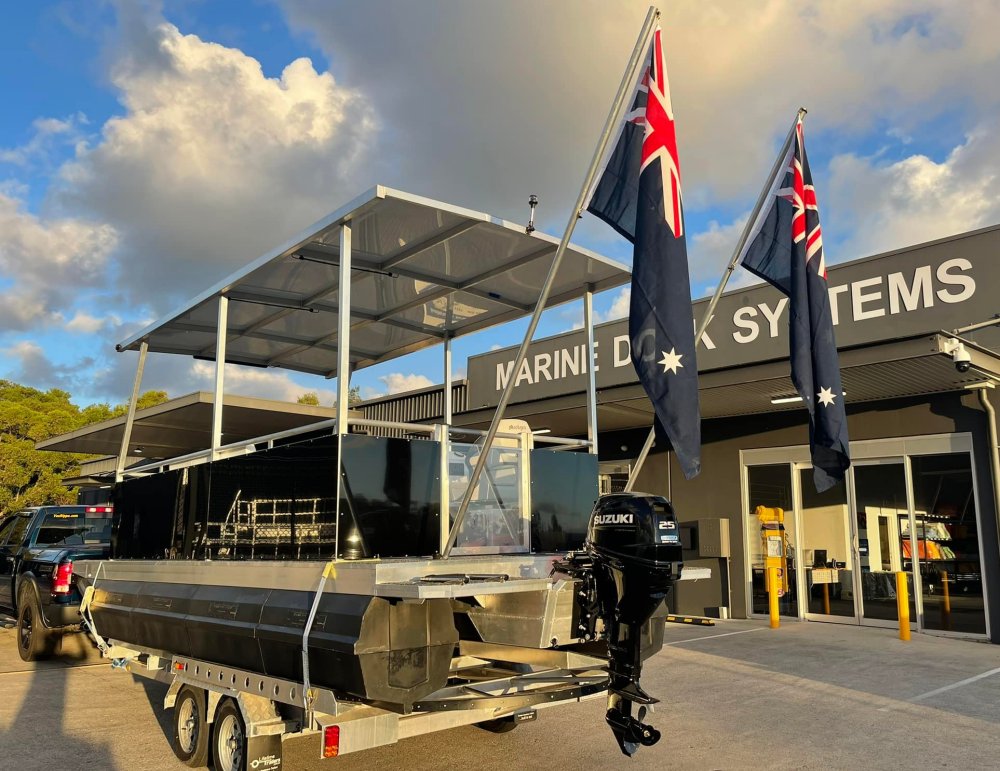

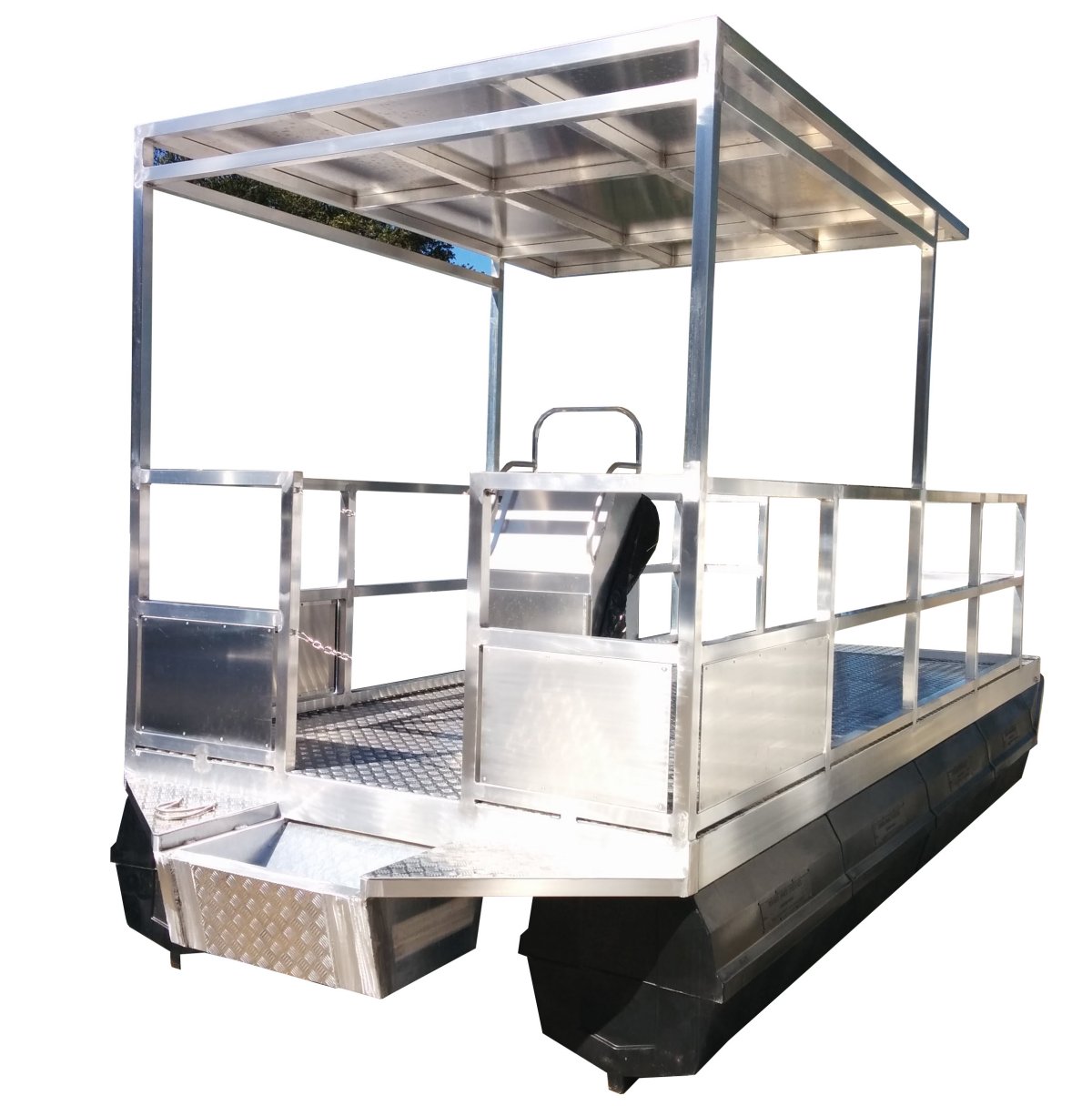

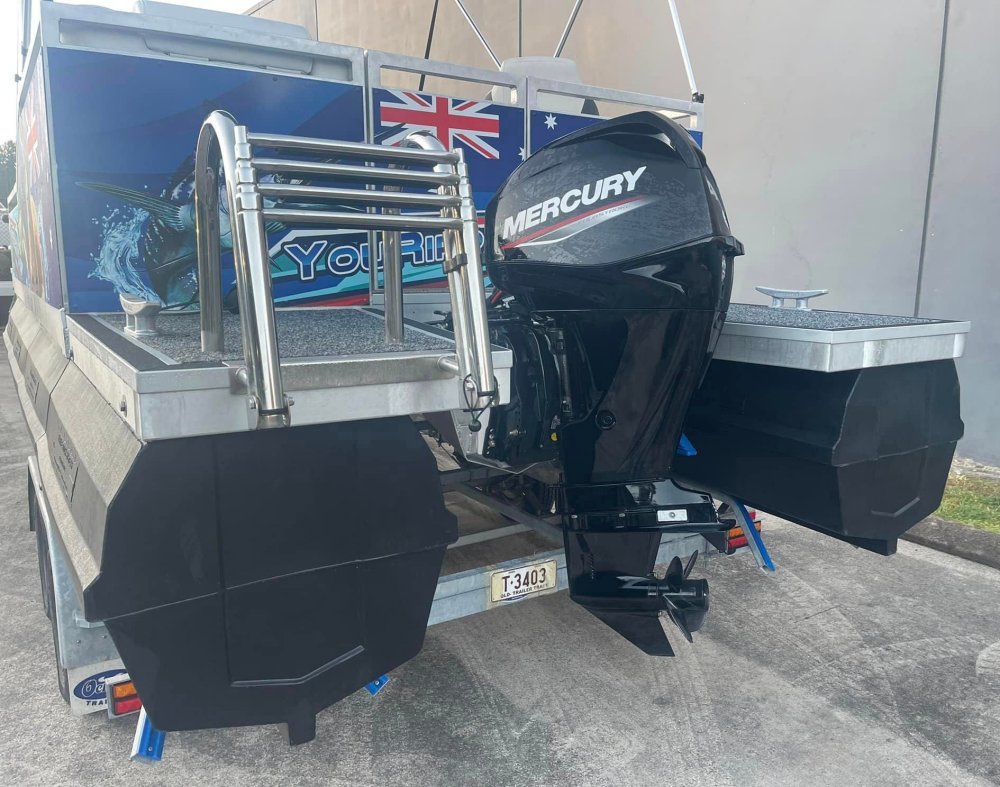

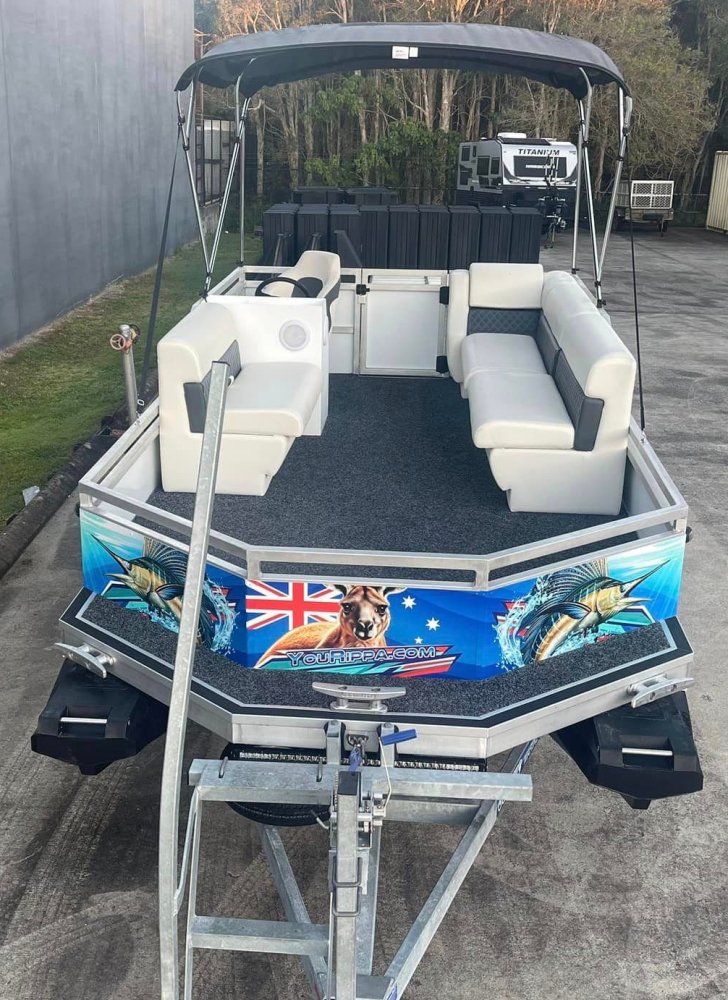

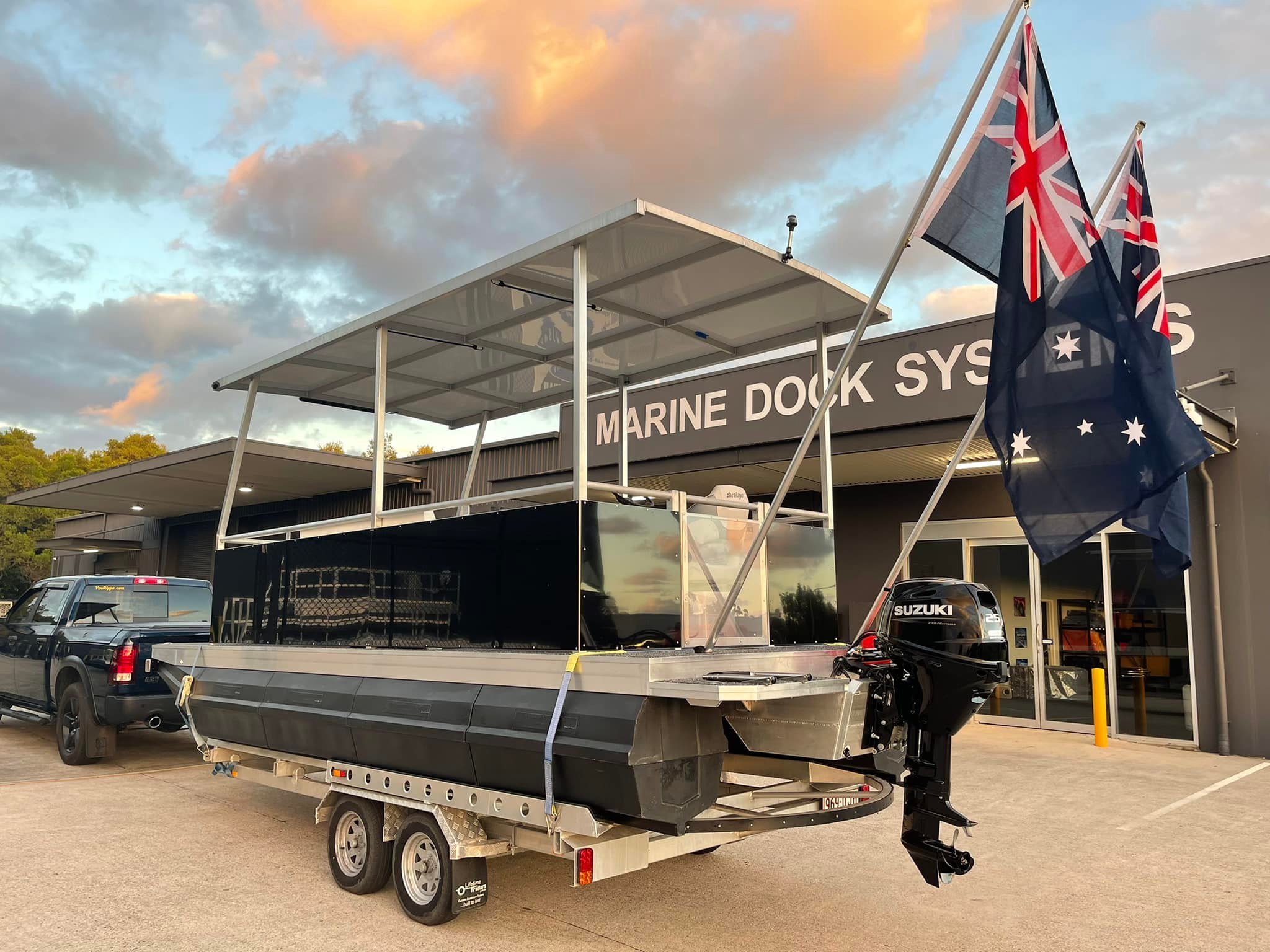

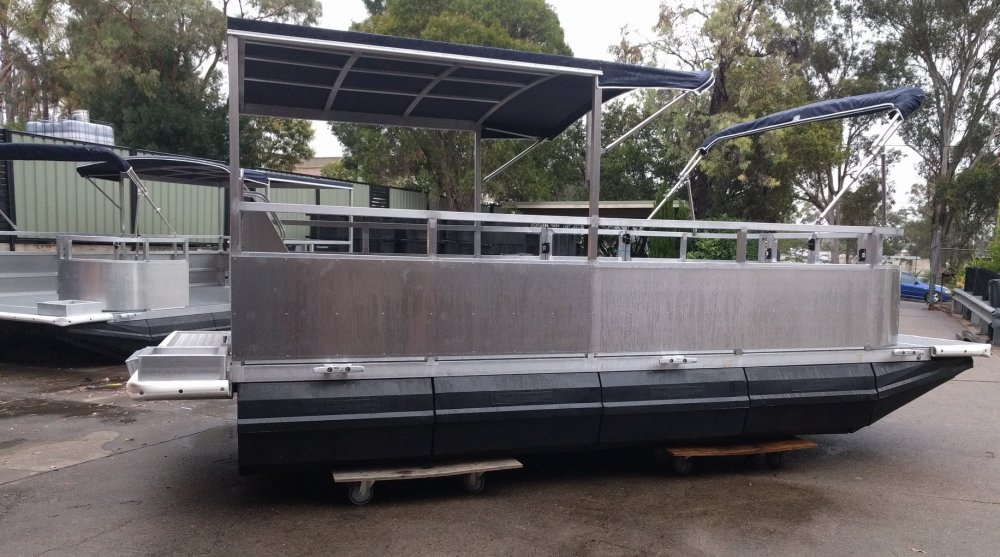

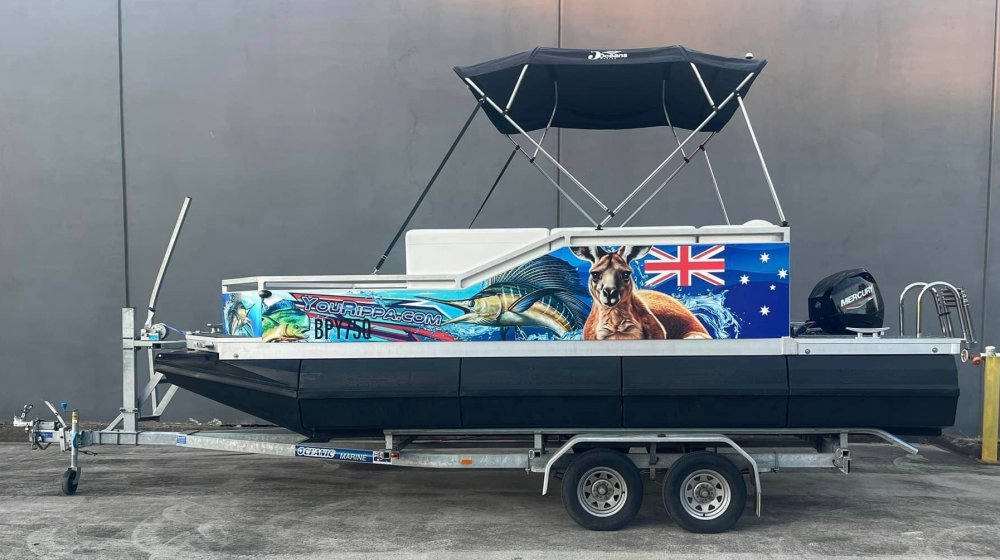

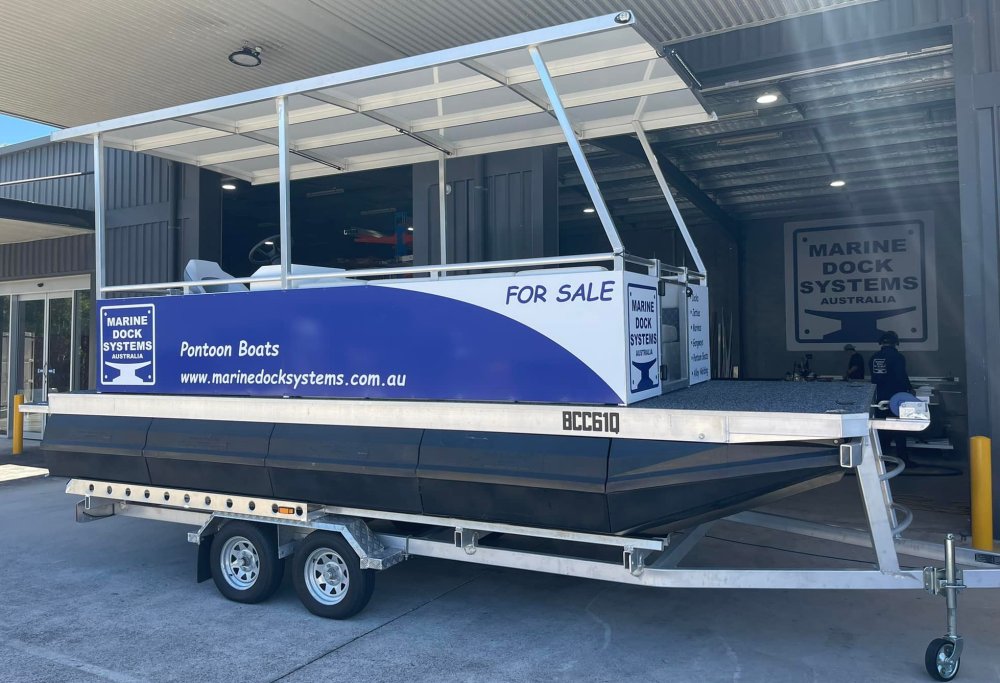

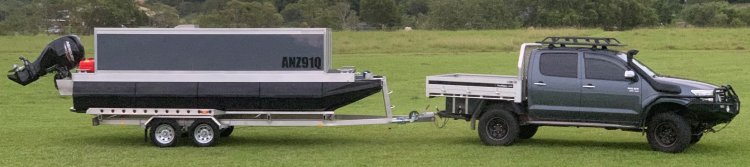

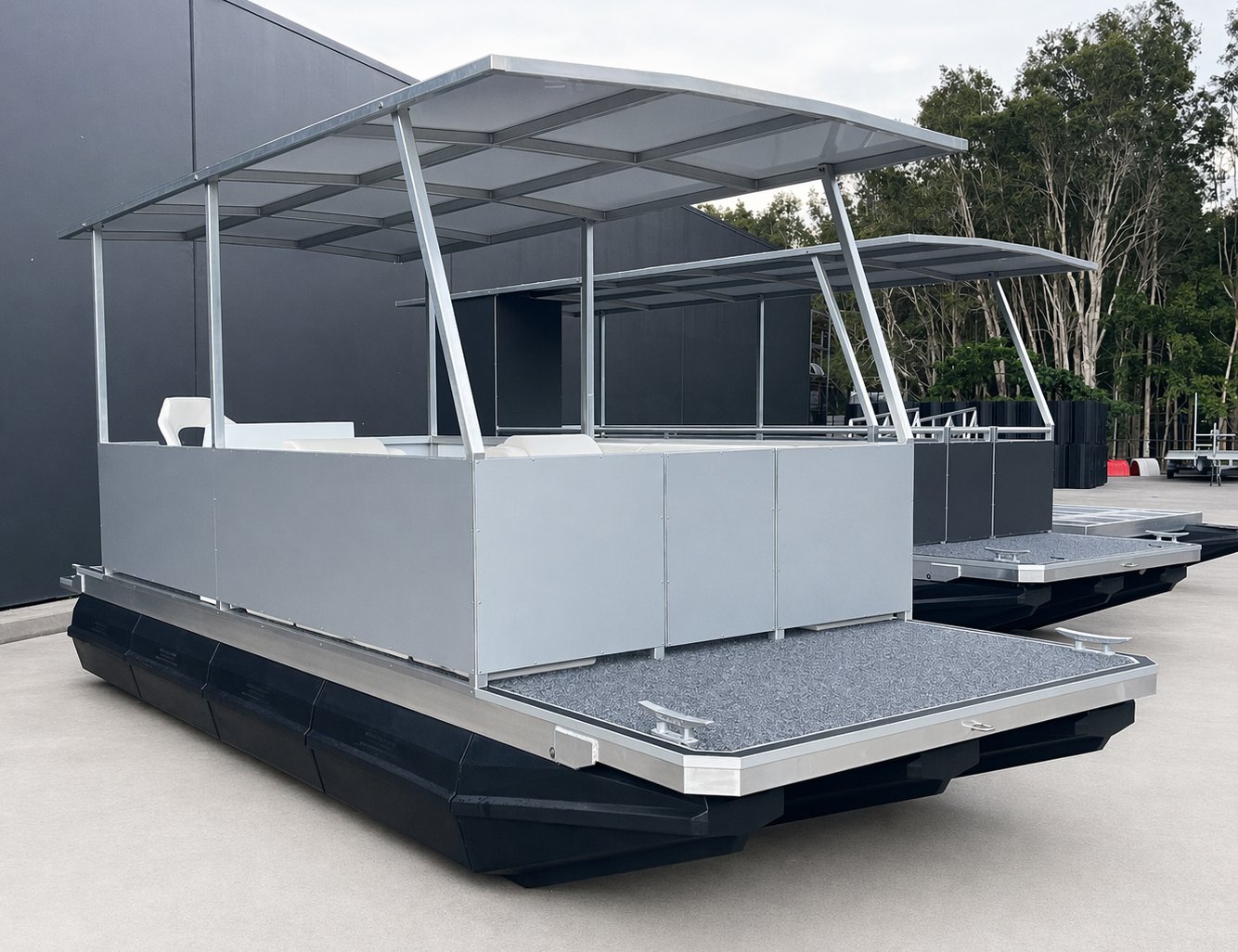

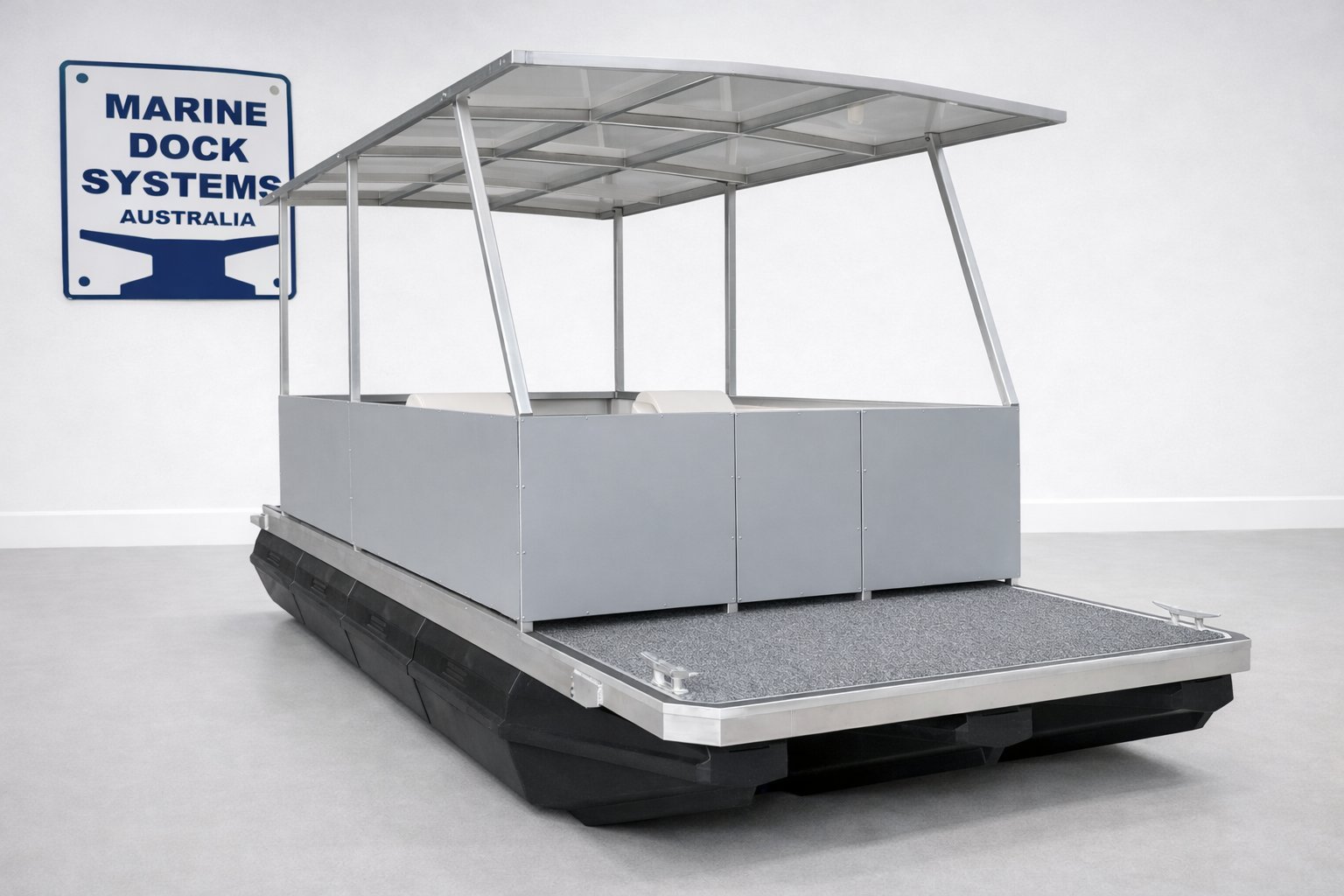

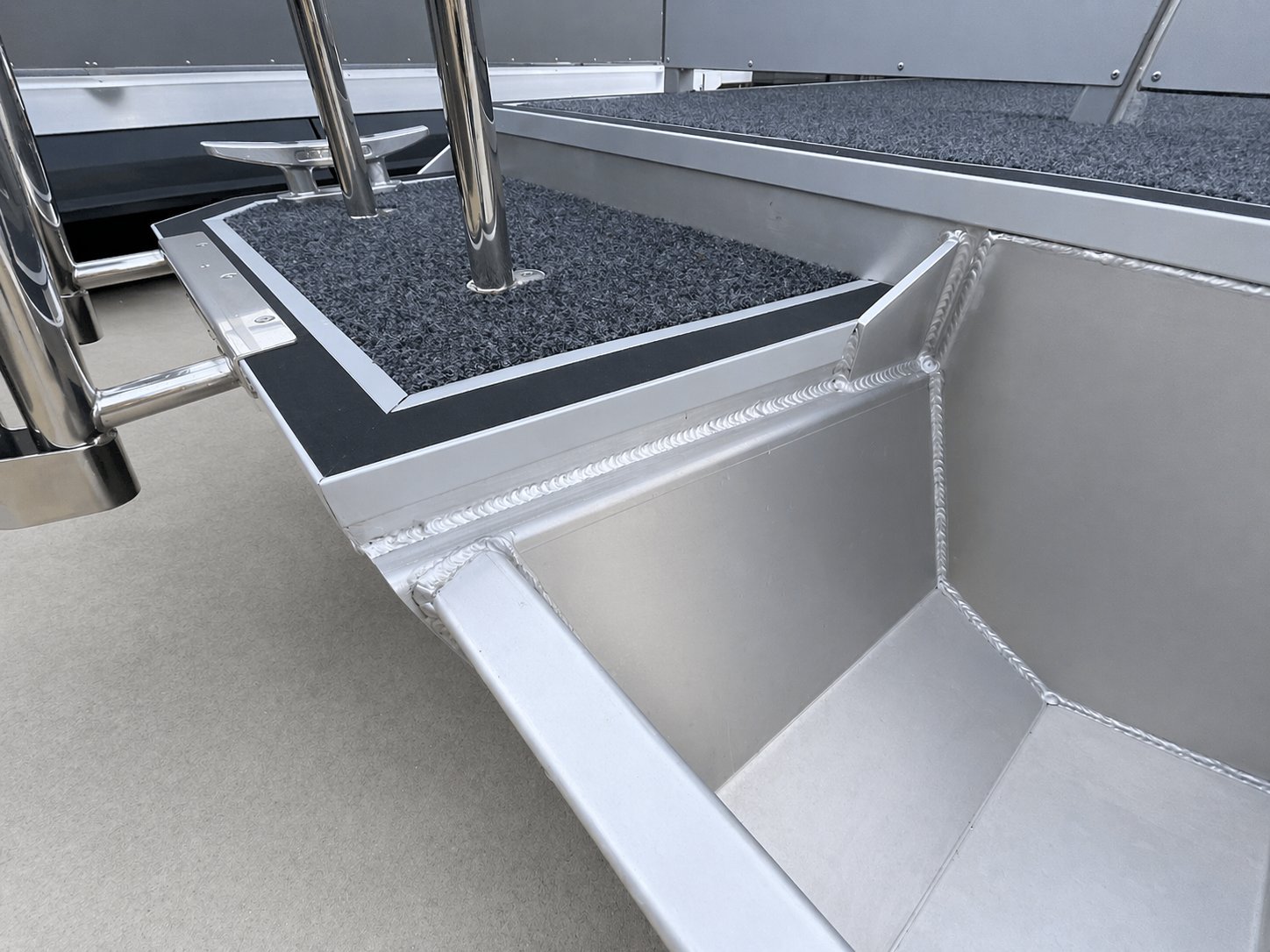

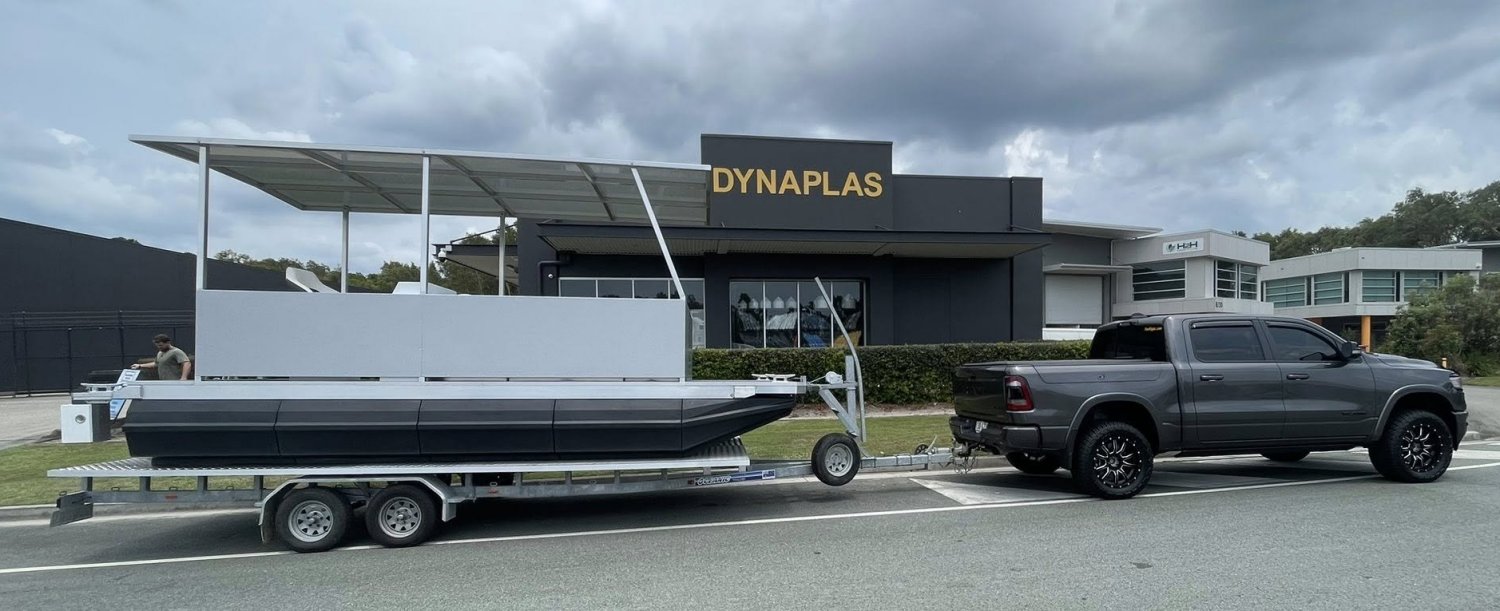

5.7 x 2.5mtr Shown here with motor bracket
with step, console, handrails and roof.
|
|
| |
