550 LITRE FLOTATION MODULE

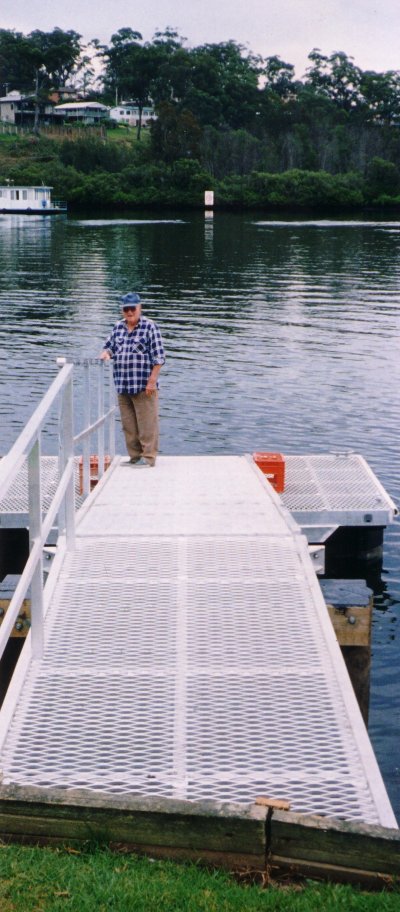

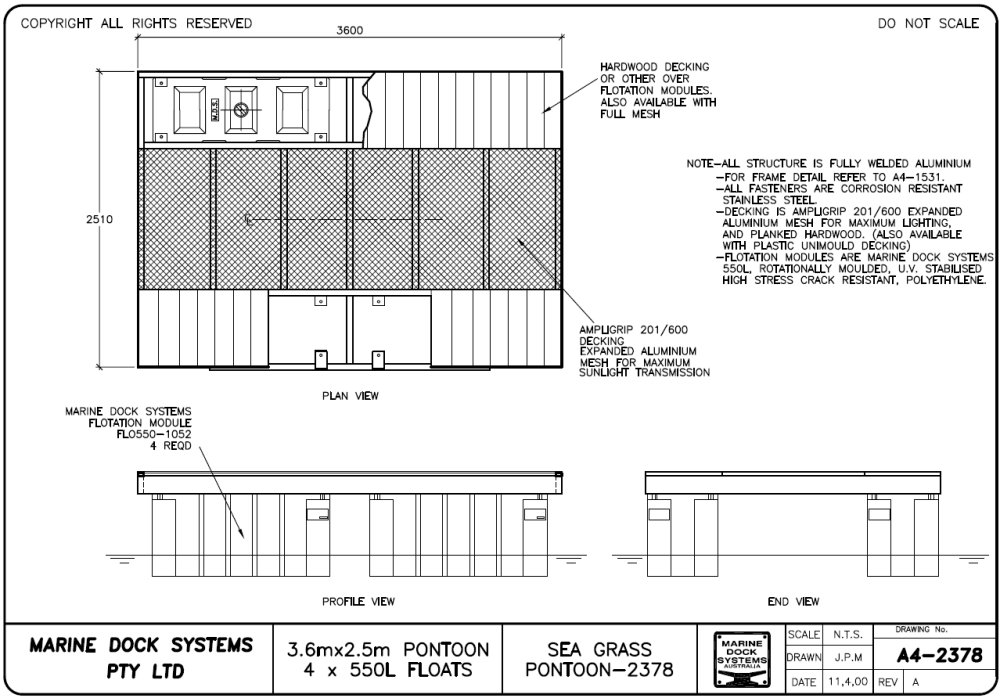

This float has been specifically designed for use under 'Sea Grass' pontoons and 'Effluent Treatment' pontoons. The narrow width and larger depth of the floats allows us to build pontoons with much smaller water plane area in comparison to deck area. Floats can be filled with water or concrete to add ballast to increase stability. Ballast can also be used to raise and lower the float for different freeboard requirements. Floats can also be foam filled for extra security if required.
Large Detailed Drawings

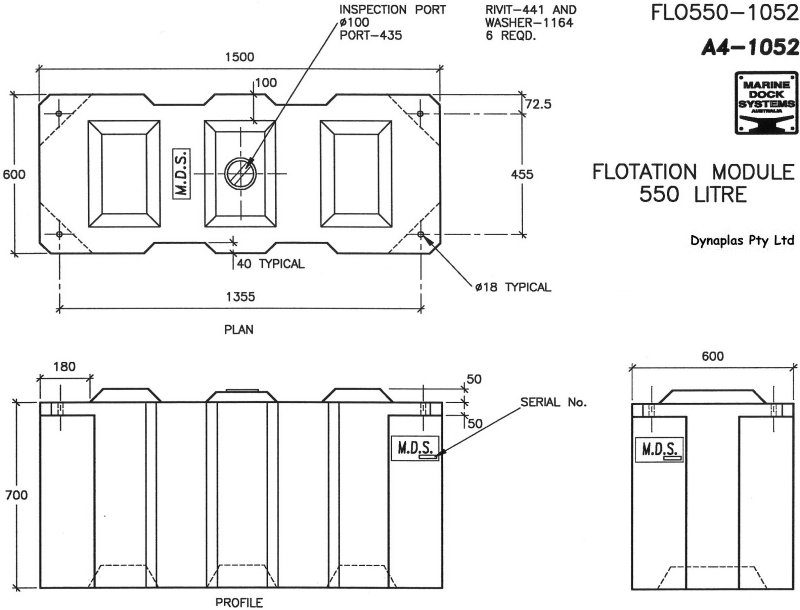

A4-1052 - 550 Litre float
 A4-1052 - 550 Litre float
Hrdrostatic graph
|
|
|
