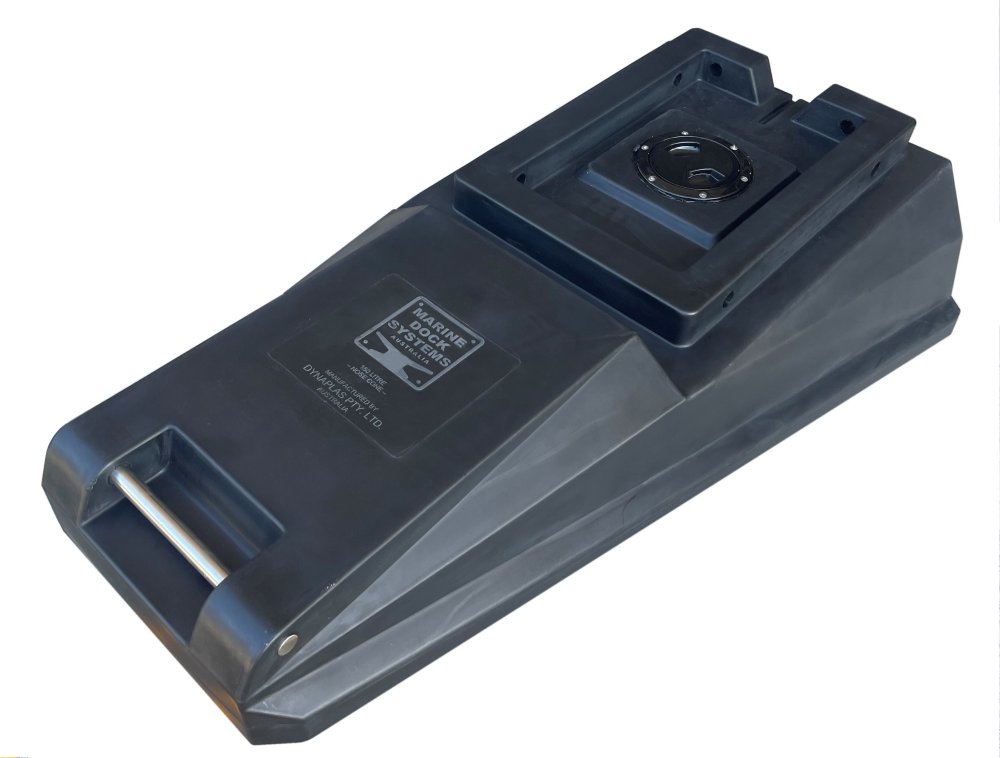

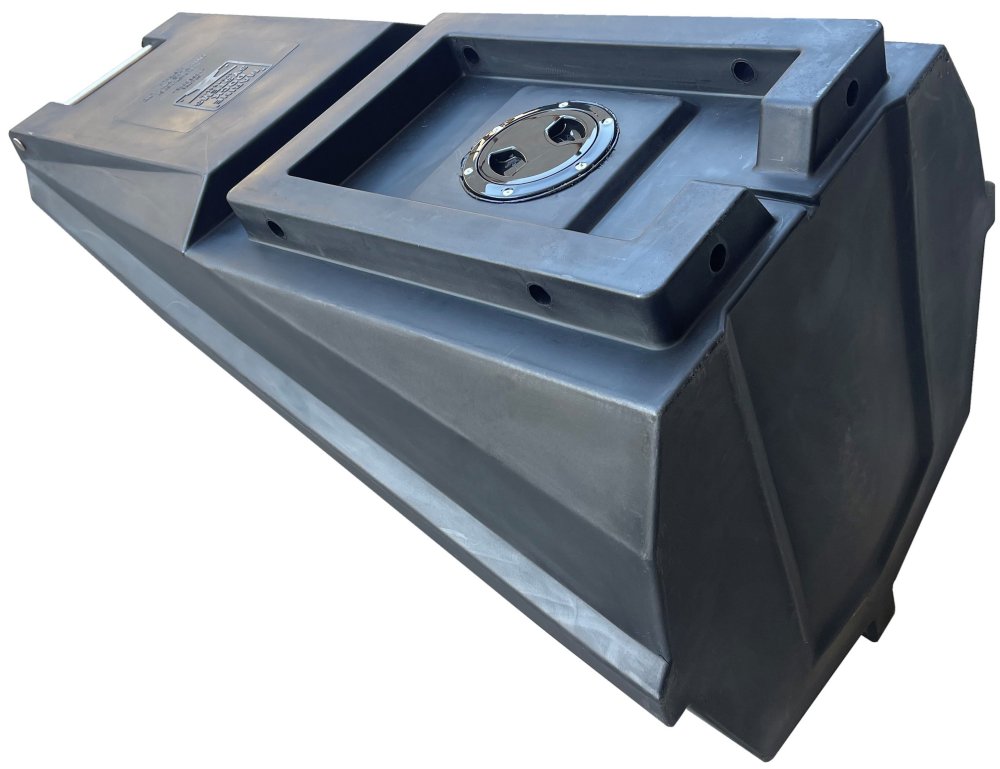

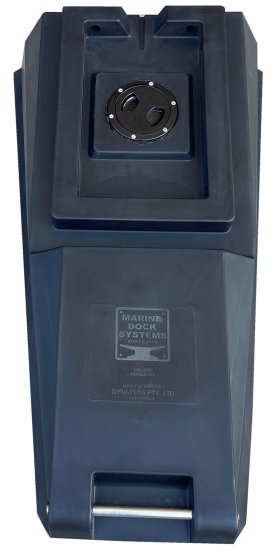

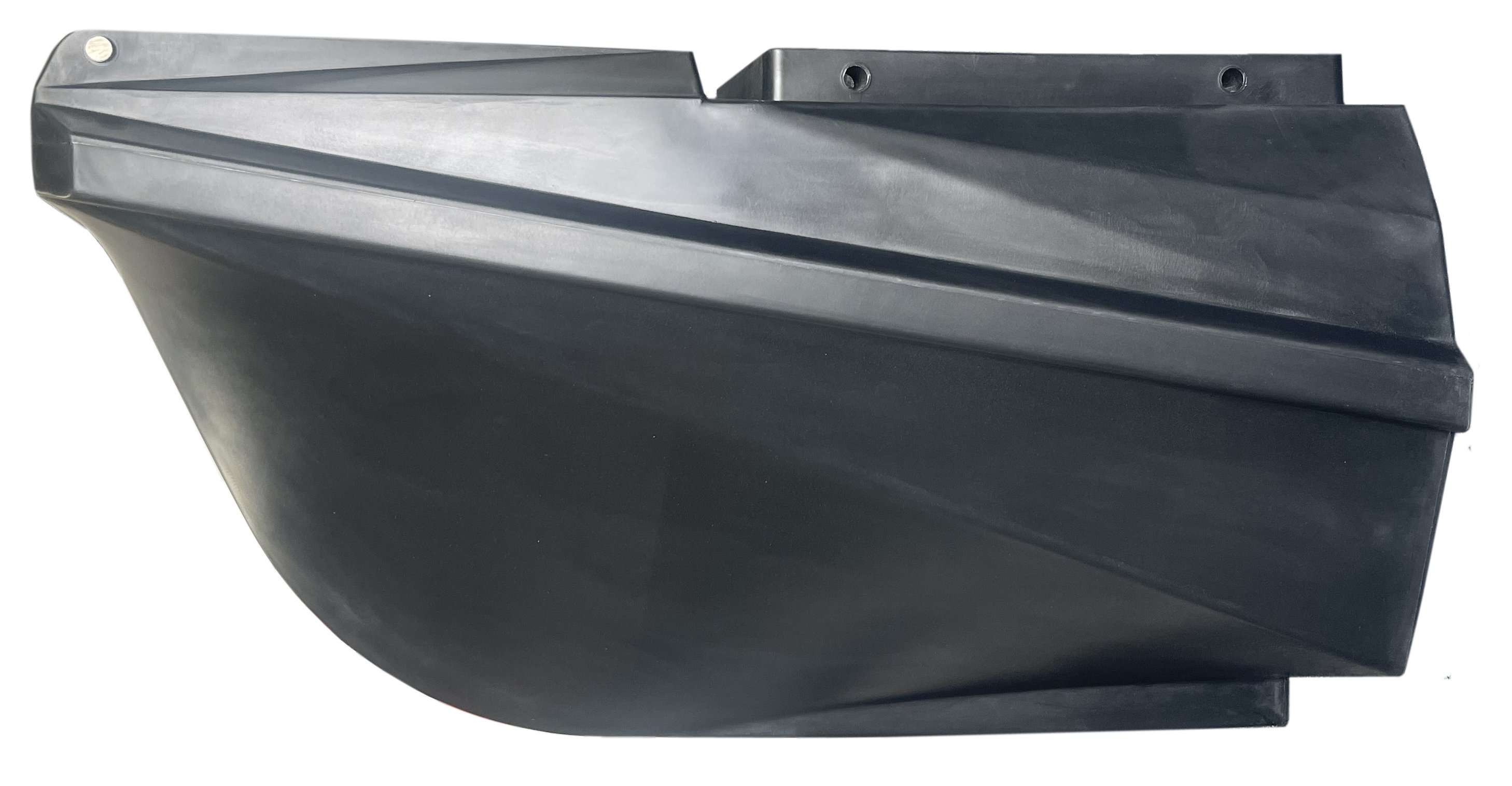

333 LITRE NOSE CONE
This float was designed to help create a bow section for moving craft when joined with the 333 Litre Flotation Module can form one of the hulls of a catamaran travelling craft..

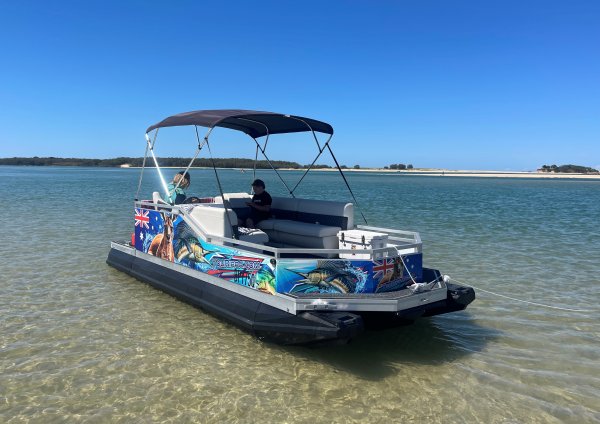

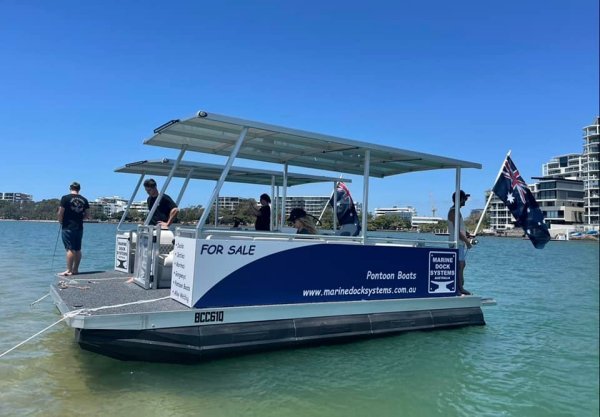

Moving Craft To see moving craft click here



Large Detailed Drawing

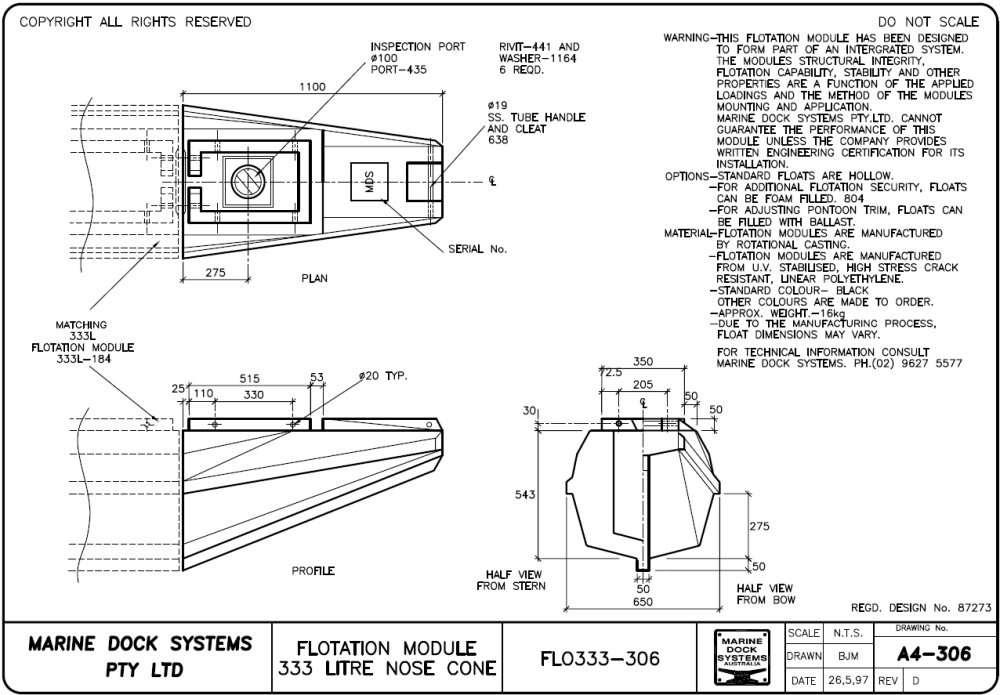

a4-0306 - 333 Litre nose cone
a4-0306 - 333 Nose Cone

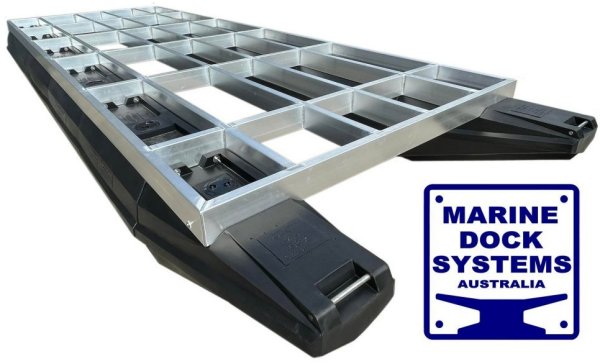

a4-774 333 Litre float and Nose Cone assembly detail
MOVING CRAFT DRAWINGS
Drawing a4-1893
3.4 Mtrs Long x 2mtr wide

Drawing a4-1463
4.6 Mtrs Long x 2.5mtr wide

Drawing a4-2579x
4.6 Mtrs Long x 2.5mtr wide Model with handrail

Drawing a4-0775
6.9 Mtrs Long x 2.5mtr wide

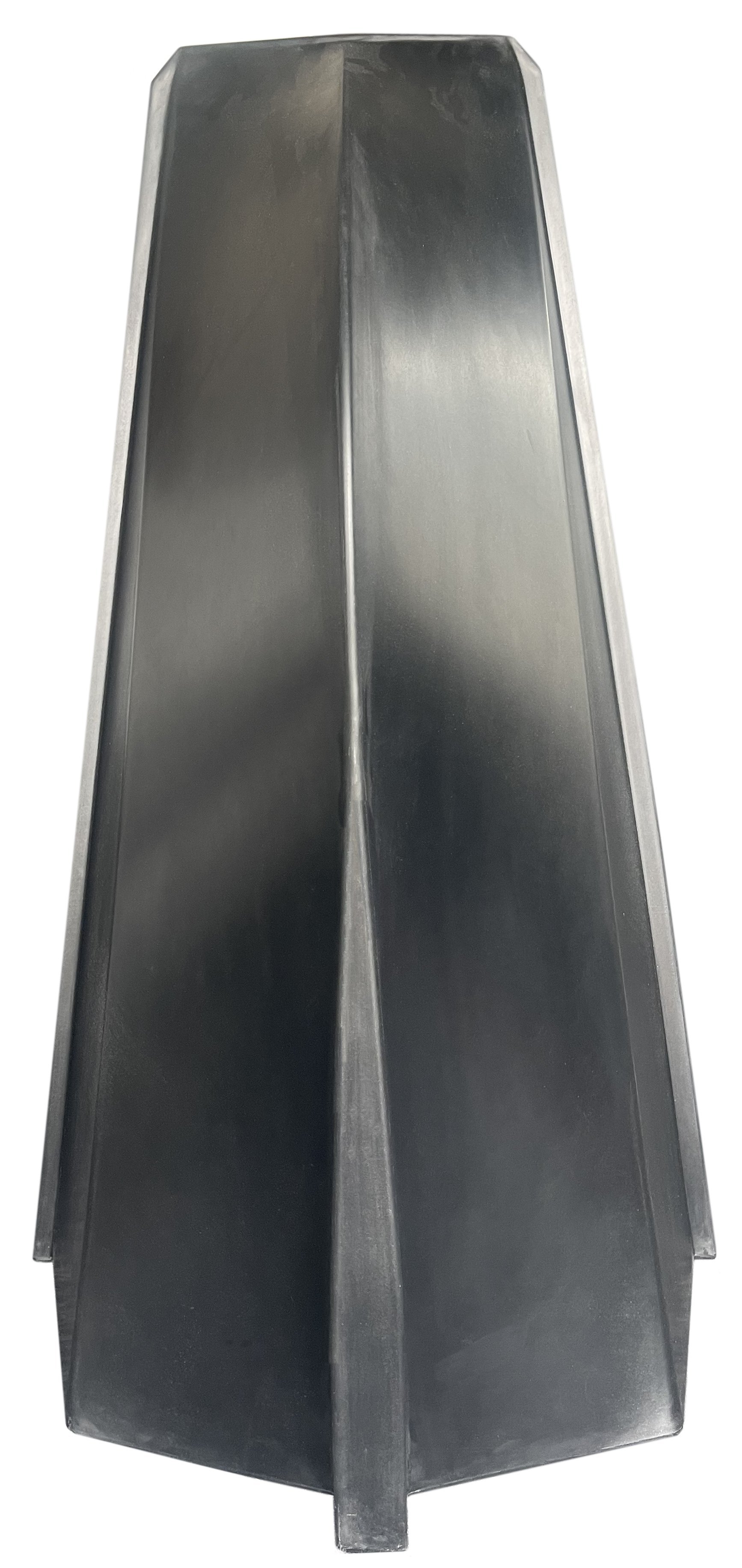

Nose Cone

A4-0306 - Nose Cone # FLO333-306		 333 Litre Flotation Hull

A4-0184 - 333 Litre # FLO333-184








Craft assembly

A4-0774 - Craft assembly		 333 Litre Flotation Hull

A4-0184 - 333 Litre # FLO333-184
