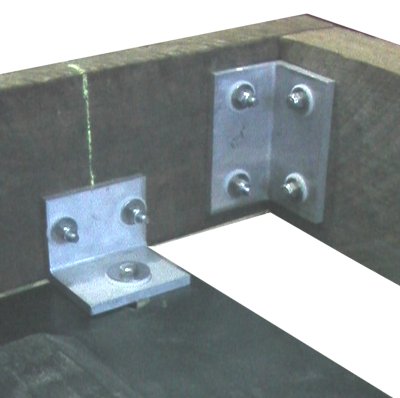

FRAME BRACKET 290
Frame brackets are used to assemble the pontoon frames. They are extruded from a structural grade aluminium, which exhibits excellent corrosion resistance.
Floats
Enquiry

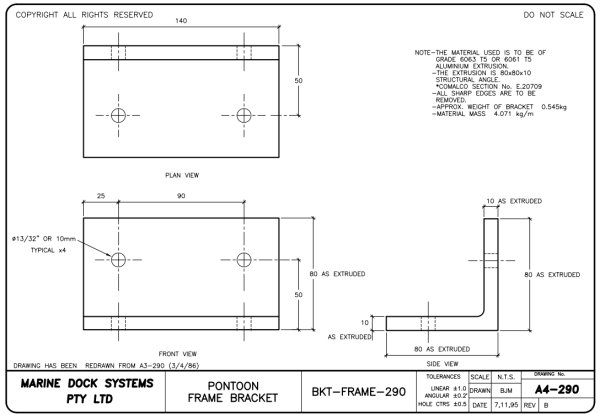

Technical Drawing for Float Bracket - Part#: BKT-FRAME-290
A4-0290 - Frame bracket
A4-0736 Frame Assembly detail
A4-0826 Ramp hinge support Assembly detail
