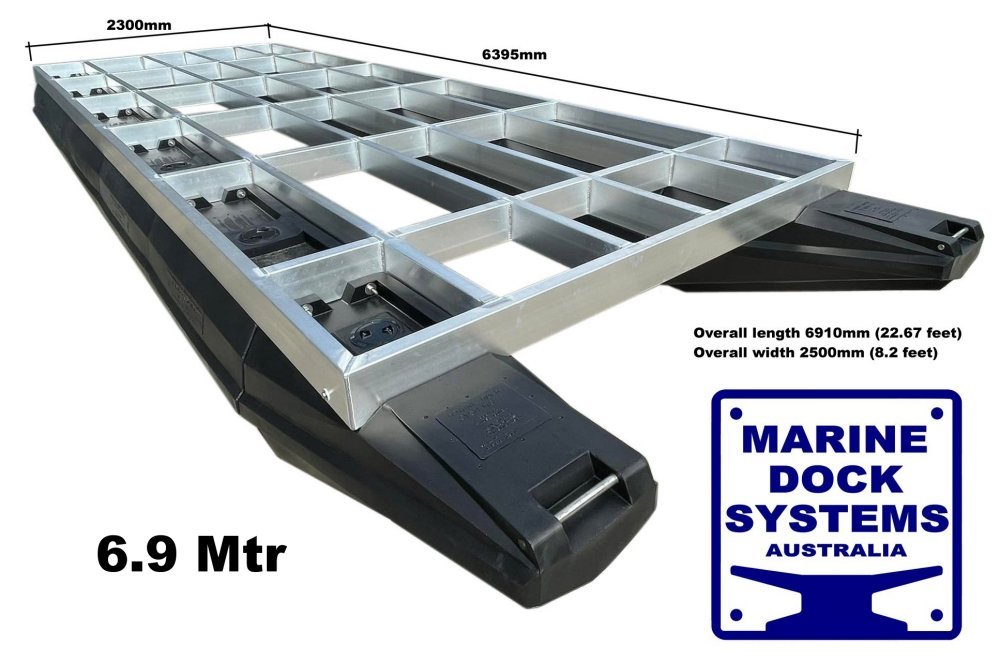

Pontoon Boat Base 6900
6.9 Mtr Pontoon Base

Pontoon Boat

floating pontoons

floating pontoons

floating pontoons

floating pontoons

floating pontoons

floating pontoons

pontoons, marinas, jetties, docks, barges MARINE DOCK SYSTEMS
45 Wellington Street Riverstone N.S.W 2765 Australia
Ph: +61 2 9627 5577
26 Corbould Rd Coolum Beach Qld 4573 Australia
Ph: +61 7 5324 1557

Marinas Home    Marinas Email    Marinas Enquiry   Marinas Links
pontoons, marinas, jetties, docks, barges
6.9 Metre Pontoon Boat (23 feet)
Our most popular size pontoon boat. This pontoon boat is good for 1-10 people and is able to take upto 14 if a centre row of pontoons is added. This model uses our 333 Litre floats and nose cones. The 333 Litre floats will support 150kgs each. Pontoon modules are moulded in one piece from tough, high stress crack-resistant, thermoplastic polyethylene resin. In built mounting lugs allow direct connection of the modules to the frame work system. Floats are food grade and can be used for drinking water or waste storage. Extra available include motor bracket carpet, mooring cleats, habdrails with gates, hardtop roof, steering wheel console and furniture. individual floats are also available and can be purchased separately


YouTube Channel

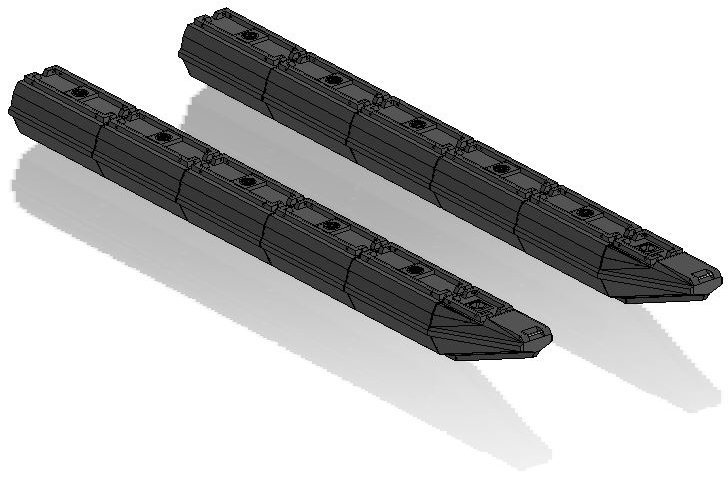

Option 1

Pontoon hulls
Floats and fasteners

6.9 Mrs Long (23 feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
4 x M10 x 120mm 304 stainless bolts
16 x M10 x 170mm 304 stainless bolts
20 x M10 304 stainless nyloc nut
40 x 3/8" X 1-1/2" 304 stainless washer
Twin Hull
Approximate
Total weight 284kg
Max Load 1500kg

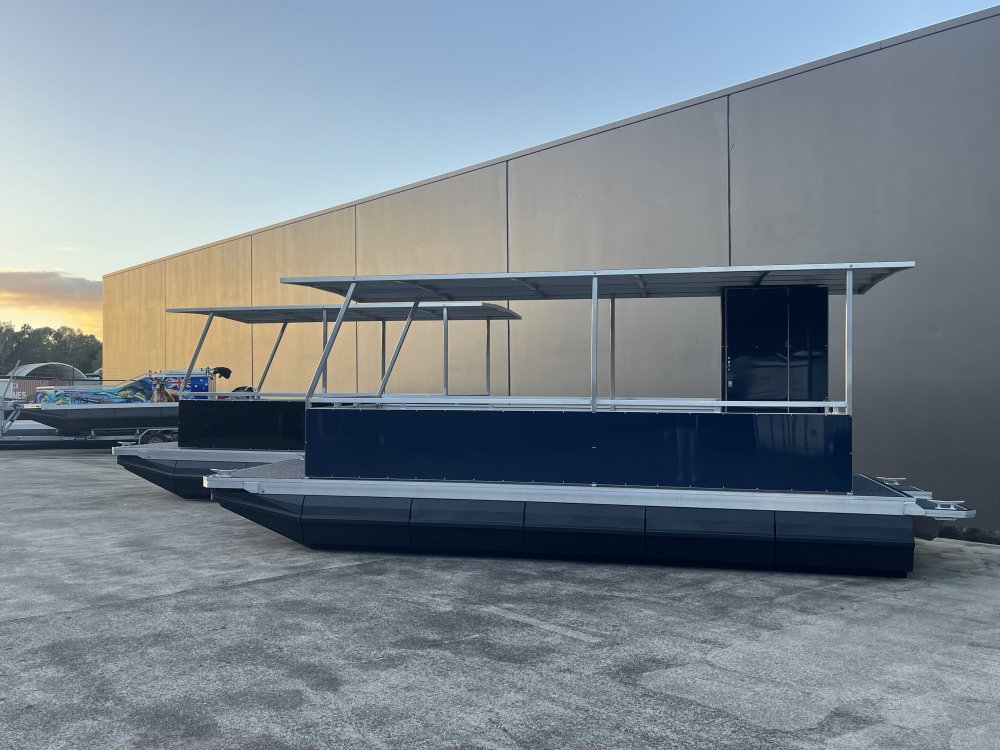

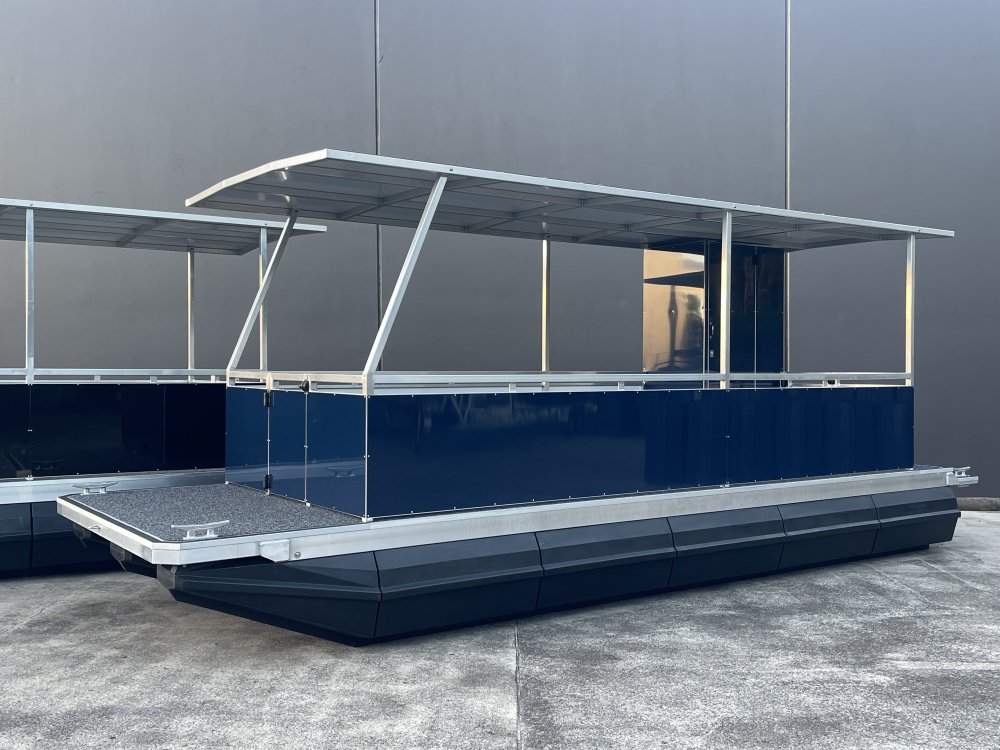

Tri Hull
Approximate
Total weight 426kg
Max Load 2250kg

Float PDF Price List
Drawings
333 Litre Float
Nose Cone

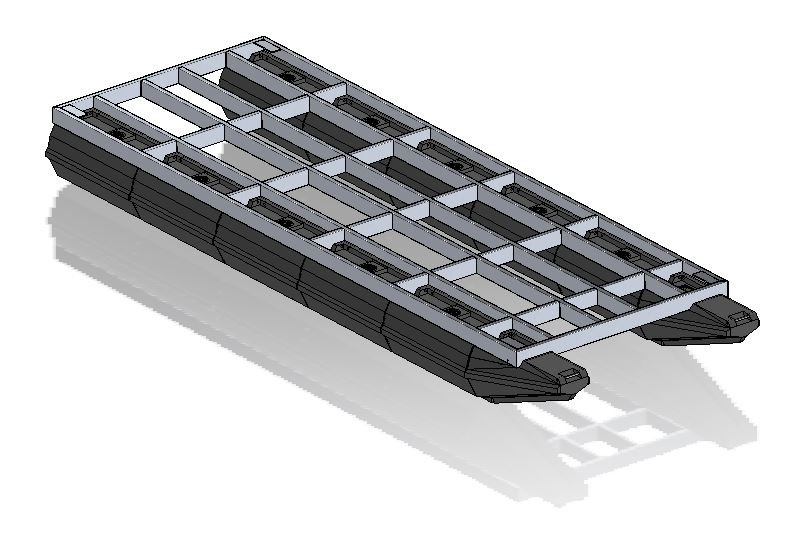

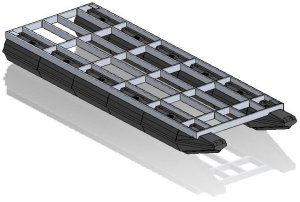

Option 2

Pontoon Boat
Frame and floats

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
Twin Hull
Approximate
Total weight 440kg
Max Load 1344kg

Tri Hull
Approximate
Total weight 582kg
Max Load 2094kg

Float PDF Price List
Drawings
3D Drawing #7148
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142

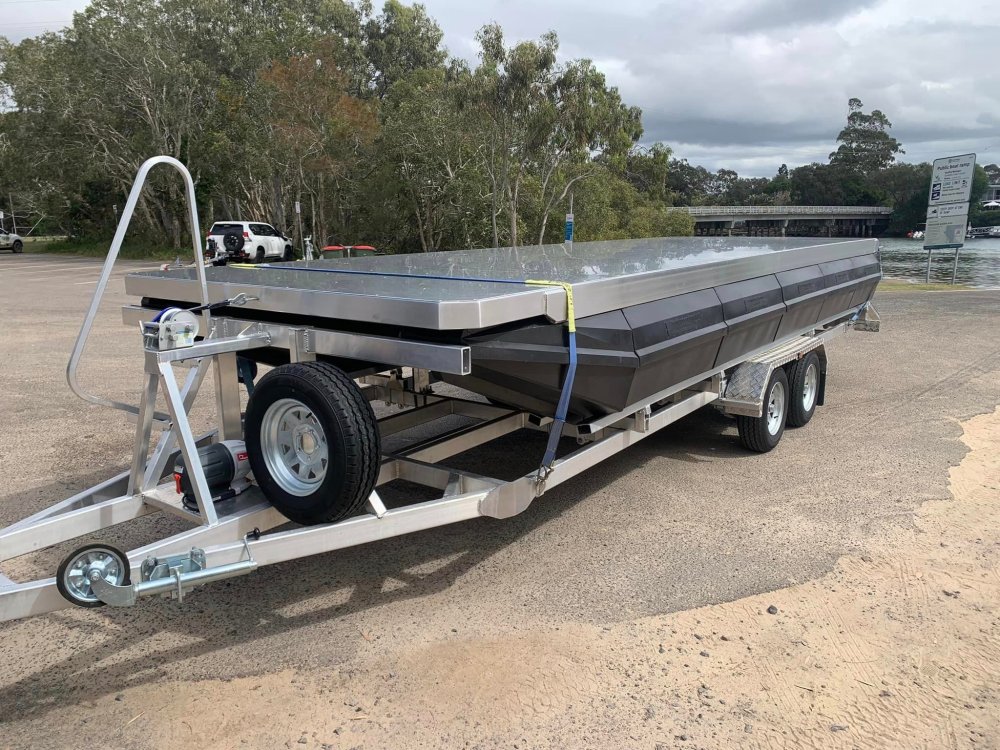

6.9 Photo

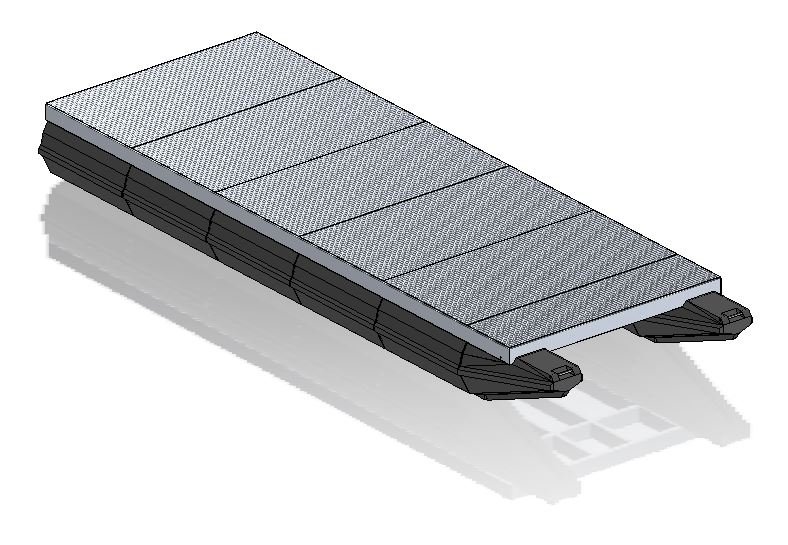

Option 3

Pontoon Boat

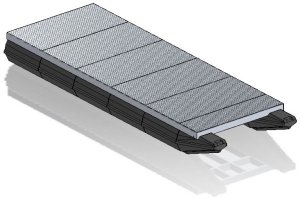

Frame, floats and decking

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Twin Hull
Approximate
Total weight 558kg
Max Load 1226kg

Tri Hull
Approximate
Total weight 700kg
Max Load 1976kg

Float PDF Price List
Drawings
3D Drawing #7149
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142

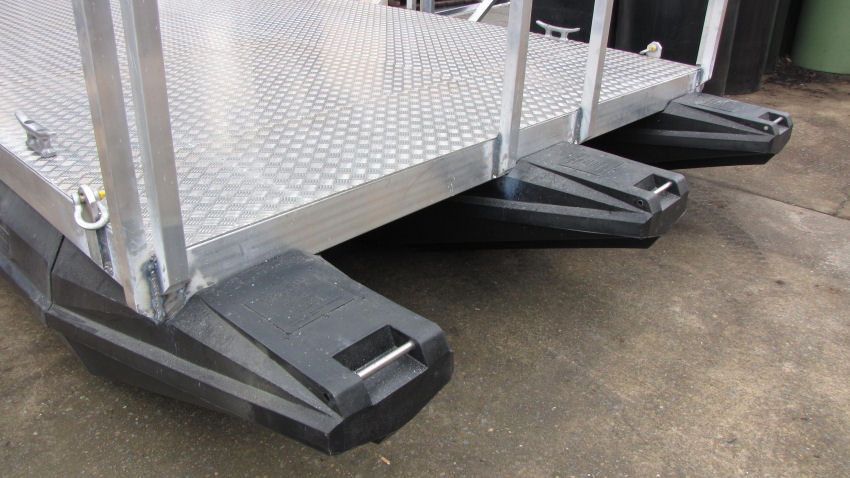

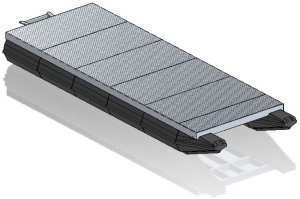

Option 4

Pontoon Boat
Frame, floats, decking
and motor bracket

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking

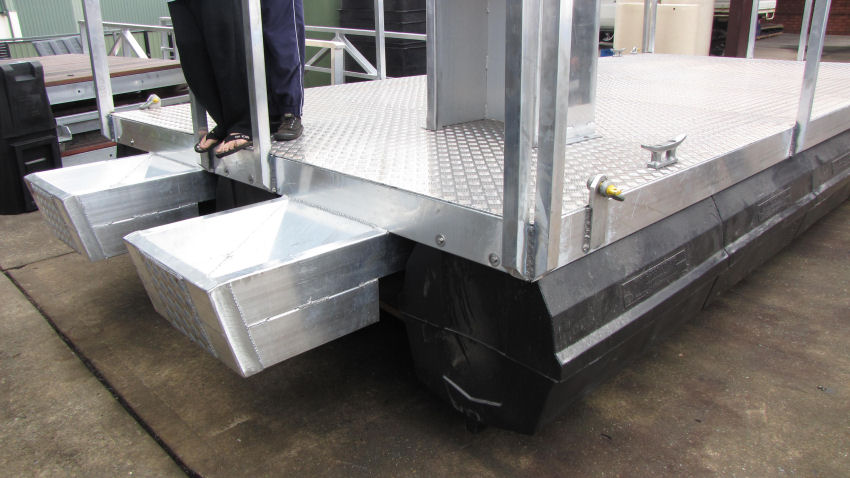

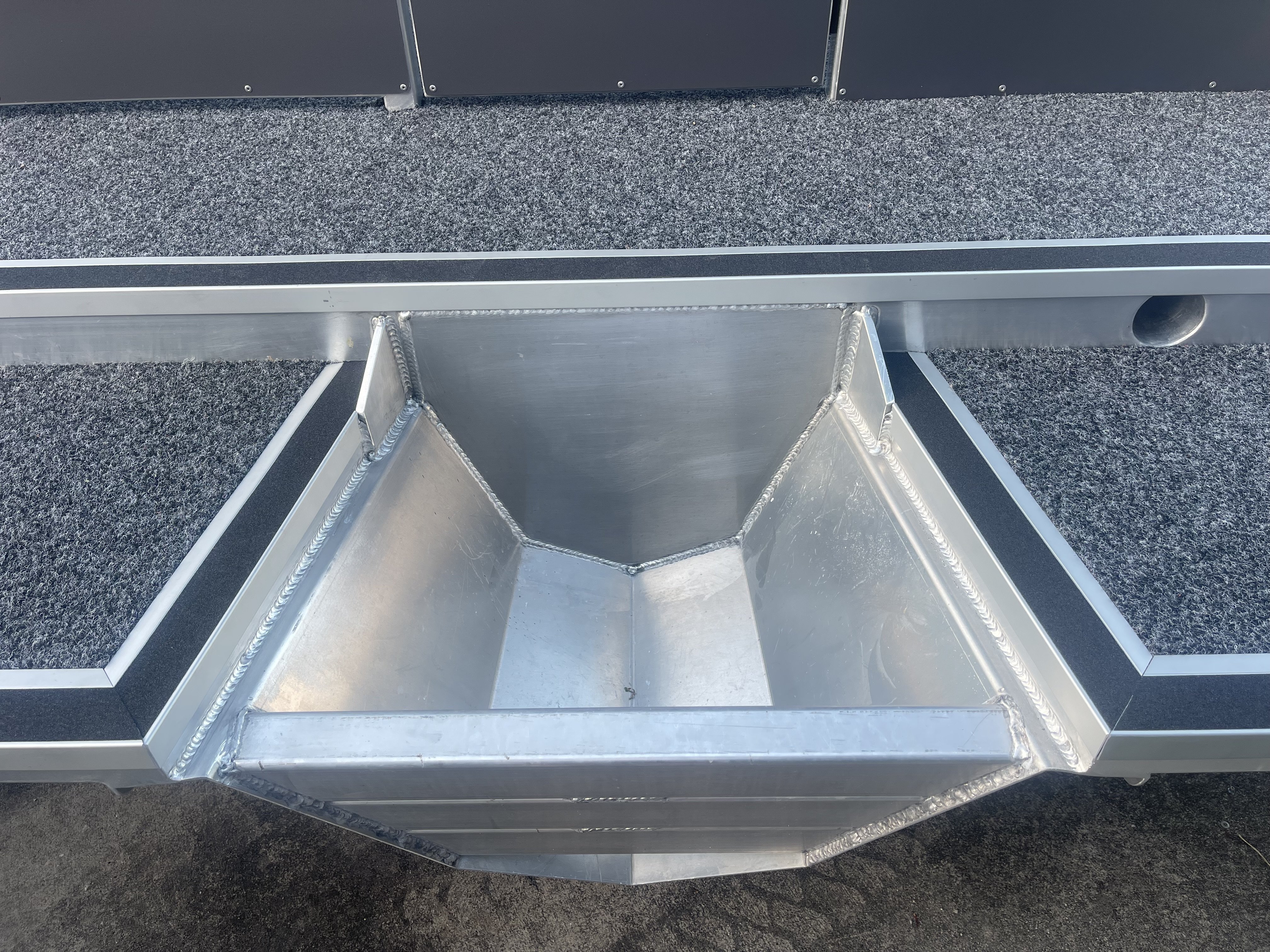

Motor bracket
Twin Hull
Approximate
Total weight 573kg
Max Load 1211kg

Tri Hull
Approximate
Total weight 715kg
Max Load 1961kg

Float PDF Price List
Drawings
3D Drawing #7150
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142
Motor bracket #7084
M/bracket fitting #7097

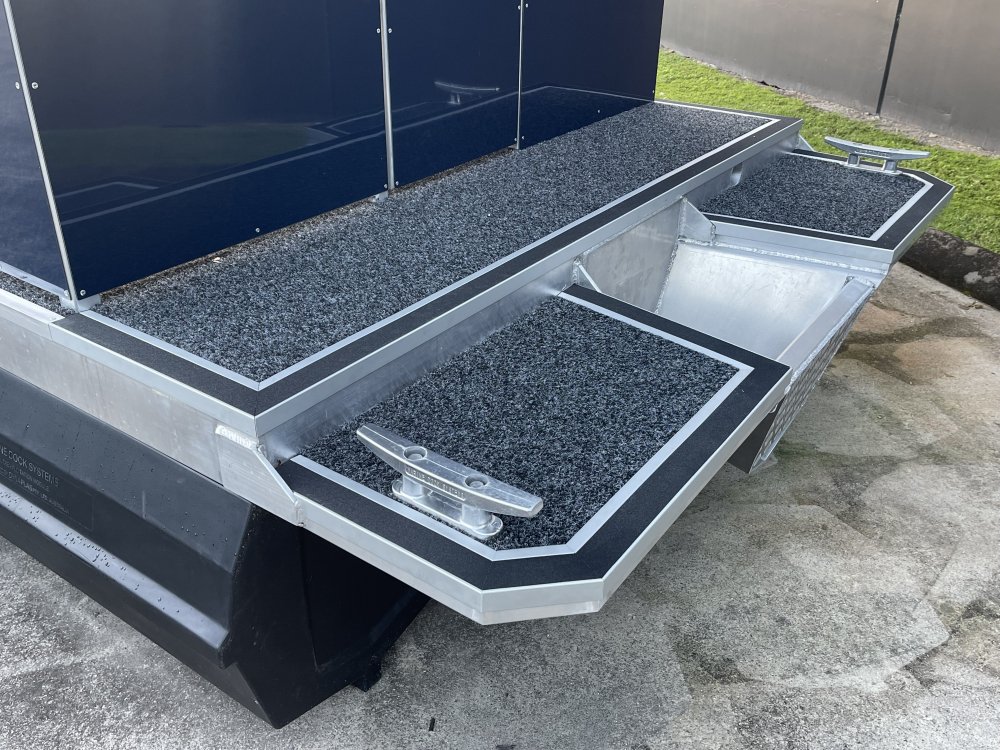

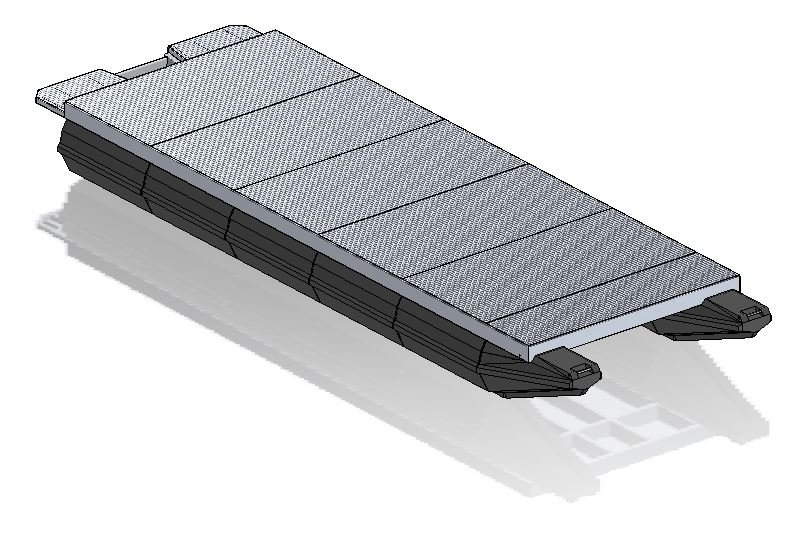

Option 5

Pontoon Boat
Frame, floats, decking,
motor bracket

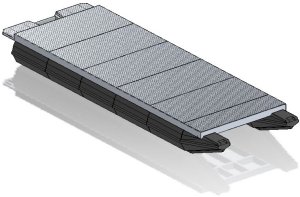

and rear steps

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fastners
3mm thick checker plate decking
Motor bracket
Rear steps
Twin Hull
Approximate
Total weight 608kg
Max Load 1176kg

Tri Hull
Approximate
Total weight 750kg
Max Load 1926kg

Float PDF Price List
Drawings
3D Drawing #7151
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088

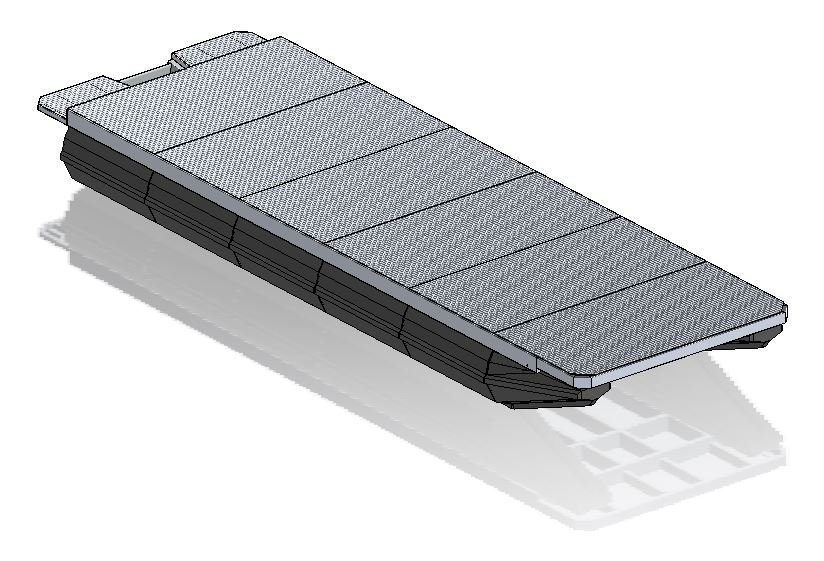

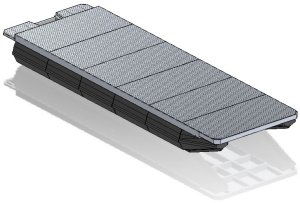

Option 6

Pontoon Boat

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fasteners
3mm thick checker plate decking
Motor bracket
Rear steps
Nose extension
Twin Hull
Approximate
Total weight 615kg
Max Load 1169kg

Tri Hull
Approximate
Total weight 757kg
Max Load 1919kg

Float PDF Price List

6.9 Photo
6.9 Photo
Drawings
3D Drawing #7154
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Nose extension #7111
Nose Gusset #7087
Front deck #7113

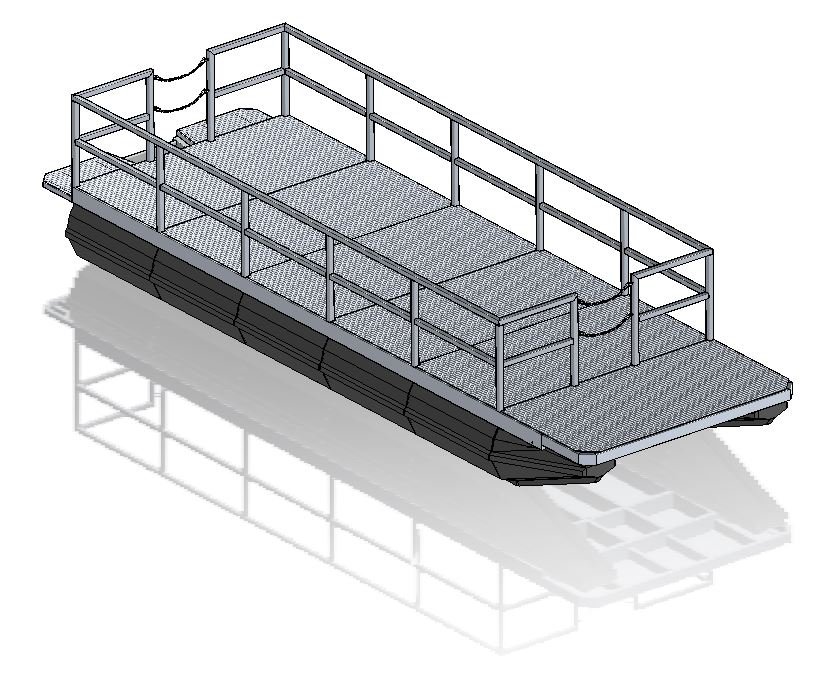

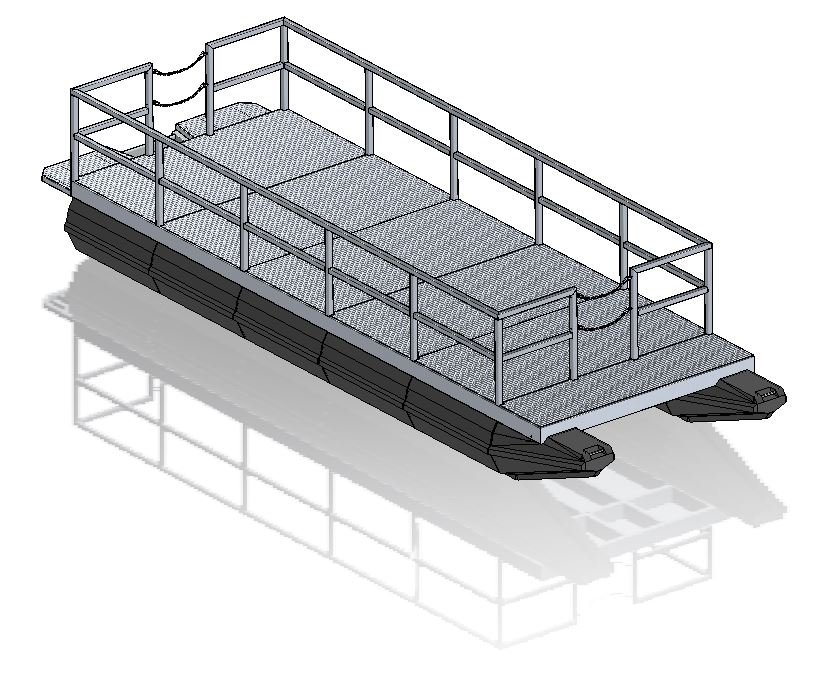

Option 7

Pontoon Boat

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fasteners
3mm thick checker plate decking
Motor bracket
Rear steps
Aluminium Handrails

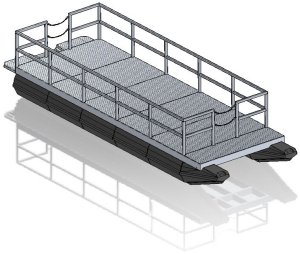

Stainless chaingates
Twin Hull
Approximate
Total weight 666kg
Max Load 1118kg

Tri Hull
Approximate
Total weight 808kg
Max Load 1868kg

Float PDF Price List

Drawings
3D Drawing #7153
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090

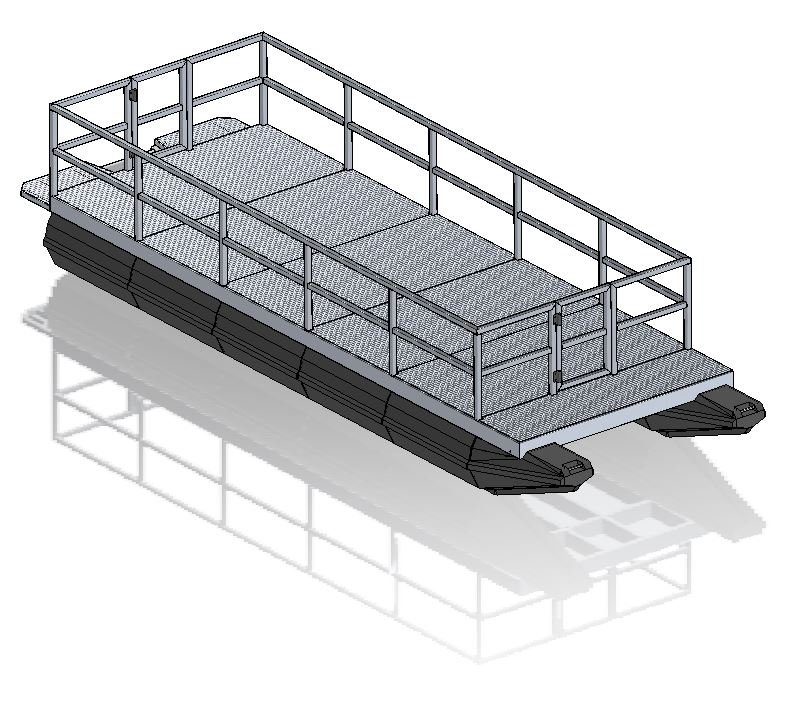

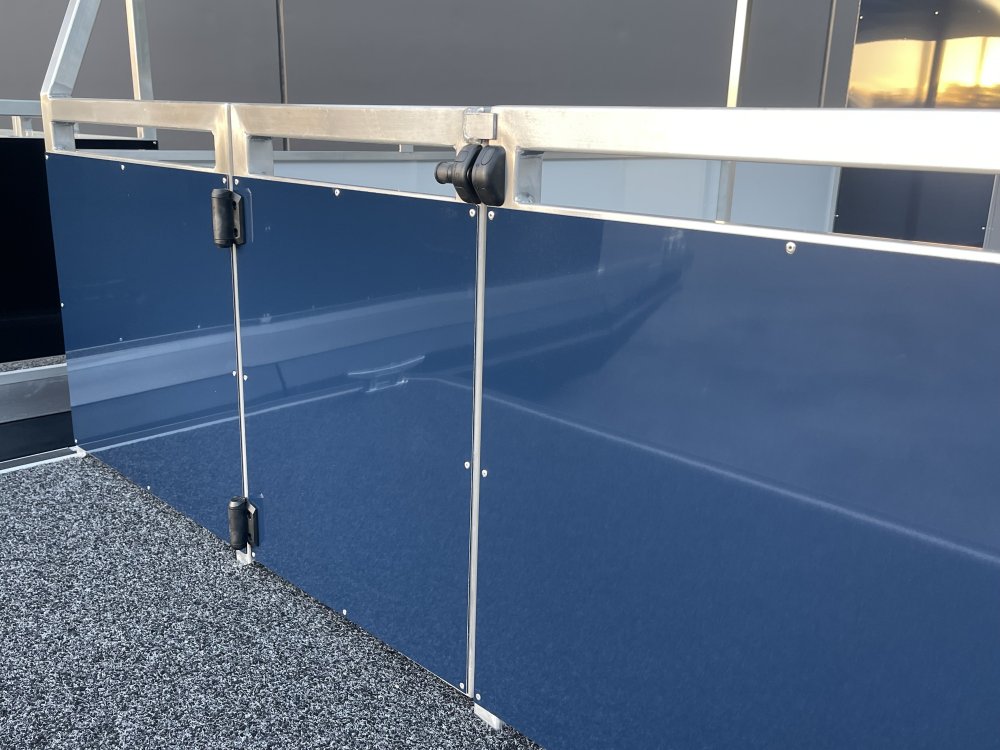

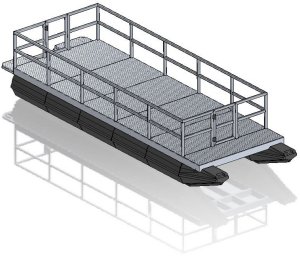

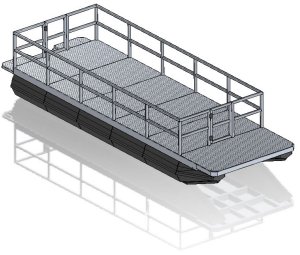

Option 8

Pontoon Boat

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fasteners
3mm thick checker plate decking
Motor bracket
Rear steps
Aluminium Handrails

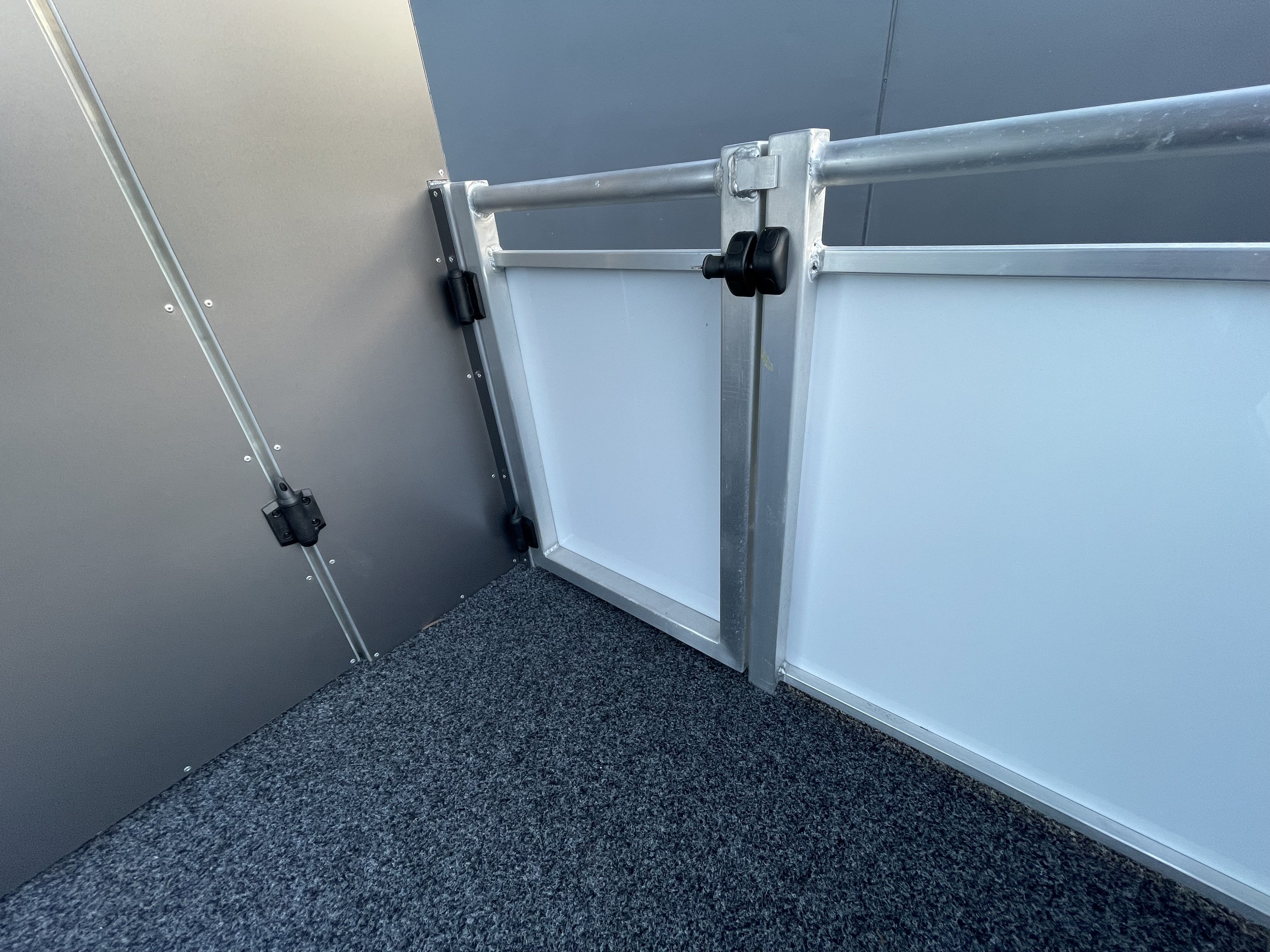

Aluminium welded gates
Twin Hull
Approximate
Total weight 674kg
Max Load 1110kg

Tri Hull
Approximate
Total weight 816kg
Max Load 1860kg

Float PDF Price List
Drawings
3D Drawing #7152
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090
Welded Gates #7115

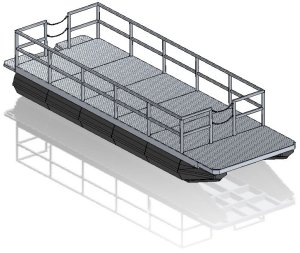

Option 9

Pontoon Boat

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fasteners
3mm thick checker plate decking
Motor bracket
Rear steps
Aluminium Handrails
Stainless chaingates
Nose extension
Twin Hull
Approximate
Total weight 695kg
Max Load 1089kg

Tri Hull
Approximate
Total weight 837kg
Max Load 1839kg

Float PDF Price List
Drawings
3D Drawing #7156
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090
Handrails #7141
Nose extension #7111
Nose Gusset #7087

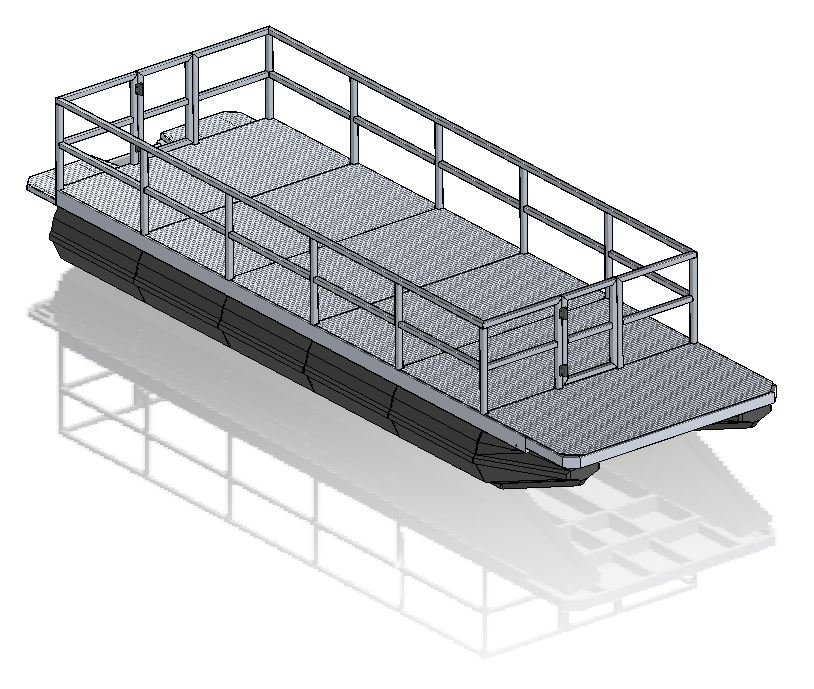

Option 10

Pontoon Boat

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fasteners
3mm thick checker plate decking
Motor bracket
Rear steps
Aluminium Handrails
Aluminium welded gates
Nose extension
Twin Hull
Approximate
Total weight 700kg
Max Load 1084kg

Tri Hull
Approximate
Total weight 842kg
Max Load 1834kg

Float PDF Price List
Drawings
3D Drawing #7155
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090
Nose extension #7111
Nose Gusset #7087
Front deck #7113
Handrails #7145
Welded Gates #7115

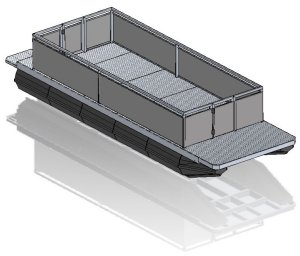

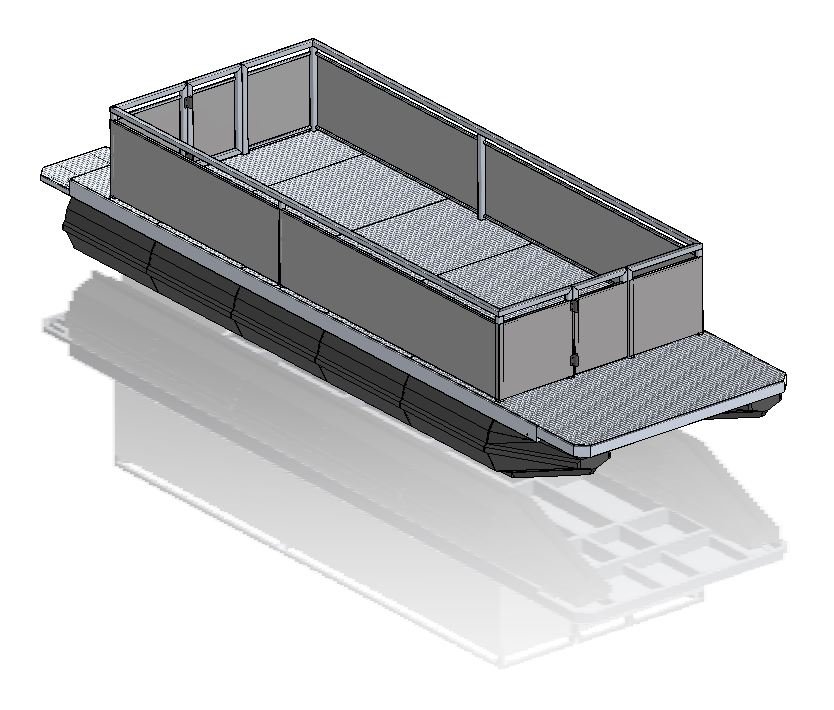

Option 11

Pontoon Boat

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fasteners
3mm thick checker plate decking
Motor bracket
Rear steps
Square Aluminium Handrails
Aluminium welded gates
Nose extension
Enclosed hanrails
Twin Hull
Approximate
Total weight 740kg
Max Load 1044kg

Tri Hull
Approximate
Total weight 882kg
Max Load 1794kg

Float PDF Price List
Drawings
3D Drawing #7158
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090
Handrails #7144
Welded Gates #7123
Nose extension #7111
Nose Gusset #7087
Front deck #7113

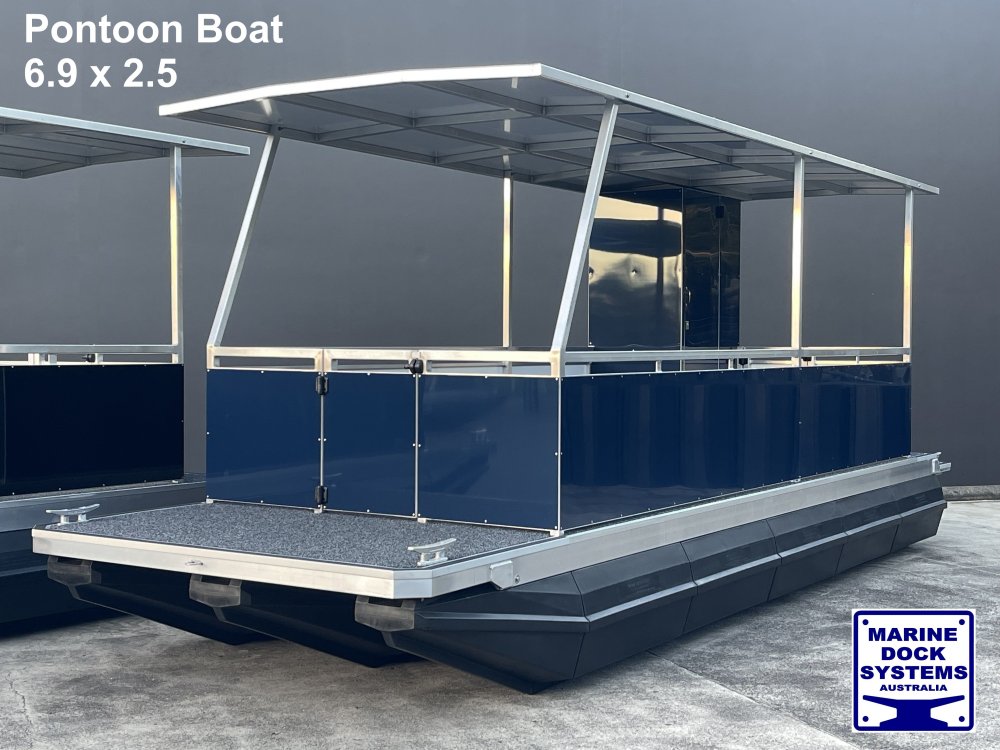

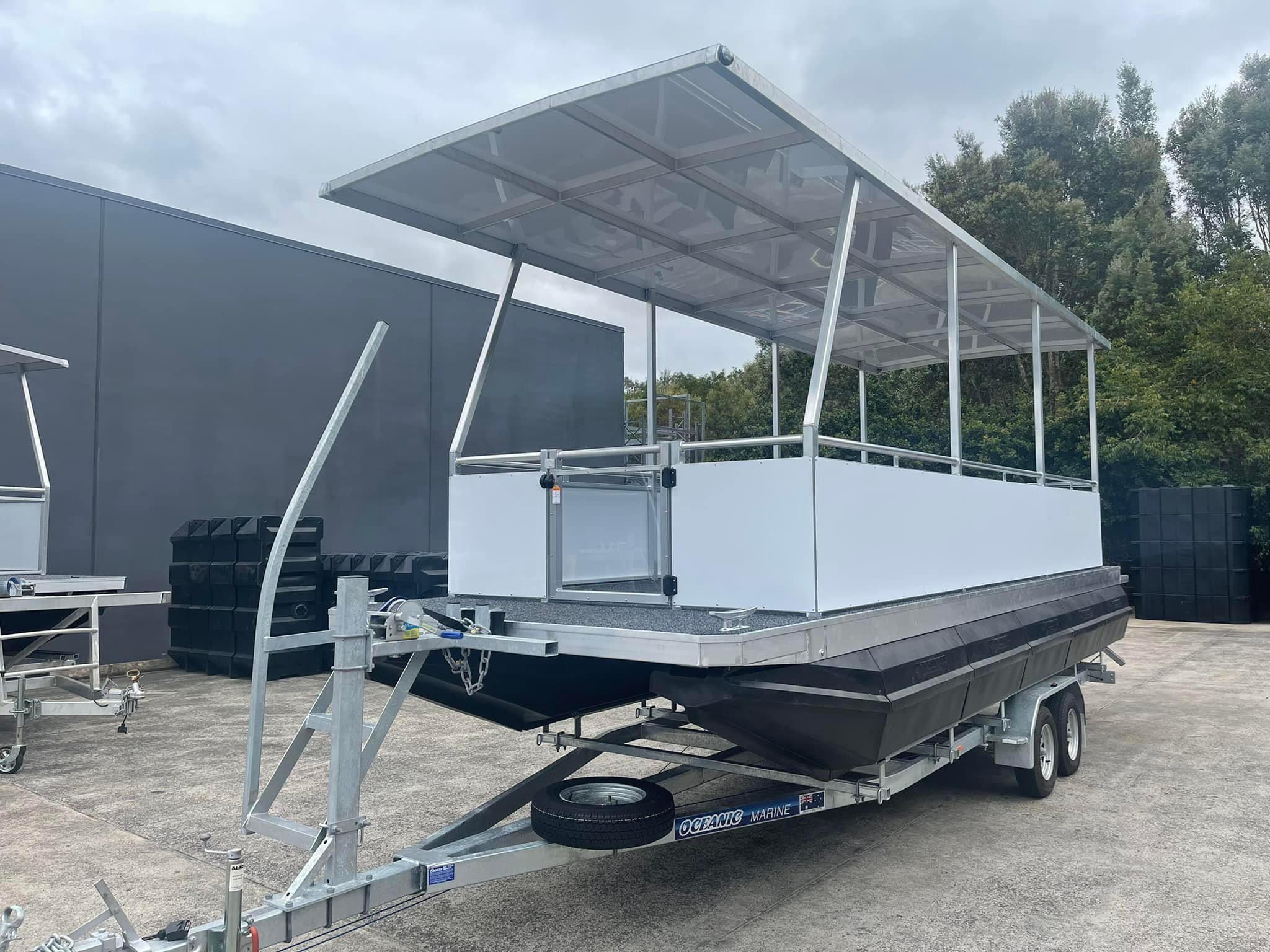

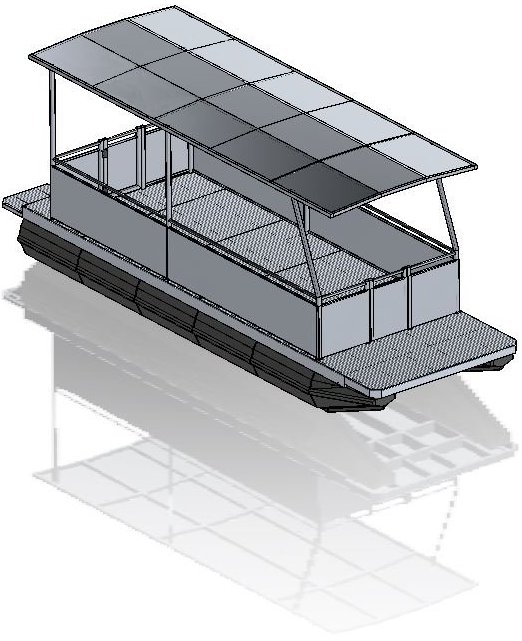

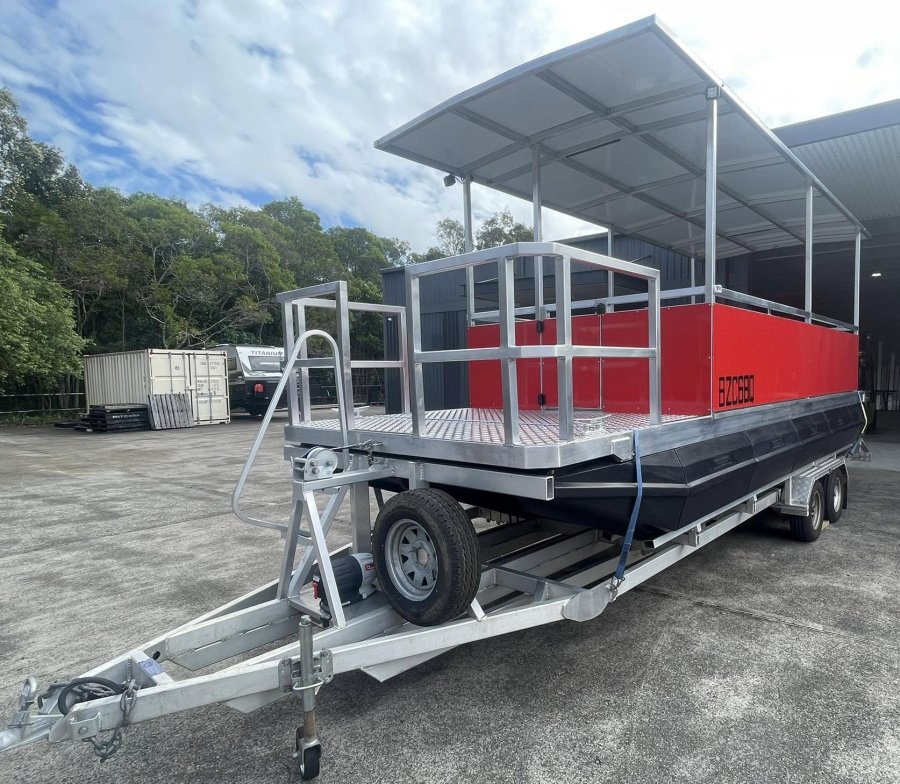

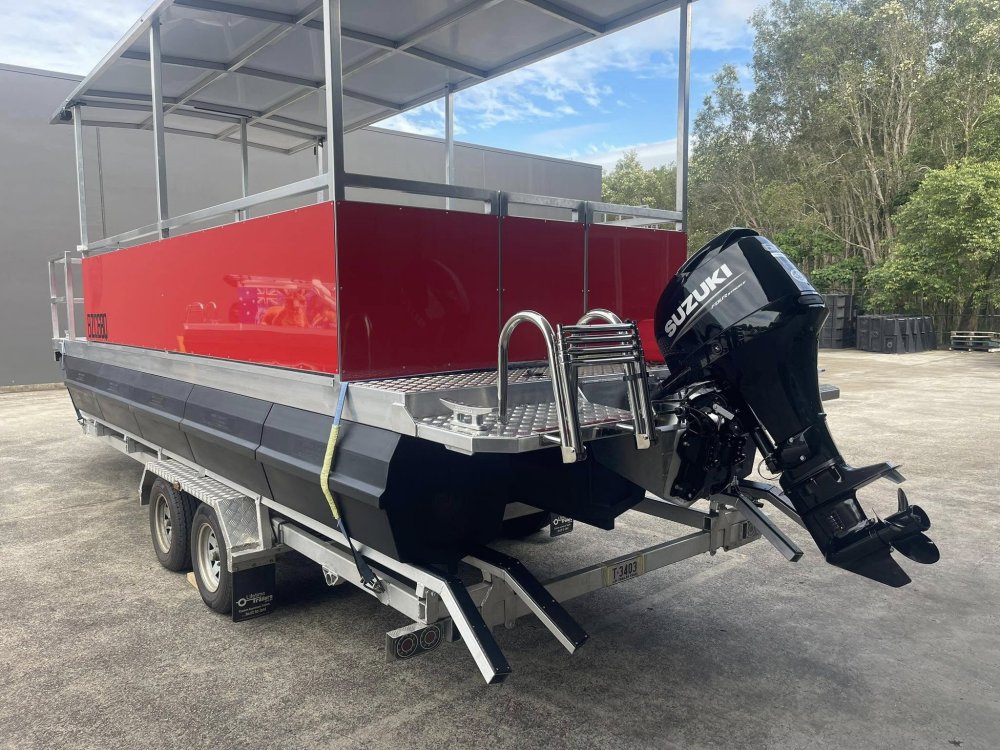

Option 12

Pontoon Boat

6.9 Mrs Long (23 feet)
2.5mtr wide (8 Feet)
Includes
10 x 333 Litre floats
2 x Nose cones.
Fully welded aluminium frame
Stainless steel fasteners
3mm thick checker plate decking
Motor bracket
Rear steps
Aluminium Handrails
Aluminium welded gates
Nose extension

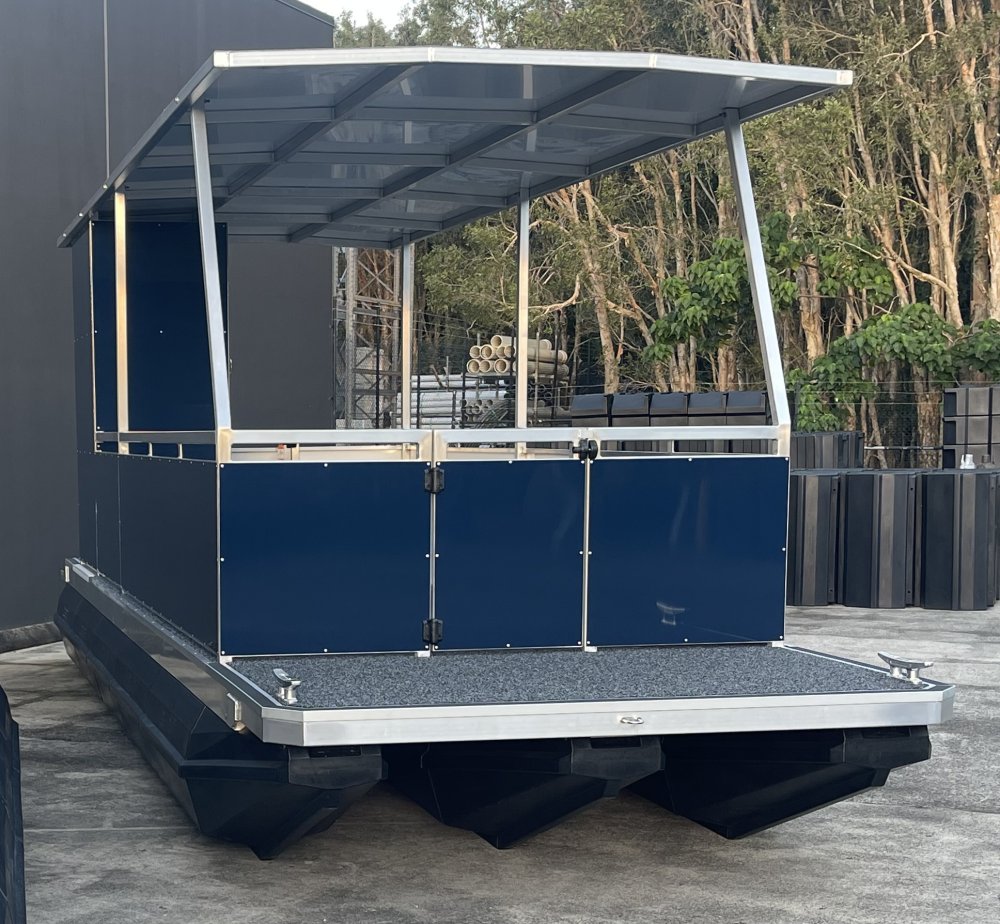

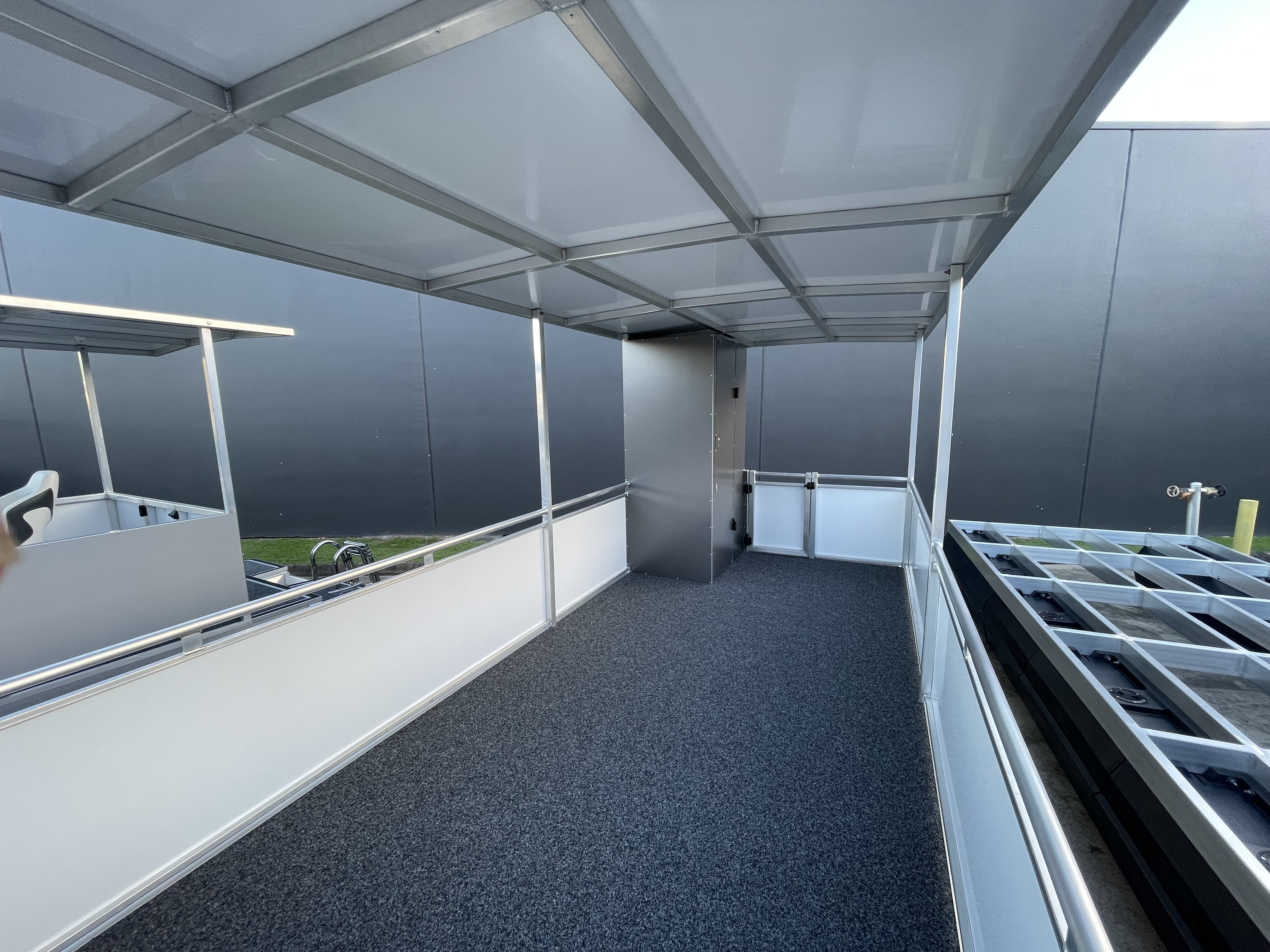

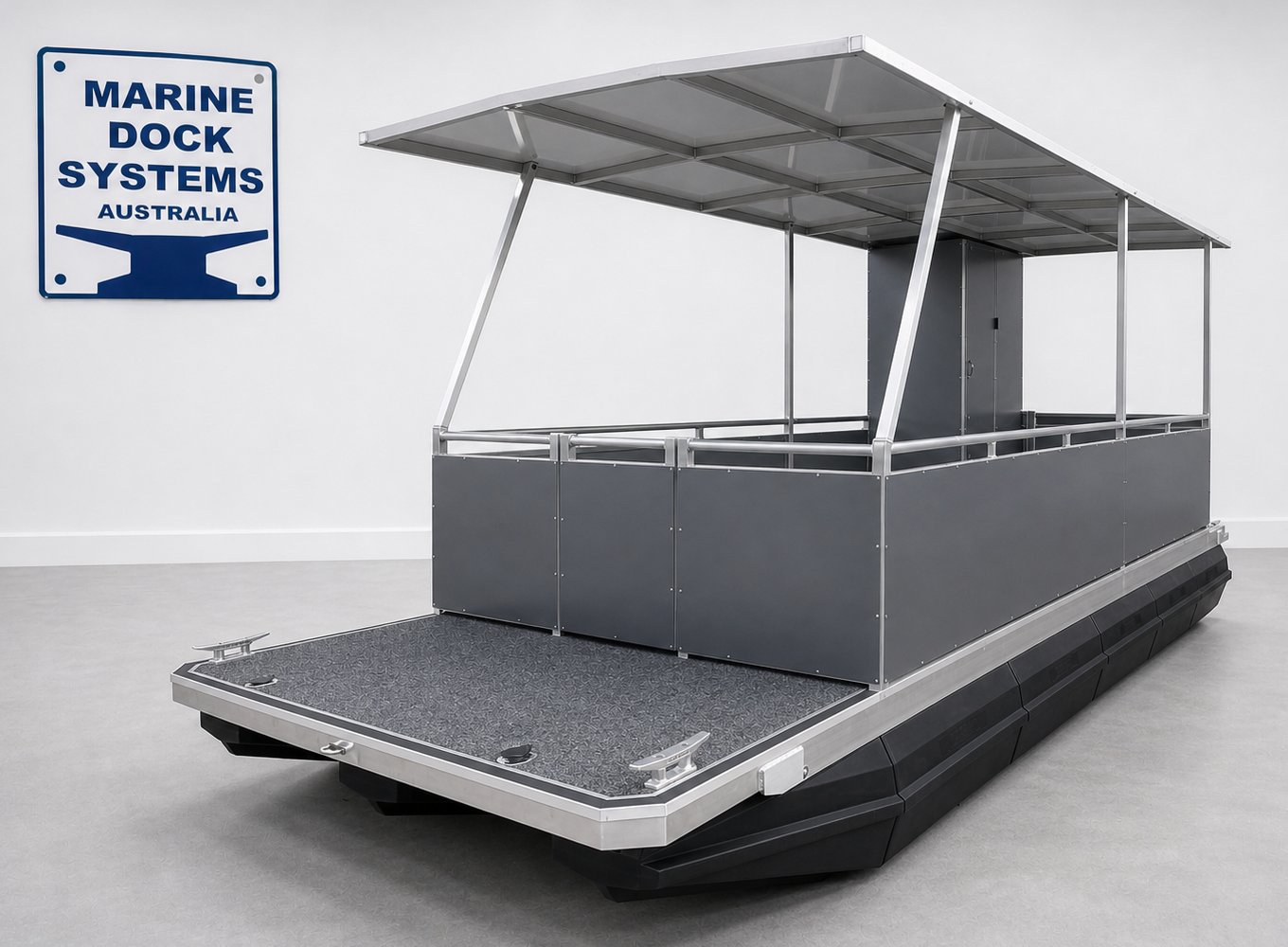

Hard top roof

Twin Hull
Approximate
Total weight 1076kg
Max Load 708kg

Tri Hull
Approximate
Total weight 1218kg
Max Load 1458kg

Float PDF Price List
Drawings
3D Drawing #7159
333 Litre Float #A4-184
Nose Cone #A4-306
3D Frame #7147
Aluminium frame #7142
Motor bracket #7084
M/bracket fitting #7097
Rear steps #7083
Rear Gusset #7088
Cleat Bracket #7090
Handrails #7163
Welded Gates #7119
Nose extension #7111
Nose Gusset #7087
Front deck #7113
Roof Frame #7146

Optional extra's

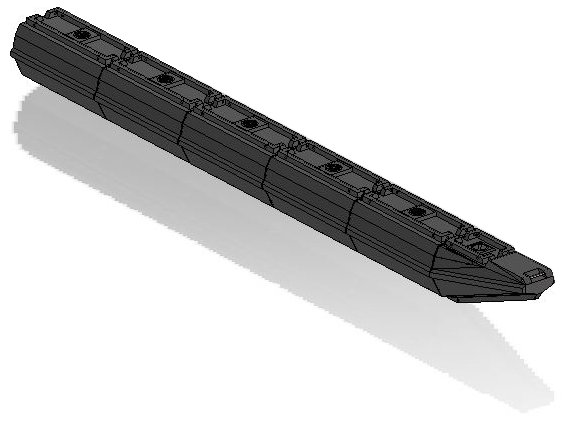

Centre row of floats (adds 600kg payload)
5 x 333 Litre Floats
1 x Nose Cone
4 x M10 x 120mm Stainless Steel Bolts
10 x M10 x 170mm Stainless Steel Bolts
14 x M10 Nyloc nuts stainless steel
28 x 3/8 x 1"1/2 304 stainless steel washers
Centre pontoon

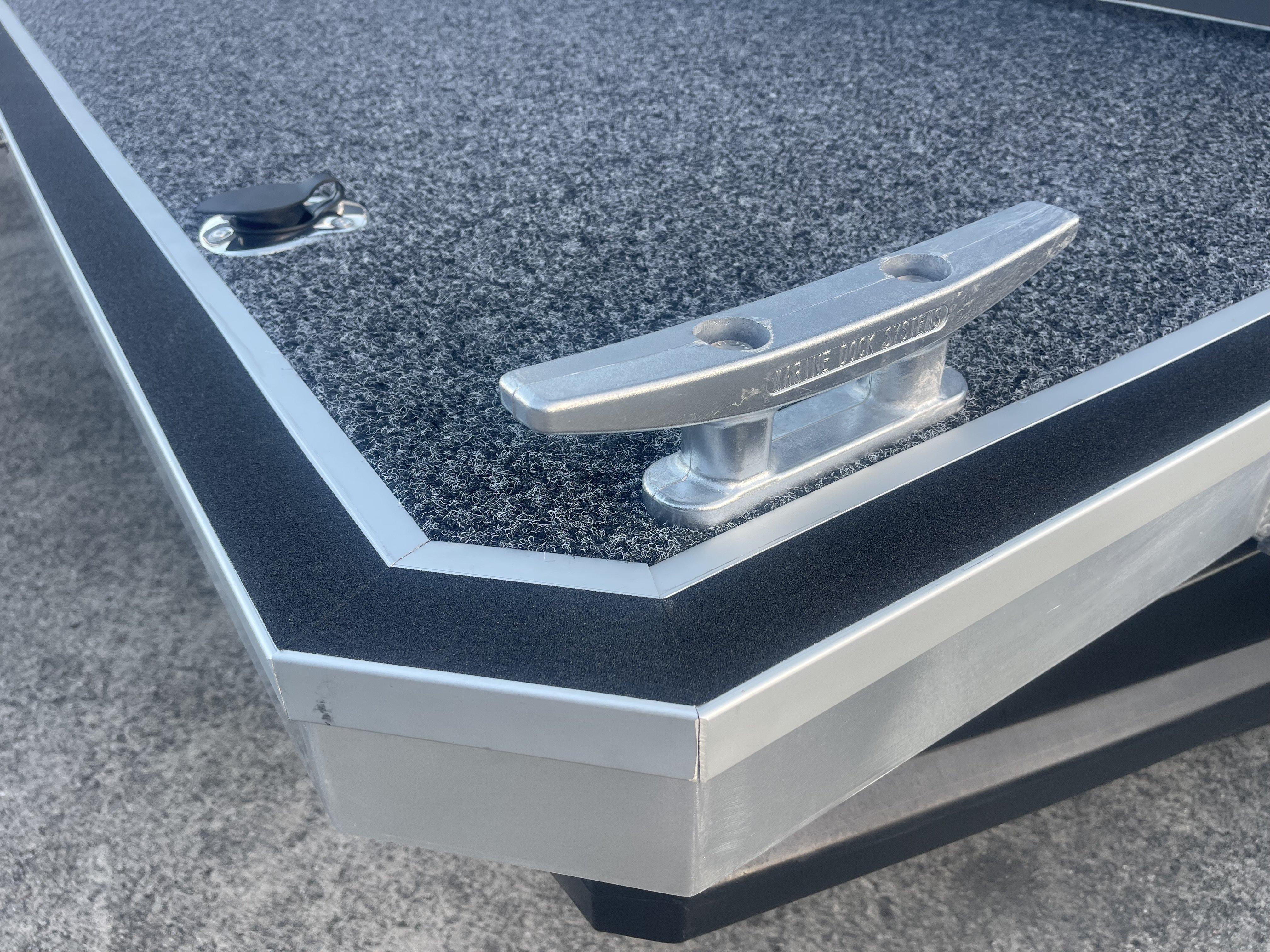

Grey Marine carpet
UV Stabilsed polypropylene
32 x 32mm alloy angle
Countersunk alloy rivets
Marine Carpet

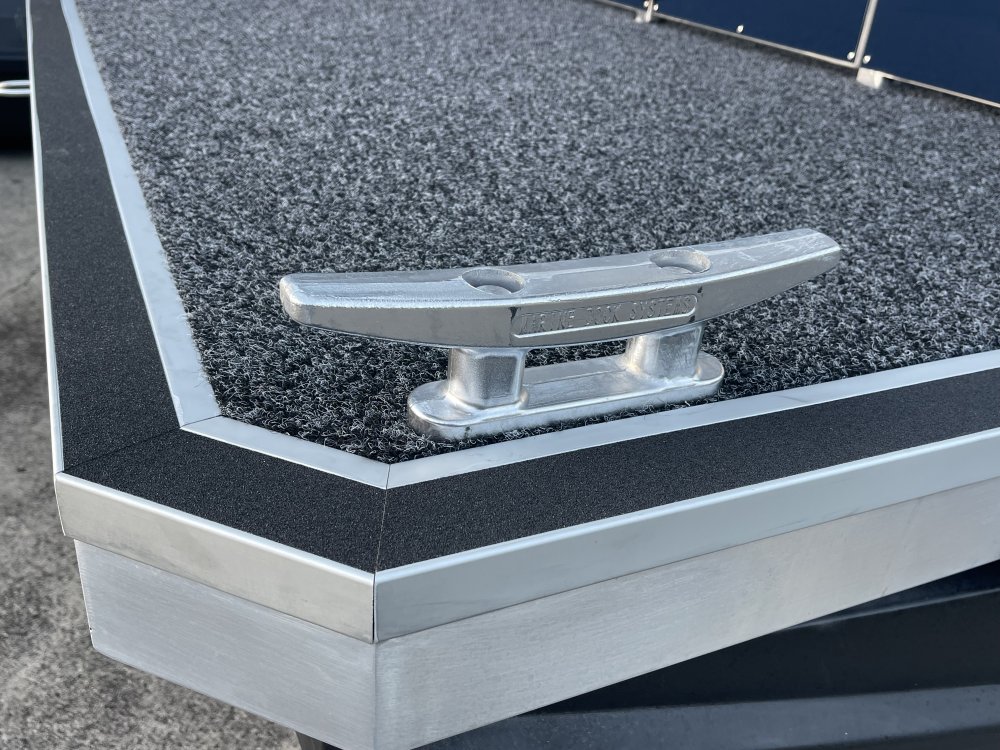

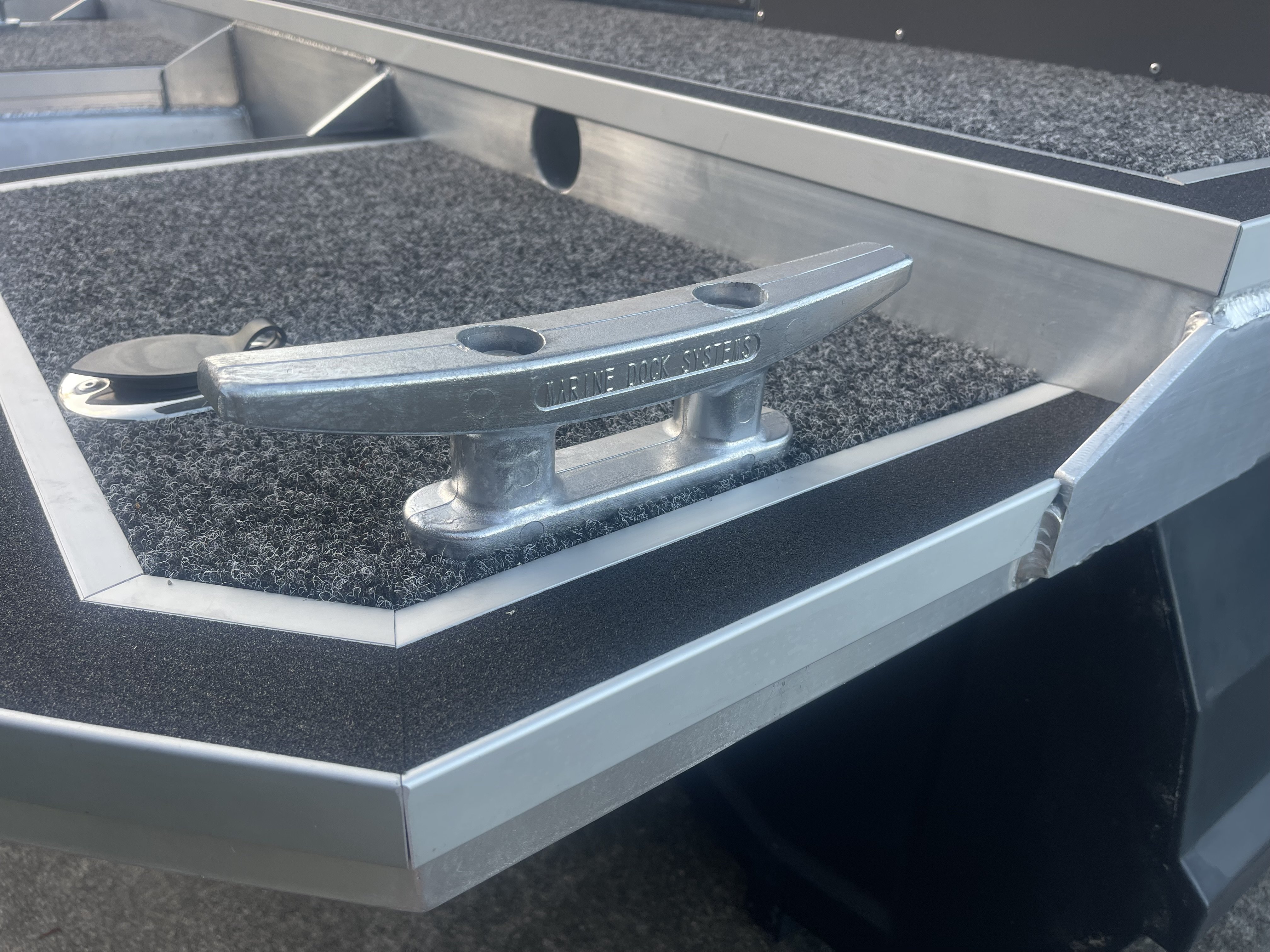

Mooring cleats 300mm
cast aluminium
with stainless steel fastners
1/2 inch stainless steel bolts
More info...
Mooring Cleat

Aluminium edging with grip tape
Countersunk alloy rivets
Mooring Cleat

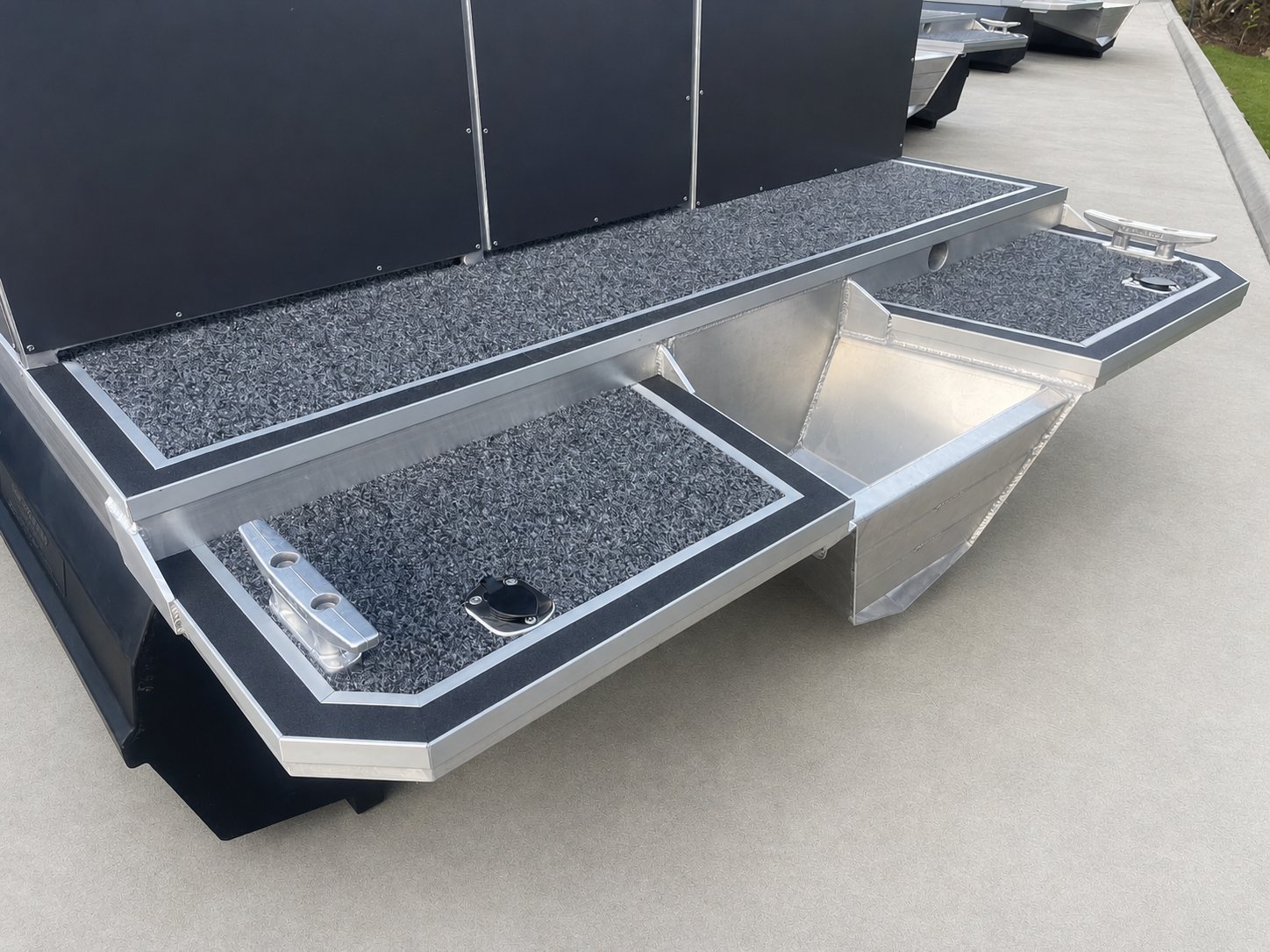

Fishing rod holders stainless steel
with stainless steel fastners

Folding stainless steel ladder
with stainless steel fastners



Pontoon Boat Furniture
Upholstered pontoon boat lounges. Our extra comfortable range includes Large straight lounge, meduim and small. Our pontoon seating is manufactured using polyethylene roto moulded bases which can handle extreme outdoor conditions, upholstered in heavy duty vynil. Lounges have lift up seats for storage, great for stowing away life jackets and more.
Click Here for details

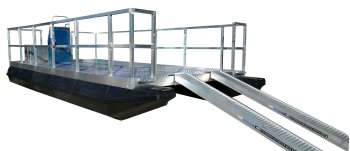

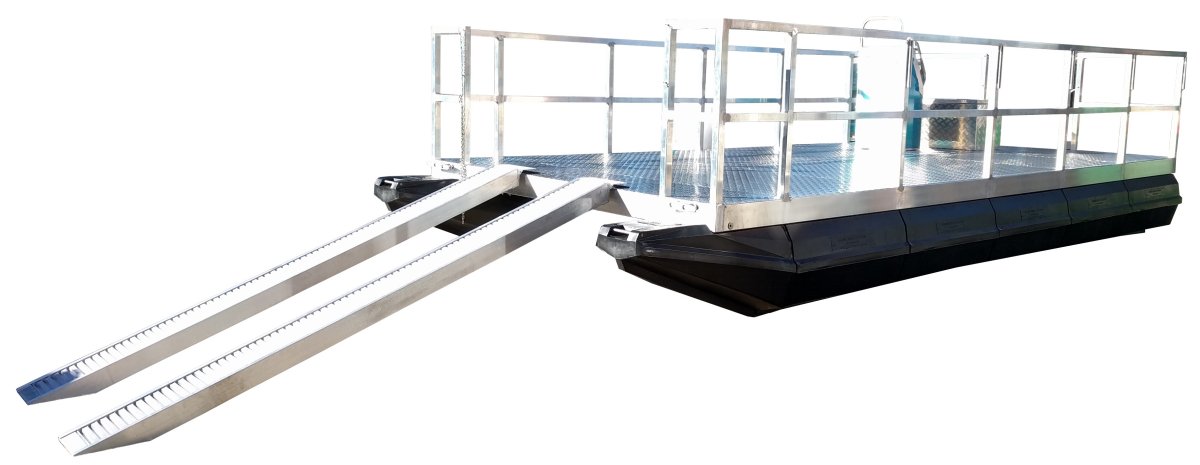

Shown here with alloy access ramps, storage toolbox, motor bracket with step, handrails, and control console. This boat was made to transport quad bikes.

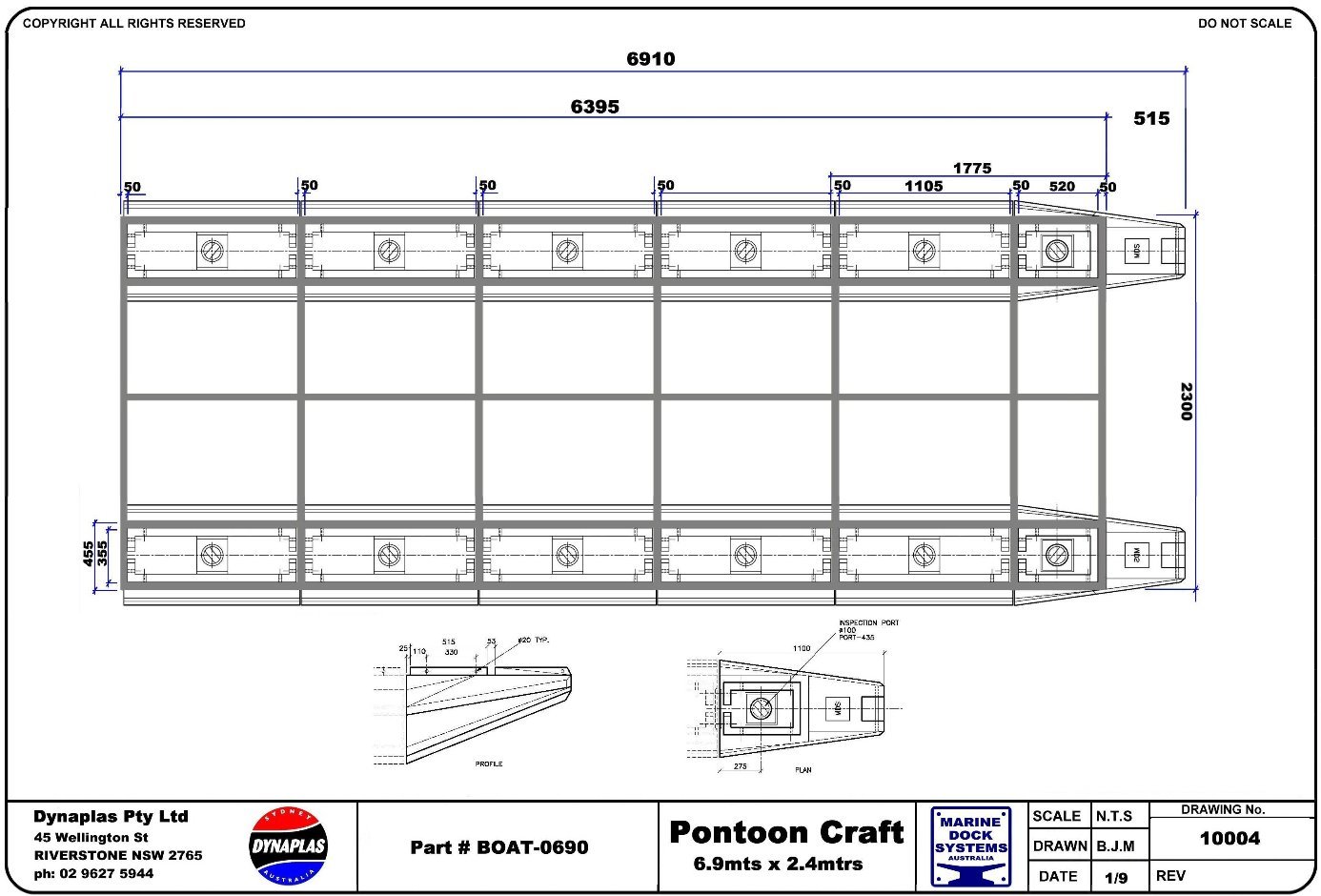

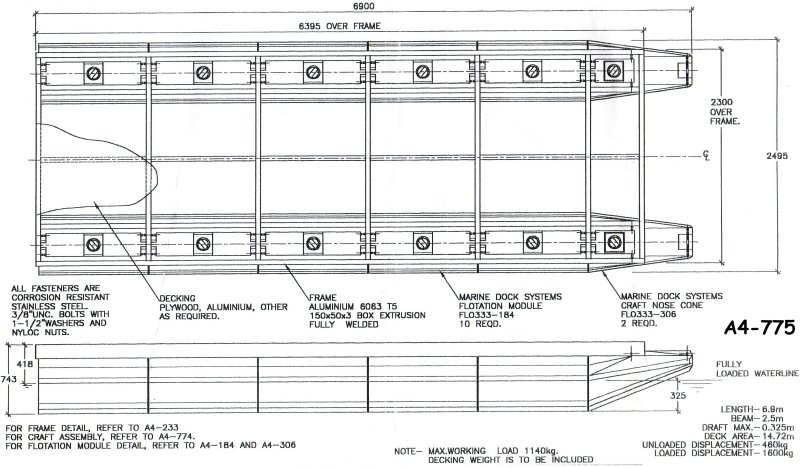

Superseded / custom drawings
Drawings
Frame drawing PDF
Frame drawing jpg
A4-0233 Aluminium frame drawing no centre row

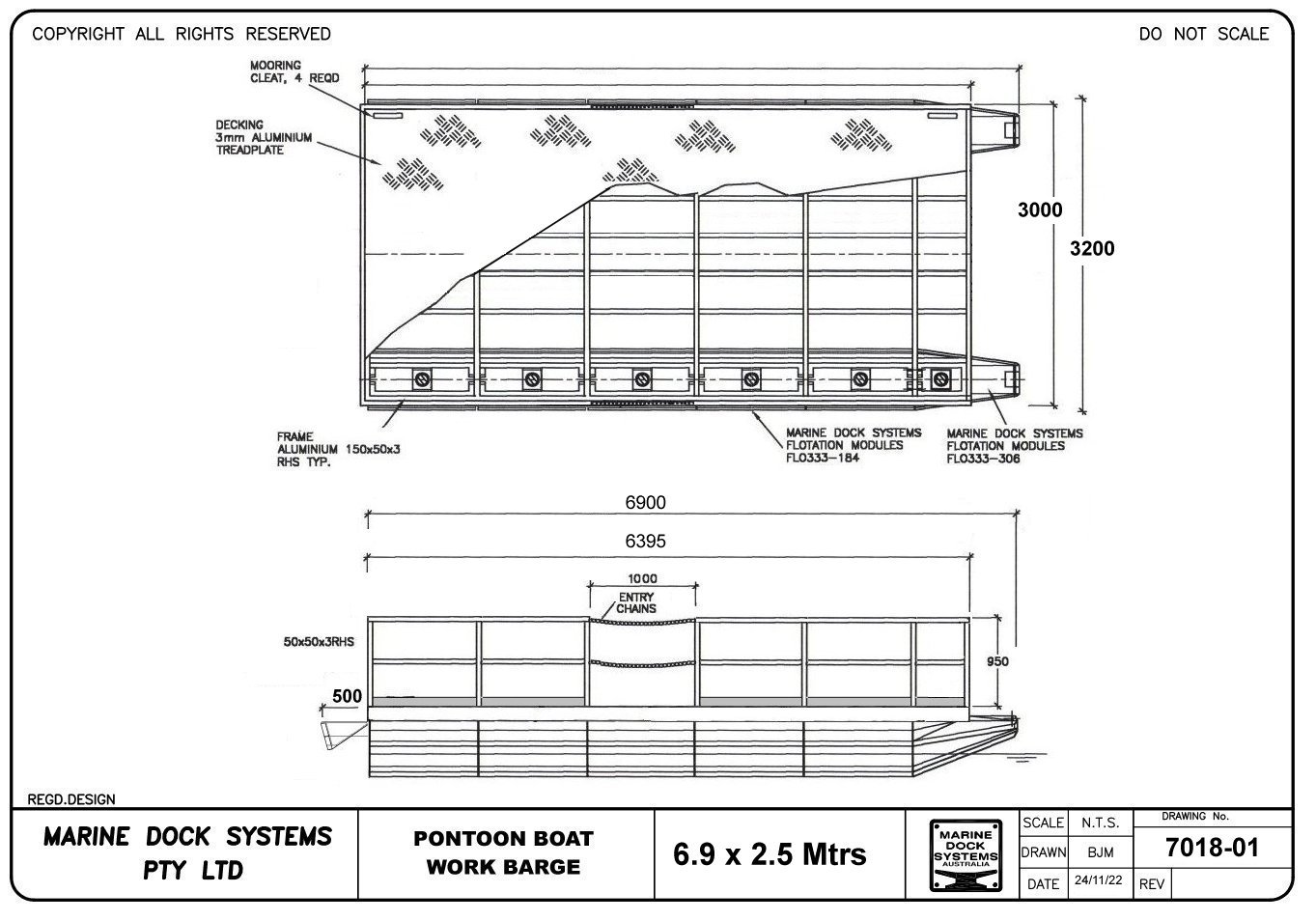

# 7018-01 Work barge 2.4 wide With handrails


pontoons, marinas, jetties, docks, barges MARINE DOCK SYSTEMS
45 Wellington Street Riverstone N.S.W 2765 Australia
Ph: +61 2 9627 5577
26 Corbould Rd Coolum Beach Qld 4573 Australia
Ph: +61 7 5324 1557

Marinas Home    Marinas Email    Marinas Enquiry   Marinas Links
pontoons, marinas, jetties, docks, barges
