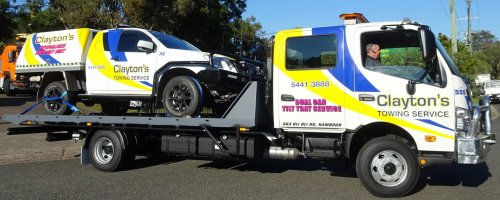

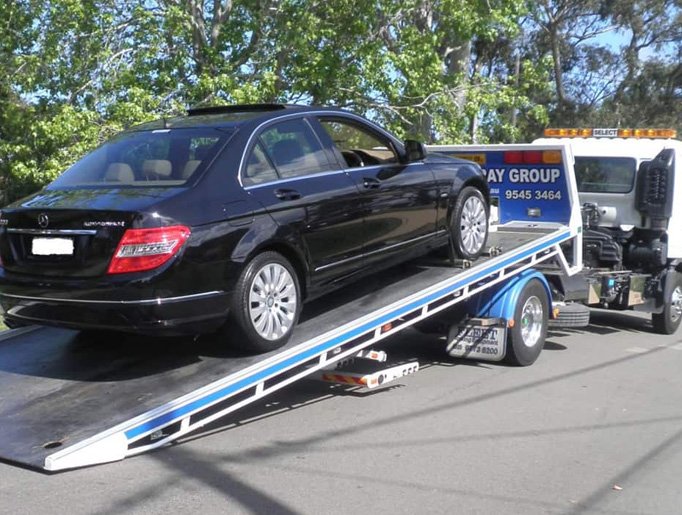

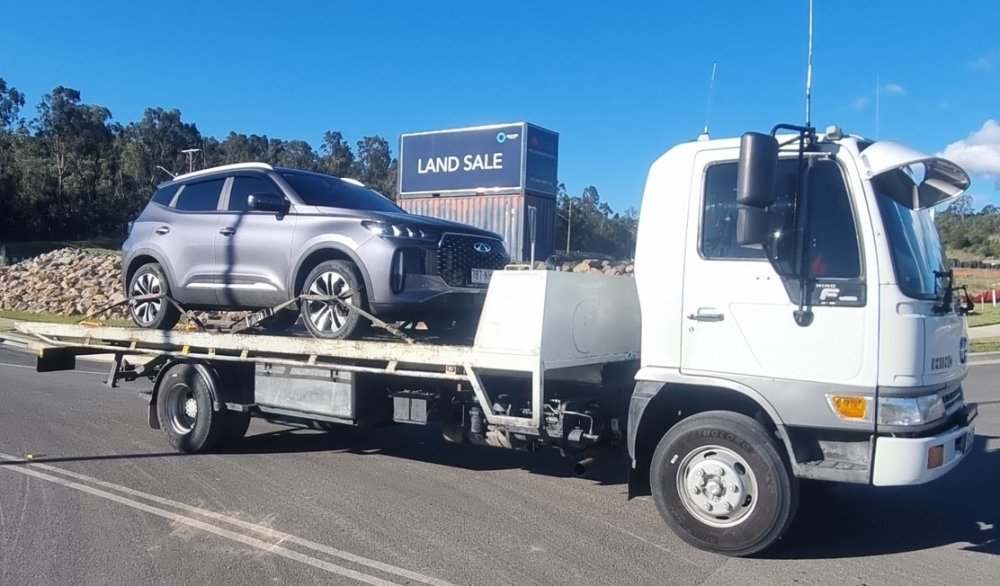

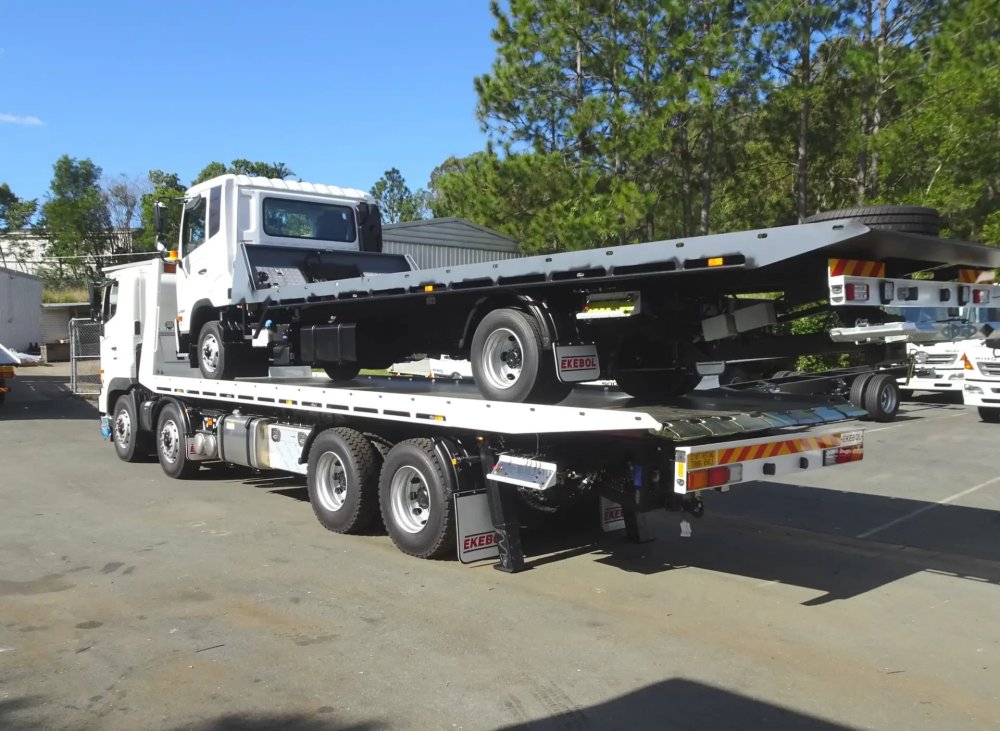

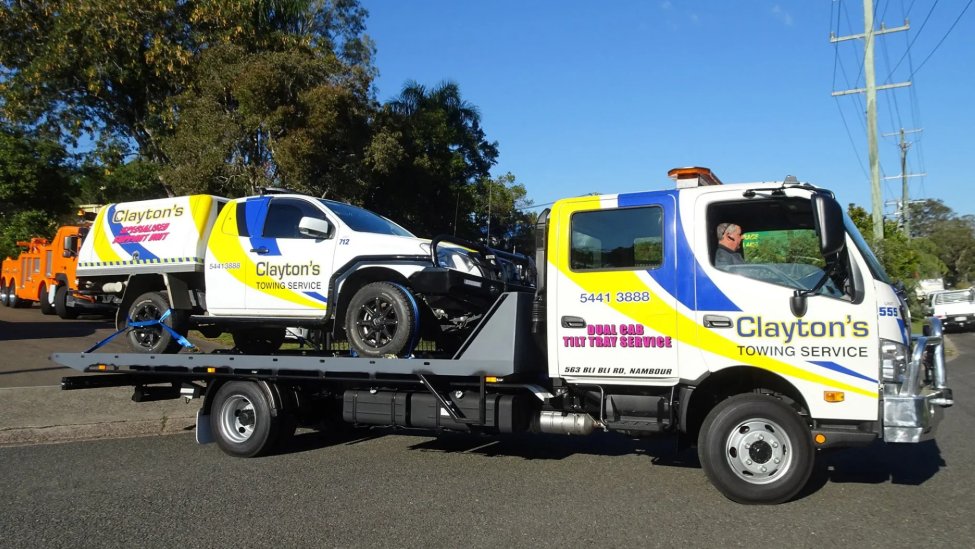

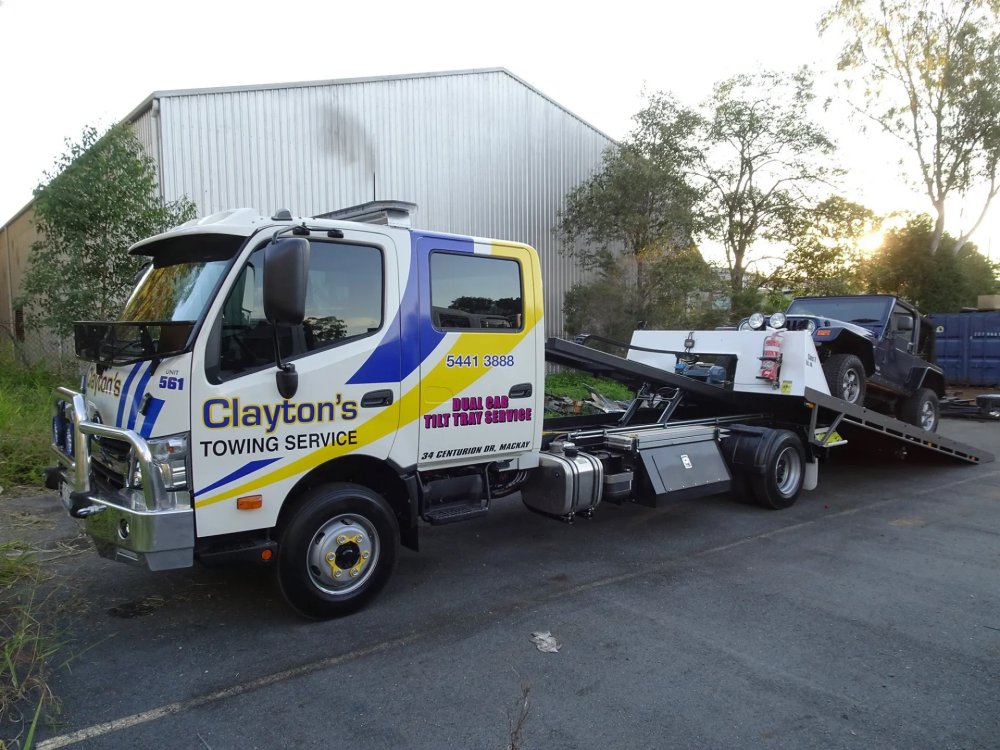

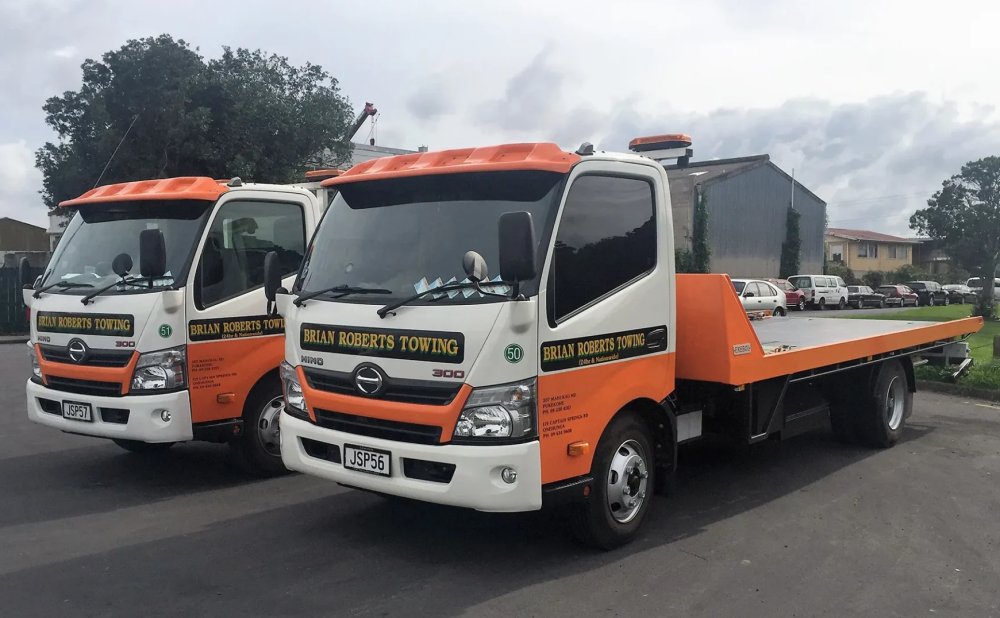

Tow Truck
P520 Mudguards fitted

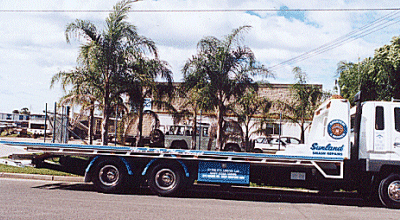

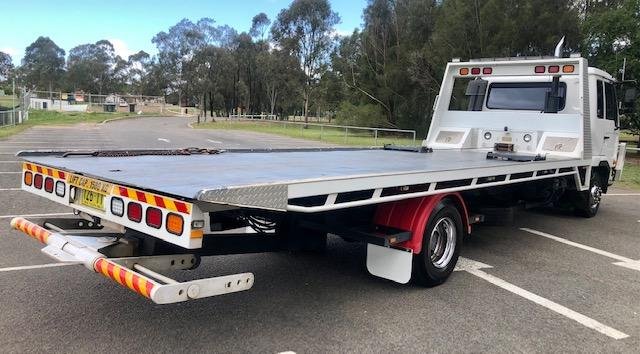

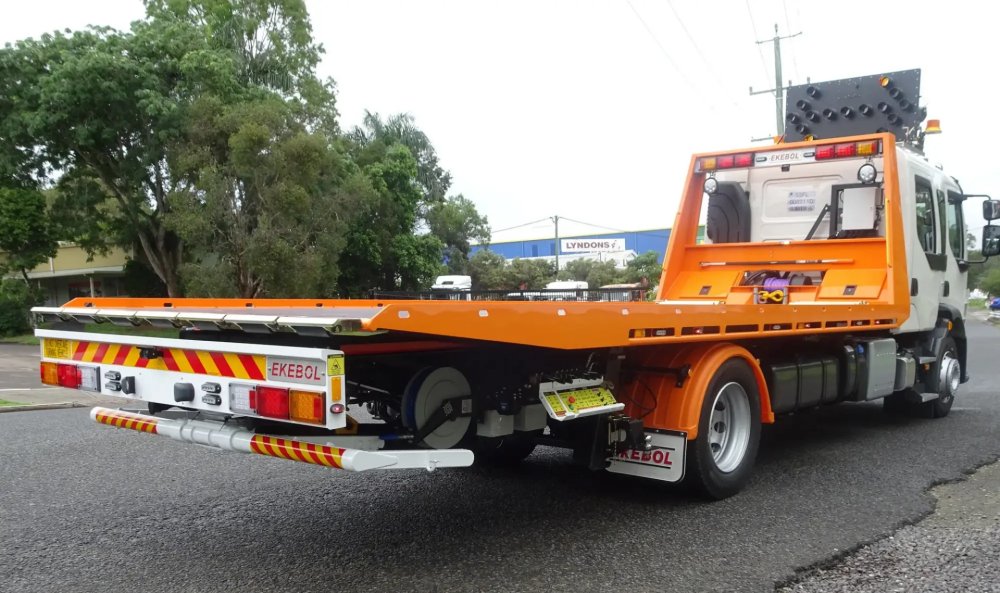

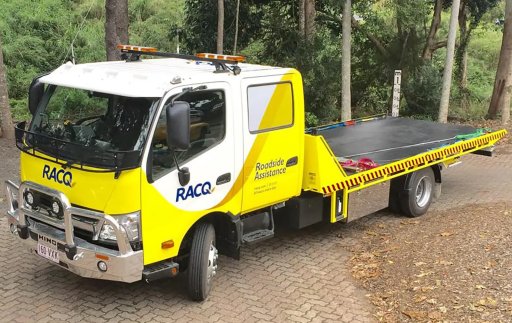

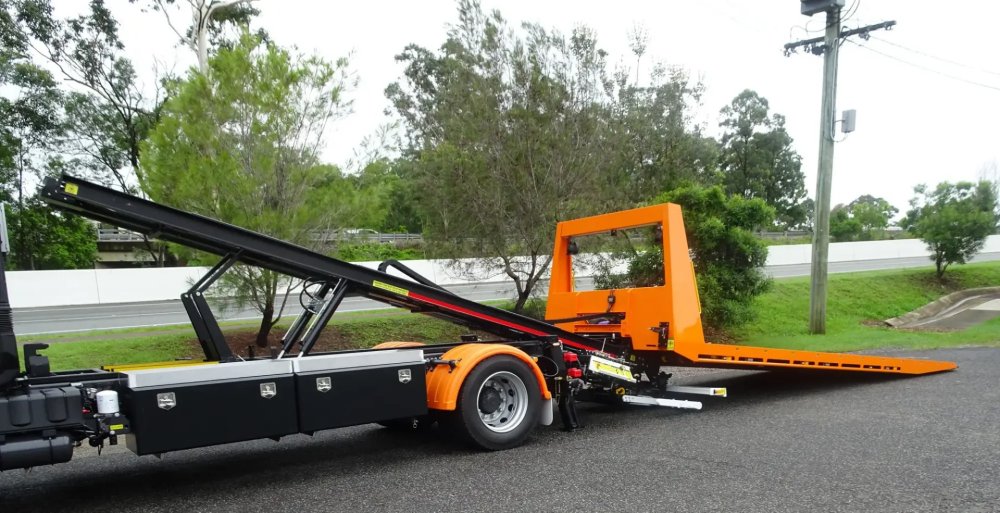

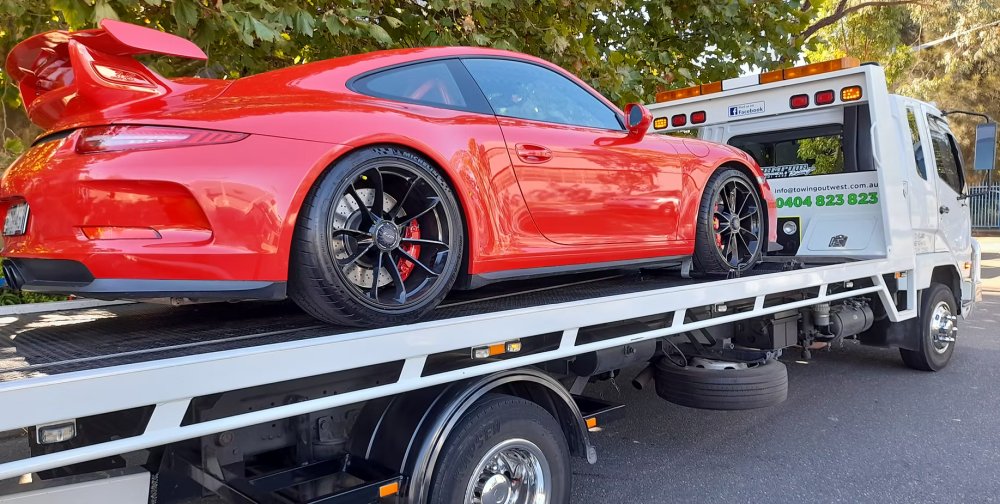

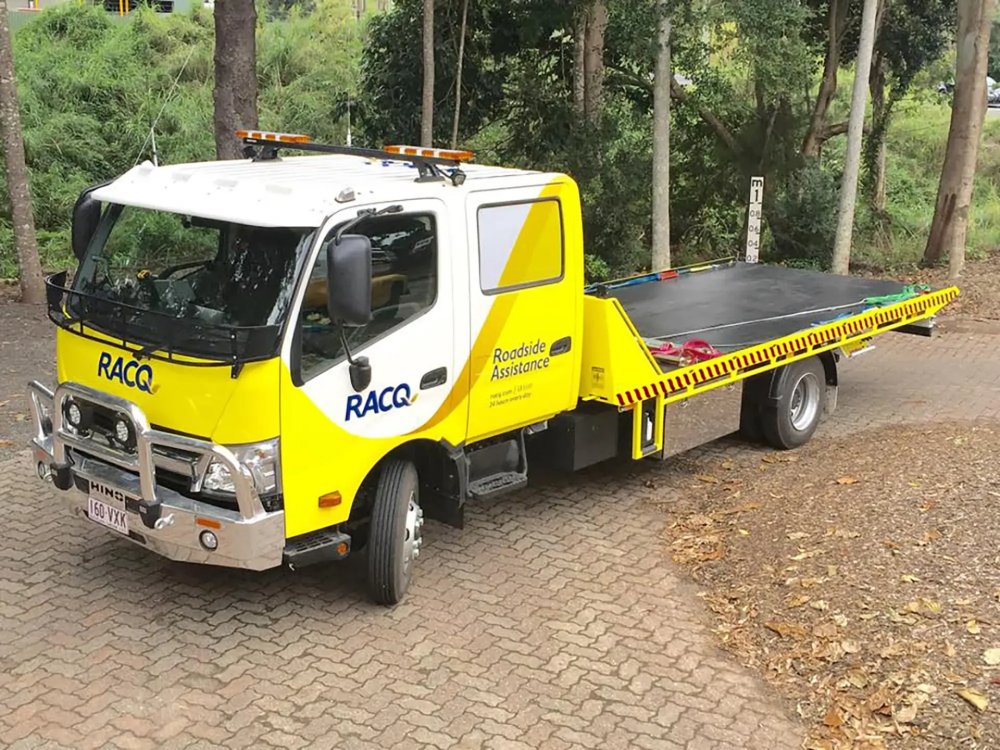

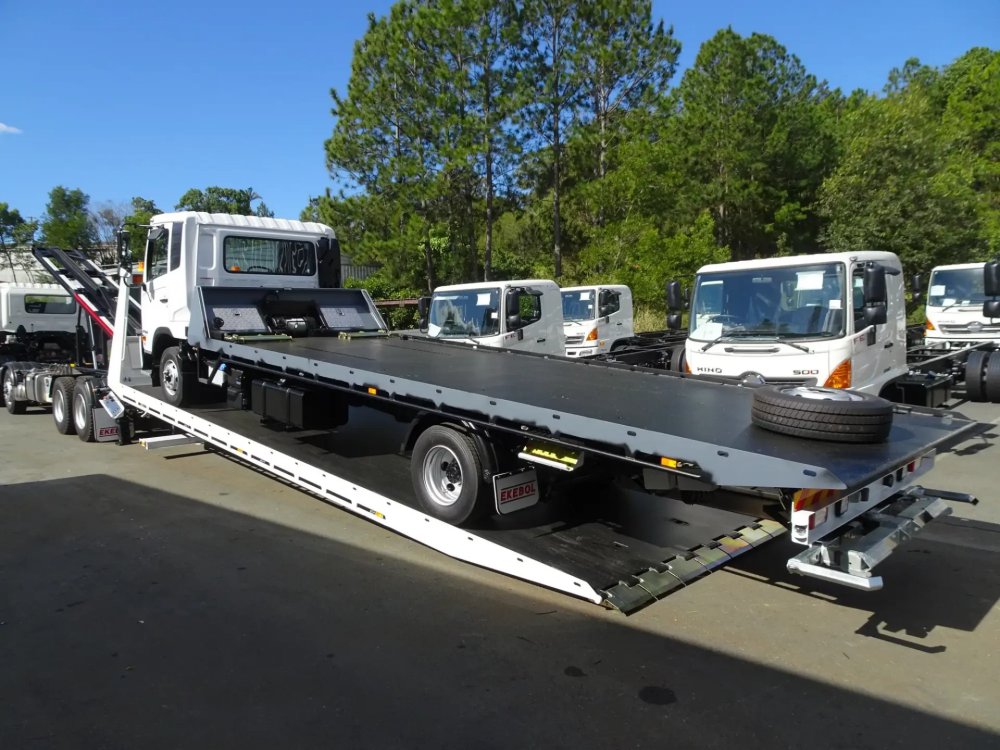

Slide Tray
P520 Mudguards fitted

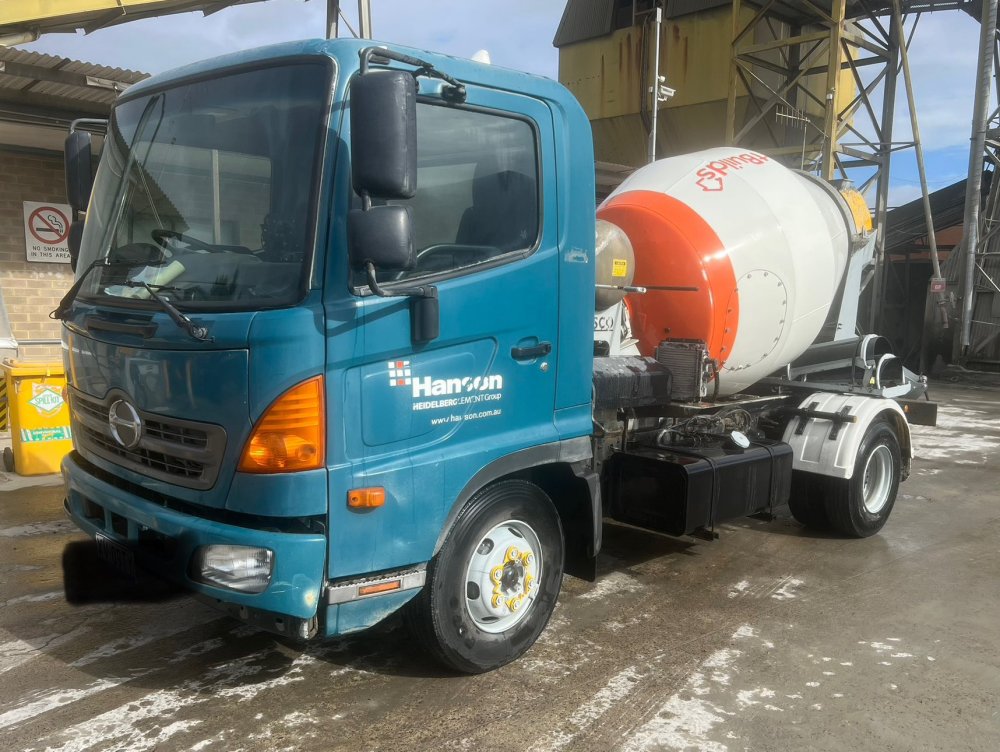

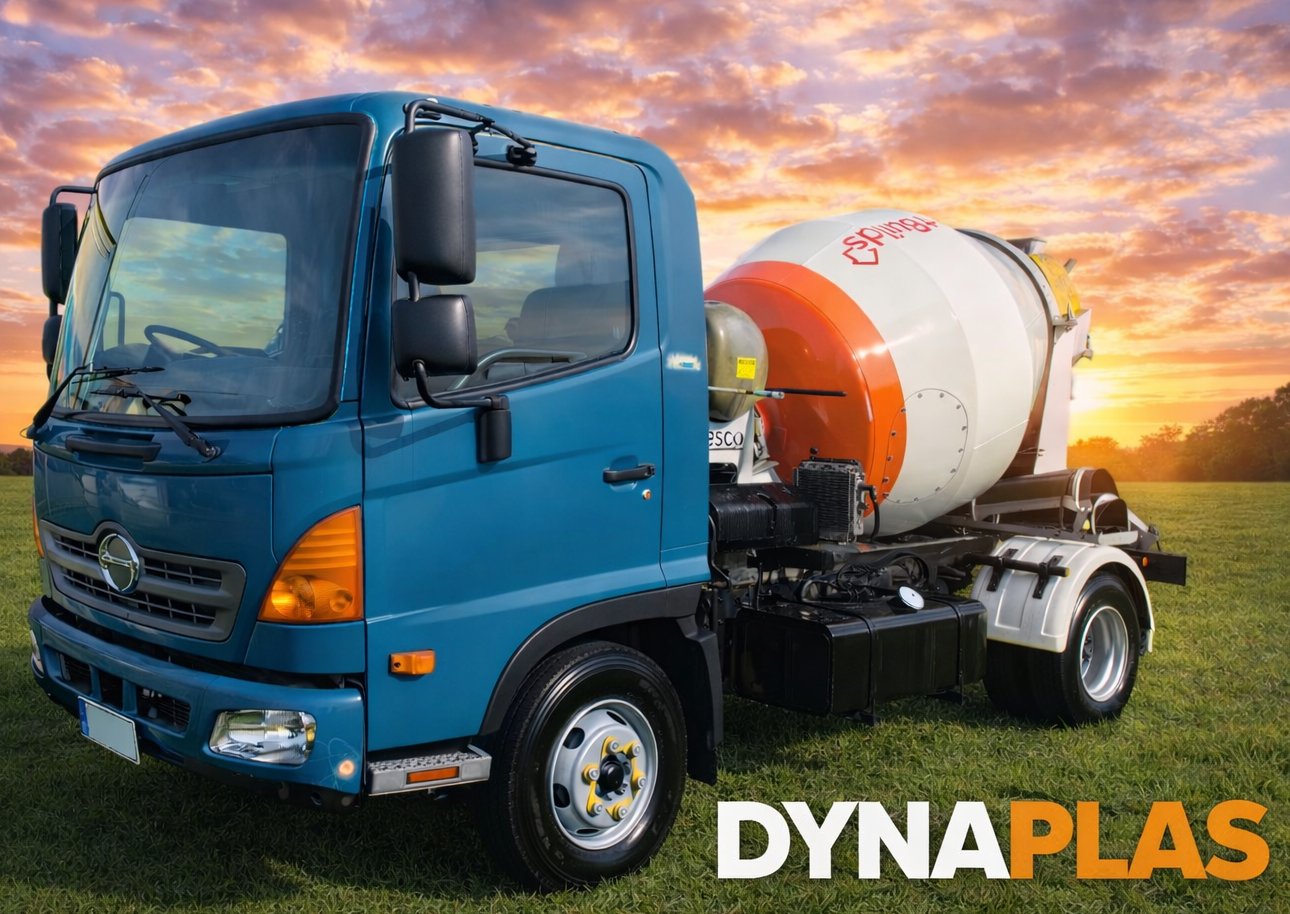

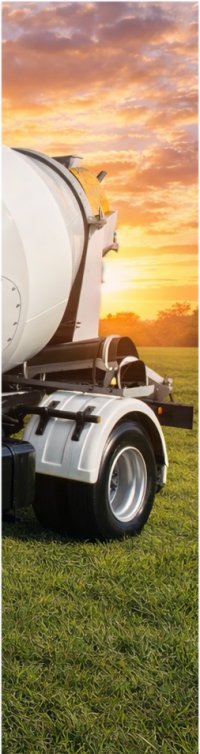

Hansen Mixer
P520 Mudguards fitted

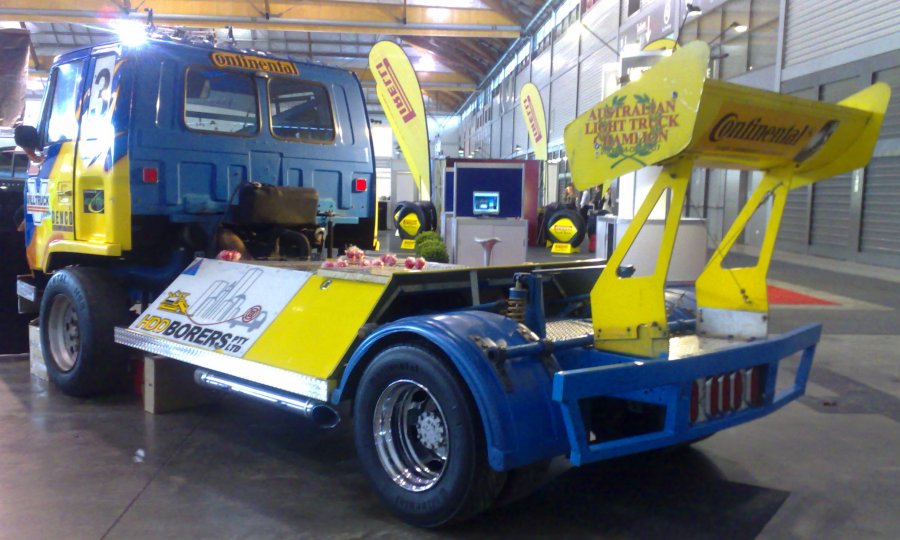

Race Truck with
P520 Mudguards fitted

Ridgid Truck Body fitted
with P520 Mudguards

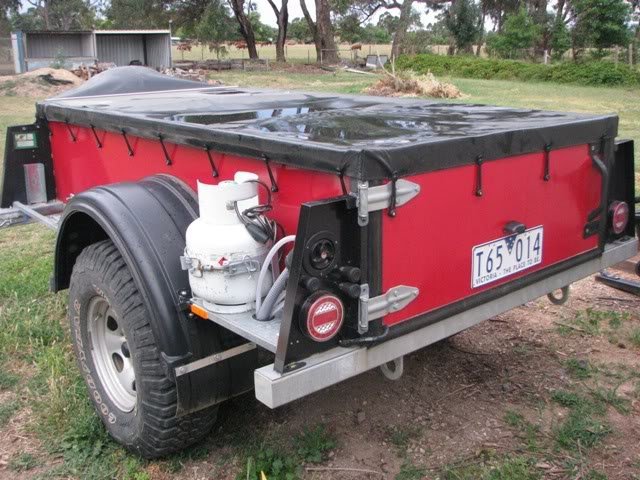

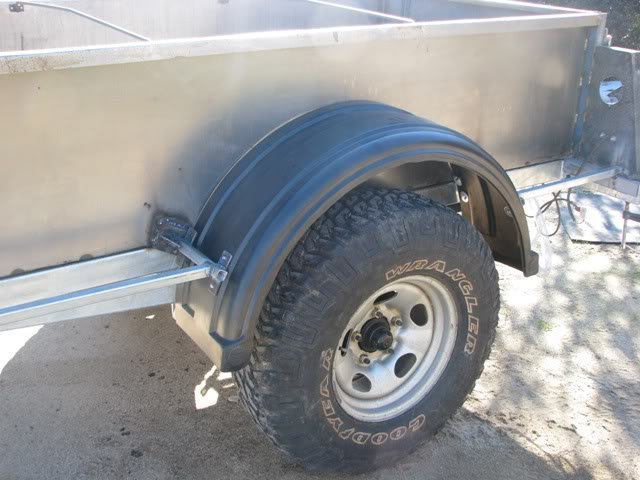

4x4 Trailer
with P520 Mudguards

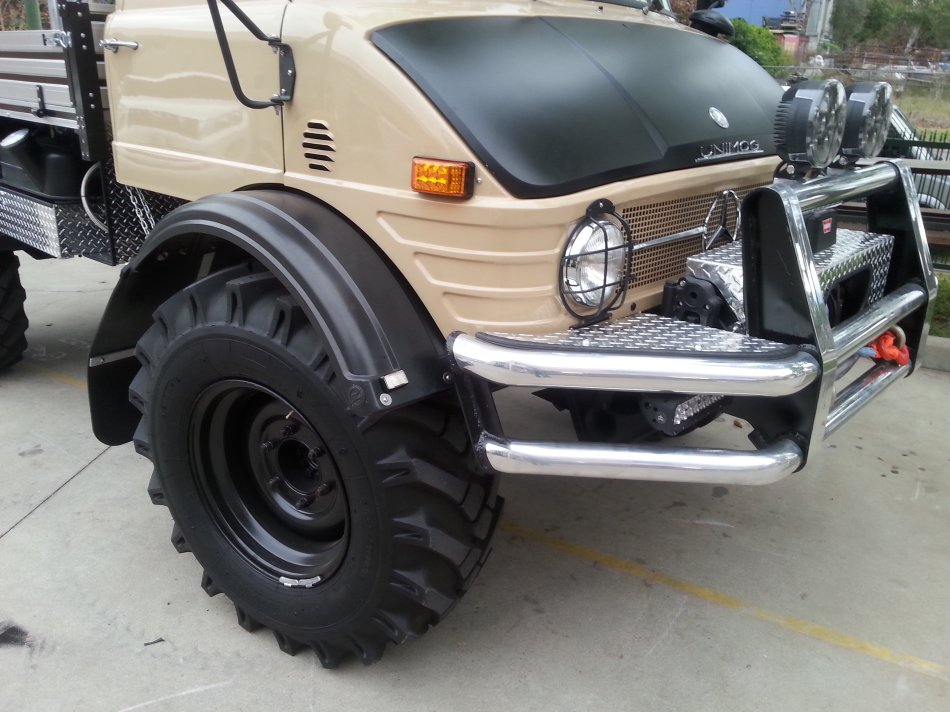

Army 4x4 with P520 Flares

Artwork Images

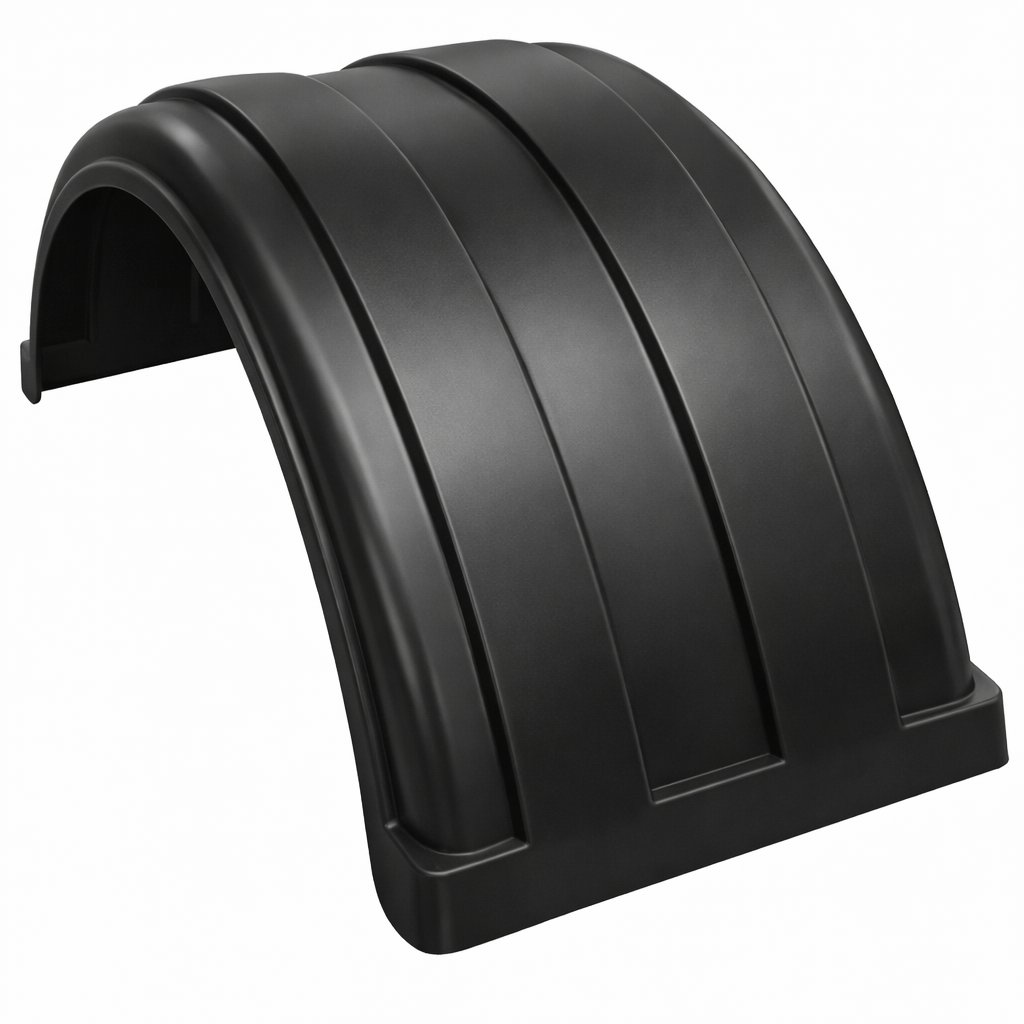

Black - Mudguard

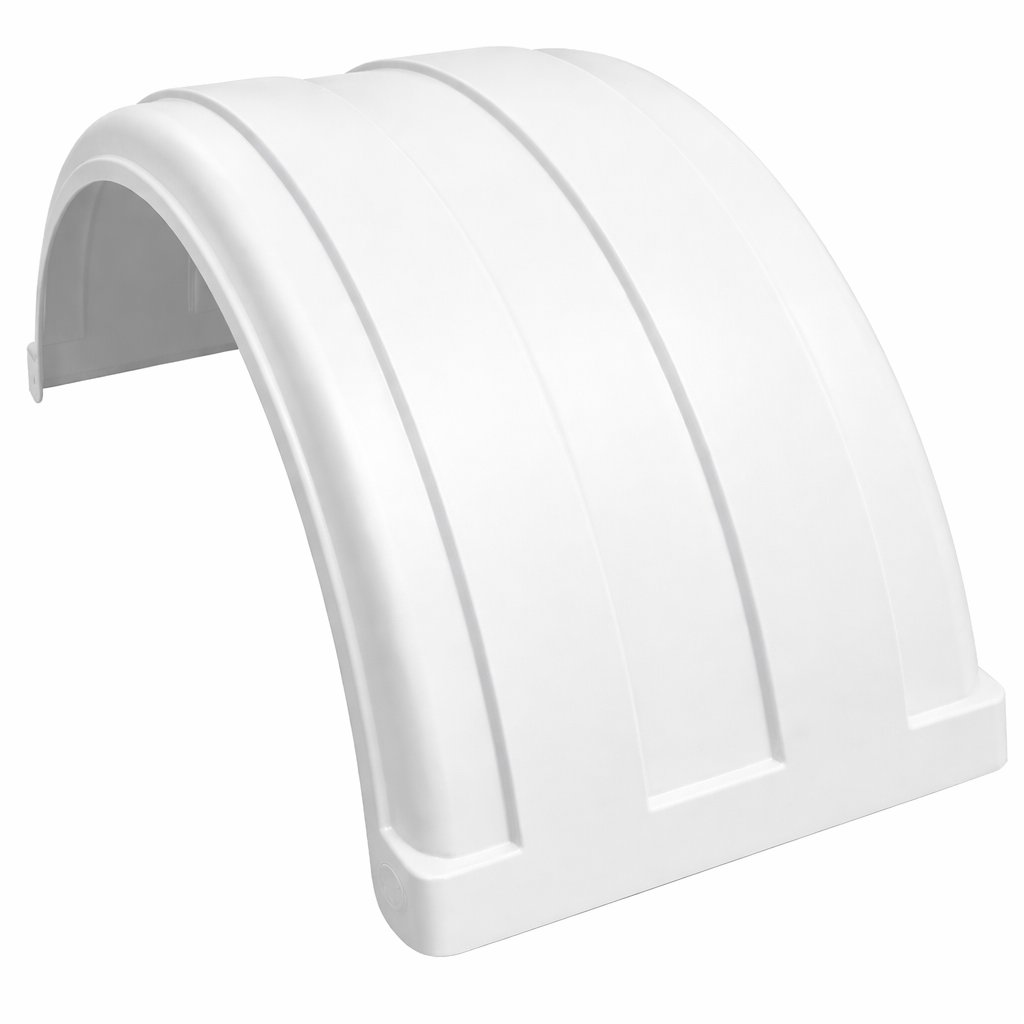

White - Mudguard

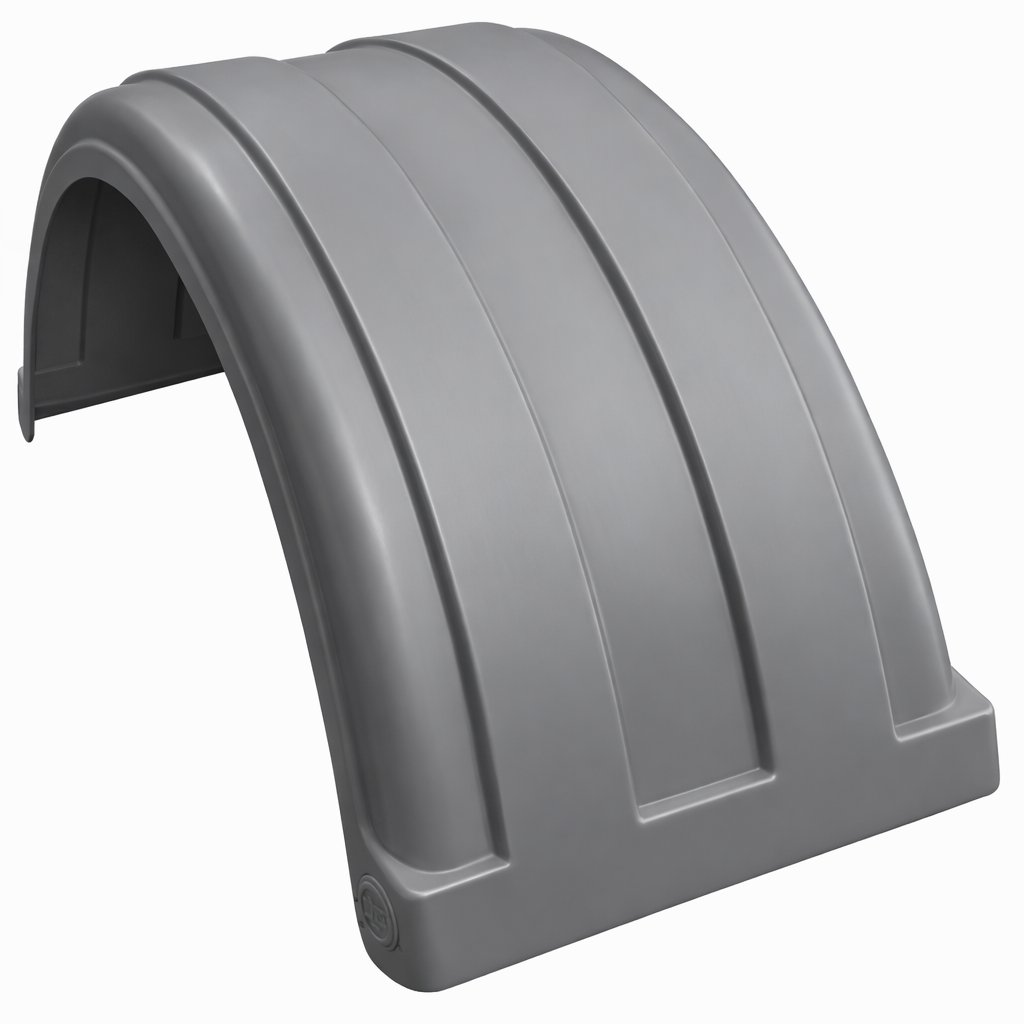

Grey - Mudguard

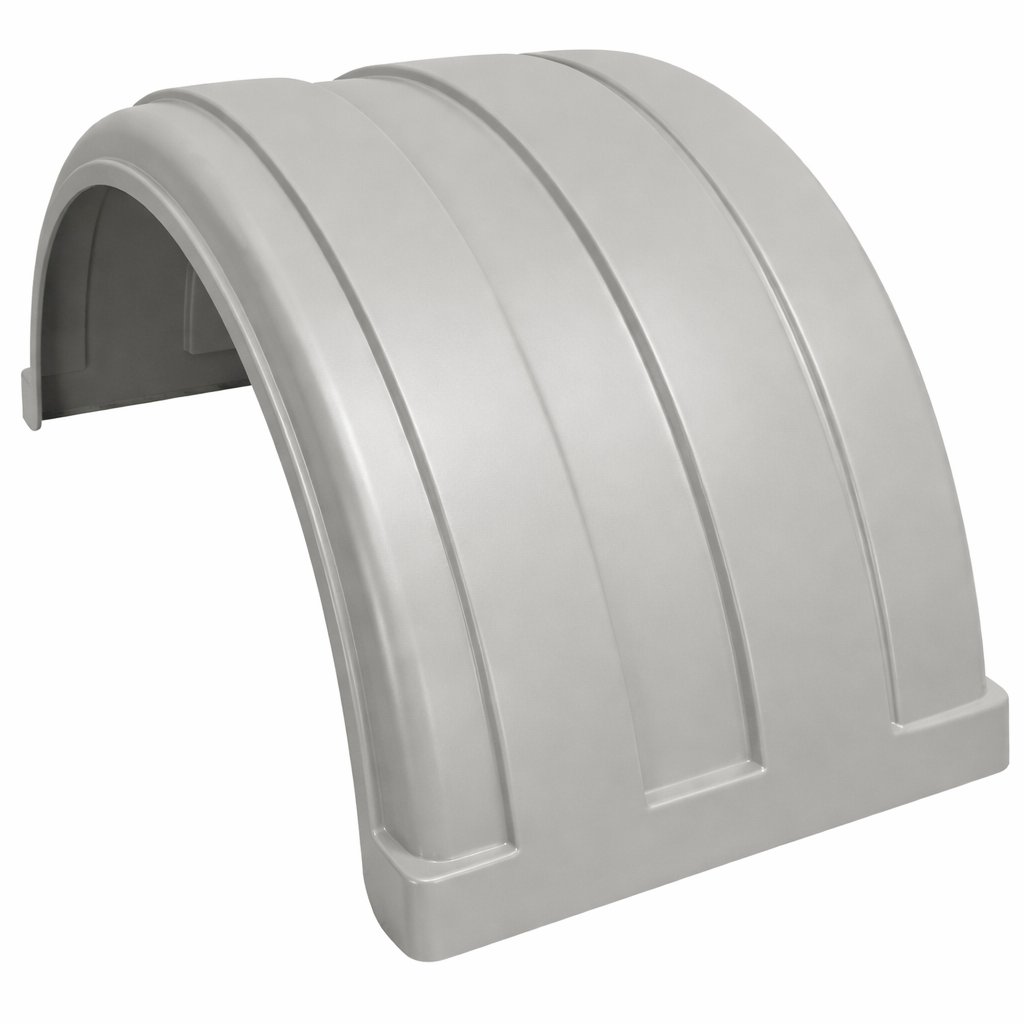

Silver - Mudguard

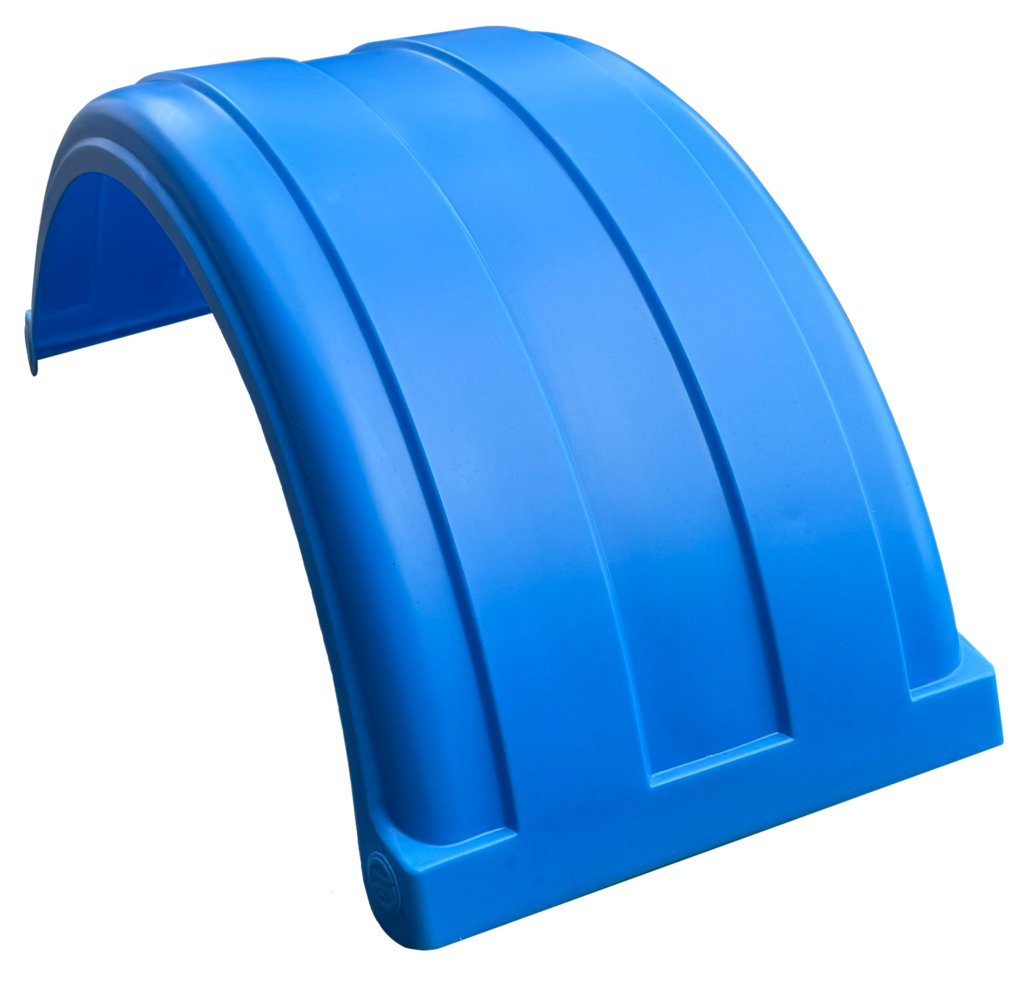

Light Blue - Mudguard

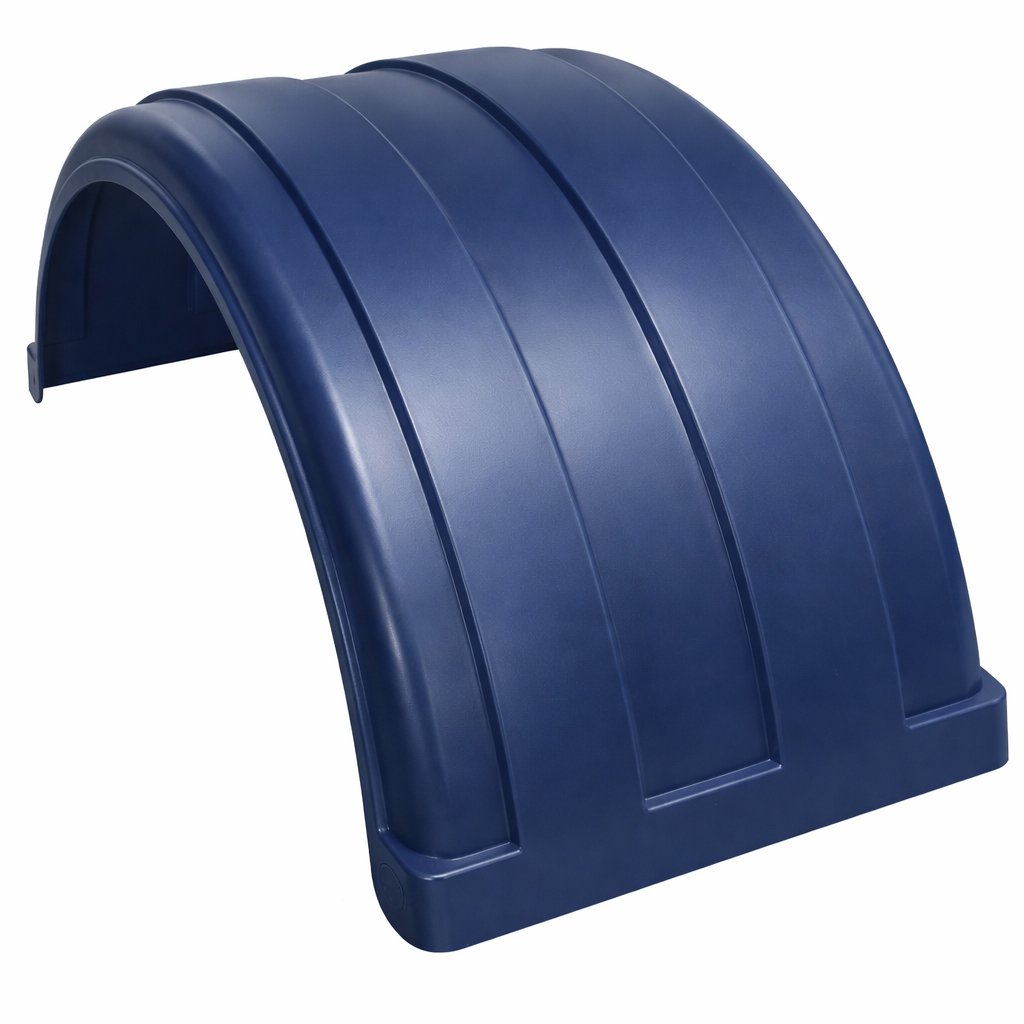

Dark Blue - Mudguard

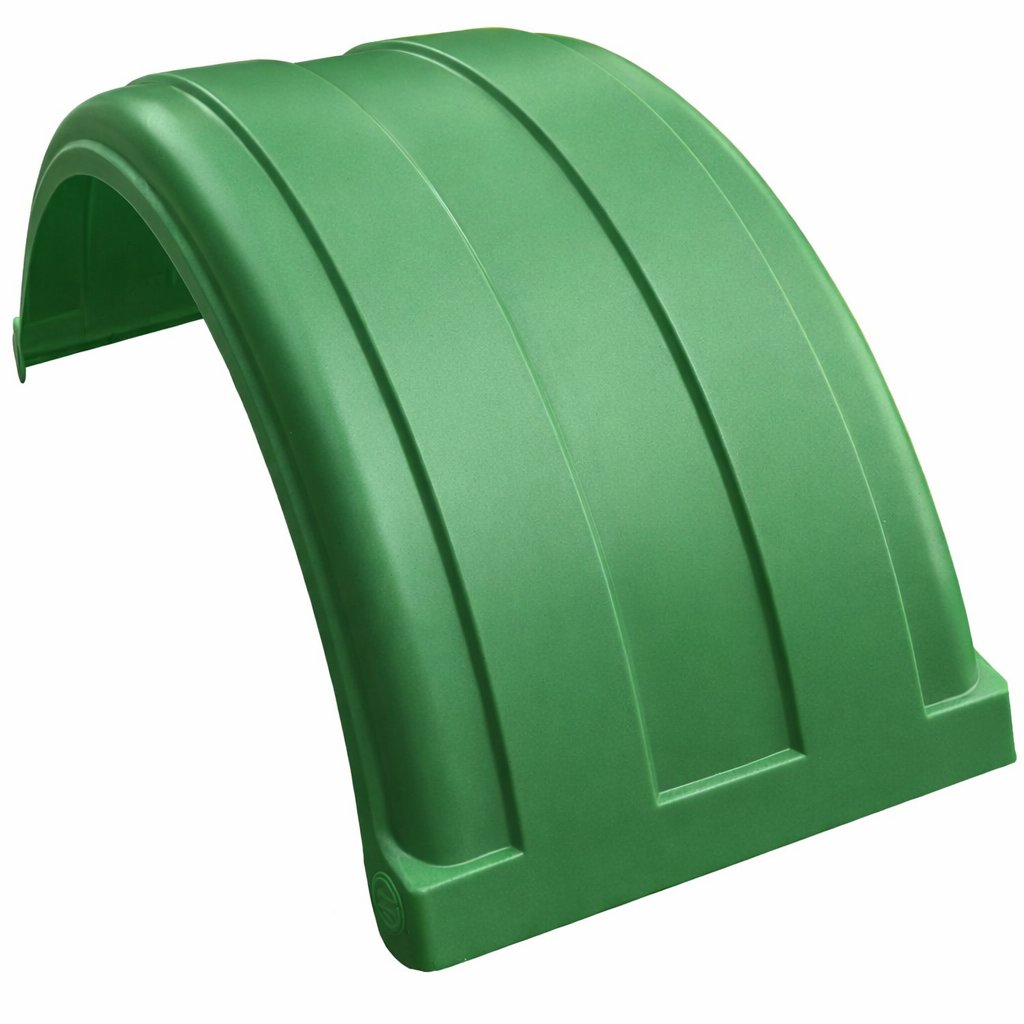

Dark Green - Mudguard

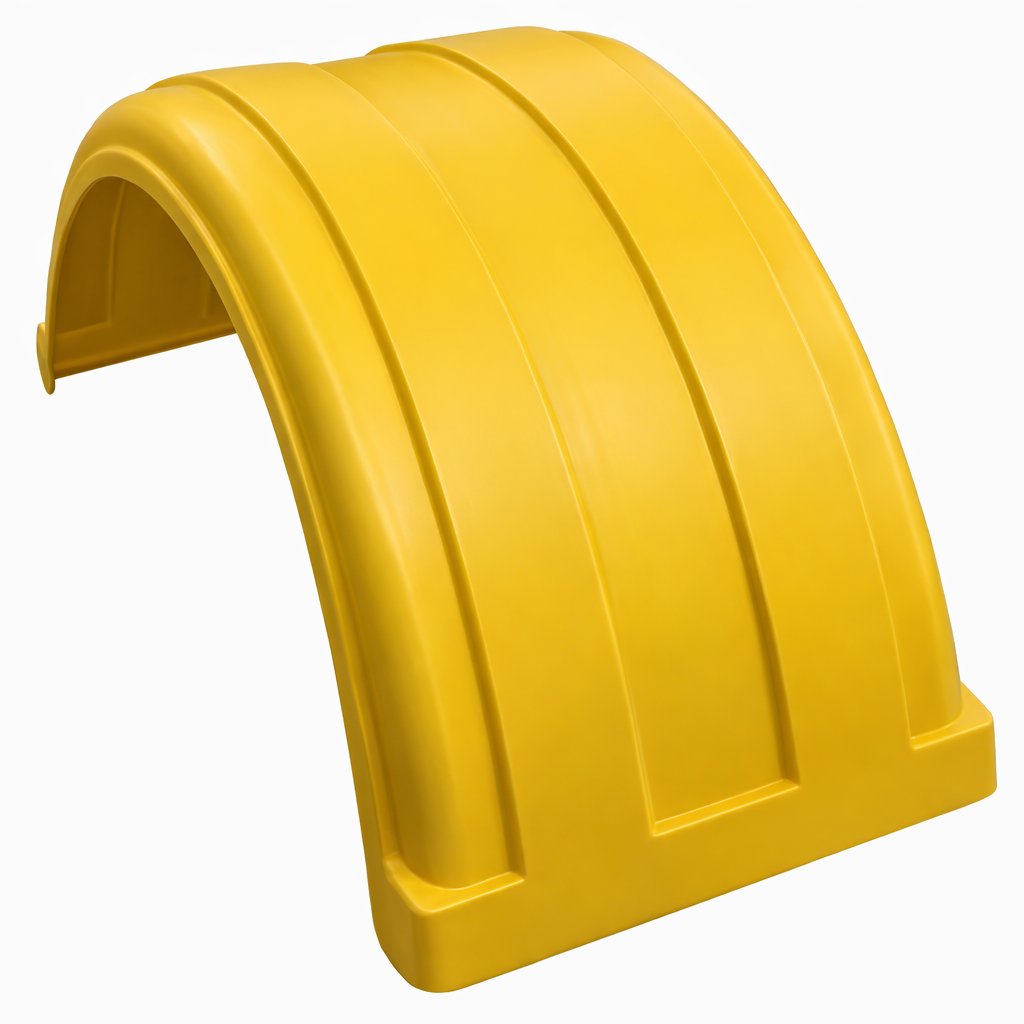

Yellow - Mudguard

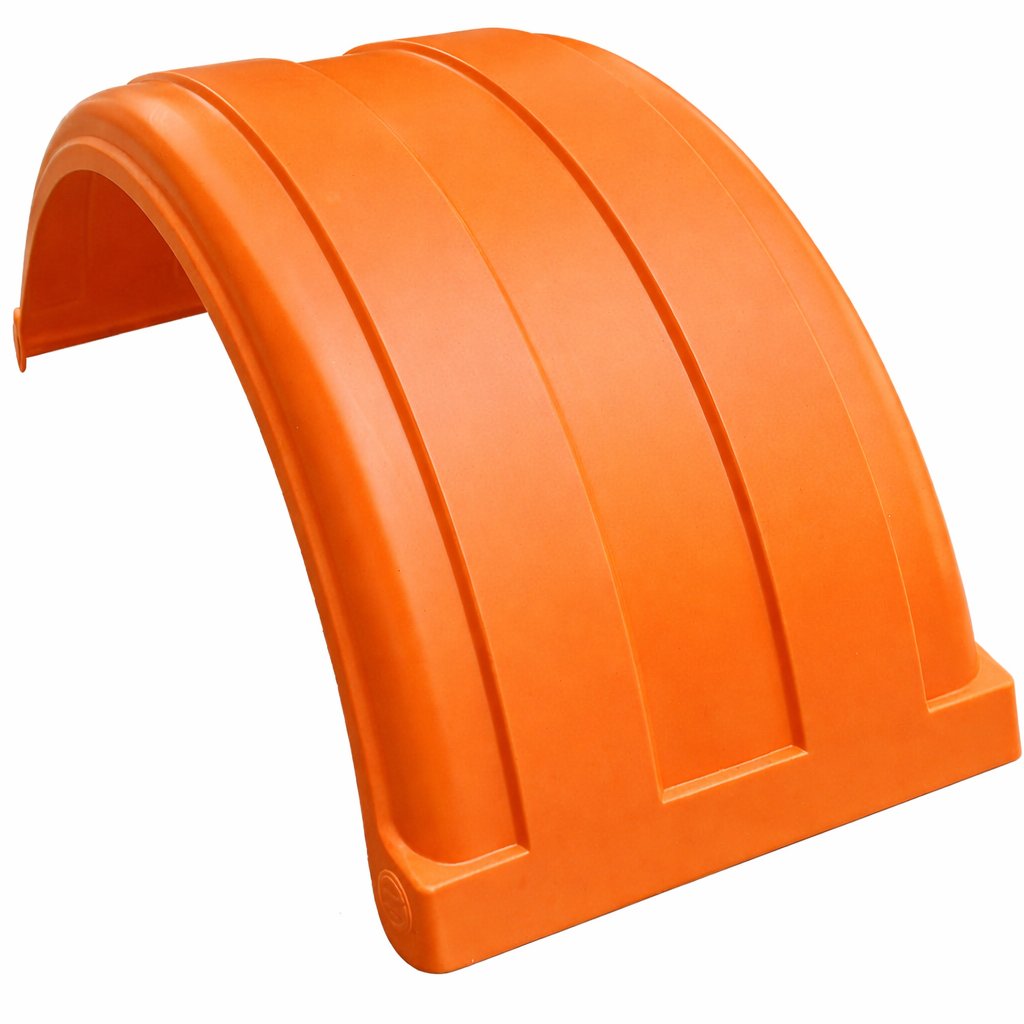

Orange - Mudguard

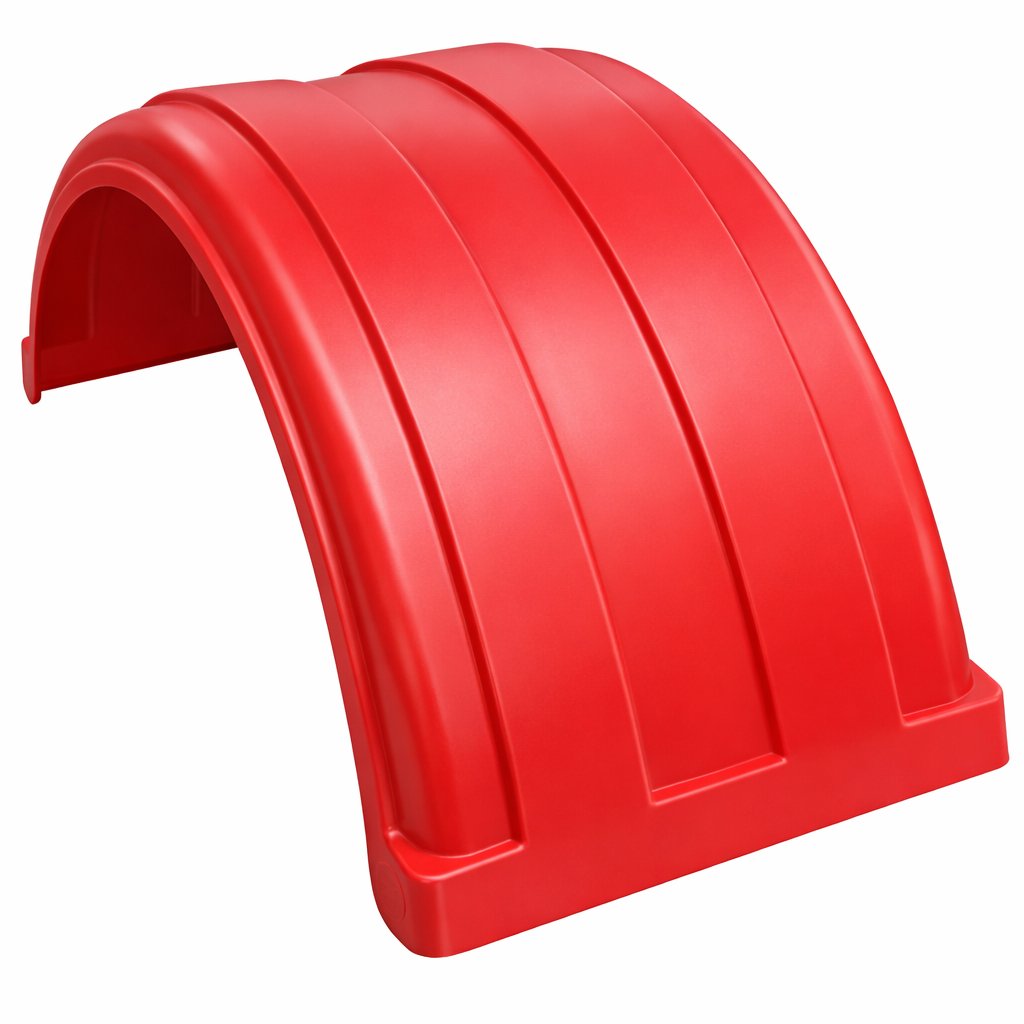

Red - Mudguard

NSW - 02 9627 5944 QLD - 07 5324 1557 Email

Truck Products

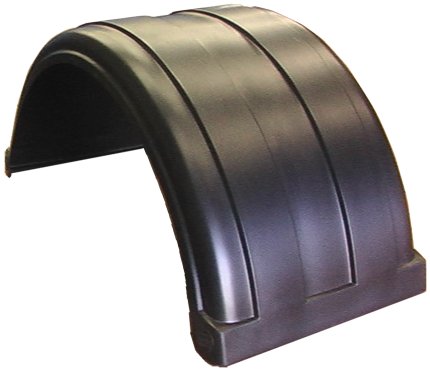

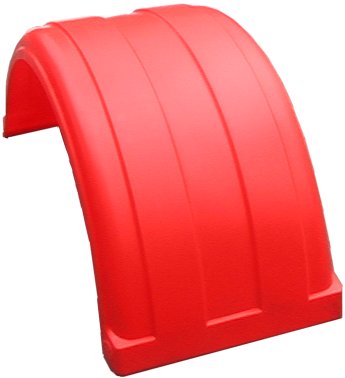

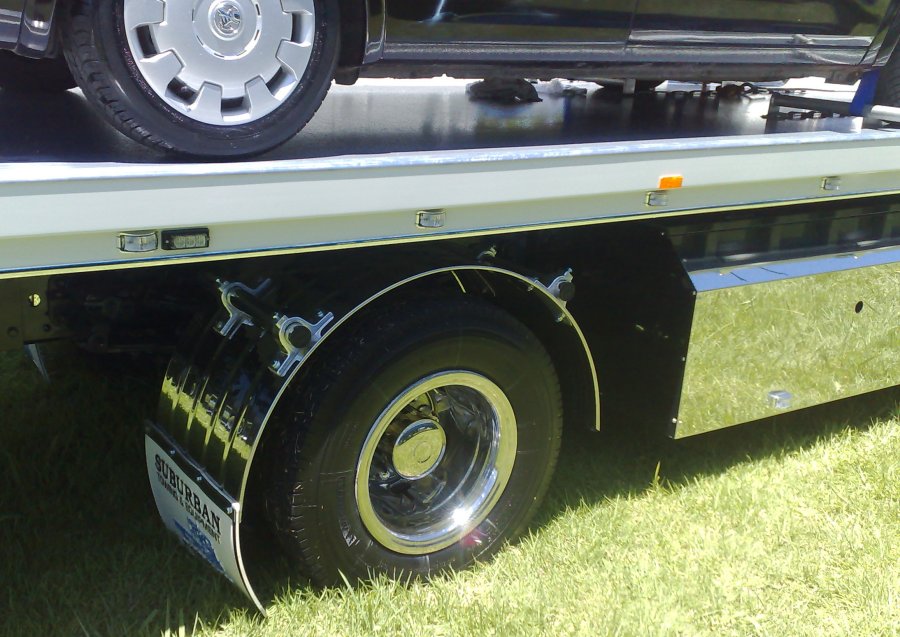

P520 LIGHT TRUCK POLYETHYLENE MUDGUARD

The Dynaplas P520 Light Truck Mudguard is designed for light trucks fitted with 16 inch wheels including tilt trays, slide trays, tow trucks, service bodies and custom vehicles. Manufactured in Australia from high quality UV stabilised polyethylene, the P520 mudguard provides excellent durability while remaining lightweight and easy to install.

Unlike traditional steel mudguards, the Dynaplas polyethylene mudguard will not rust or corrode and maintains its colour and strength even in harsh Australian conditions. The impact resistant design protects the vehicle from stones and road debris while maintaining a clean professional appearance.

The P520 mudguard is widely used throughout the towing and transport industry and is also popular on custom trucks, trailers and off-road vehicles. Available in a wide range of colours, it allows operators to match their vehicle colour scheme while benefiting from a long lasting corrosion free mudguard solution.

Specifications

Part Number: P520
Material: UV stabilised high density polyethylene (HDPE)
Designed to suit 16 inch light truck wheels
Weight: approximately 4.0 kg each
Suitable for tilt trays, slide trays and tow trucks
Compatible with spray suppressant systems
Available in multiple standard colours
Manufactured in Australia

Benefits

Will not rust or corrode like steel mudguards
UV stabilised material prevents fading and cracking
Lightweight design makes installation easy
Extremely impact resistant against stones and road debris
Professional appearance for transport and towing fleets
Long service life in harsh Australian environments
Ideal replacement for damaged or corroded metal mudguards

Truck mudguard and mudguard brackets - Price List Click Here
Reseller, original equipment manufacturers, fleet and trade
please contact us for your discount Ph 02 9627 5944

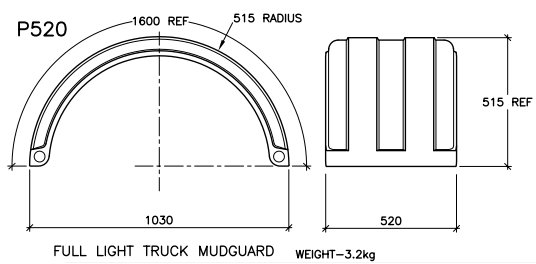

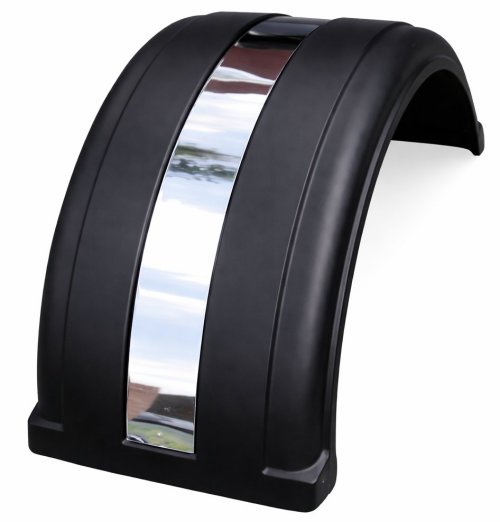

P520 Light Truck Plastic Mudguard Drawing

Description
Dual Wheel Light Truck
Dual Wheel Light Truck
Dual Wheel Light Truck
Dual Wheel Light Truck
Dual Wheel Light Truck
Dual Wheel Light Truck
Dual Wheel Light Truck
Dual Wheel Light Truck
Dual Wheel Light Truck
Dual Wheel Light Truck

Colour
Black
Silver
Grey
White
Red
Light Blue
Dark Blue
Dark Green
Orange
Yellow

Part
P520BK 1
P520SL 1
P520GY 1
P520WH 1
P520RD 1
P520BU 1
P520BU 2
P520GN 2
P520OR 2
P520YL 1

P630 Truck Mudguard fits Semitrailers and Prime Movers

Description
Chassis Pole
Hanger Bracket

Web page
More info
More info

Part Number
CM-OS
BK-P180

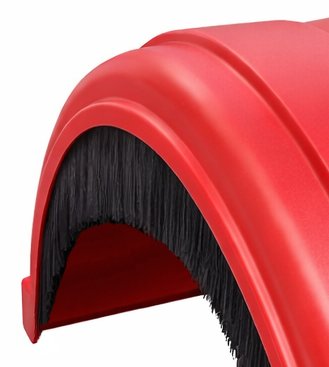

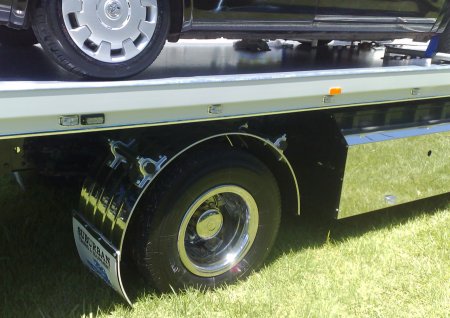

Spray Suppressant Fitment
Spray suppressant can be fitted to the P520 light truck mudguard to help reduce tyre spray and improve visibility for vehicles travelling behind in wet road conditions. The flexible suppressant material follows the shape of the mudguard arch and provides effective spray control while maintaining a clean and professional installation.

For correct installation we recommend using flexible 75mm spray suppressant measuring approximately 1.35 metres in length. The suppressant is mounted to the inside edge of the mudguard using mounting clips and rivets to ensure a secure and durable fitment suitable for highway and heavy-duty use.

Parts Required:

Flexible 75mm Spray Suppressant x 1.35m – PART # FIL-075F
Mounting Clips – 7 required – PART # CLIP-HA-1
Fixing Rivets – PART # RIVET-440

Installing the spray suppressant using the recommended clips and rivets ensures the material stays firmly in place while allowing the mudguard to flex during normal vehicle operation. This provides a reliable solution for reducing road spray while maintaining the durability and appearance of the P520 mudguard.

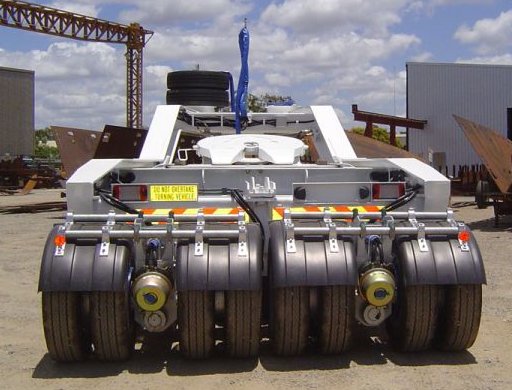

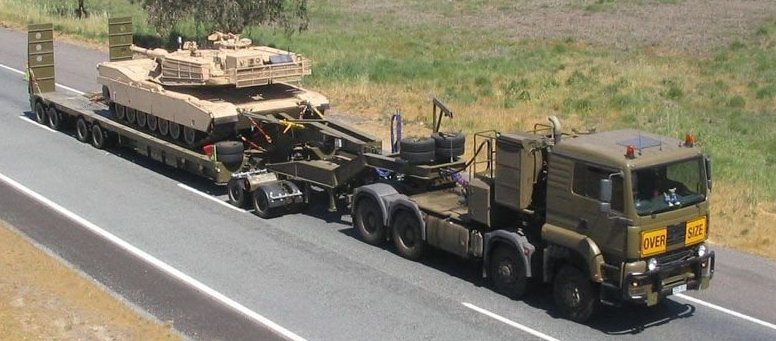

P520 Mudguard for Low Loader Dolly Applications
The P520 light truck mudguard can be adapted for use on Low Loader Dolly axle groups to provide reliable tyre coverage and spray control in heavy transport applications. When mounted using suitable brackets or chassis support tubes, the P520 offers a lightweight and durable mudguard solution for dolly setups used to tow semi trailers carrying oversized loads such as machinery or military vehicles including tanks. Manufactured from tough polyethylene, the P520 is resistant to corrosion, cracking, and impact damage, making it well suited to demanding haulage environments while maintaining a clean and professional appearance.

Shipping Size and Weight Estimates

Qty	Length	Width	Height	Weight	Cubic Measurment
1 x P520	105cm	55cm	60cm	3.5kg	0.35 mtr
2 x P520	105cm	55cm	65cm	7kg	0.37 mtr
3 x P520	105cm	55cm	70cm	10.5kg	0.40 mtr
4 x P520	105cm	55cm	75cm	14kg	0.43 mtr
5 x P520	105cm	55cm	80cm	17.5kg	0.46 mtr
6 x P520	105cm	55cm	85cm	21kg	0.49 mtr
7 x P520	105cm	55cm	90cm	24.5kg	0.52 mtr
8 x P520	105cm	55cm	95cm	28kg	0.55 mtr
9 x P520	105cm	55cm	100cm	31.5kg	0.58 mtr
10 x P520	105cm	55cm	105cm	35kg	0.61 mtr
11 x P520	105cm	55cm	110cm	38.5kg	0.64 mtr
12 x P520	105cm	55cm	115cm	42kg	0.67 mtr

Frequently Asked Questions – P520 Light Truck Mudguard

What vehicles is the P520 mudguard designed for?
The P520 light truck mudguard is designed for vehicles fitted with 16 inch wheels including tilt trays, slide trays, tow trucks, service bodies, rigid trucks and custom transport vehicles. It is commonly used throughout the towing and transport industry.

What material is the P520 truck mudguard made from?
The P520 mudguard is manufactured in Australia from high quality UV stabilised high density polyethylene (HDPE). This material is lightweight, extremely impact resistant and will not rust or corrode like traditional steel mudguards.

Will the polyethylene mudguard fade or crack in the sun?
No. The polyethylene used in the Dynaplas P520 mudguard is UV stabilised to withstand harsh Australian weather conditions. This helps maintain colour, strength and durability even with long term outdoor exposure.

Can spray suppressant be fitted to the P520 mudguard?
Yes. Spray suppressant material can be fitted along the inside edge of the P520 mudguard to reduce tyre spray and improve road safety in wet conditions. Dynaplas recommends using flexible 75mm spray suppressant with mounting clips and rivets for a secure installation.

What colours are available for the P520 mudguard?
The P520 mudguard is available in a wide range of standard colours including black, silver, grey, white, red, light blue, dark blue, dark green, orange and yellow. This allows fleets and vehicle builders to match their vehicle colour schemes.

Is the P520 mudguard suitable for heavy transport applications?
Yes. While designed for light truck wheels, the P520 mudguard is strong and versatile and can also be adapted for specialised applications such as low loader dollies, custom trailers and off road transport equipment.

Are Dynaplas truck mudguards made in Australia?
Yes. Dynaplas truck mudguards are proudly manufactured in Australia using high quality polyethylene materials. Local manufacturing ensures consistent quality and reliable supply for transport operators, fleets and equipment manufacturers.
