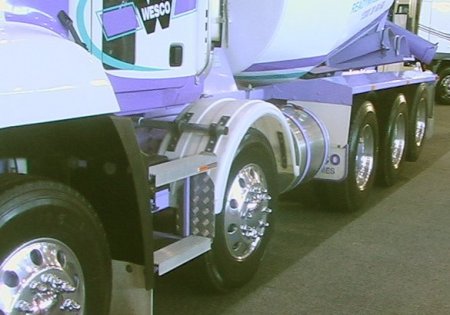

Mudguard - Click to Enlarge

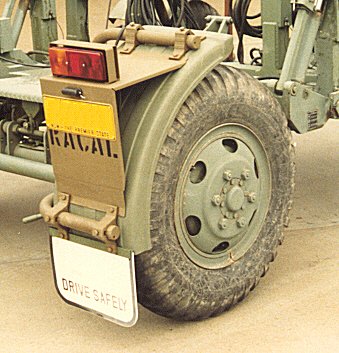

Mudguard - Click to Enlarge

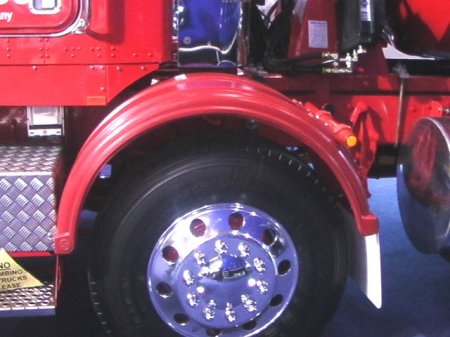

Mudguard - Click to Enlarge

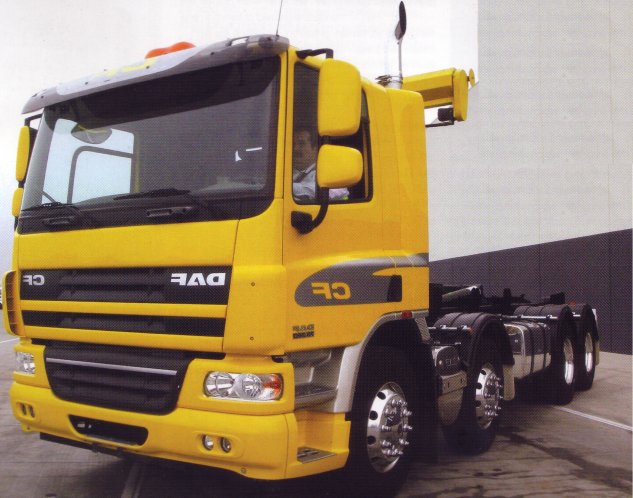

Mudguard - Click to Enlarge



Mudguard - Click to Enlarge

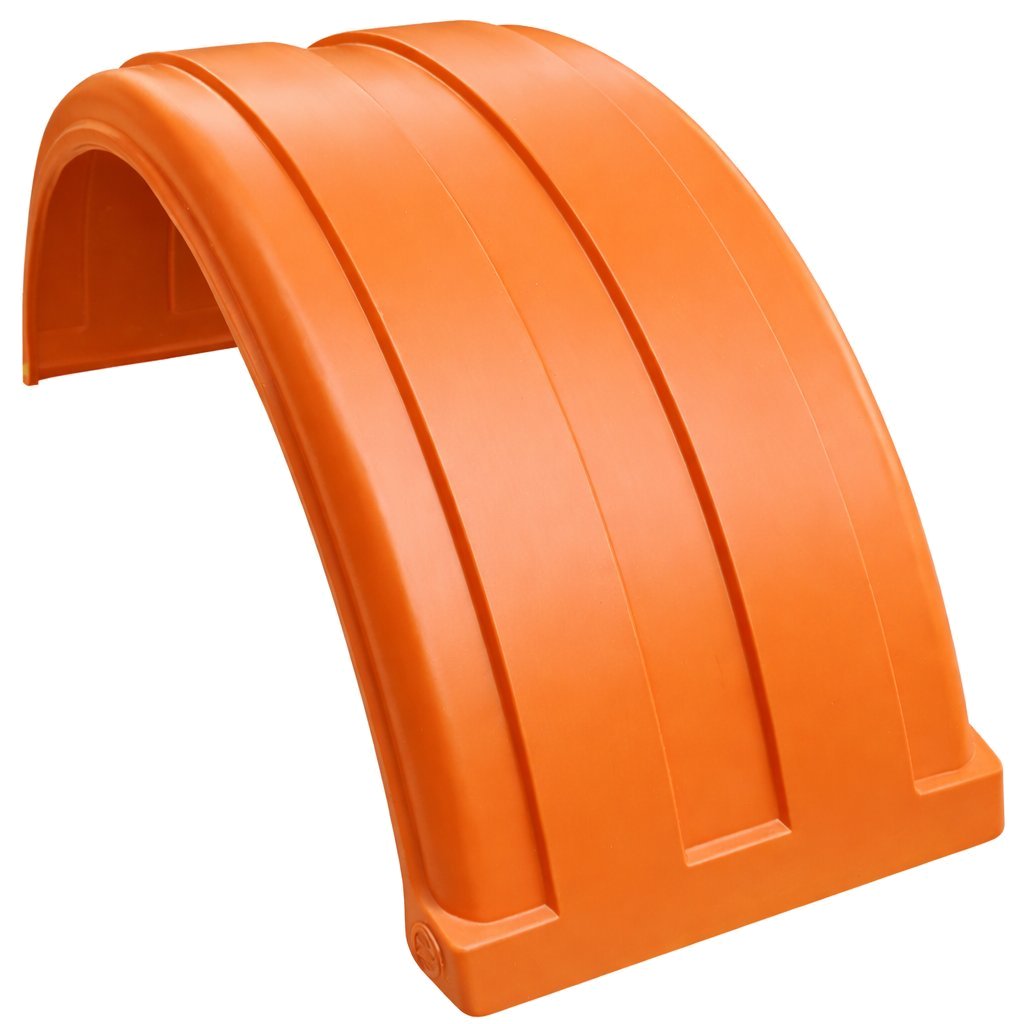

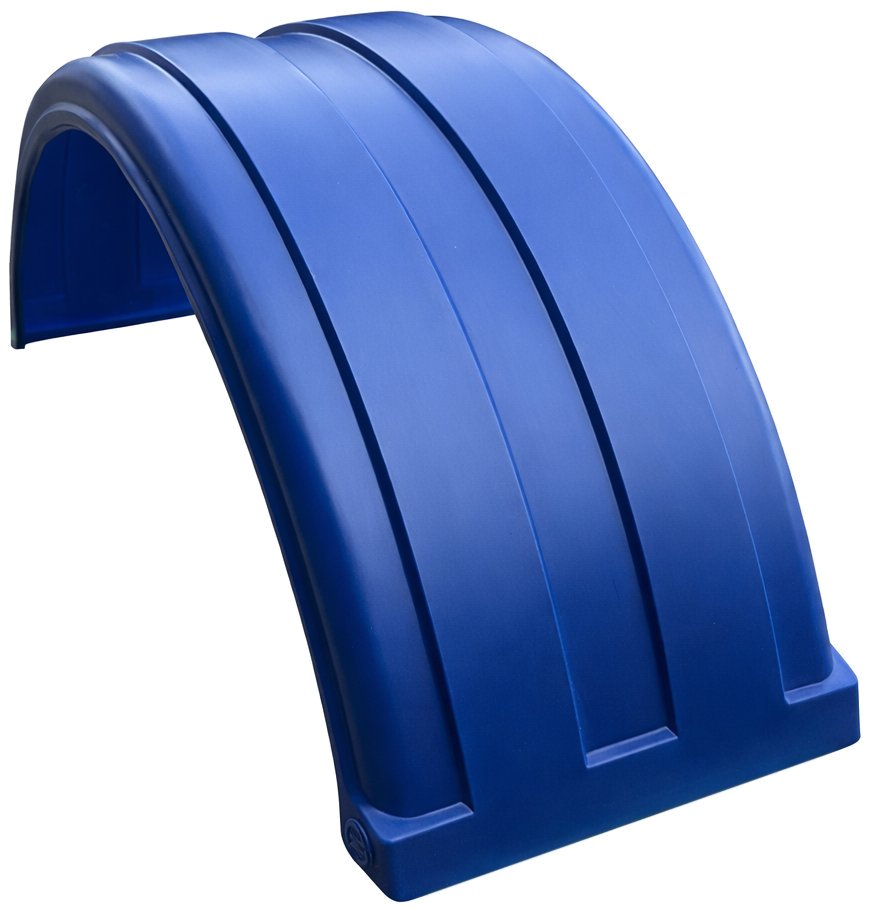

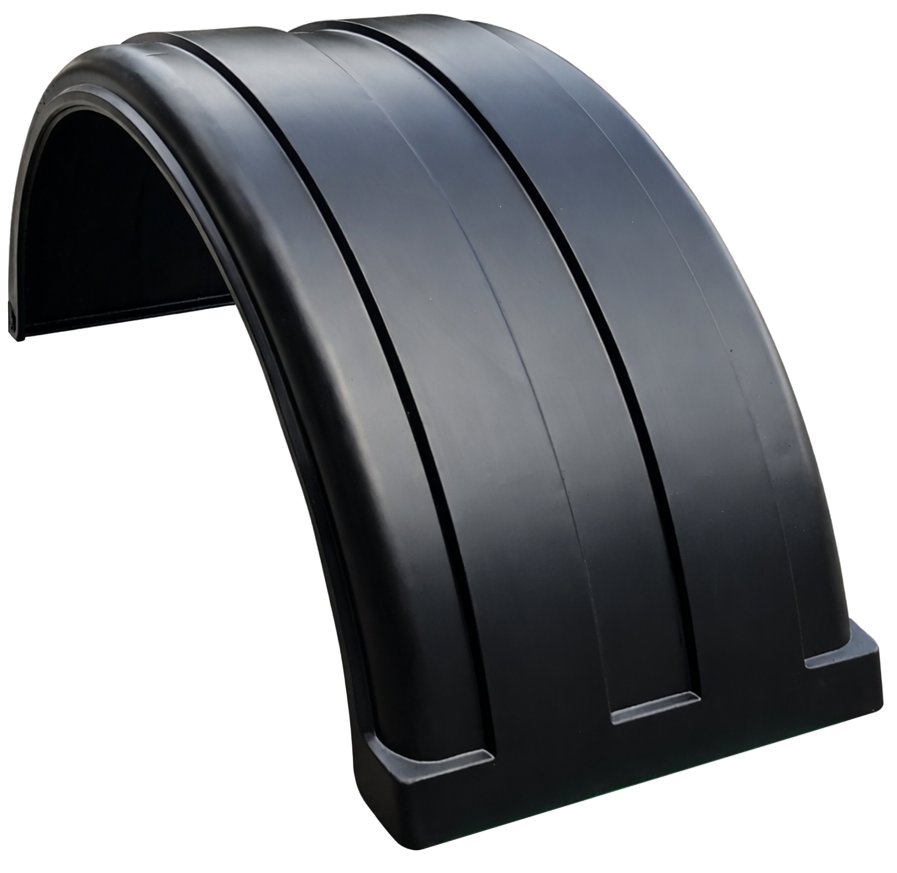

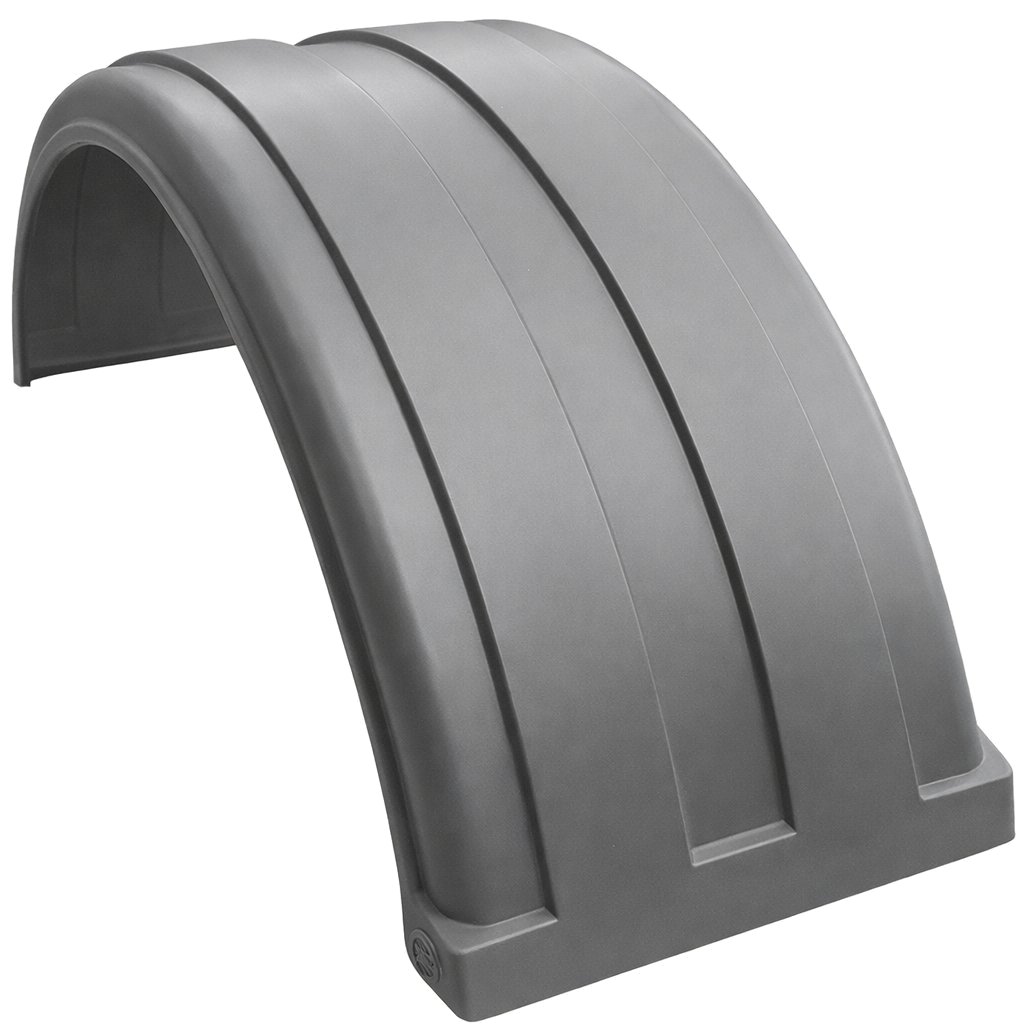

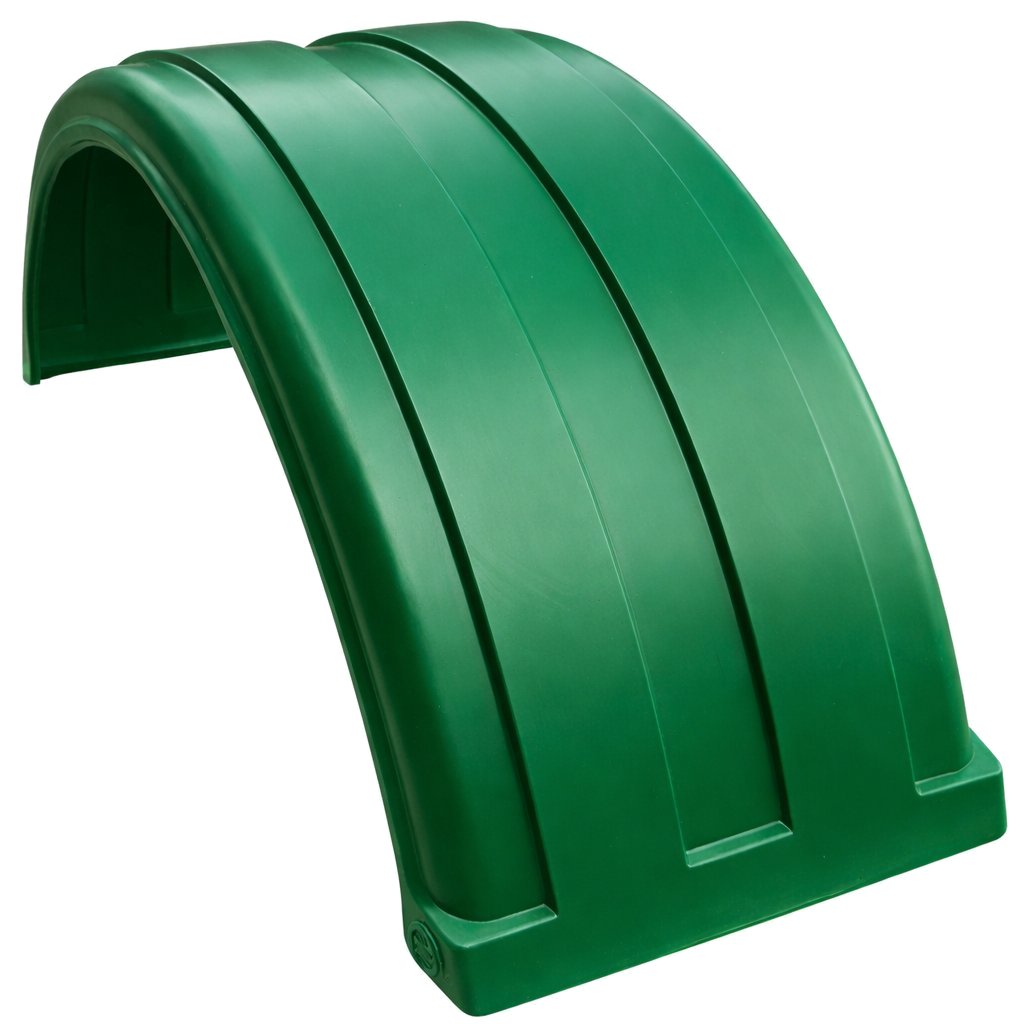

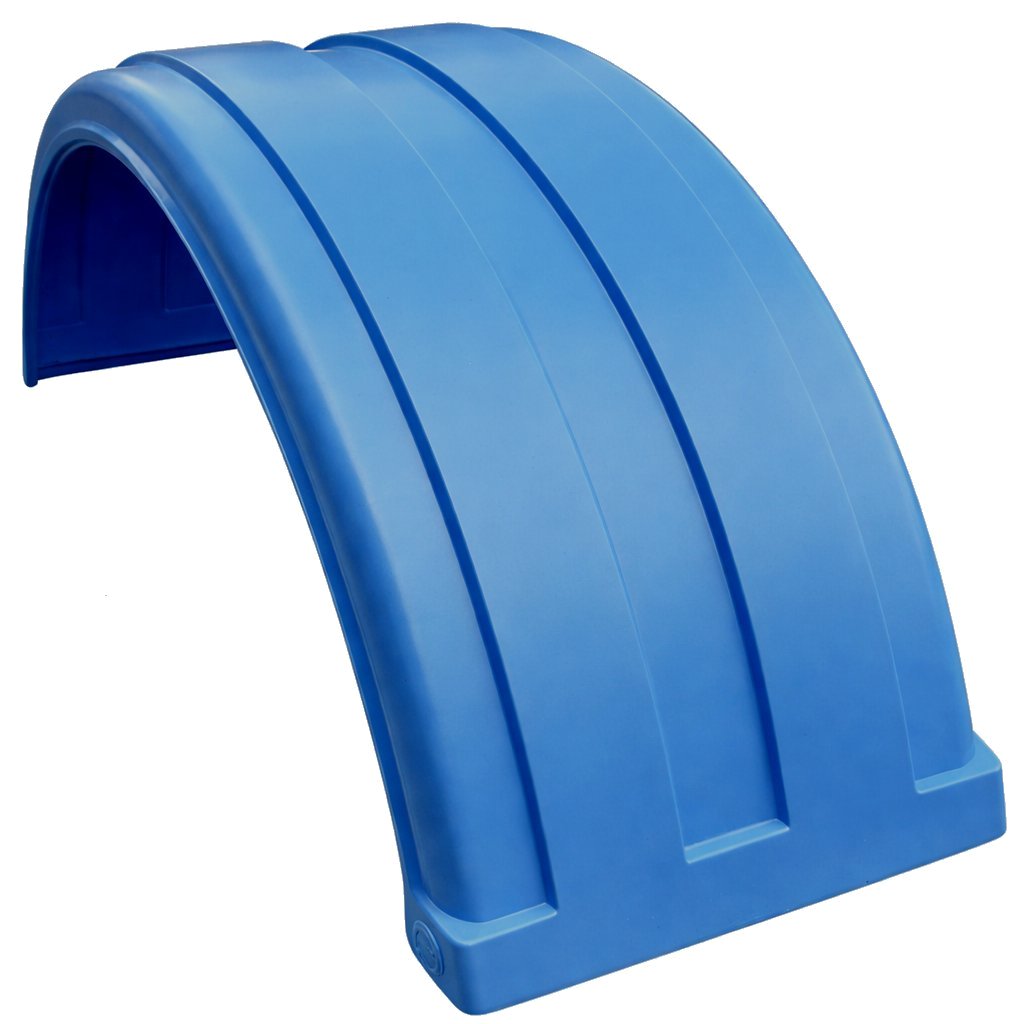

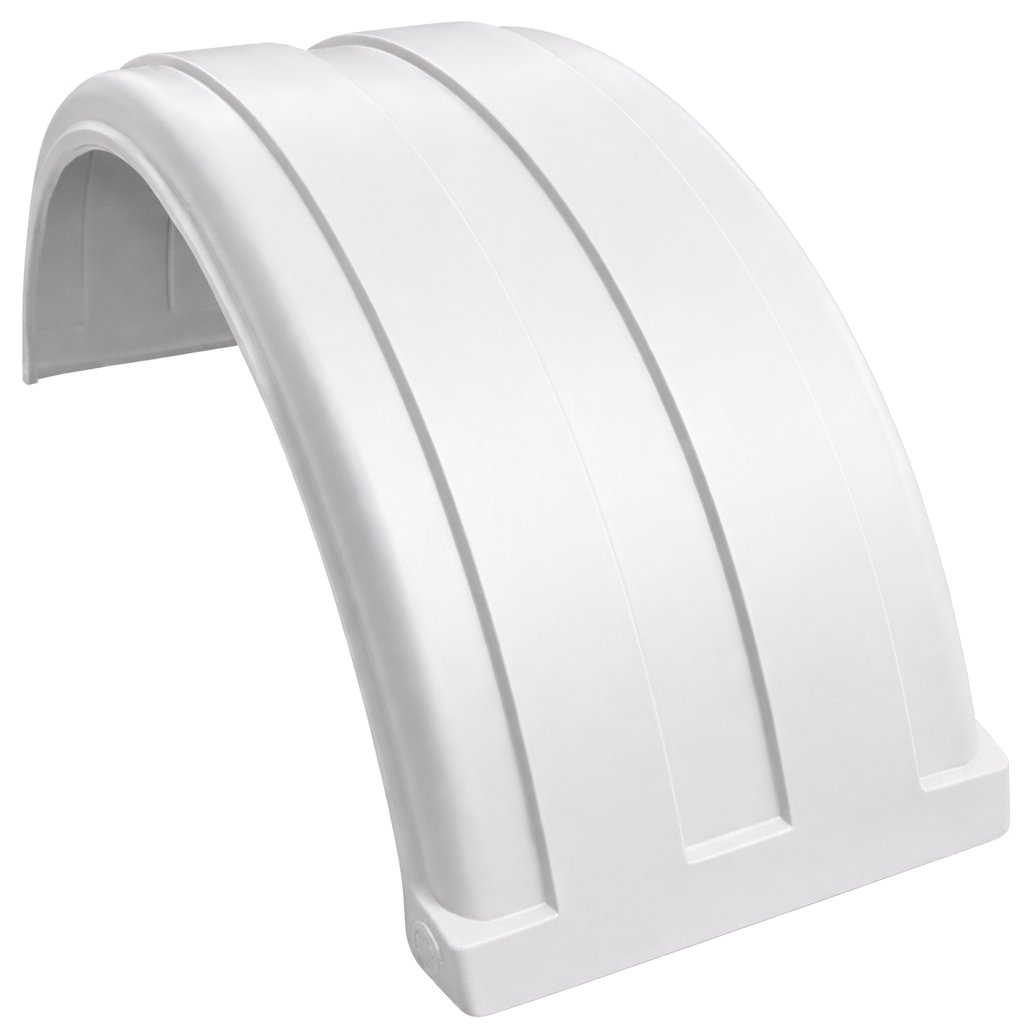

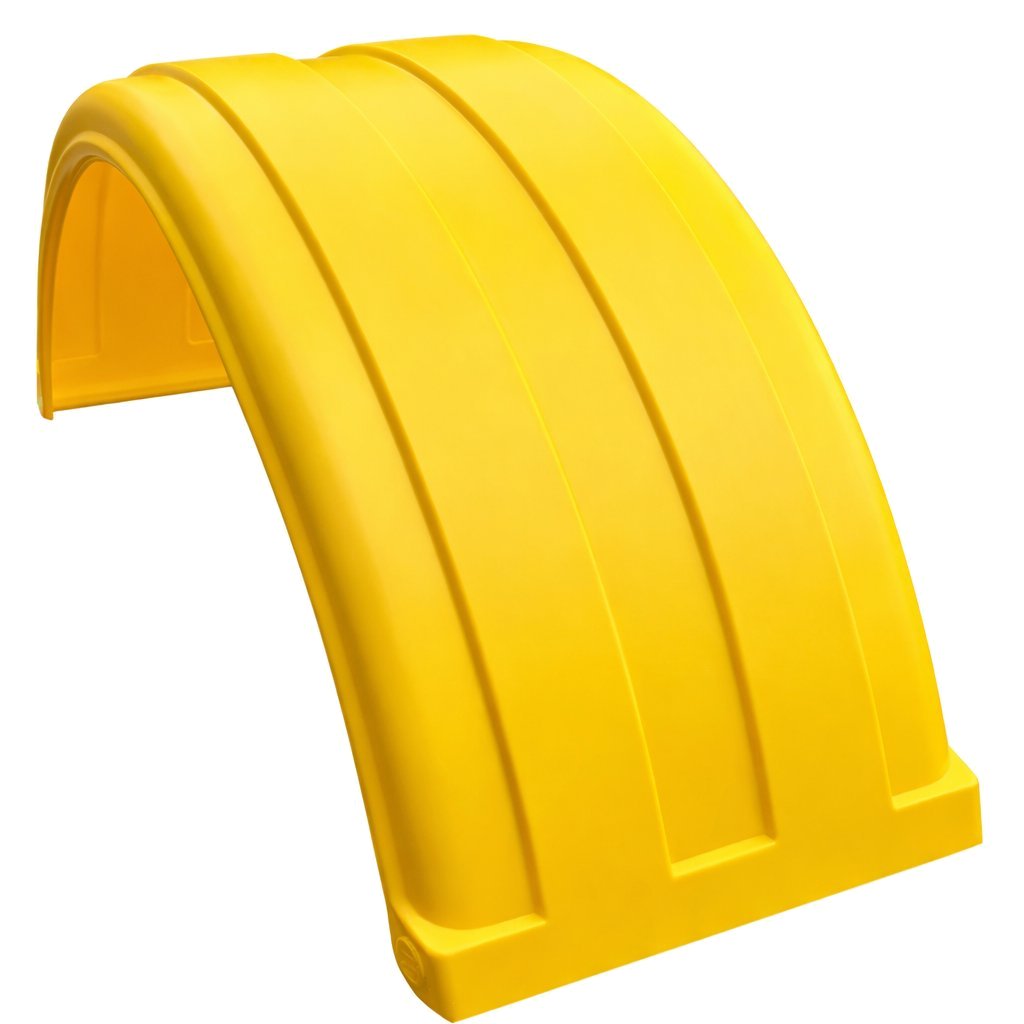

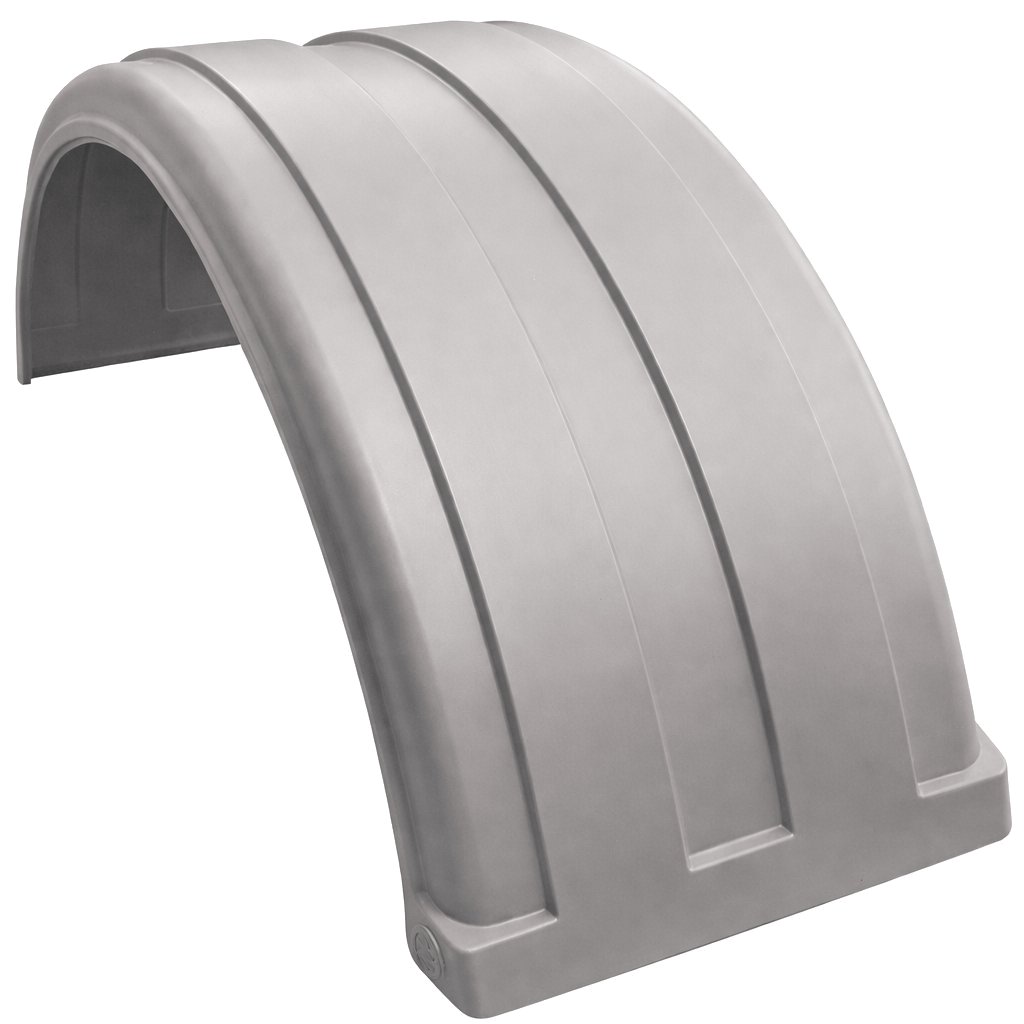

POLYETHYLENE TRUCK MUDGUARD
SUPER SINGLE

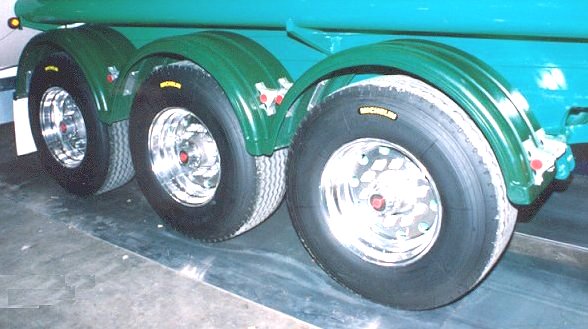

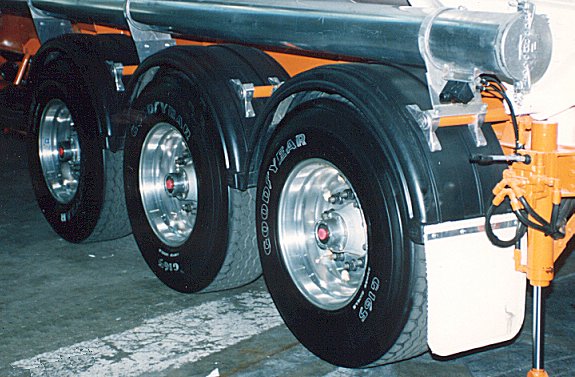

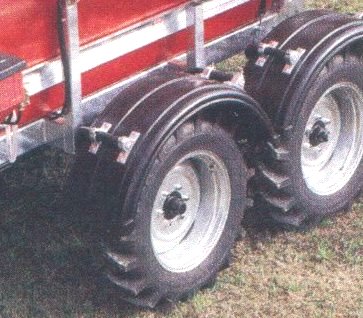

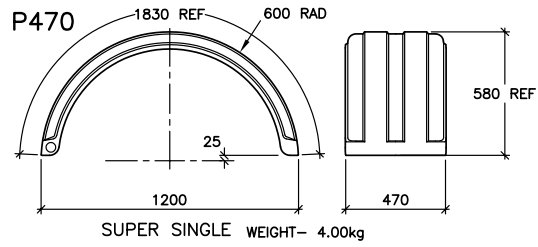

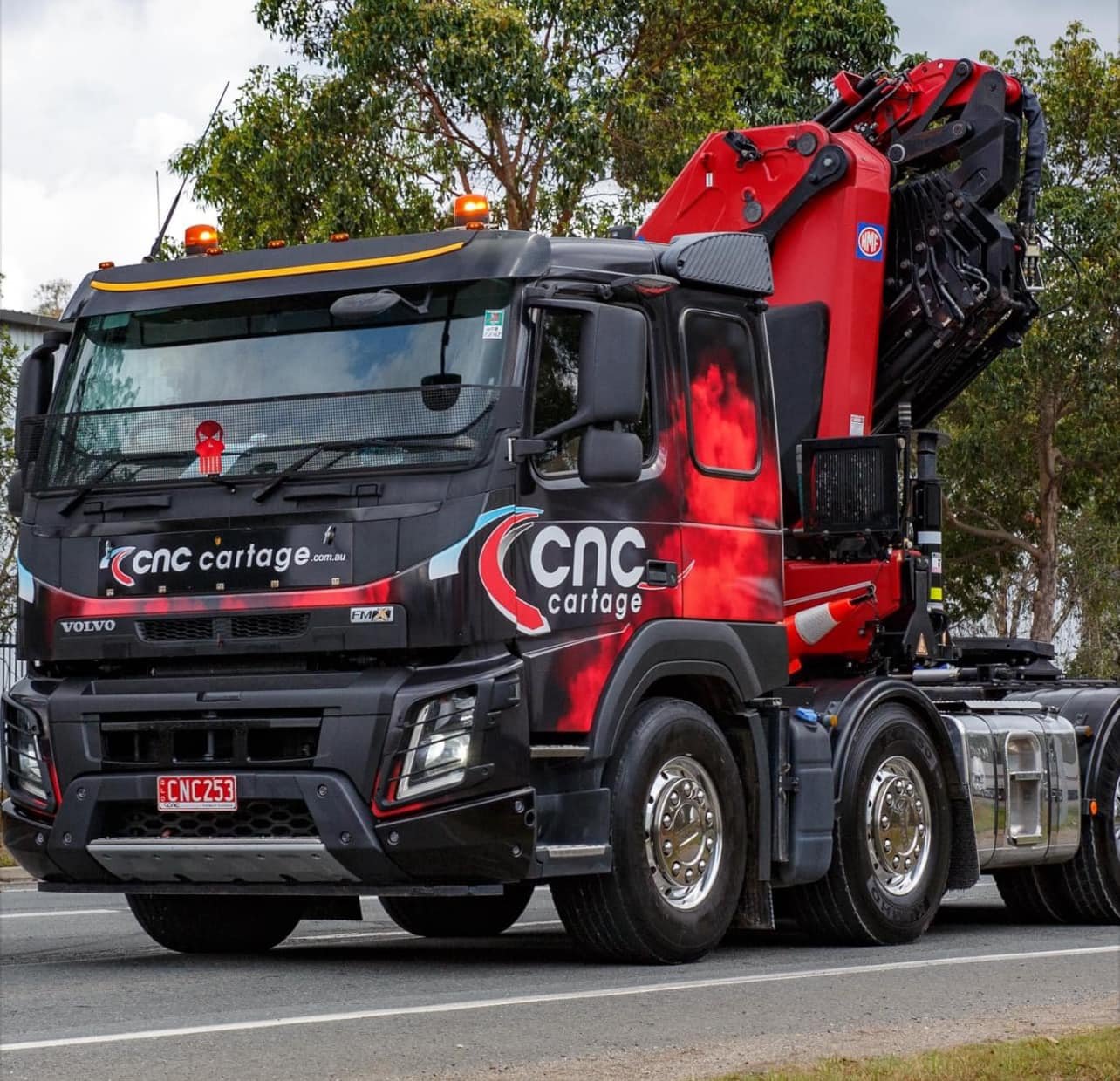

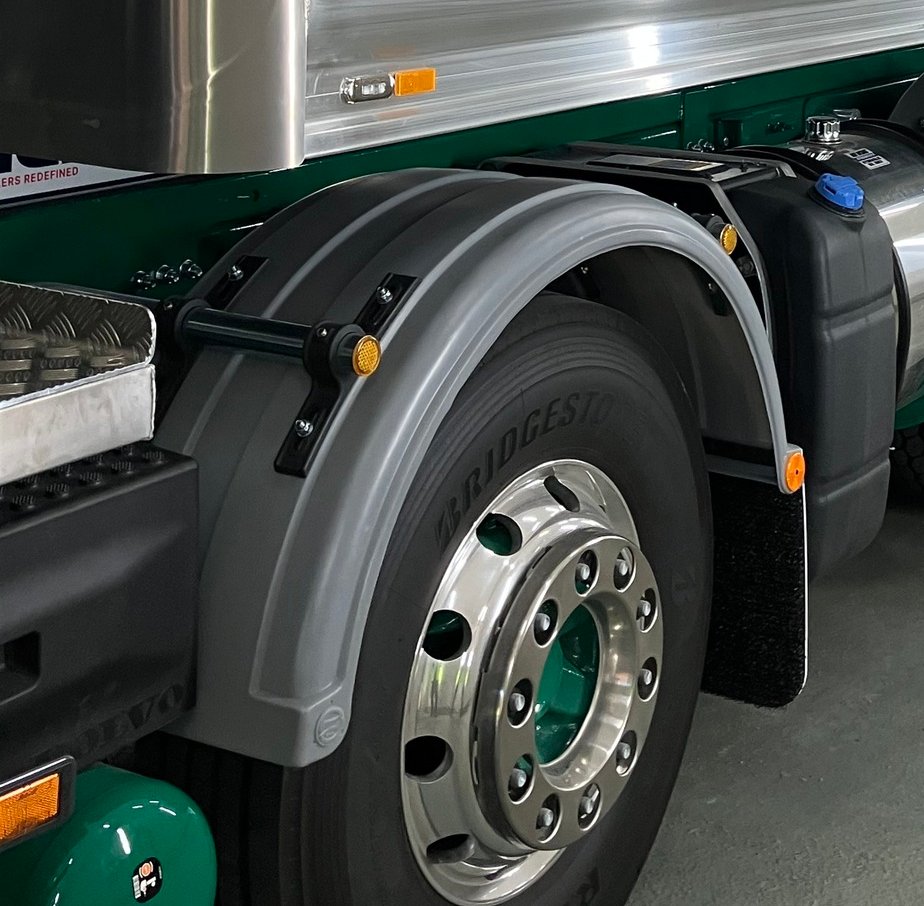

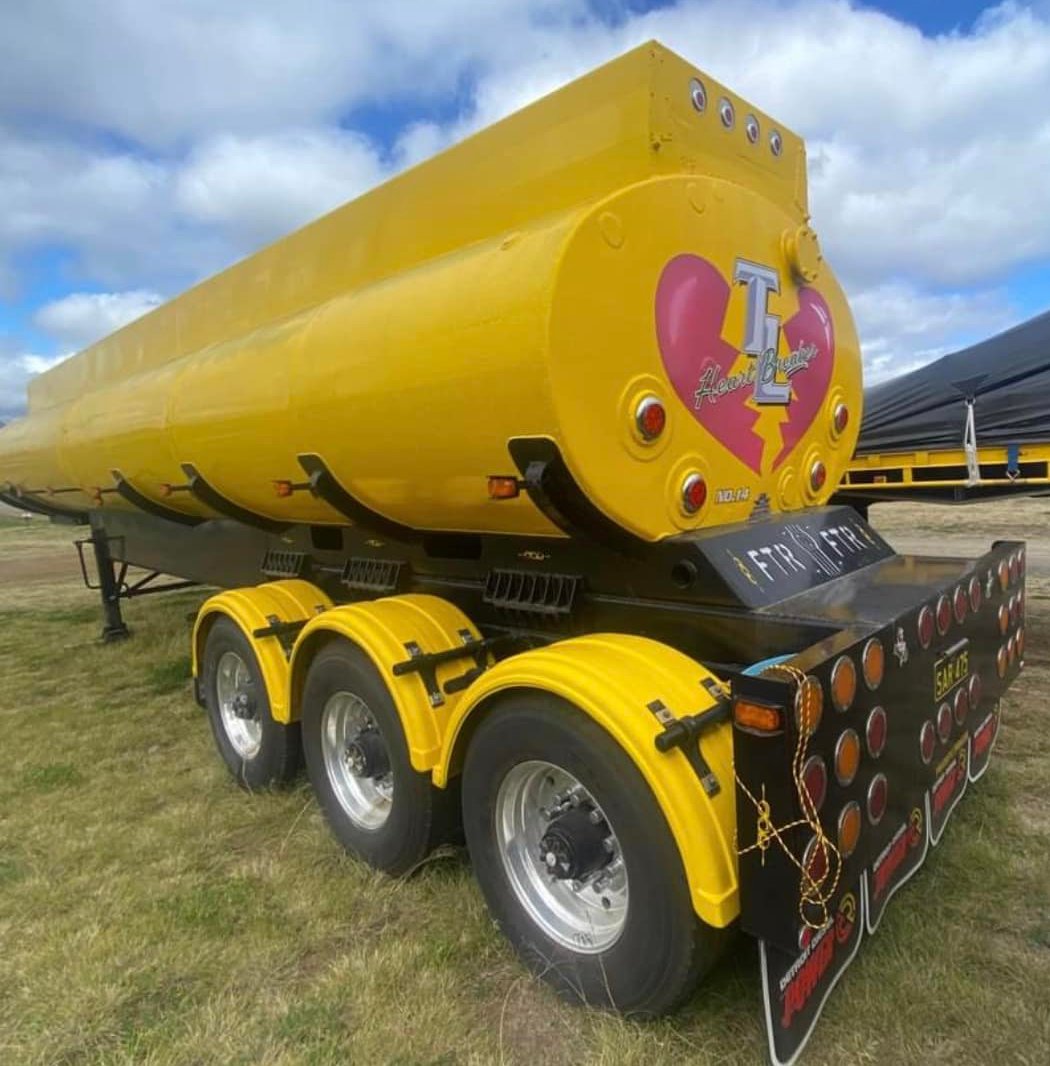

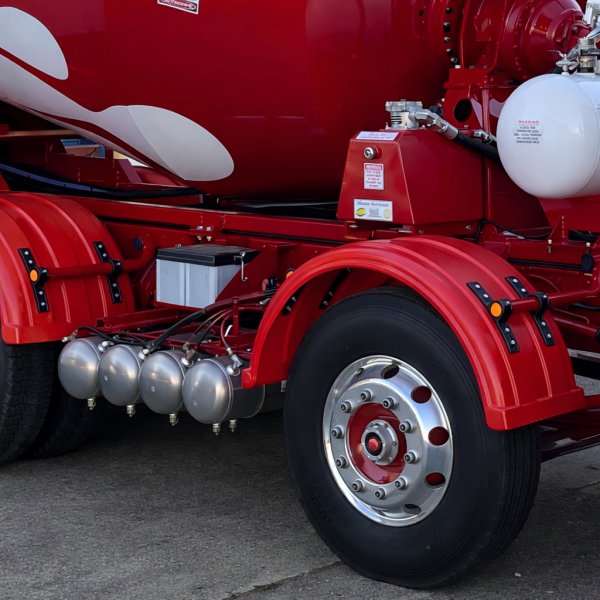

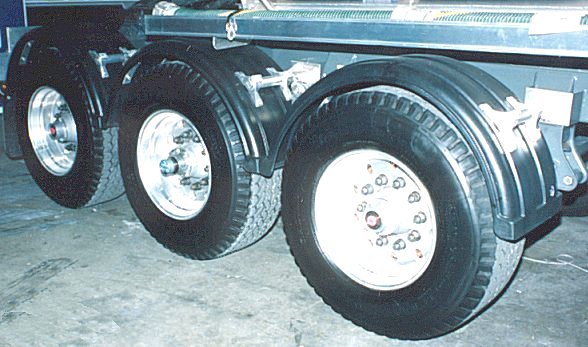

The following images are technical drawings & sample photo of an polyethylene super single mudguard with curved edge. Suitable for semi trailers with super single tyres and second steer wheels. Part # P470 Weight 4kg each. Use spray suppressant kit SSKIT-P100R for anti spray requirements.
Mudguard - Click to Enlarge

PDF DWG # P470

Truck Mudguards

Truck Mudguards

 Truck Mudguards  Truck Mudguards

Part Numbers and Associated products

Description
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard
Super Single Truck Mudguard

Colour
Black
Silver
Grey
White
Red
Light Blue
Dark Blue
Light Green
Dark Green
Orange
Yellow
Brown
Olive Drab

Part
P470BK 1
P470SL 1
P470GY 1
P470WH 1
P470RD 1
P470BU 1
P470BU 2
P470GN 1
P470GN 2
P470OR 2
P470YL 1
P470BN 1
P470OD 1

P630 Truck Mudguard fits Semitrailers and Prime Movers

Description
Chassis Pole
Hanger Bracket
Spray suppressant kit
Web page
More info
More info
More info
Part Number
CM-OS
BK-P300
SSKIT-P100R
Shipping Size and Weight Estimates
Qty Length Width Height Weight Cubic Measurment
1 x P470 120cm 50cm 60cm 5kg 0.36 mtr
2 x P470 120cm 50cm 65cm 9kg 0.39 mtr
3 x P470 120cm 50cm 70cm 14kg 0.42 mtr
4 x P470 120cm 50cm 75cm 18kg 0.45 mtr
5 x P470 120cm 50cm 80cm 23kg 0.48 mtr
6 x P470 120cm 50cm 85cm 27kg 0.51 mtr
7 x P470 120cm 50cm 90cm 32kg 0.54 mtr
8 x P470 120cm 50cm 95cm 36kg 0.57 mtr
9 x P470 120cm 50cm 100cm 41kg 0.6 mtr
10 x P470 120cm 50cm 105cm 45kg 0.63 mtr
11 x P470 120cm 50cm 110cm 50kg 0.66 mtr
12 x P470 120cm 50cm 115cm 54kg 0.69 mtr
